Product Details

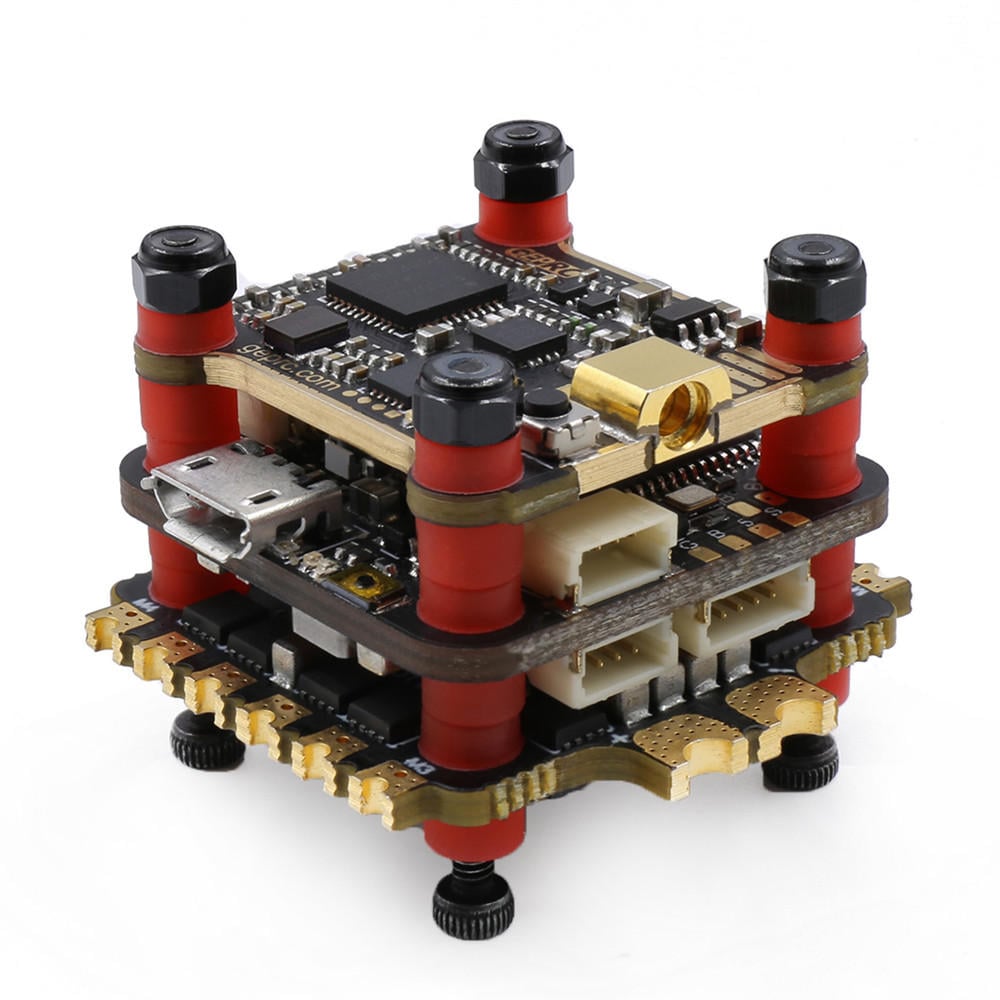

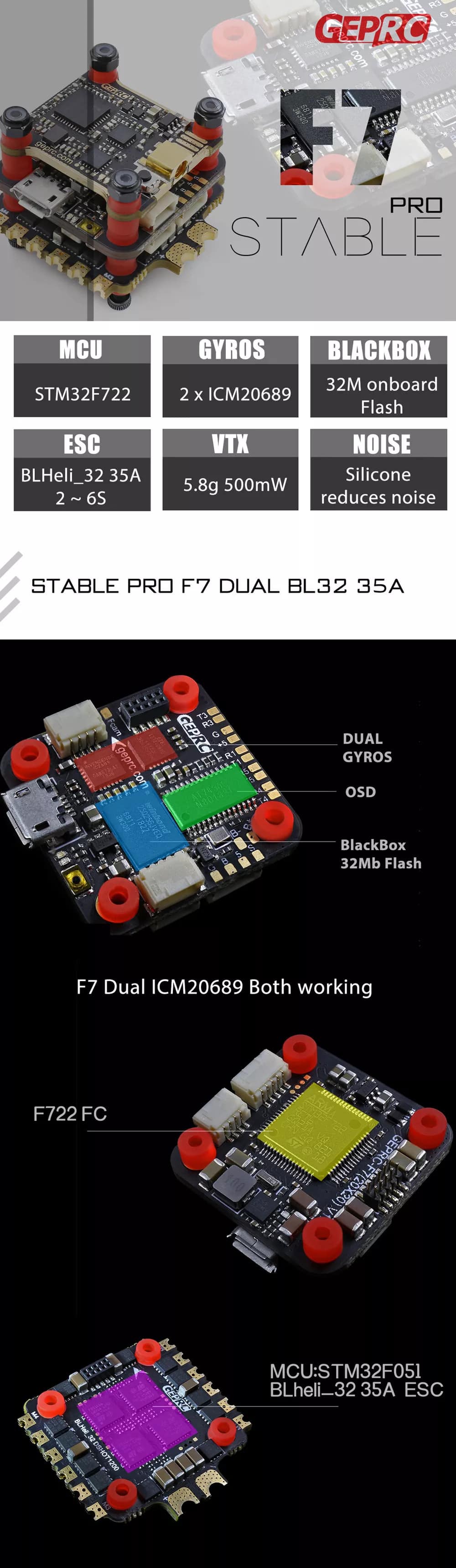

The Stable Pro F7 dual features two ICM20689 mounted 90 degrees offset to one another connected via SPI to a F7 MCU. This combination gives your flight controller fast gyro update rates while still being able to handle noise and vibrations with ease. Apart from this, this GepRC flight stack includes a 35A BLheli 32 ESC, a 500mW VTX all on a neat 20x20 flight stack.
Resources
Specifications
- Brand Name: Geprc
- Model: Stable Pro F7

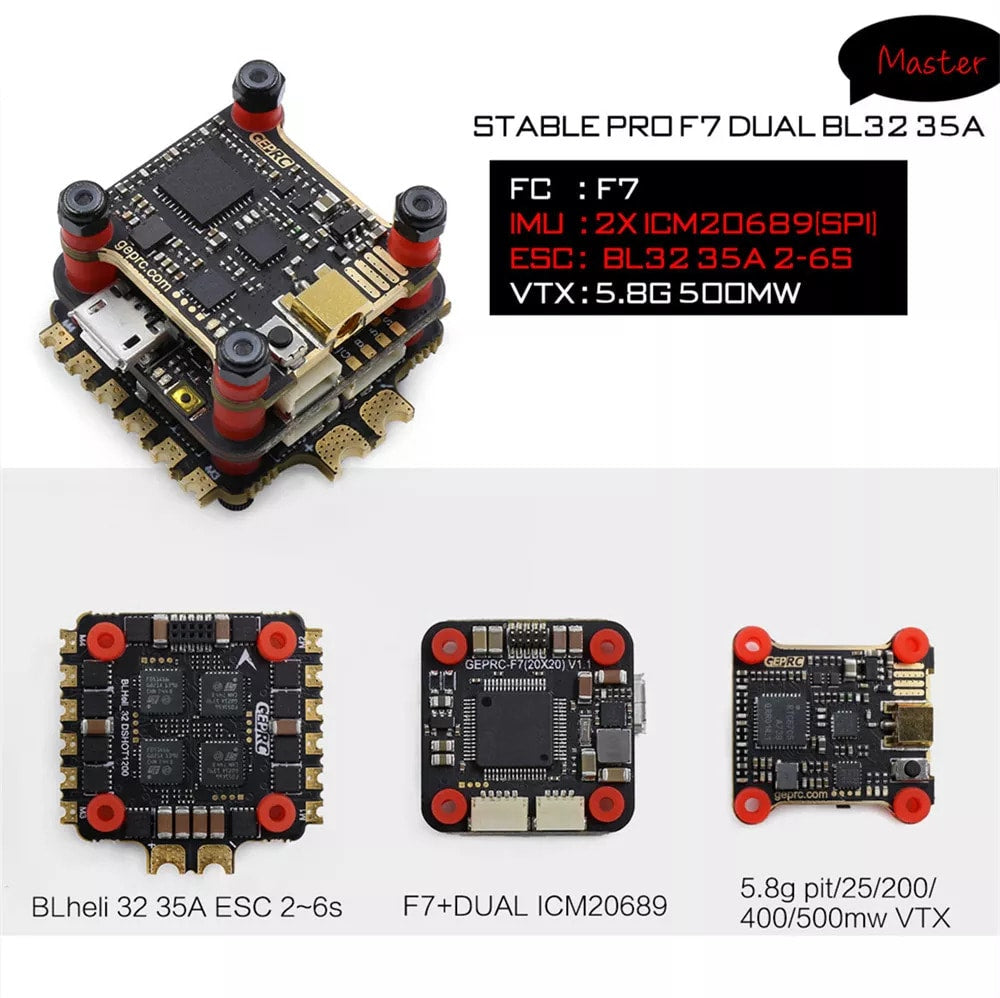

- Item Name: Dual Gyro F7 Flight Controller & 35A BLheli_32 4in1 ESC & 5.8G 500mW VTX Stack

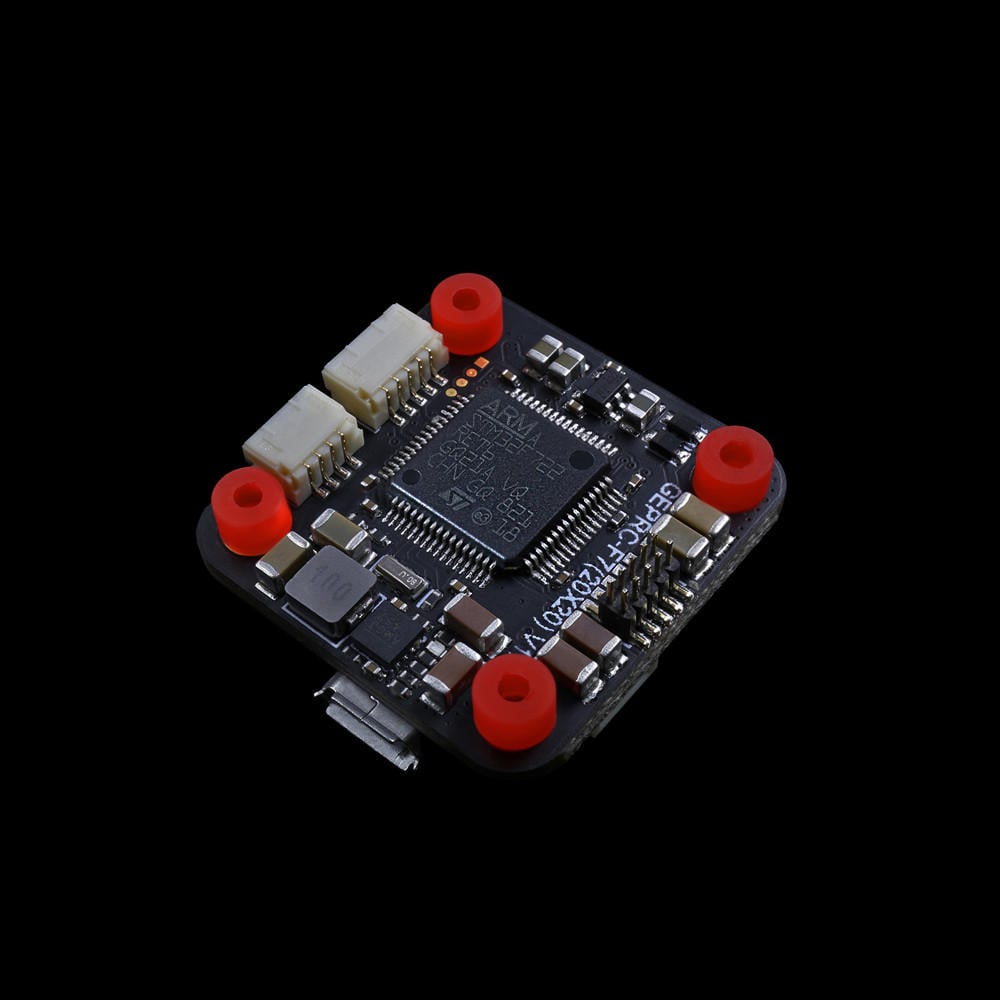

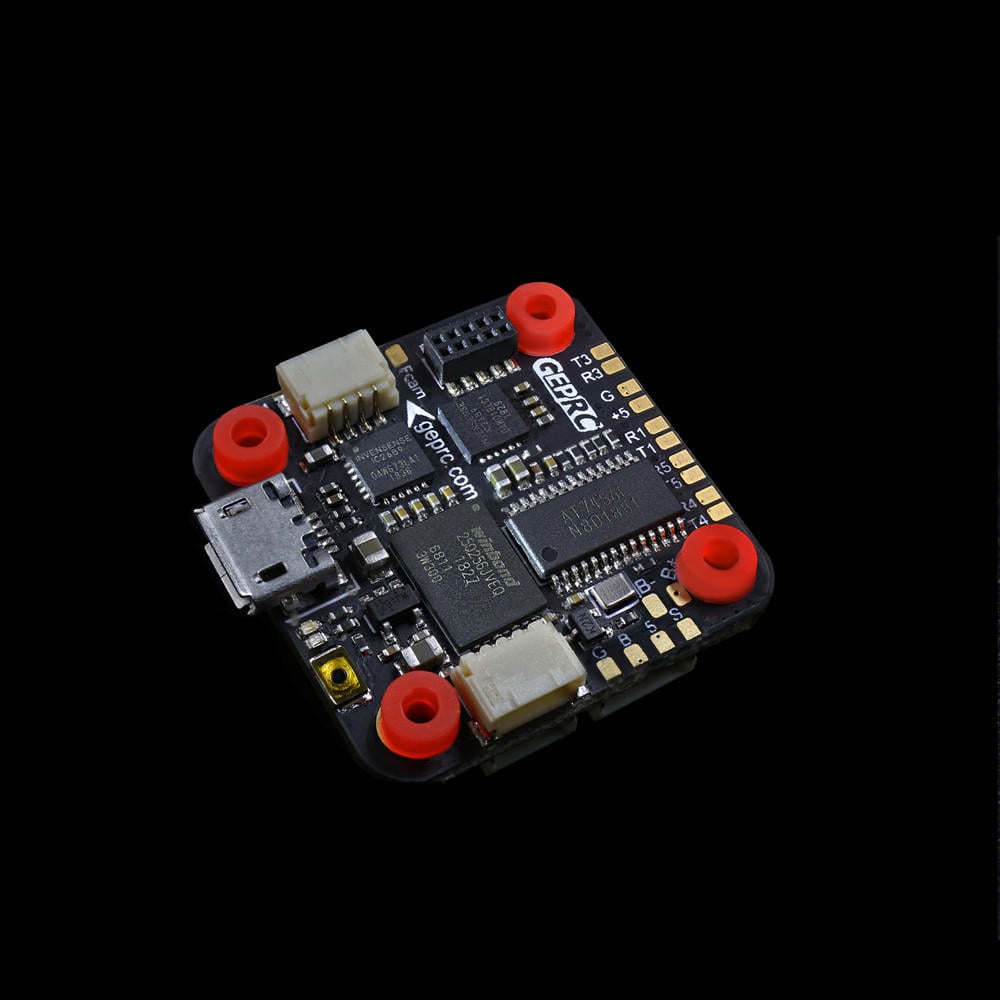

F7 Flight Controller
- Model:STABLE PRO F7
- MCU: STM32F722RET6
- IMU: 2x ICM20689(SPI)
- BlackBox: 32Mb onboard Flash
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro:NO
- BEC Output: 5V@3A
- Integrated LC Filter
- Input Voltage: 2-6S Lipo
- Firmware target: EXF722DUAL
- Size: 26x26mm board, 20mm mounting holes (M2)

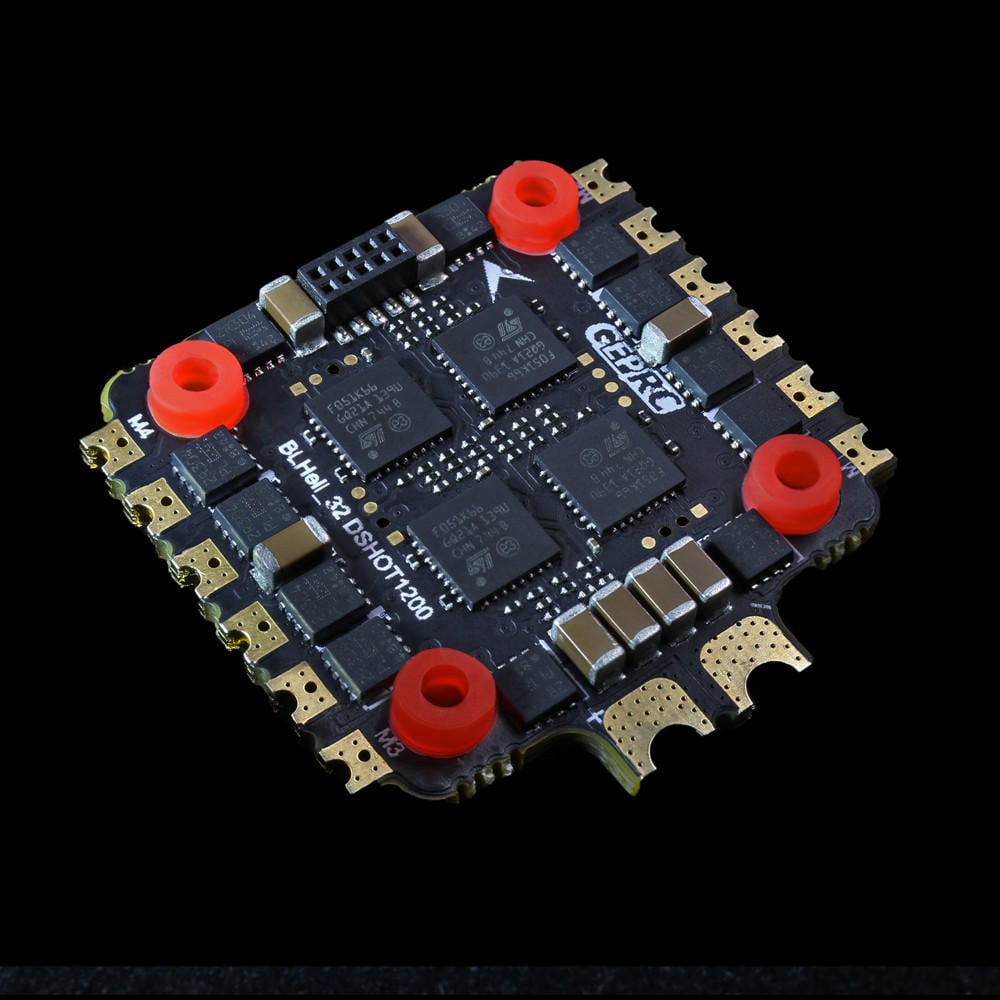

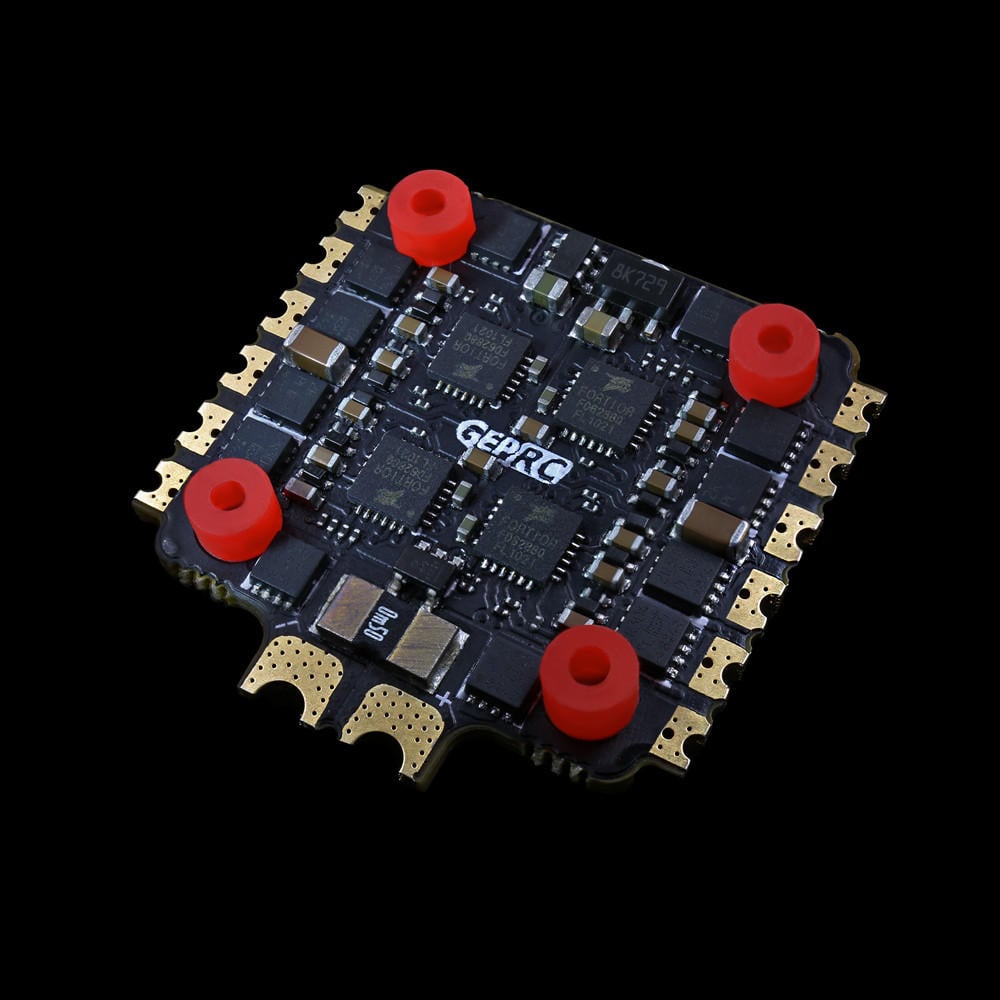

35A BLheli_32 4in1 ESC
- MCU:STM32F051
- Input:2-6s lipo
- Constant:35Amps
- Burst:45Amps
- Dimensions:31*31mm(including the power pads)
- Mounting Holes:20*20mm,M2
- Supports Dshot1200,Proshot,Oneshot,Multishot
- Current meter: Yes
- Target: GEPRC-BL32-4IN1

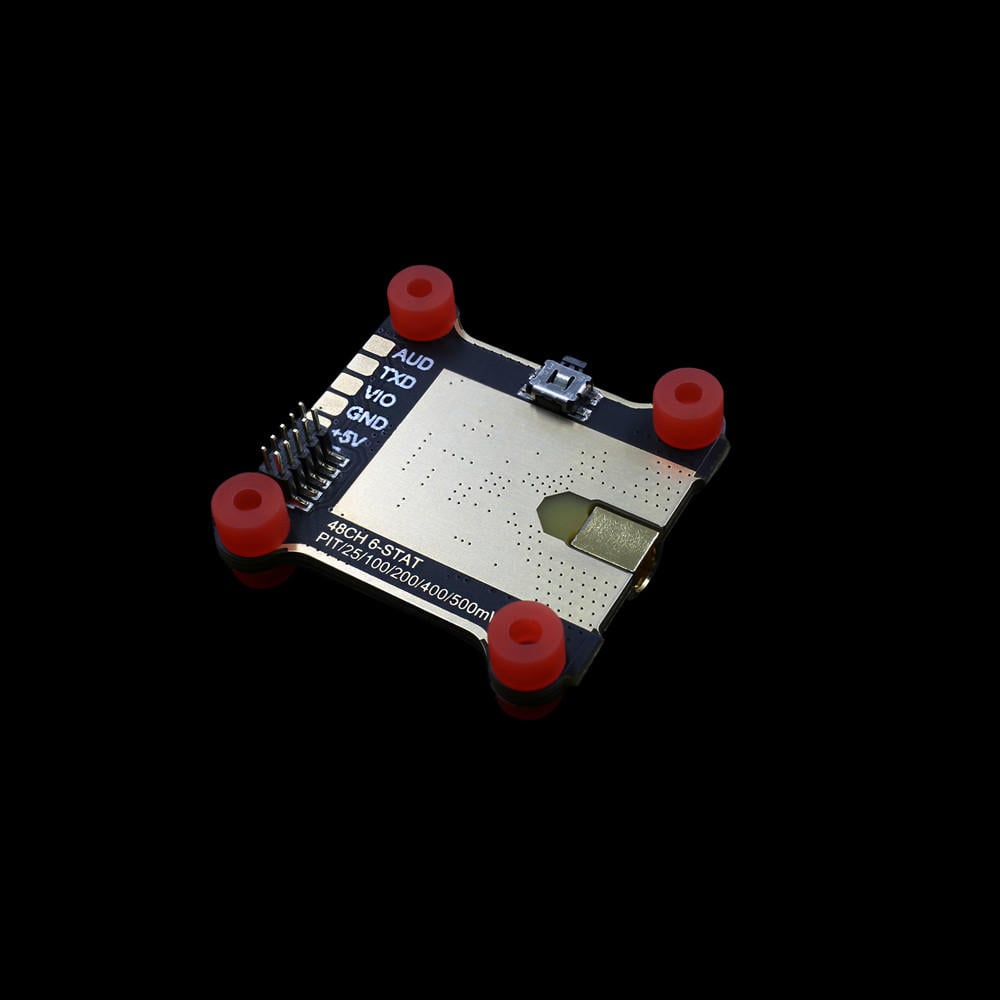

5.8G 48CH 500mW VTX
- Input voltage: 5V
- Channel: 48
- Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW
- Size: 24 * 26 mm
- Mounting Holes Dimension: 20mm x 20mm
- Connector type: MMCX Connector
- BEC Output: 5V/1A for Camera of FC
- Weight: 2.3g
- Traditional button
- IRC Tramp protocol

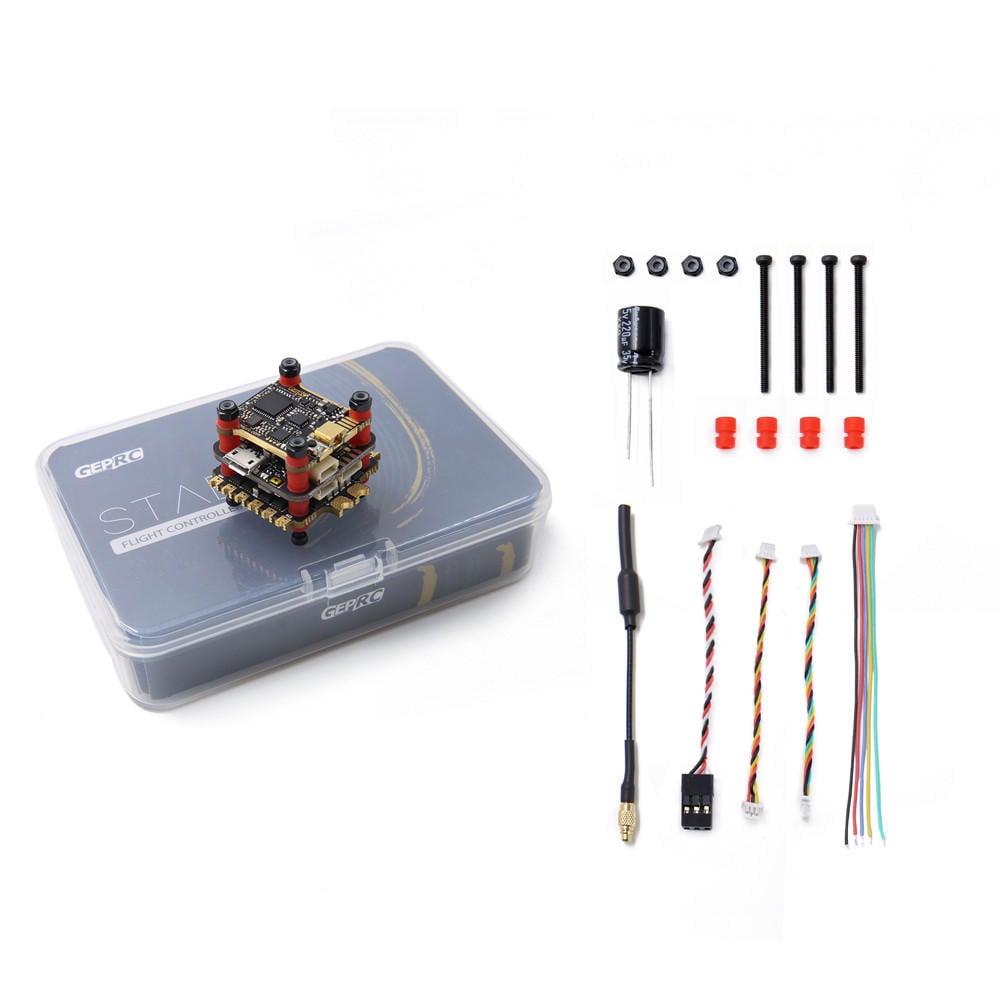

Package Included
- 1x GepRC Stable Pro F7 Dual Flight Stack

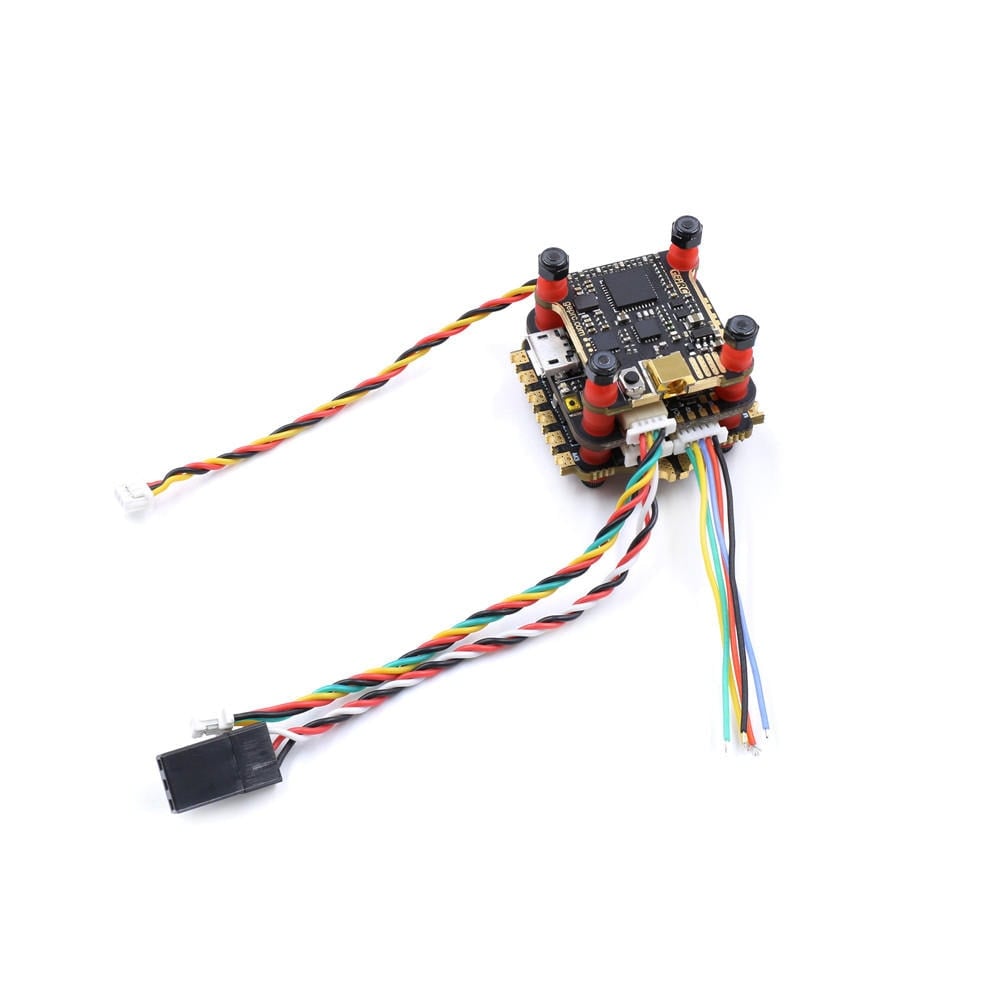

- Screws and cables
- FPV antenna
- Capacitor
