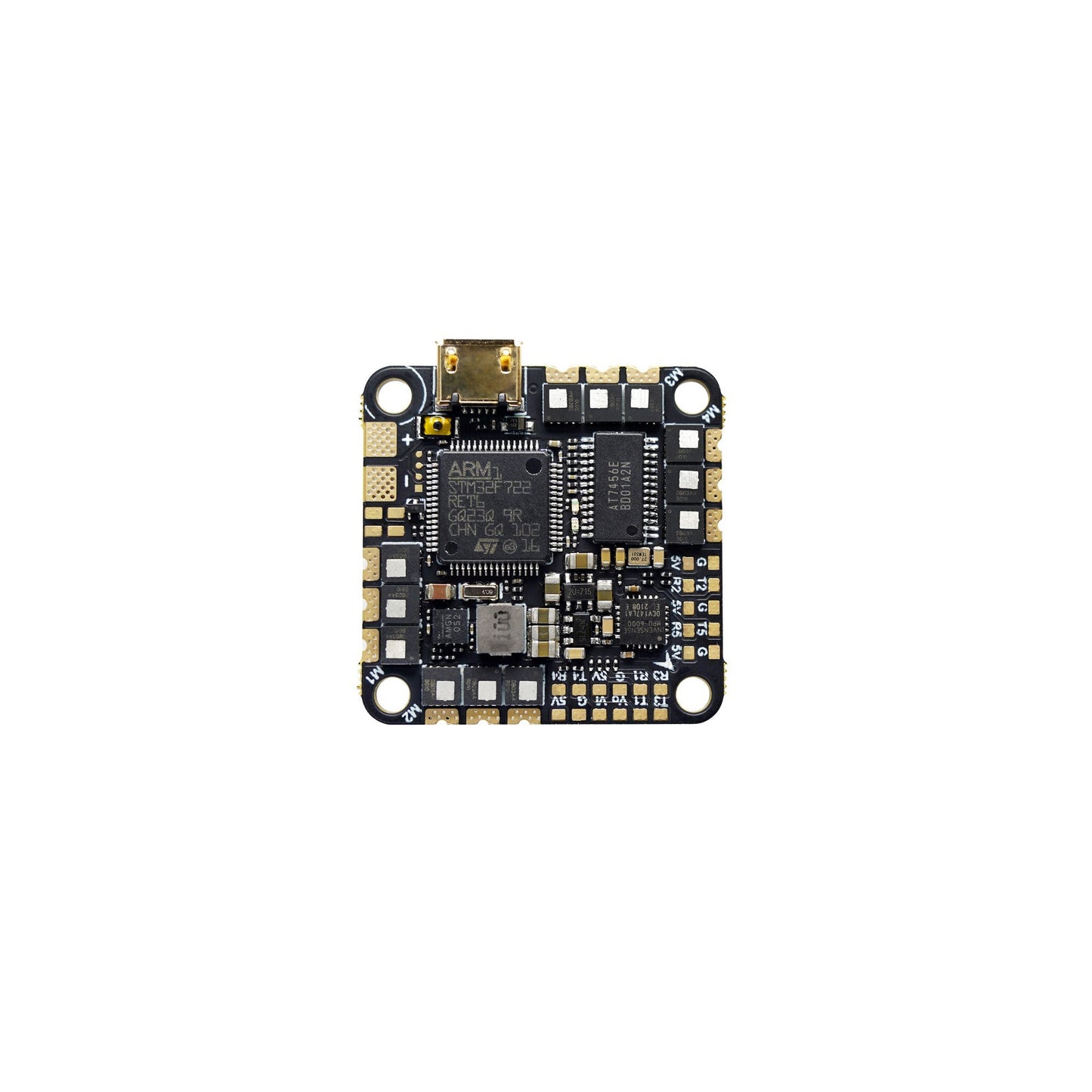

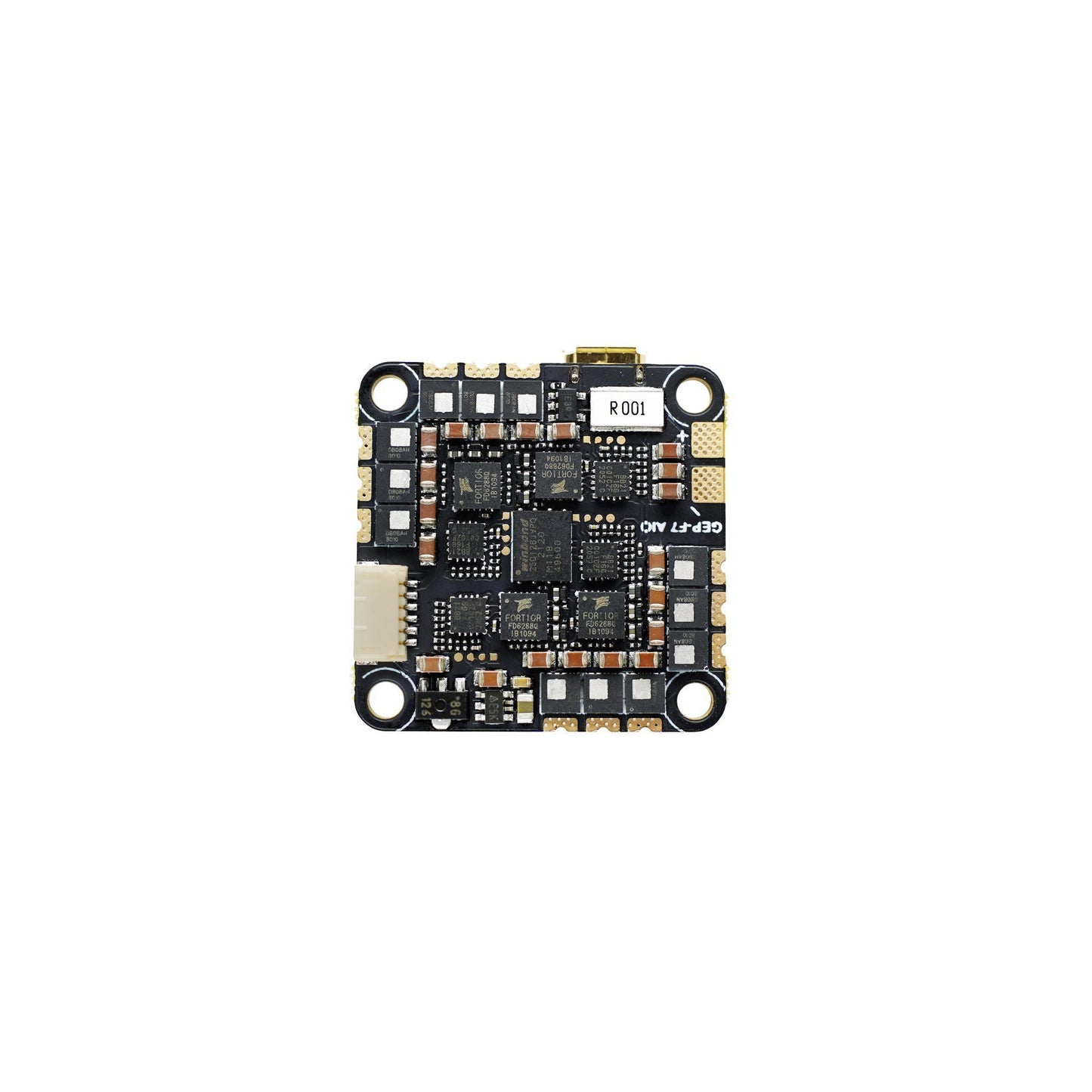

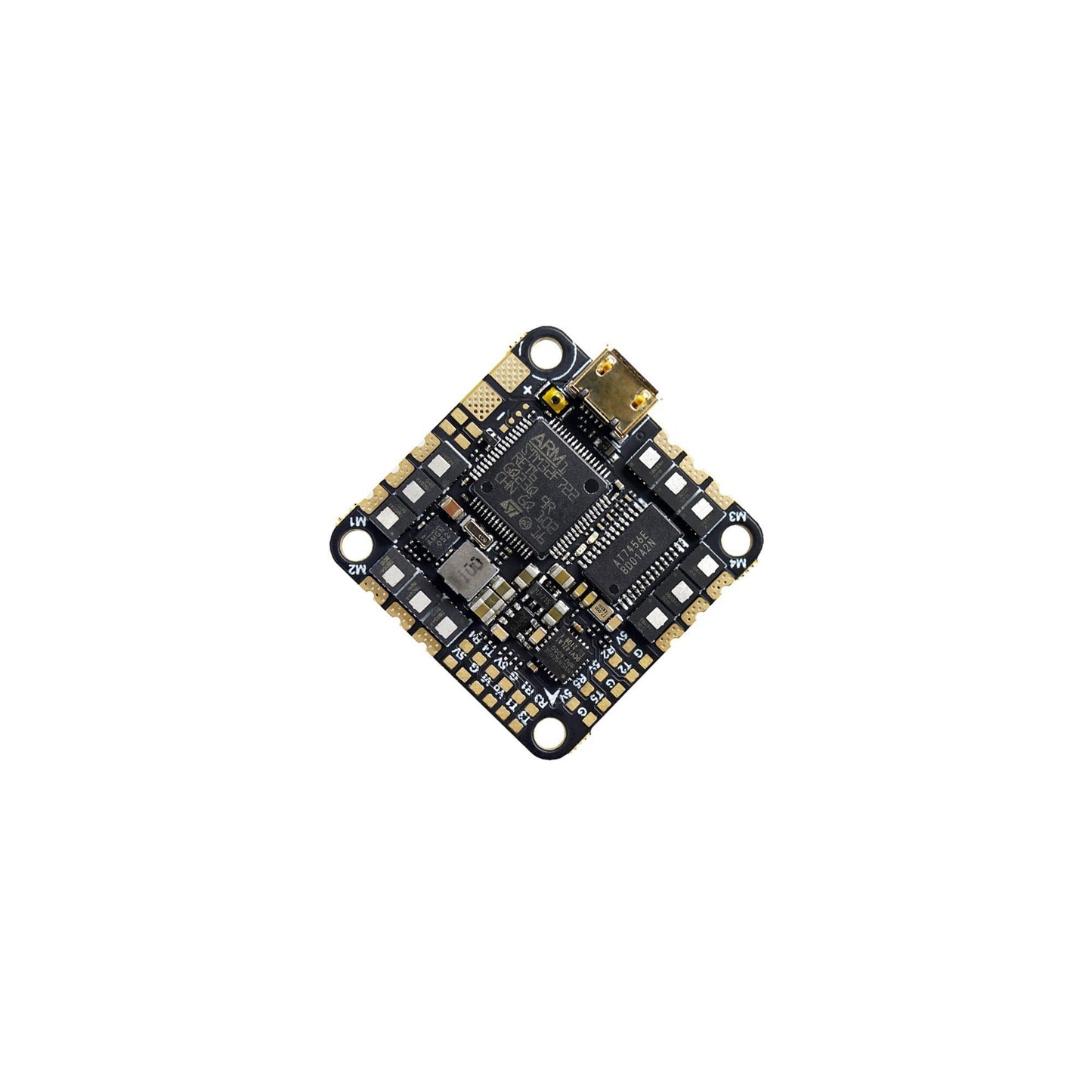

GEPRC GEP-F722-45A AIO V2 Flight Controller & ESC
The GEPRC GEP-F722-45A AIO V2 is an advanced, all-in-one flight controller and ESC combo designed for high-performance FPV drones. With an STM32F722 MCU at its core and a powerful 45A ESC, this board delivers exceptional processing speed and control, perfect for handling demanding maneuvers and high-thrust applications. Equipped with an integrated LC filter for cleaner power output, it ensures stable and interference-free performance for smoother flights and sharper video feeds.
This board includes a 42688 gyro/accelerometer for precise motion tracking, and a Betaflight OSD with the AT7456E chip for real-time flight data display. With support for multiple protocols (Dshot600, Oneshot, and Multishot) and compatibility with 2-6S batteries, it offers versatility and robust power management across different builds. The compact 32x32mm form factor and 25.5×25.5mm mounting pattern make it suitable for a wide range of frame sizes, and at only 8.8g, it adds minimal weight to your build.
Key Features:
- Powerful Flight Controller : STM32F722 MCU for fast processing and precise flight control.
- Integrated 45A ESC : Handles continuous 45A current, ideal for high-performance drones.
- Versatile Protocol Support : Compatible with Dshot600, Oneshot, and Multishot.
- Betaflight OSD : Real-time data with AT7456E OSD chip for customized flight feedback.
- Integrated LC Filter : Provides cleaner power, reducing electrical noise for better video clarity.
- Lightweight & Compact : Only 8.8g and measures 32x32mm, making it suitable for tight builds.
- Flexible Power Input : Supports 2-6S LiPo batteries, offering adaptability for various power setups.
Specifications:
- Model : GEP-F722-45A AIO V2
- MCU : STM32F722
- IMU : 42688 gyro/accelerometer (SPI)
- OSD : Betaflight OSD with AT7456E
- BEC Output : 5V @ 1A
- ESC MCU : 8BB21F16G
- Continuous Current : 45A
- Input Voltage : 2S - 6S LiPo
- UART Ports : R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
- Board Dimensions : 32 x 32mm
- Mounting Hole Pattern : 25.5 x 25.5mm
- Weight : 8.8g
What's in the Box:
- 1 x GEPRC GEP-F722-45A AIO V2 Flight Controller & ESC
