Product Details

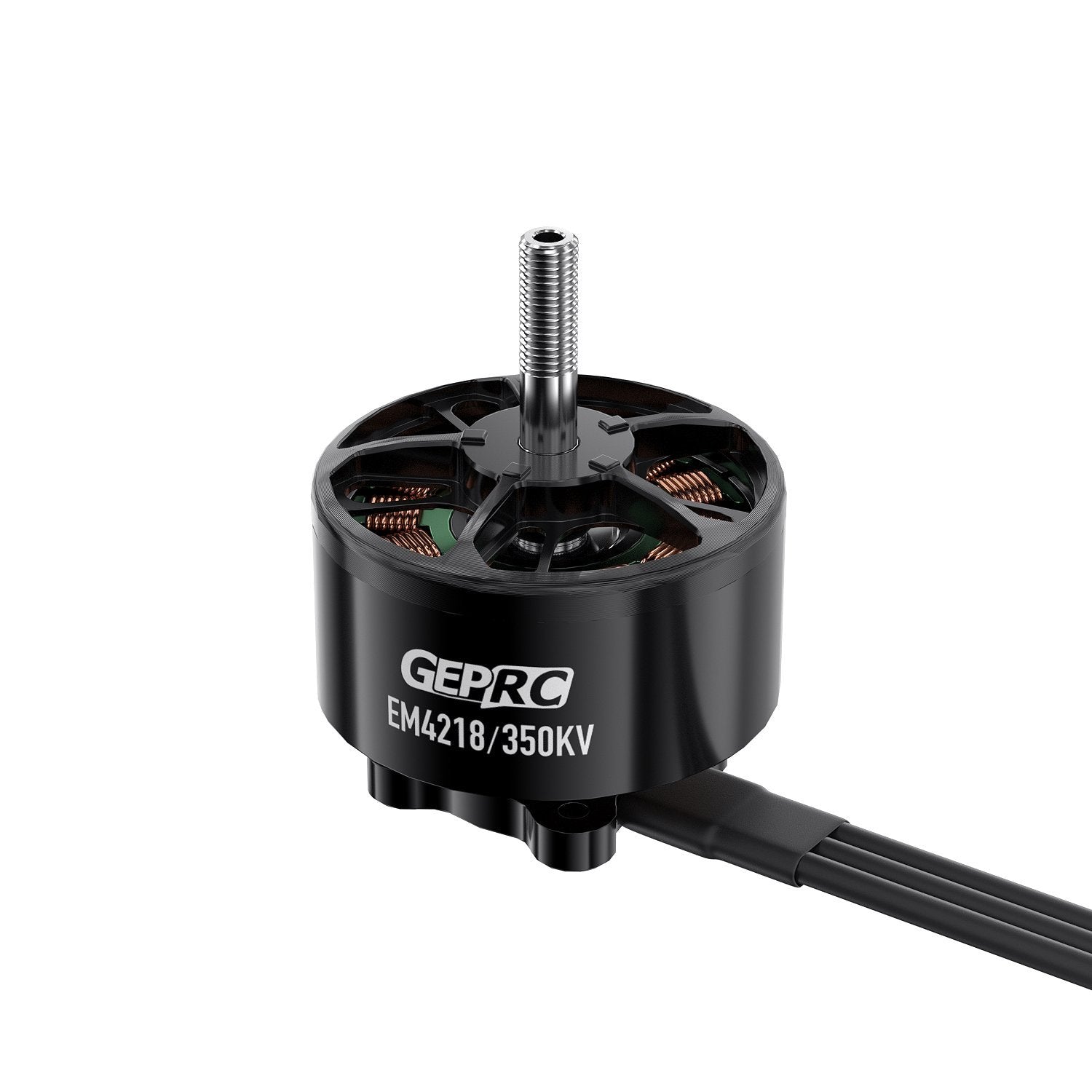

GEPRC EM4218 350KV Motor
The GEPRC EM4218 350KV Motor is a high-performance motor designed to power long-range FPV drones with precision and reliability. Part of the new EM series , it combines a high-strength M6 steel shaft and a high-torque magnetic circuit to handle the demands of large 13-15 inch propellers. Whether you're cruising the skies or capturing cinematic footage, this motor delivers impressive torque and efficiency.
With a robust construction, including N52H magnets and NMB bearings , the EM4218 ensures durability while maintaining smooth operation. Rated for 33.6V (8S LiPo) power systems, it provides up to 1800W of maximum power , making it ideal for ambitious FPV builds that require steady performance over long distances.
Key Features:
- Long-range FPV optimized : Built specifically for larger drones with 13-15 inch propellers.
- M6 steel shaft : Engineered for strength and durability in demanding conditions.
- High-torque design : Magnetic circuit tailored for maximum efficiency and thrust.
- Premium components : Includes N52H magnets and NMB bearings for longevity and smooth operation.
Specifications:
- Model : EM4218 350KV Motor
- KV : 350KV
- Maximum Power : 1800W
- Peak Current : 60A
- Resistance : 50mΩ
- Compatible Propellers : 13-15 inch
- Magnet : N52H
- Bearing Type : NMB
- Configuration : 12N14P
- Dimensions : φ49mm × 40.1mm
- Shaft Diameter : φ6mm
- Shaft Protruding Length : 22.9mm
- Mounting Holes : 30mm × 30mm
- Lead Length : 800mm / 14AWG
- Compatible ESC : 60A-80A
- Input Voltage : 33.6V (8S LiPo)
- Winding Type : Multi-strand copper winding
- Weight : 289g (including wires)
- Compatible Models : Suitable for 13-15 inch long-range FPV drones.
What's in the Box?
- 1 × EM4218 350KV Motor
- 4 × M4×10 round head screws
- 1 × M6 anti-slip nut
Disclaimer: Accessories included are subject to availability and may vary based on stock.
