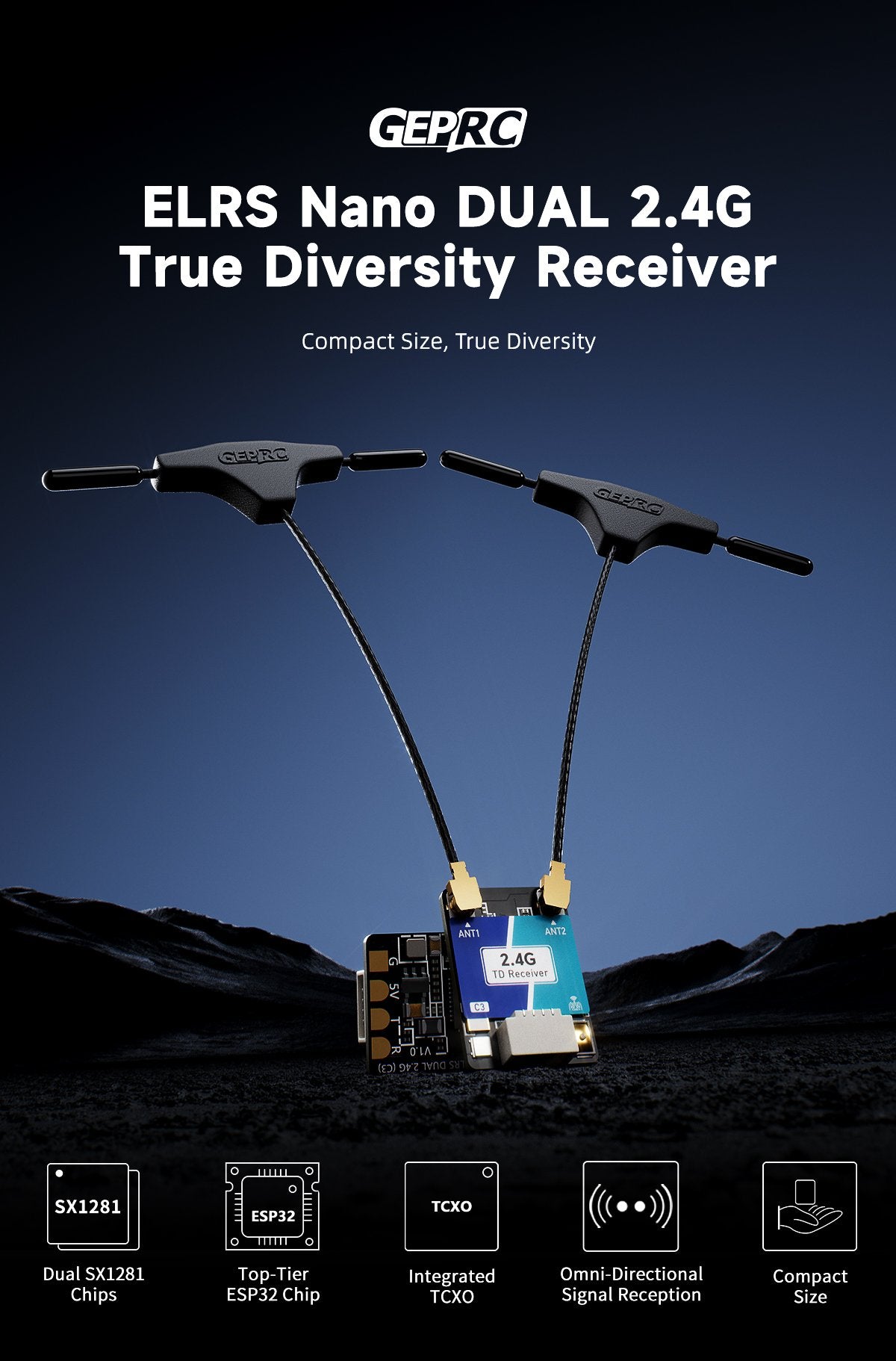

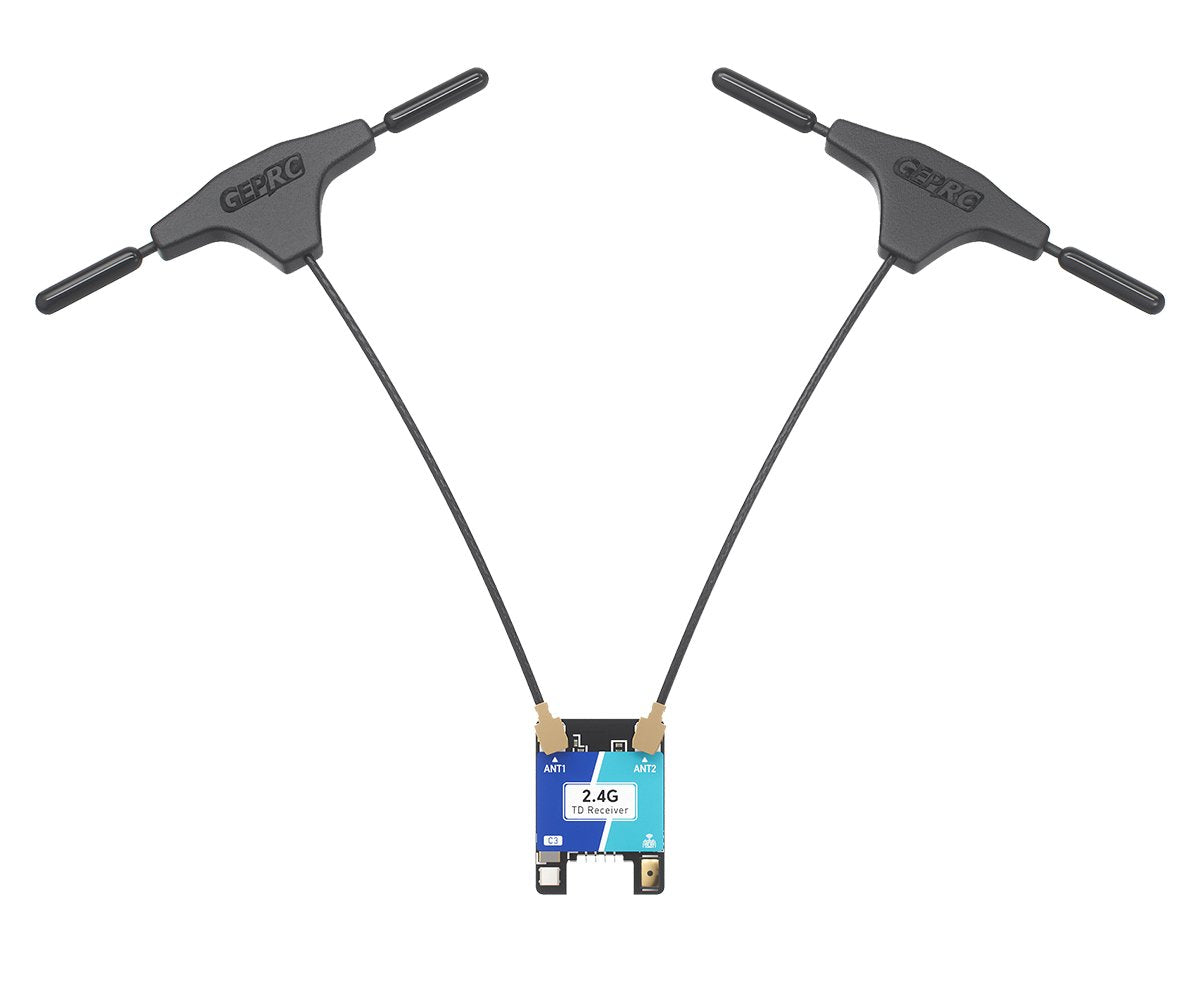

GEPRC ELRS Nano DUAL: Twice the Antenna, Half the Excuses

Look, we know you've been flying with a single antenna like a caveman. The GEPRC ELRS Nano DUAL is here to drag your signal reliability into the 21st century. Based on the open-source ExpressLRS project, this little nugget of tech provides a true dual-antenna diversity system. That means while you're busy losing orientation, your receiver is busy picking the best signal out of the air at a blistering 1000Hz. It’s faster than your reflexes and smarter than your choice of flight paths. If you still manage to failsafe with this, maybe it's time to take up knitting.

Why You Want It

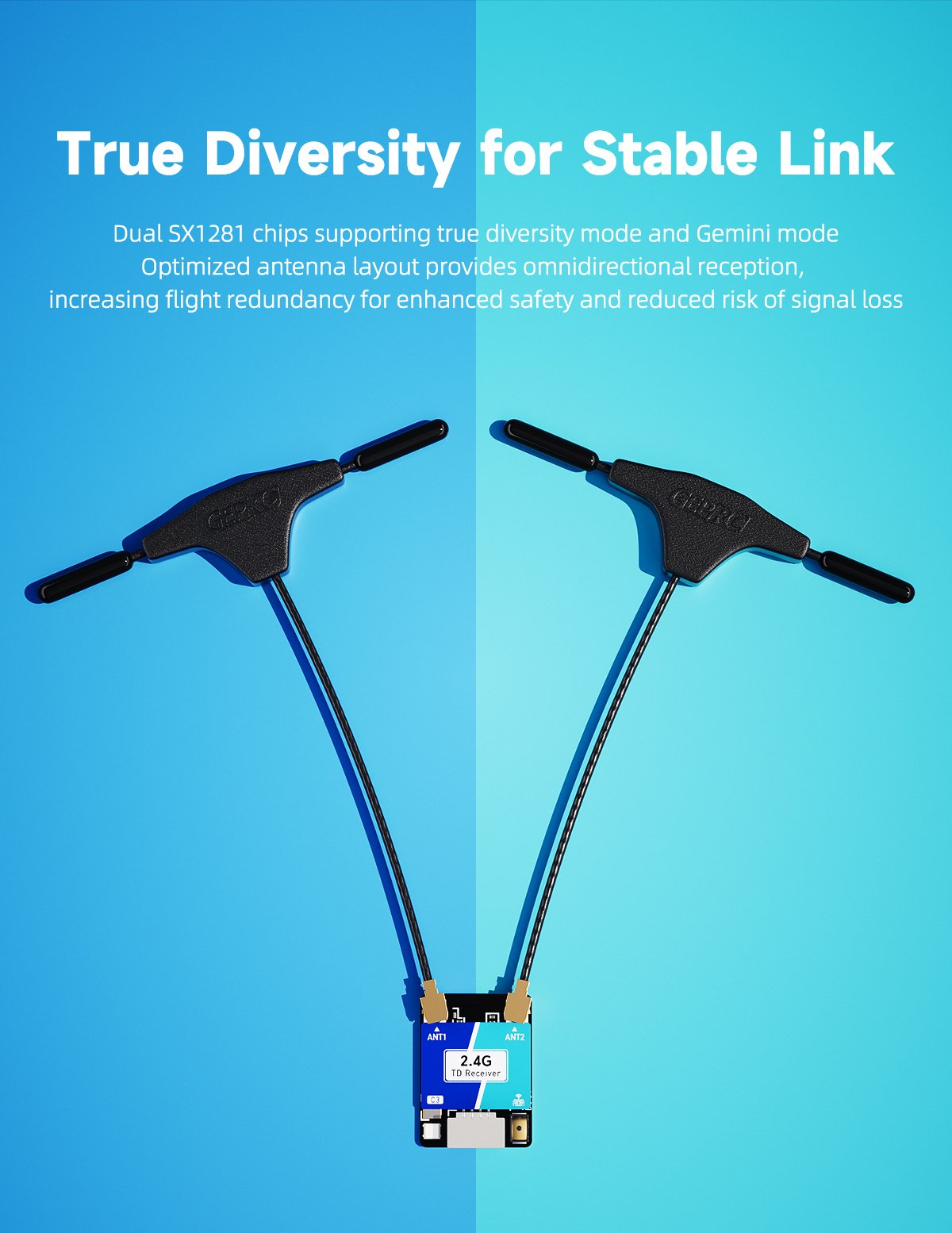

Is it "overkill"? Maybe. Is "overkill" the only thing keeping your 5-inch quad from becoming a permanent part of the local scenery? Absolutely. With the TCXO (temperature-compensated crystal oscillator), your frequency won't drift just because the UK weather decided to shift from 'mildly depressing' to 'sub-zero' in three minutes. Plus, it’s got a true diversity setup—not that "antenna switching" nonsense—meaning two independent RF links are fighting for the honour of delivering your stick inputs with zero latency drama.

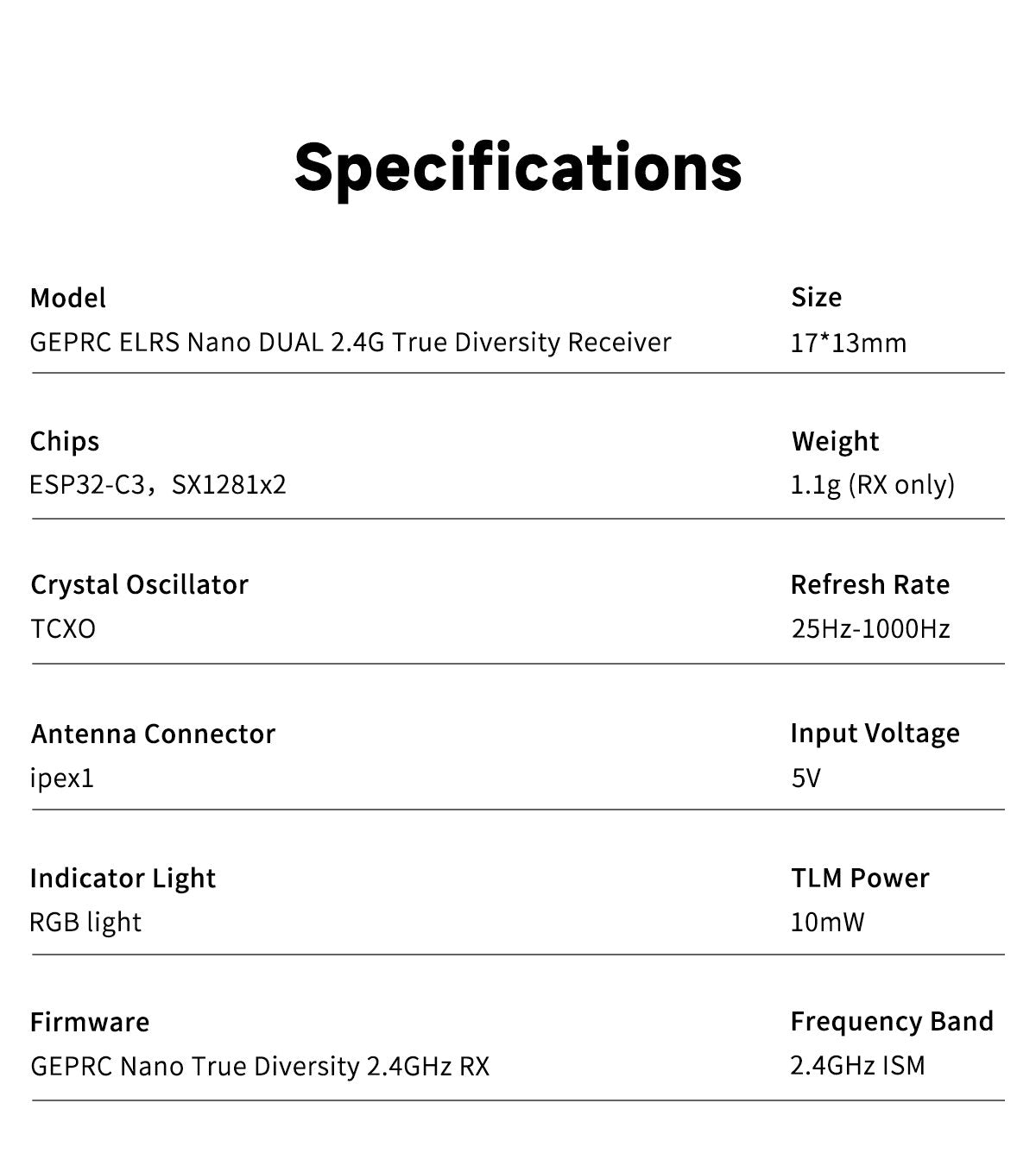

Specs

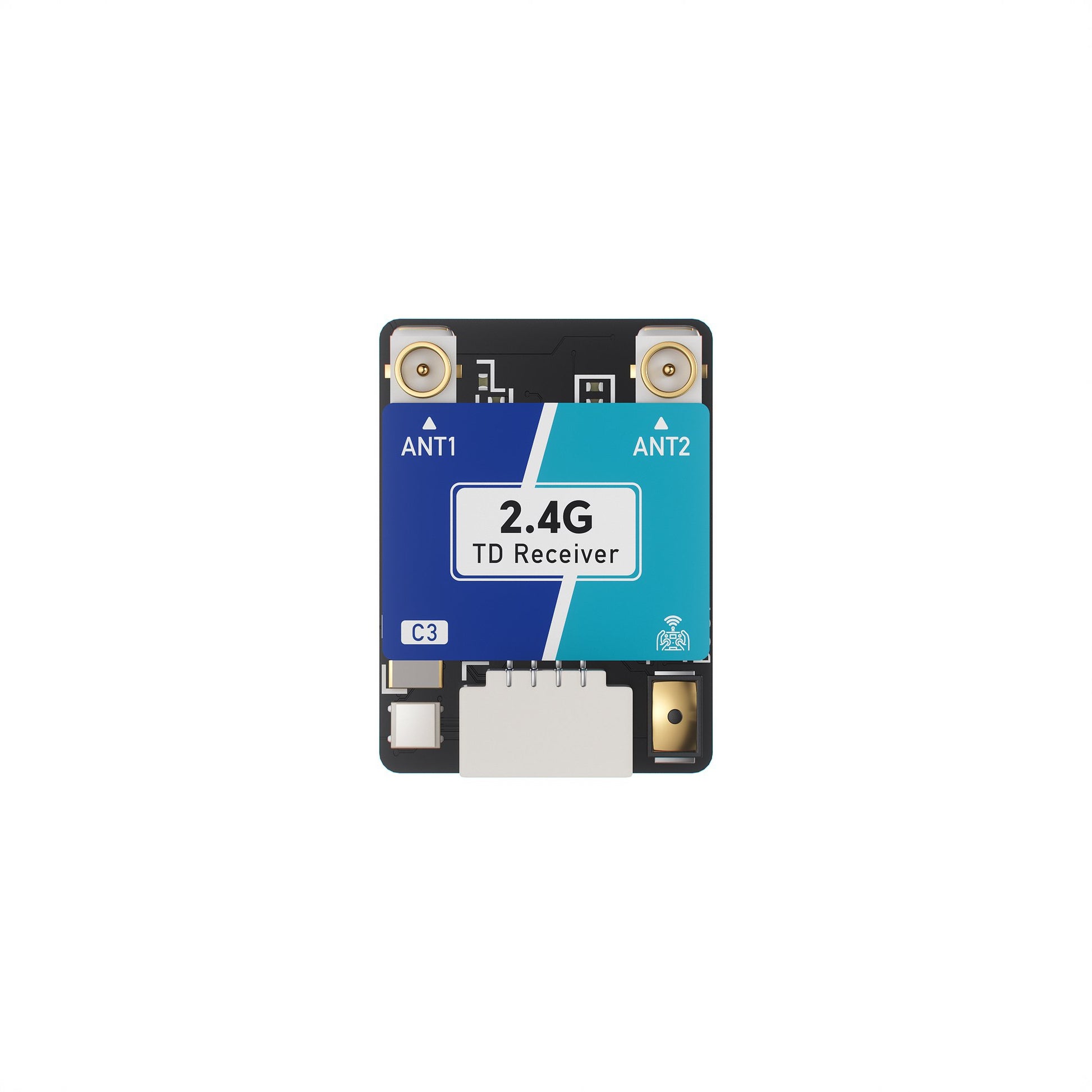

• Model: GEPRC ELRS Nano DUAL 2.4G True Diversity Receiver
• Size: 17*13mm
• Weight: 1.1g (RX only)

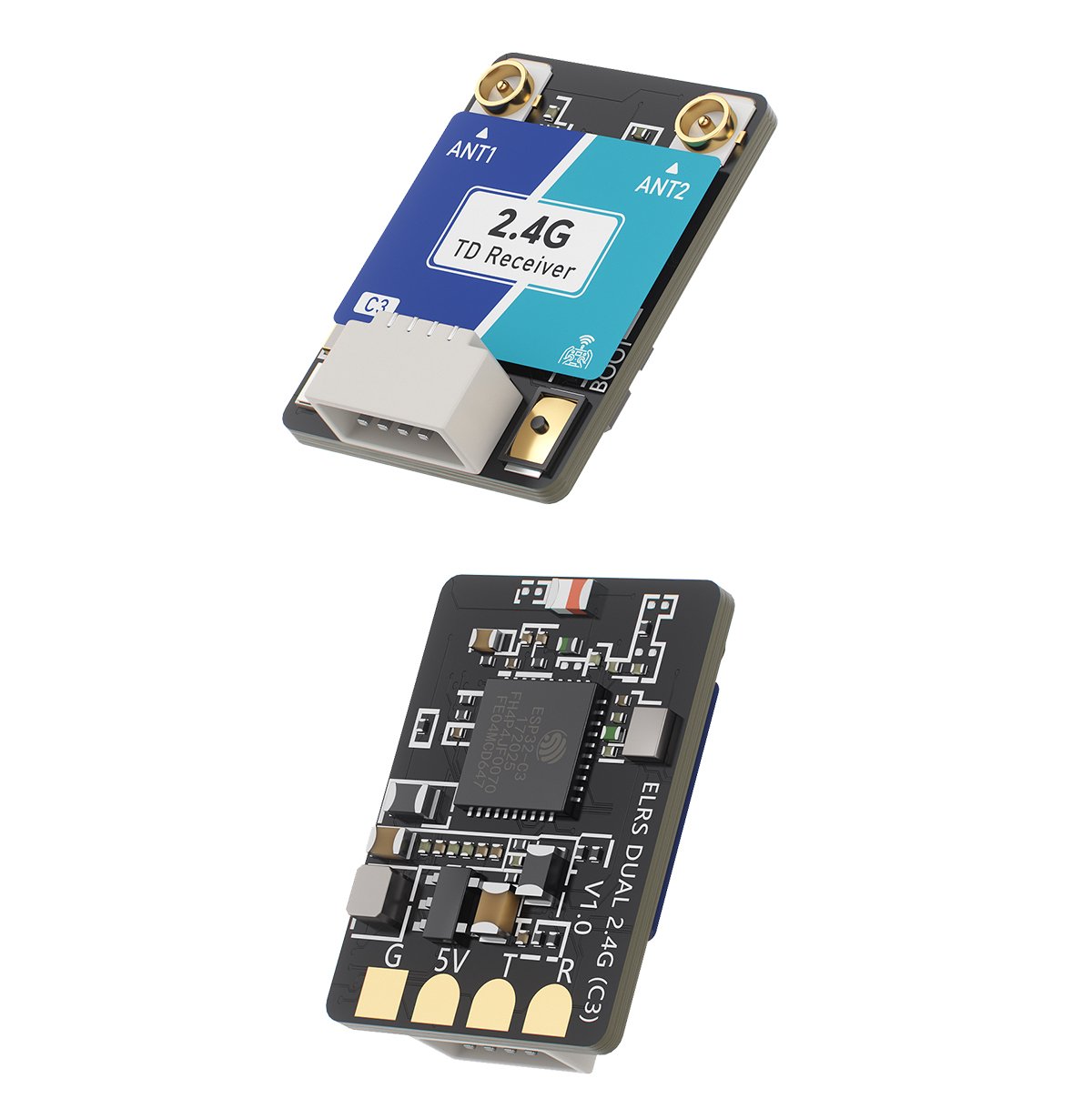

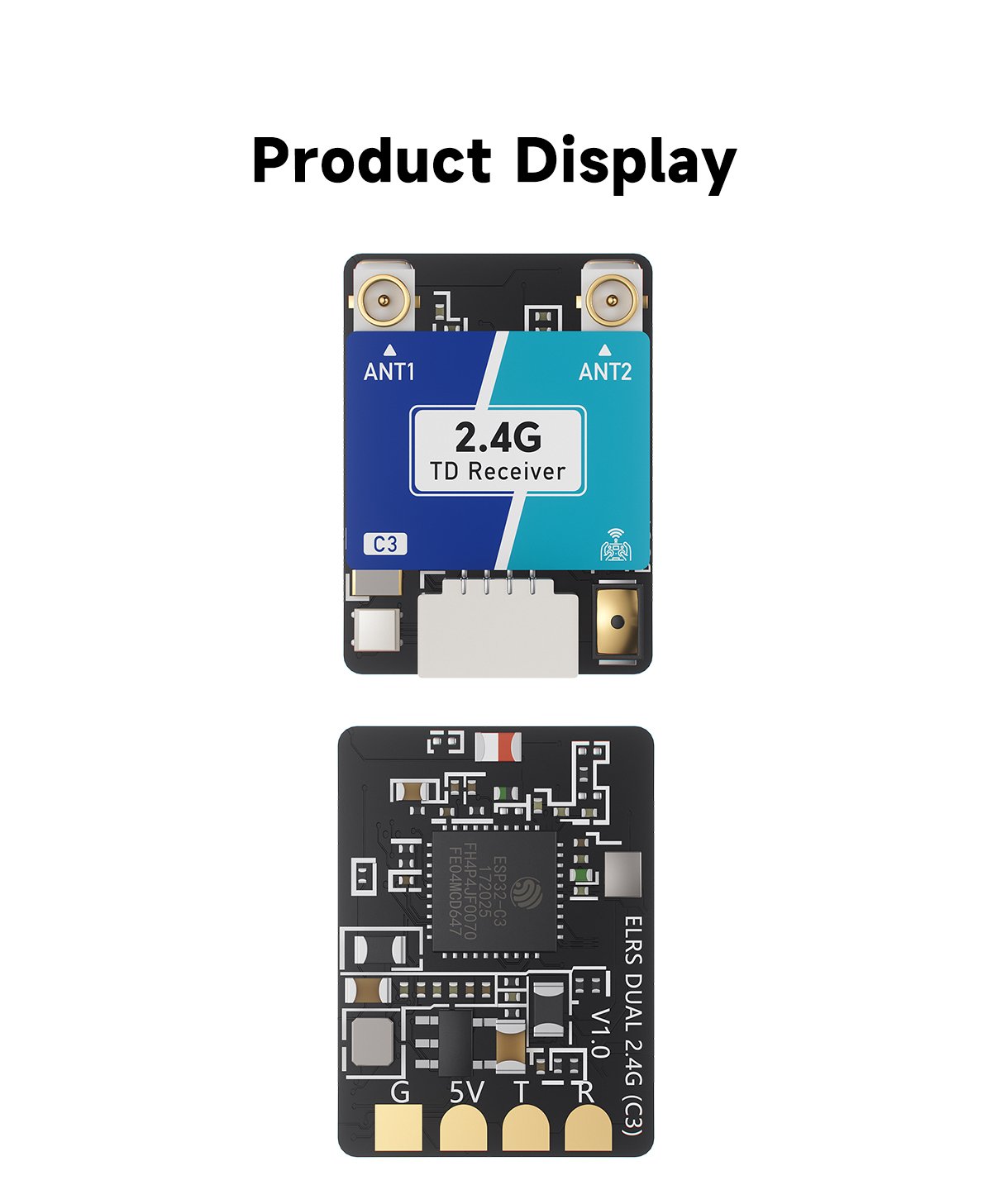

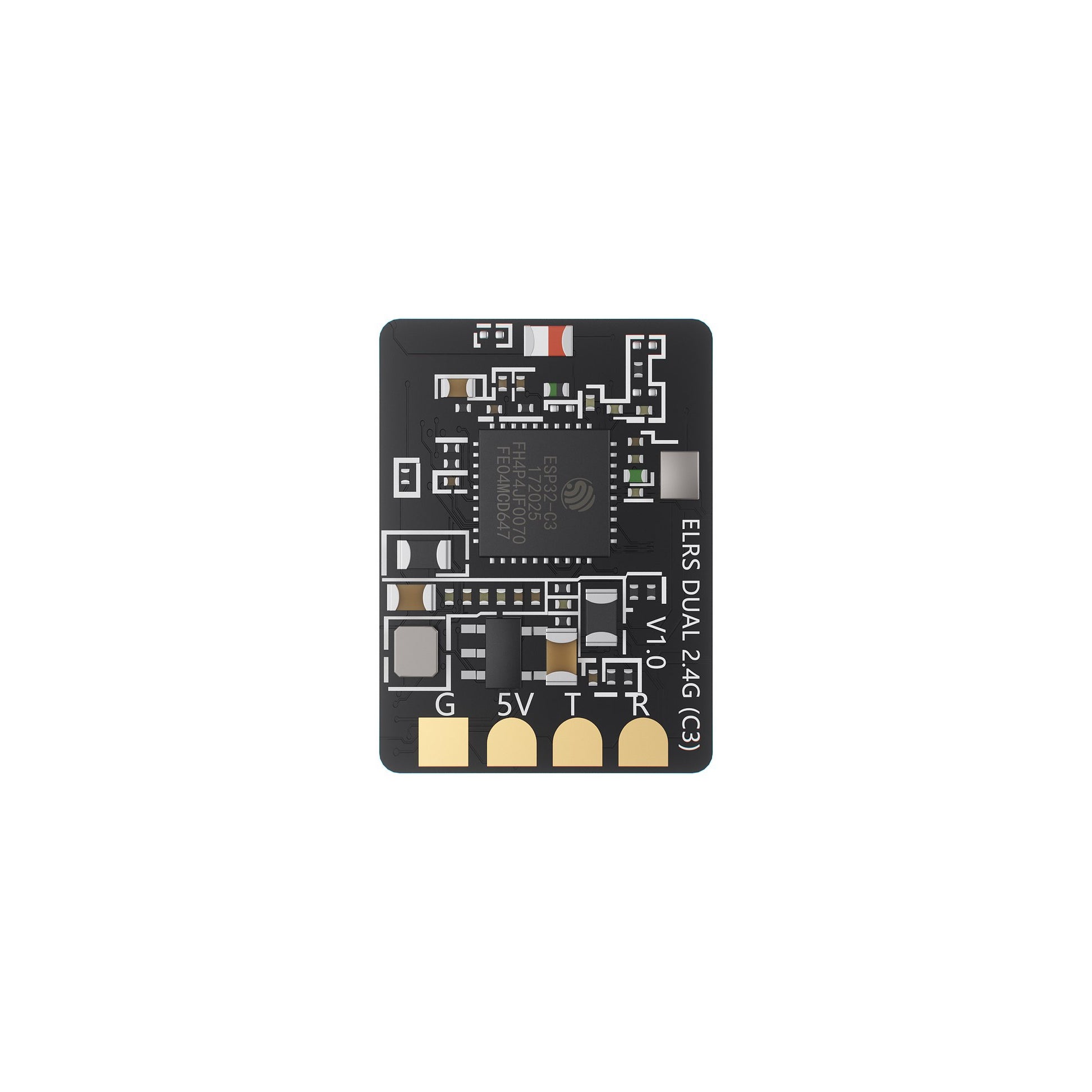

• Chips:ESP32-C3，SX1281x2
• Crystal Oscillator: TCXO
• Frequency Band: 2.4GHz ISM
• Refresh Rate: 25Hz-1000Hz
• Input Voltage: 5V

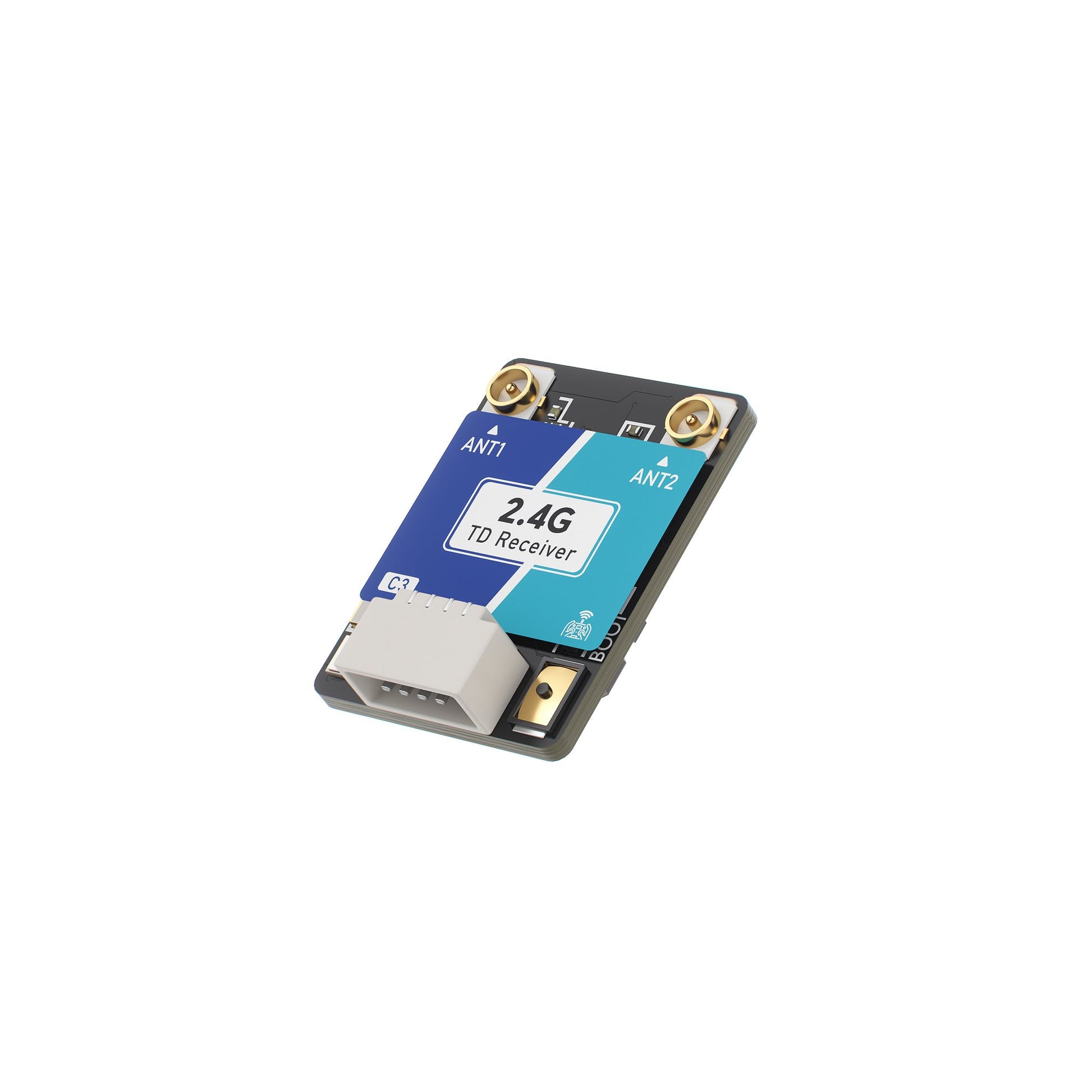

• Antenna Connector: ipex1

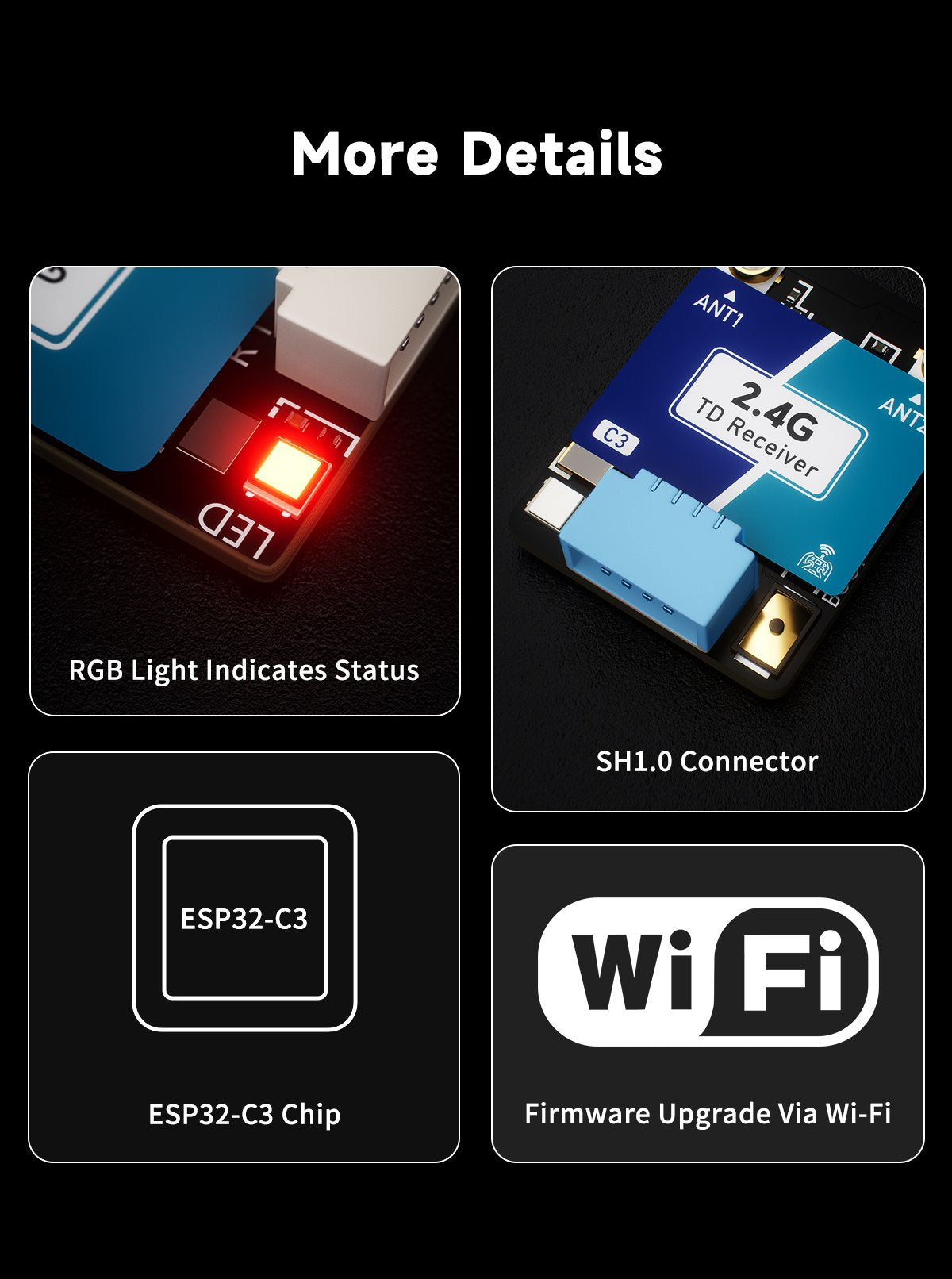

• Indicator Light: RGB light
• TLM Power: 10mW
• Firmware: GEPRC Nano True Diversity 2.4GHz RX

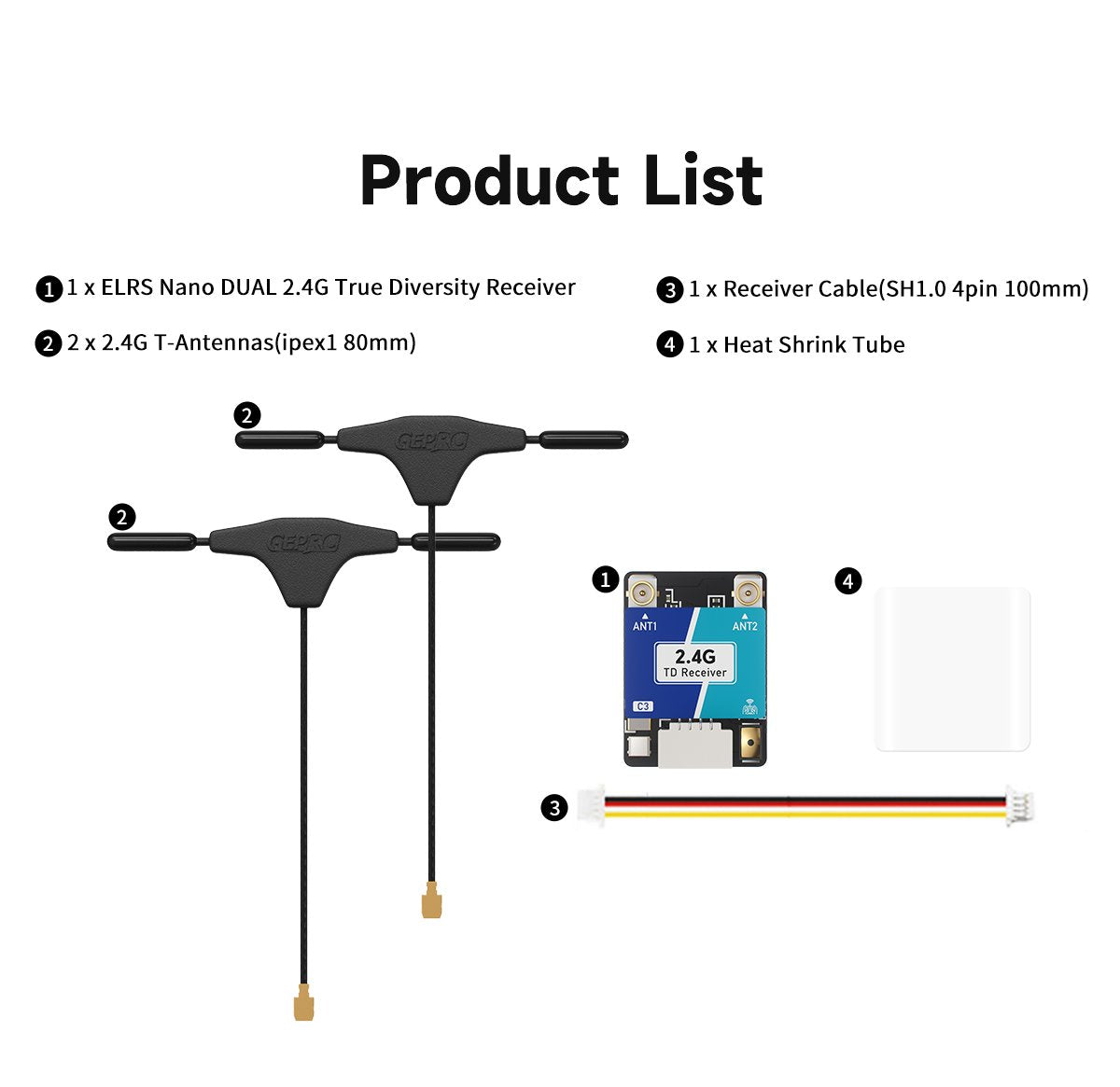

In the Box

• 1x GEPRC ELRS Nano DUAL 2.4G Receiver

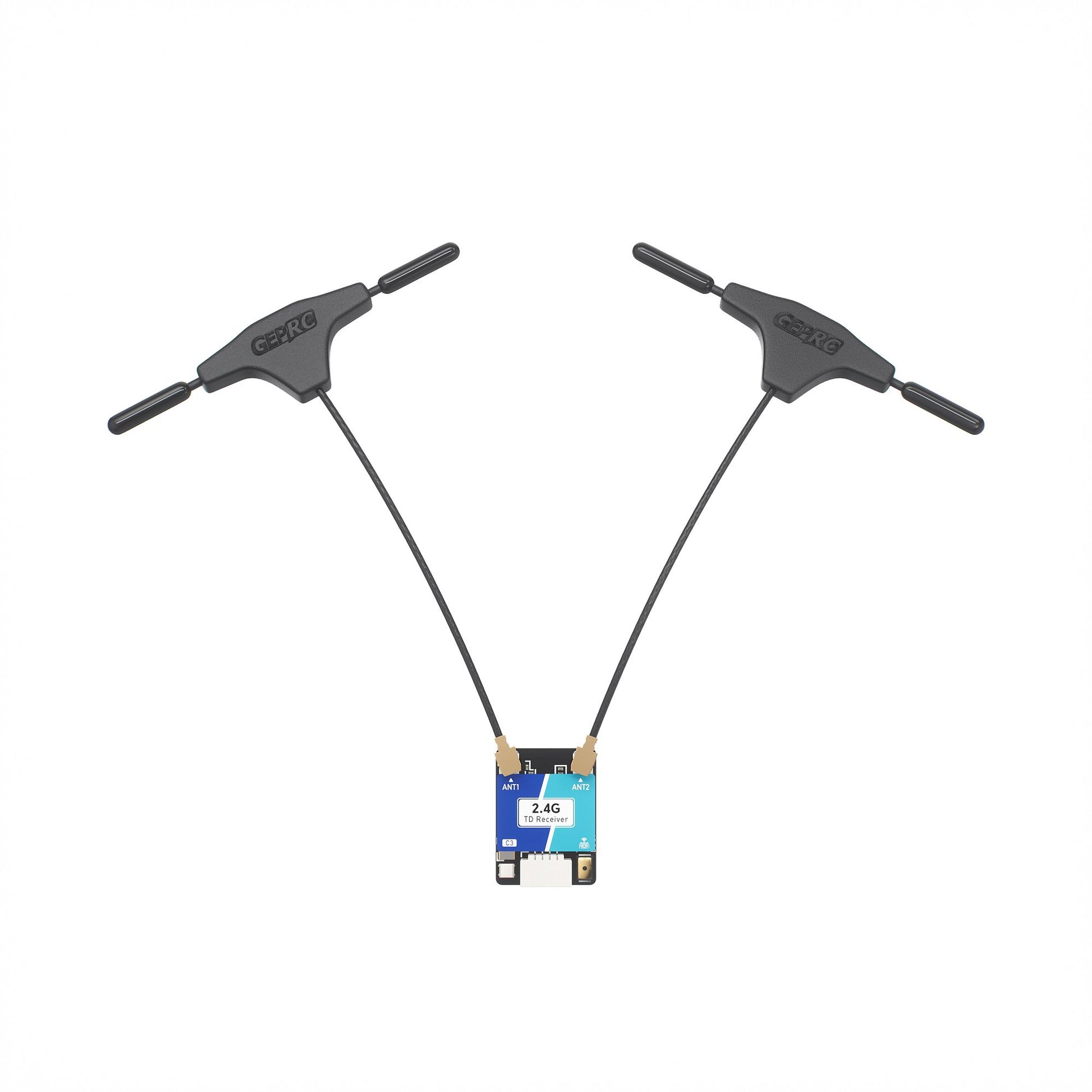

• 2x 2.4G T-Antennas (ipex1 80mm of signal-grabbing goodness)

Compatibility

Compatible with any 2.4GHz ExpressLRS transmitter. If you're not, we admire your commitment to the past, but this isn't for you. Ensure your TX is on ELRS v2.x or v3.x because firmware matching is a thing, unfortunately.

Highlights

• True Diversity: Two antennas, two brains, one mission: don't fail.
• WIFI Updatable: Because plugging things in via USB is so 2015.

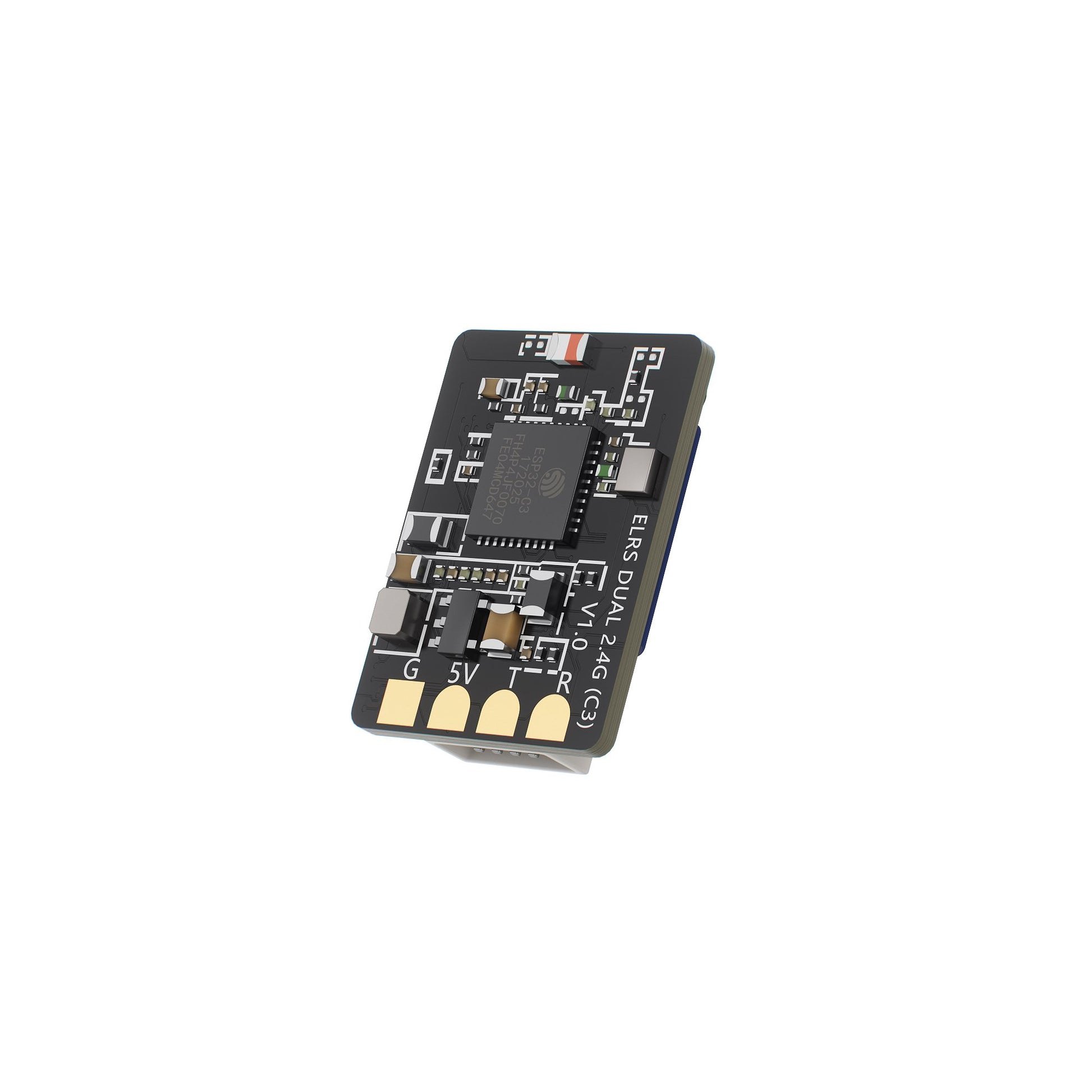

• High Performance: ESP32-C3 chip means it’s smarter than the average flight controller component.

Notes

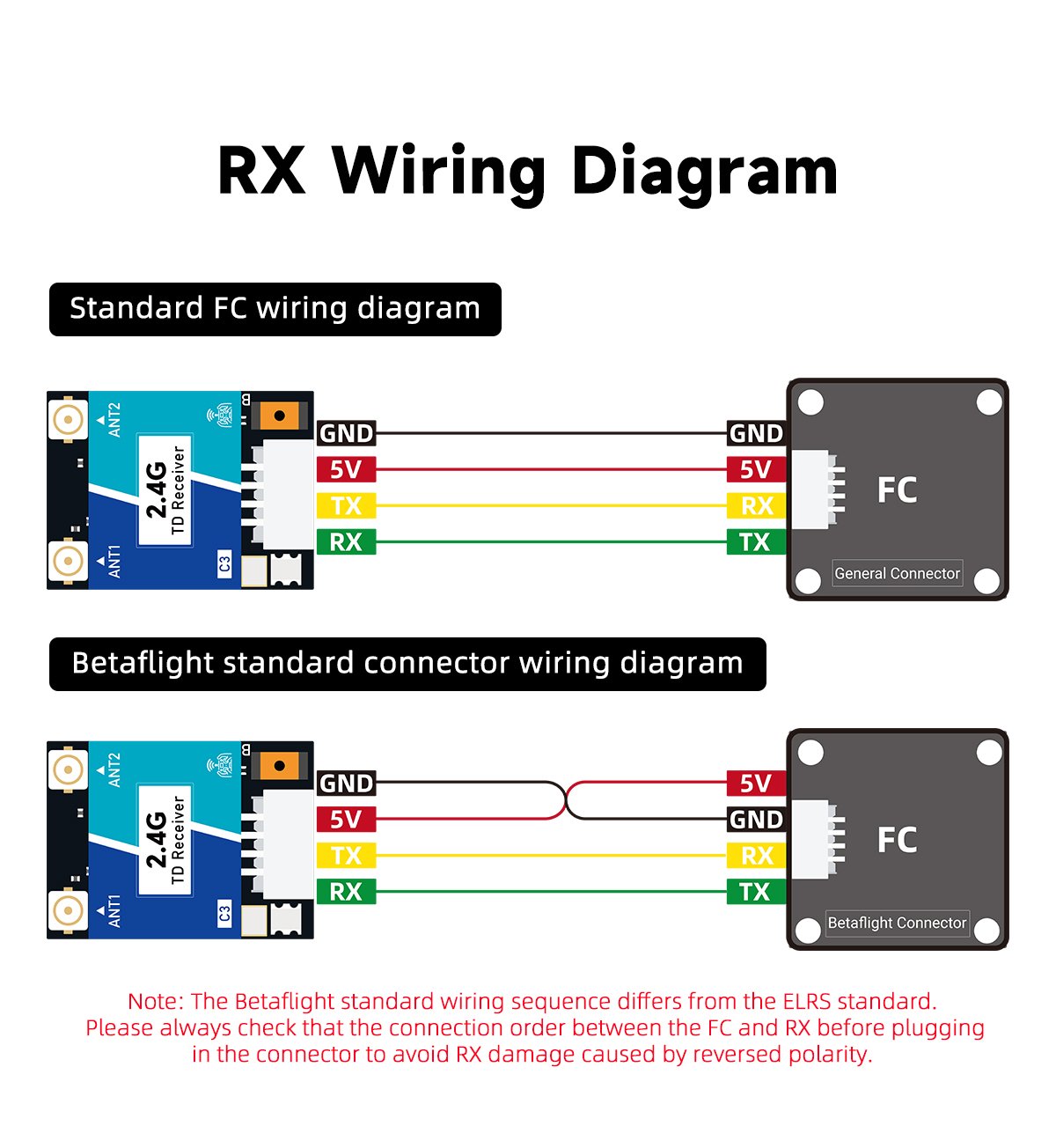

Requires soldering. If you haven't touched a soldering iron since GCSE Design Tech, maybe watch a video first. Ensure antennas are mounted at 90 degrees to each other for maximum 'diversity' magic.

Disclaimer

Range depends on your environment. If you fly behind a lead-lined bunker or a wet brick wall, that’s on you.

Still Here?

You’re either a bot, a very thorough researcher, or someone who really enjoys reading product descriptions instead of flying. Either way, stop overthinking it. If you want a rock-solid link for your FPV drone, this GEPRC receiver is the one. Buy it, solder it (neatly, please), and go fly. #FPV #ExpressLRS #GEPRC #DroneRacing #UnmannedTech
