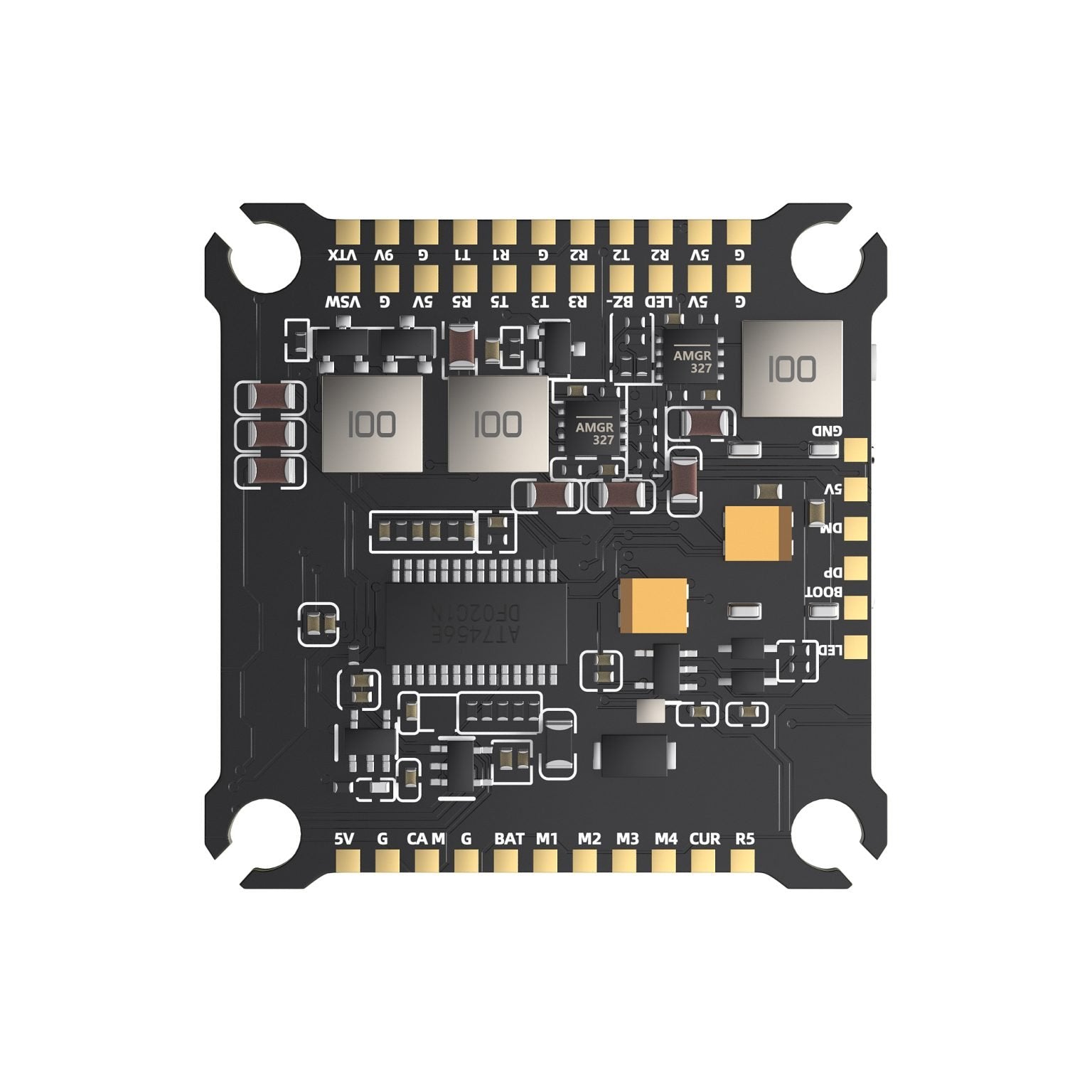

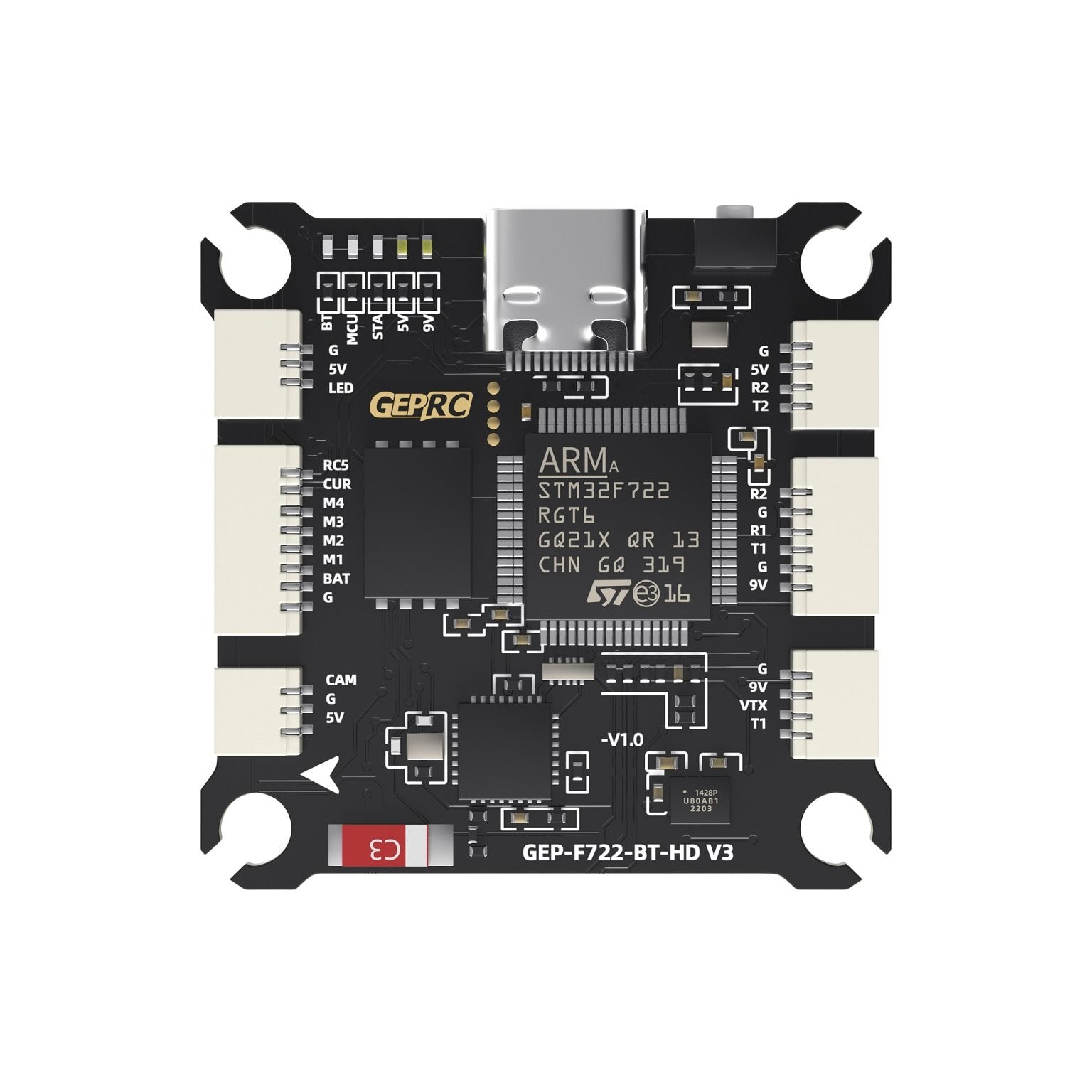

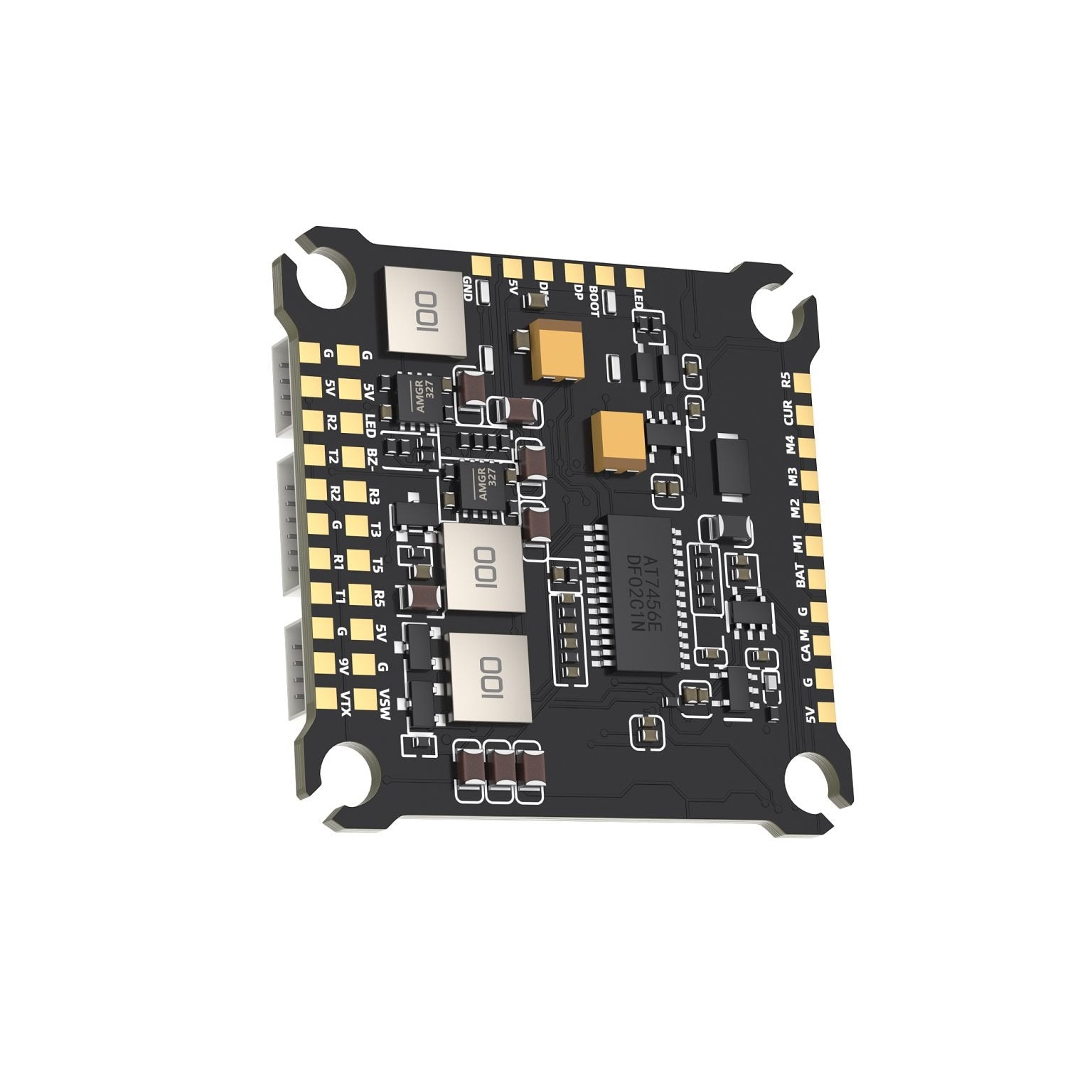

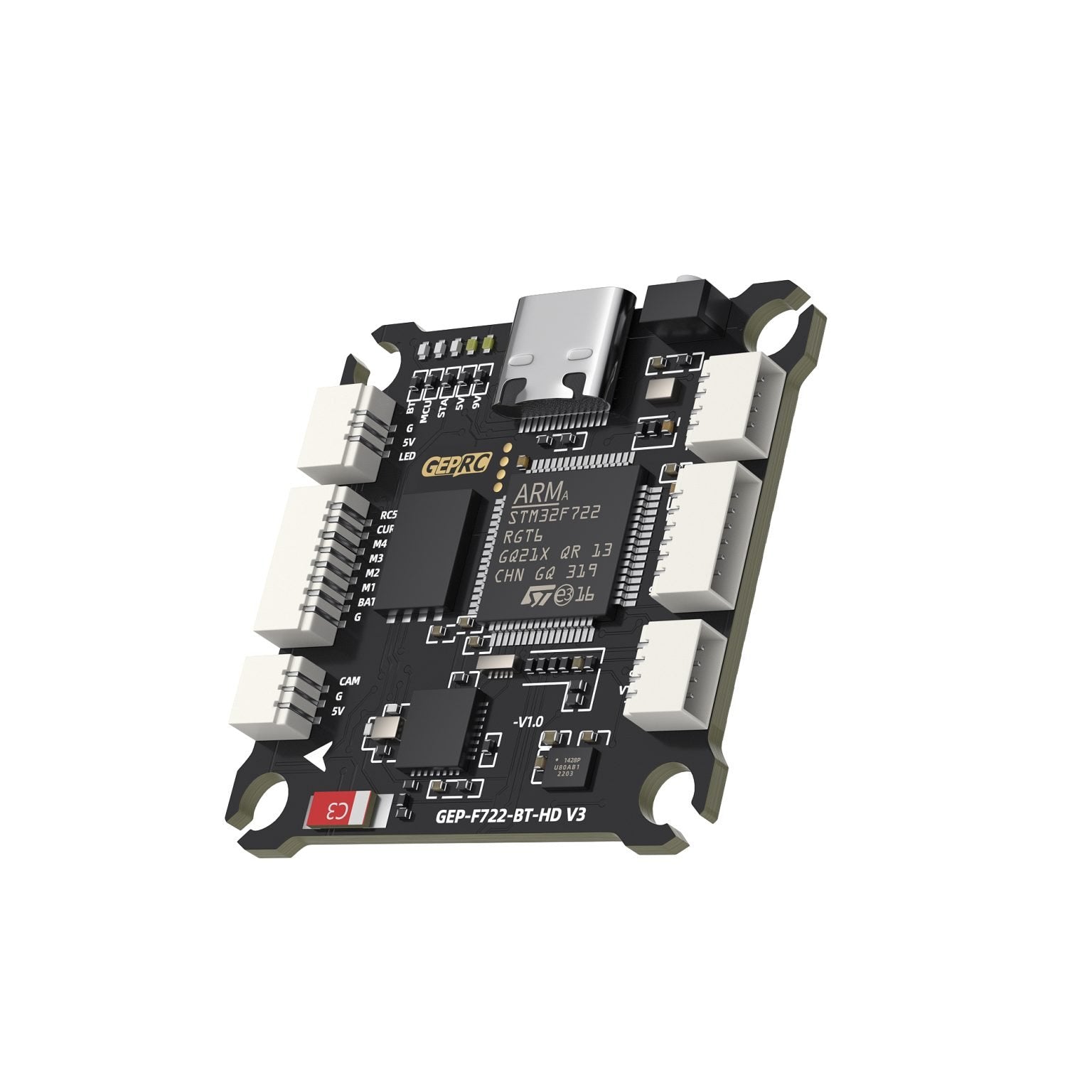

GEPRC GEP-F722-BT-HD V3 Flight Controller
The GEPRC GEP-F722-BT-HD V3 is the kind of flight controller that makes your old F4 board look like it belongs in a museum. With an F7 processor, integrated Bluetooth for wireless tuning, and rock-solid support for DJI O3 and other HD systems, this FC is designed to keep your quad locked in while you focus on not hitting that tree. It’s sleek, it’s powerful, and yes—it saves you from the cursed OTG adapter life.
Why You Want It
If you’re flying digital, you need a flight controller that doesn’t choke under the weight of UARTs and firmware updates. The F722 chip crunches flight code faster than you can shout “turtle mode,” while built-in Bluetooth lets you tweak your settings in the field using the SpeedyBee app. Add in Betaflight OSD, a microSD blackbox, and clean wiring for your HD gear, and you’ve got a brain worthy of your shiny DJI goggles.
Specifications
- Processor: STM32F722 (because your quad deserves more than “good enough”)
- Configuration: Onboard Bluetooth via SpeedyBee app (wireless tuning without the dongle circus)
- Video System Support: Native DJI HD OSD compatibility (plug, play, rip)
- Blackbox: MicroSD card slot (hoard your crash data like a true nerd)
- UARTs: 6 (yes, plenty for GPS, SmartPort, and your pet projects)
- Input Voltage: 3–6S LiPo (perfect for freestyle and racing builds)
- Weight: ~6.5 g (lighter than your last packet of screws)
- Mounting: 30.5×30.5 mm (standard stack-friendly)
- Firmware Target: GEPRCF722_BT_HD_V3
What’s in the Box*
- 1× GEPRC GEP-F722-BT-HD V3 Flight Controller
- Cables, grommets, and other small bits destined for your “spares” drawer
Disclaimer
Accessory count may vary, but the flight controller is guaranteed—because shipping you just a bag of screws would be cruel.
Full Specs
- Use mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 512M black box storage
- Support Bluetooth parameter tuning
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugs into the DJI Air Unit
- Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
- Integrated Barometer
- 9V@2.5A + 5V@3A dual independent BEC
- MCU: STM32F722
- IMU：ICM42688-P(SPI)
- Air Unit Connection: Directly plugs into the DJI Air Unit
- Black Box: 512M onboard
- Bluetooth: Supported
- Barometer: Supported
- USB Interface: Type-C
- OSD：BetaFlight OSD w/ AT7456E chip
- BEC：5V@3A,9V@2.5A dual BEC
- Firmware Target: GEPRCF722_BT_HD_V3
- Size：36.9×36.9mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
- Input Voltage: 3-6S LiPo
- UART: 5 groups (UART4 fixed for Bluetooth)
- Power Filter: Integrated LC filter
- Weight: 8.2g
Still Here?
Okay, spec-hound, you made it to the end. The GEPRC GEP-F722-BT-HD V3 Flight Controller is your HD quad’s new best mate—smooth control, Bluetooth tuning, and DJI compatibility without the headaches. Add it to your basket now before your quad files a formal complaint about its outdated brain.
