Product Details

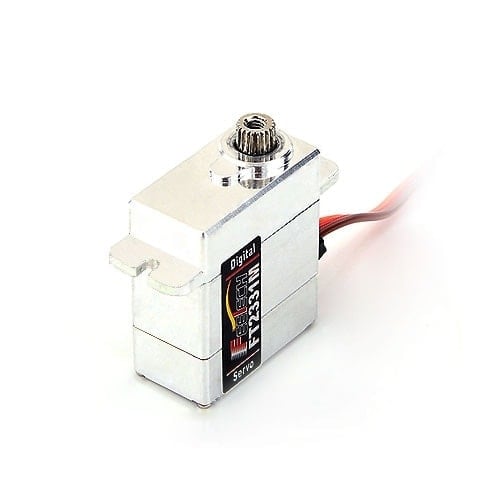

This is one of the fastest (and strongest) micro sevoes available on the market, with a stall tourge of 3.5kg.com (6V) and a rotation speed of 0.07sec per 60 degrees, this is a perfect servo for any gimbal system. Further to this the response speed of this servo is over 333hz. With a coreless motor and metal gears, this servo will last a very long time.
FT2331M Specifications
- Dimensions:23.2 × 12.1 × 26.5 mm
- Weight:20 g
- Operating Speed : 0.09sec/60degree (4.8V) or 0.07sec/60degree (6V)
- Stall Torque : 3kg.cm/41.74oz.in(4.8V) or 3.5kg.cm/48.69oz.in(6V)
- Operating Voltage :4.8V~6V
- Control System :Digital
- Direction :CCW
- Operating Angle :120degree
- Required Pulse :900us-2100us
- Bearing Type :2BB
- Gear Type :Metal
- Motor Type :Coreless
- Connector Wire Length :20 cm
