Product Details

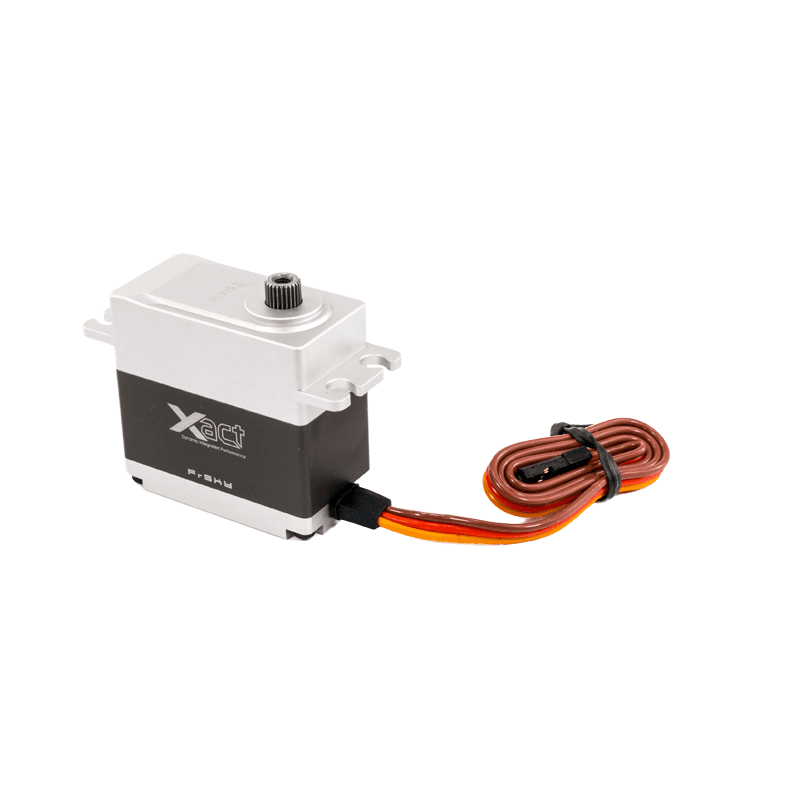

The Xact series coreless servos utilize all CNC machined aluminium protective case and metal gears, these servos are 8.4V high voltage capable and offer high speed and configurable torque performance. Also, the Xact series servos offer multiple form factors and configurations to fit for different model types and precision usage.
Working with the F.Port 2.0 protocol, the telemetry data (like real-time current and voltage) of Xact servos can be achieved and transmitted back to the radio by connecting either F.Port 2.0 capable receiver or flight controller. All the preset servo options of speed and torque can be configured directly on an ACCESS radio through the host device of F.Port 2.0 line, and the configurable servo steering as well as travel degree are additions now can be expected on this series.
FEATURES
- F.Port2 / SBUS and PWM support
- Metal gears and two bearings in an aluminum housing
- HV 8.4 V
- Hall sensor
- Telemetry alarm, current overload and overheating
- updatable FW
- Customizable
SPECIFICATIONS
- Dimensions: 40 mm × 20 mm × 39 mm
- Weight: 72 g
- motor: coreless
- voltage: 4.8 - 8.4 V
- max. frequency: 333 Hz
- stop current: 3,5 A@6.0v / 4,3A@7.4v / 4,7A@8.4v
- tooth: 6 mm 25T
Speed and Torque
| 6 V | 7,4 V | 8,4 V |
| 0.11 sec / 60° | 0.09 sec / 60° | 0.08 sec / 60° |
| 19,4 kgf.cm | 23,8 kgf.cm | 27,1 kgf.cm |
