Product Details
PLEASE NOTE: If using 18650 batteries to power this radio, please ensure you use the button-top variety ONLY, such as those linked in this description. Flat-top batteries often make poor/no contact in this radio and their usage may result in no power or other issues.

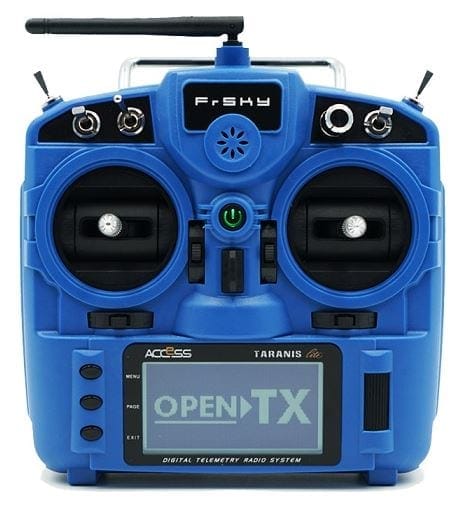

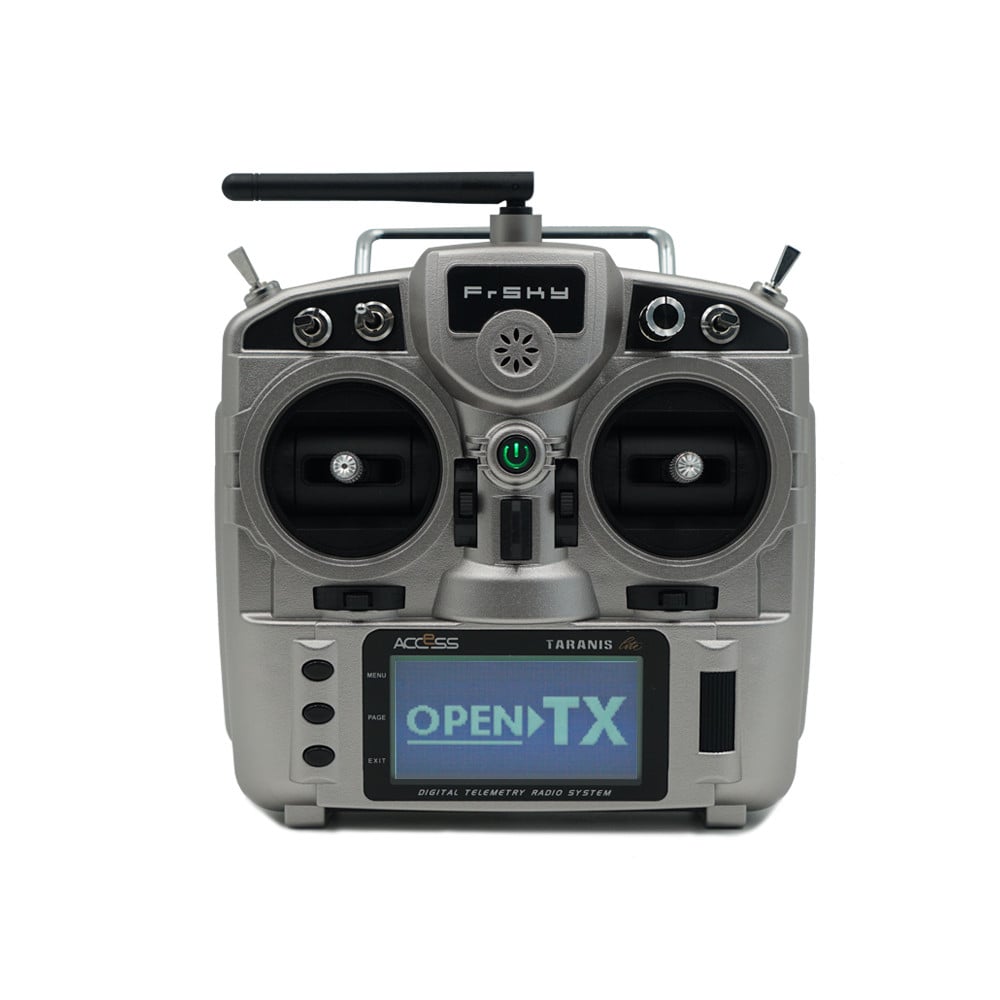

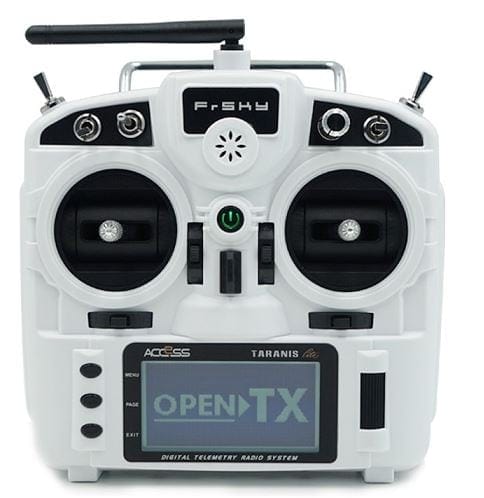

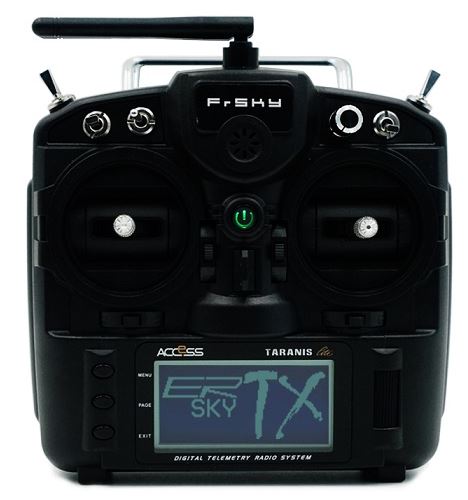

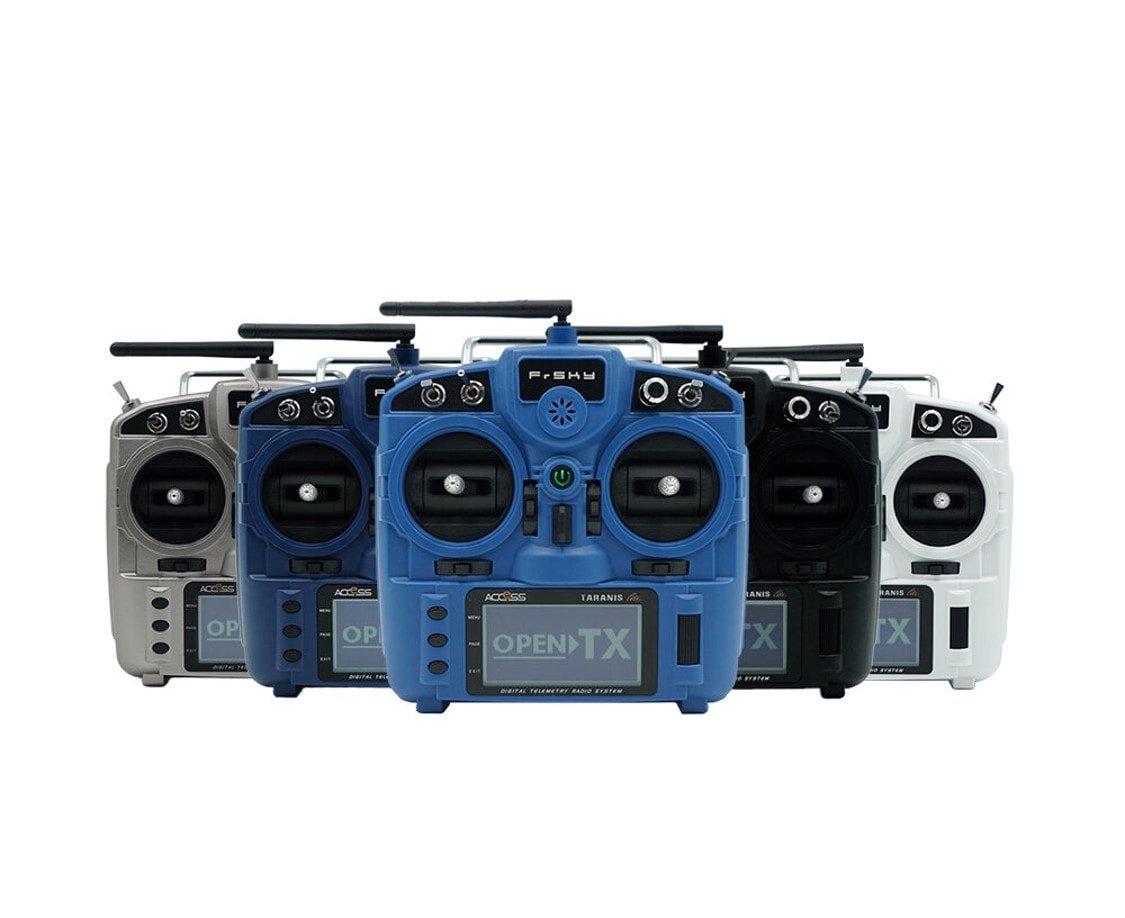

As a portable radio, the FrSky Taranis X9 Lite is a remarkable fusion of traditional radio design with the innovations of the latest ACCESS protocol. The X9 Lite inherits its classic form factor from the FrSky Taranis X9D series remote control, along with completely preserving the comfort of the classic grip design, it also adds a program scroll button adding convenience when navigating the menu further improving the user experience. For beginners, the wired training function is retained, allowing beginners to improve their skills with the security of an instructors input upon command.
Like the Taranis X-Lite Pro, the new Taranis X9 Lite also uses the latest ACCESS communication protocol, along with ErskyTX / OpenTX open source operating system, it boasts 24 channels with a faster baud rate and lower latency with a high-speed module digital interface. Additional ACCESS features like wireless firmware updates and wireless configurations will be gradually unlocked, providing a more reliable, more secure link between the remote and model. Making the X9 Lite a fully functioning remote control with tons of extra features.
Features
- Ergonomic and compact design
- Installed with ACCESS protocol
- Supports spectrum analyzer function
- High-speed module digital interface
- G7 Noble potentiometer gimbal
- Supports wired training function
- Haptic vibration alerts and voice speech outputs
- Easily accessible battery compartment (*Batteries not included, adaptive with replaceable 18650 button top Li-ion batteries )
Specifications
-
Brand name: FrSky
Item name: Taranis X9 Lite Transmitter - Dimension: 184*170*101mm (L*W*H)
- Weight: 505g (without battery)
- Operating system: ErskyTX / OpenTX ( Default: OpenTX )
- Number of channels: 24 channels
- Internal RF module: ISRM-N
- Operating voltage range: 6.0~8.4V
- Operating current: 190mA@7.4V
- Operating Temperature: -20℃ ~ 60℃ (-4℉ ~ 140℉)
- Backlit LCD resolution: 128*64
- Model memories: 60 models (expandable by Micro SD card)
- Smart Port, Micro SD card slot, Micro USB Port and DSC Port
-
Recommended receiver(
ACCESS Rx)
:
- FrSky R-XSR
- RX6R
- RX4R
- G-RX6
- G-RX8 Receiver
Taranis Radio Comparison
| Taranis X9D Plus | Taranis Q X7 | Taranis X9 Lite | |
| Operating System | OpenTX | OpenTX | ErskyTX/OpenTX |
| Communication Protocol | ACCST/ACCESS | ACCST/ACCESS | ACCESS |
| High-speed module digital interface | × | × | √ |
| Program Navigation Button | × | √ | √ |
| Wired Training System | √ | √ | √ |
| Haptic Vibration Alerts | √ | √ | √ |
| Voice Speech Outputs | √ | √ | √ |
| Outdoor Legible Backlit LCD | √ | √ | √ |
| Easily Accessible Battery Compartment | √ | √ | √ |
| Potentiometer Gimbal | √ | √ | √ |
| Battery Charging System | √ | × | × |
Package Included:
1 x Taranis X9 Lite Transmitter
