Product Details
Ultimate signal stability, advanced flight control, and unbeatable versatility—all in one receiver.
Overview

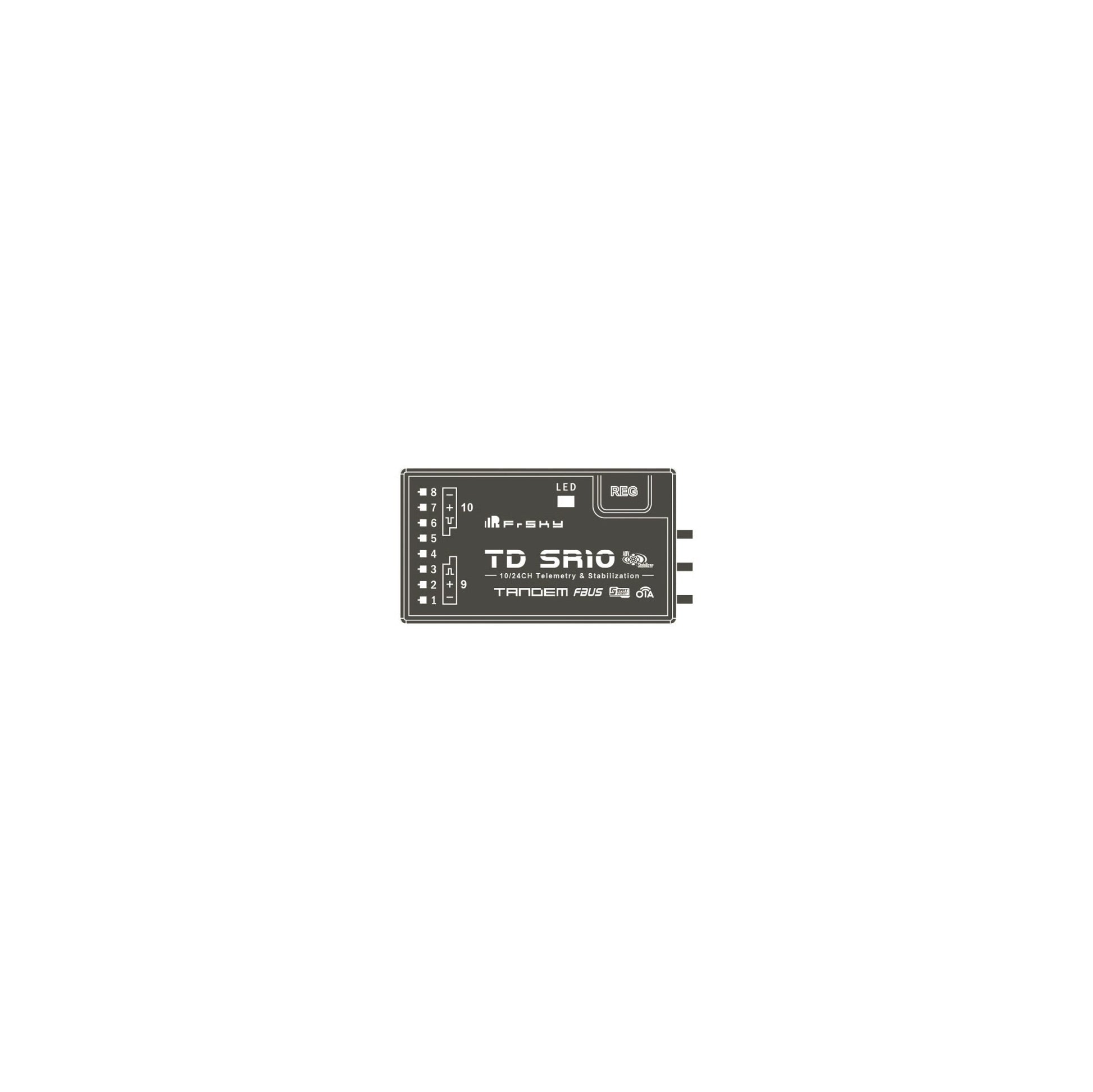

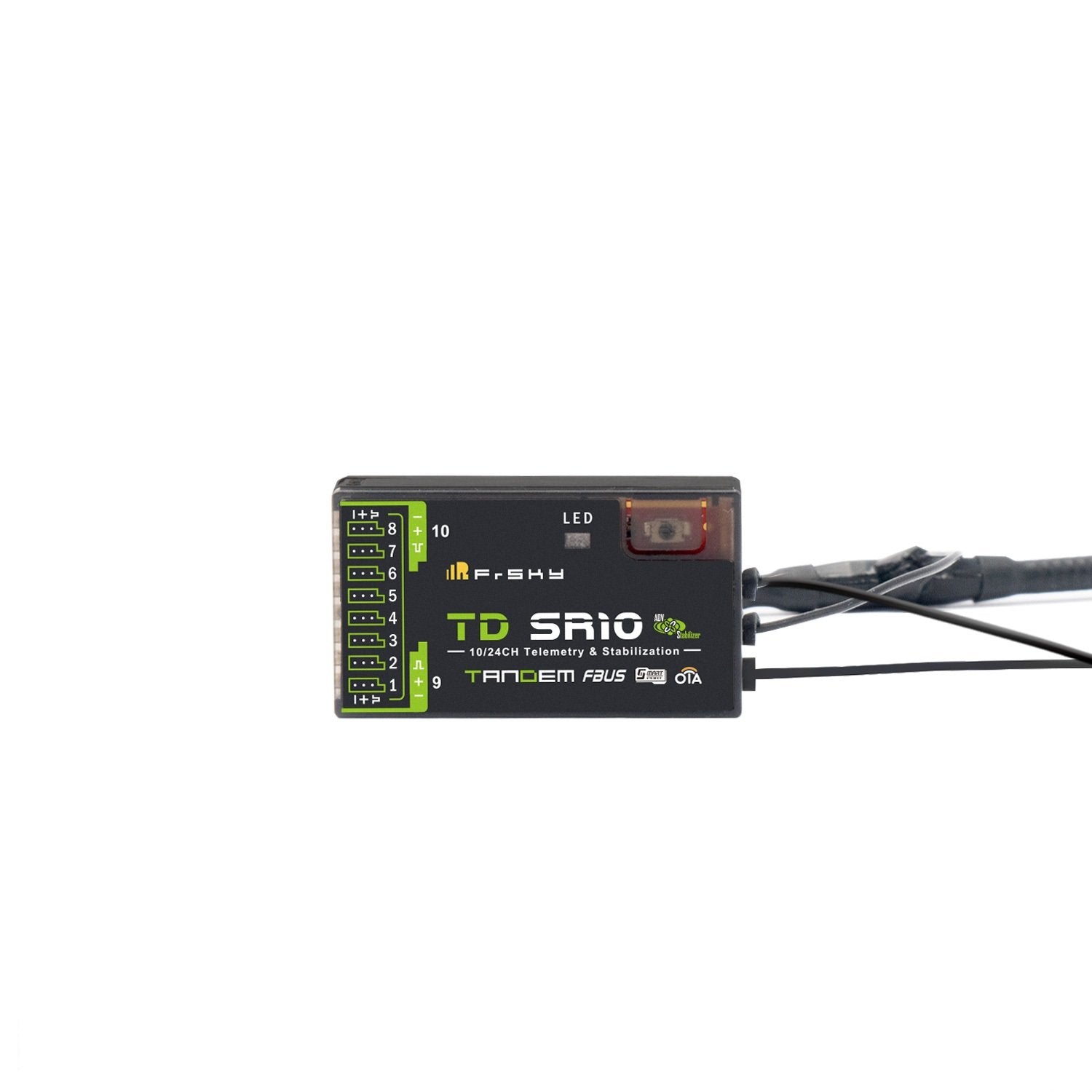

The FrSky TD SR10 Tandem receiver is a game-changer for pilots seeking a robust, dual-band solution. Operating simultaneously on both 2.4GHz and 900MHz frequencies, this receiver ensures low-latency control with long-range reliability. Thanks to its triple-antenna design, the TD SR10 offers multi-directional wide coverage, making sure your signal stays rock-solid even in challenging environments. Plus, its built-in black box function records critical flight data, so you can analyze any power or signal irregularities later.
What sets the TD SR10 apart is its Advanced Stabilizer (ADV) function . Building on traditional gyroscope stabilization, this feature enhances flight control with five additional stabilization channels. It supports multiple flight modes like Stabilization, Auto-Level, Hover, and even Knife-Edge for precise control of airplane models. The advanced mode also lets you customize stabilization for each output channel and enjoy benefits like high-precision telemetry for altitude and vertical speed monitoring.
With 10 configurable channels that support PWM, SBUS, FBUS, and S.Port, the TD SR10 is designed for maximum flexibility. Whether you're pairing it with telemetry devices like Neuron ESCs or advanced sensors, this receiver simplifies your setup while delivering exceptional performance.
Key Features
- Simultaneous Dual-Band Operation: 2.4GHz and 900MHz for unbeatable signal reliability and interference resistance.
- Triple Antenna Design: Ensures multi-directional, wide signal coverage for long-range control.
- Advanced Stabilizer (ADV): Offers five additional stabilization channels, perfect for various flight modes and precision control.
- High-Precision Telemetry Sensors: Includes altitude and vertical speed monitoring for detailed flight data.
- Built-in Black Box: Records power and signal telemetry for post-flight diagnostics.
- Versatile Channel Configurations: 10 fully configurable channels supporting PWM, SBUS, FBUS, and S.Port.
- Race-Ready Performance: 4ms latency in race mode with telemetry for ultra-responsive control.
- OTA Firmware Updates: Update firmware wirelessly with Over-The-Air updates.
Specifications
- Frequency: 2.4GHz & 900MHz

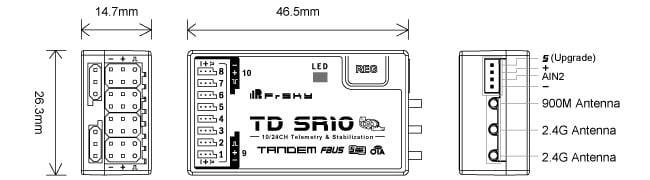

- Dimensions: 46.5mm x 26.3mm x 14.7mm
- Weight: 16.6g
- Operating Voltage: 3.5V - 12V DC
- Current Draw: ≤180mA @ 5V
- Compatibility: Tandem series transmitters & TD protocol capable RF module
- Voltage Measurement Range (AIN2): 0-35V (1:10 ratio)
- Triple Antenna Design: 2×External 2.4GHz and 1×External 900MHz antennas (IPEX1 connectors)
What's in the Box?
- 1x FrSky TD SR10 Receiver
- 3x Antennas (2×2.4GHz, 1×900MHz)
- 1x Manual
Note: Accessories may vary depending on supply availability.
