Product Details
The ultimate signal stability with low-latency performance in a lightweight package.
Overview
The FrSky TD R6 Tandem receiver takes reliability to the next level by working simultaneously across both 2.4GHz and 900MHz frequencies. Whether you're aiming for long-range control or battling interference in congested airwaves, this receiver has your back. Unlike traditional single-band options, the TD R6 provides an extra layer of security by adopting a dual-band antenna system that offers multi-directional wide coverage.
To ensure smooth flying conditions, this receiver also includes a built-in black box that records telemetry data, allowing you to review power and signal information if any issues arise mid-flight.
With 6 PWM channels, SBUS Out, and FBUS/S.Port, the TD R6 integrates effortlessly with telemetry devices like Neuron ESCs and advanced sensors. Plus, its compact, lightweight design makes it the perfect companion for any drone build, simplifying your setup while ensuring top-tier performance.
Key Features
- Dual-Band Performance: Simultaneously operates on 2.4GHz and 900MHz frequencies for maximum signal stability.
- Multi-Directional Antenna Coverage: Wide-area signal reception for fewer interruptions.
- Built-in Black Box: Record power and signal telemetry data for post-flight analysis.
- Compact and Lightweight: A small footprint, big performance.
- Race-Ready: 4ms latency in race mode with telemetry for those who need precision.
- Long-Range Control: Control distance of up to 100KM, perfect for high-altitude or long-range missions.
- OTA Firmware Updates: Keep your receiver updated without hassle via Over-The-Air updates.
- Versatile Channel Support: 6 PWM outputs, with SBUS Out supporting 16CH / 24CH.
- FBUS/S.Port Compatible: Seamless pairing with telemetry devices.
Specifications
- Frequency: 2.4GHz & 900MHz

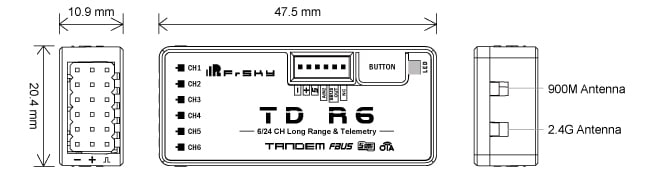

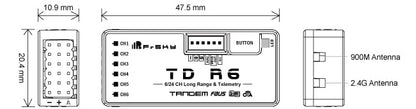

- Dimensions: 47.5mm x 20.4mm x 10.9mm
- Weight: 11.5g
- Operating Voltage: 3.5V - 10V (Recommended 3.7V - 8.4V)
- Current Draw: ≤110mA @ 5V
- Compatibility: TANDEM series radio & RF module in TD mode
- Antenna Connector: IPEX1
- Voltage Measurement Range (AIN2): 0-30V
What's in the Box?
- 1x FrSky TD R6 Receiver
- 2x Antennas
- 1x Manual
Note: Accessories may vary depending on supply availability.
