Product Details
Double the frequencies, triple the antennas—because your signal deserves the royal treatment.
Overview

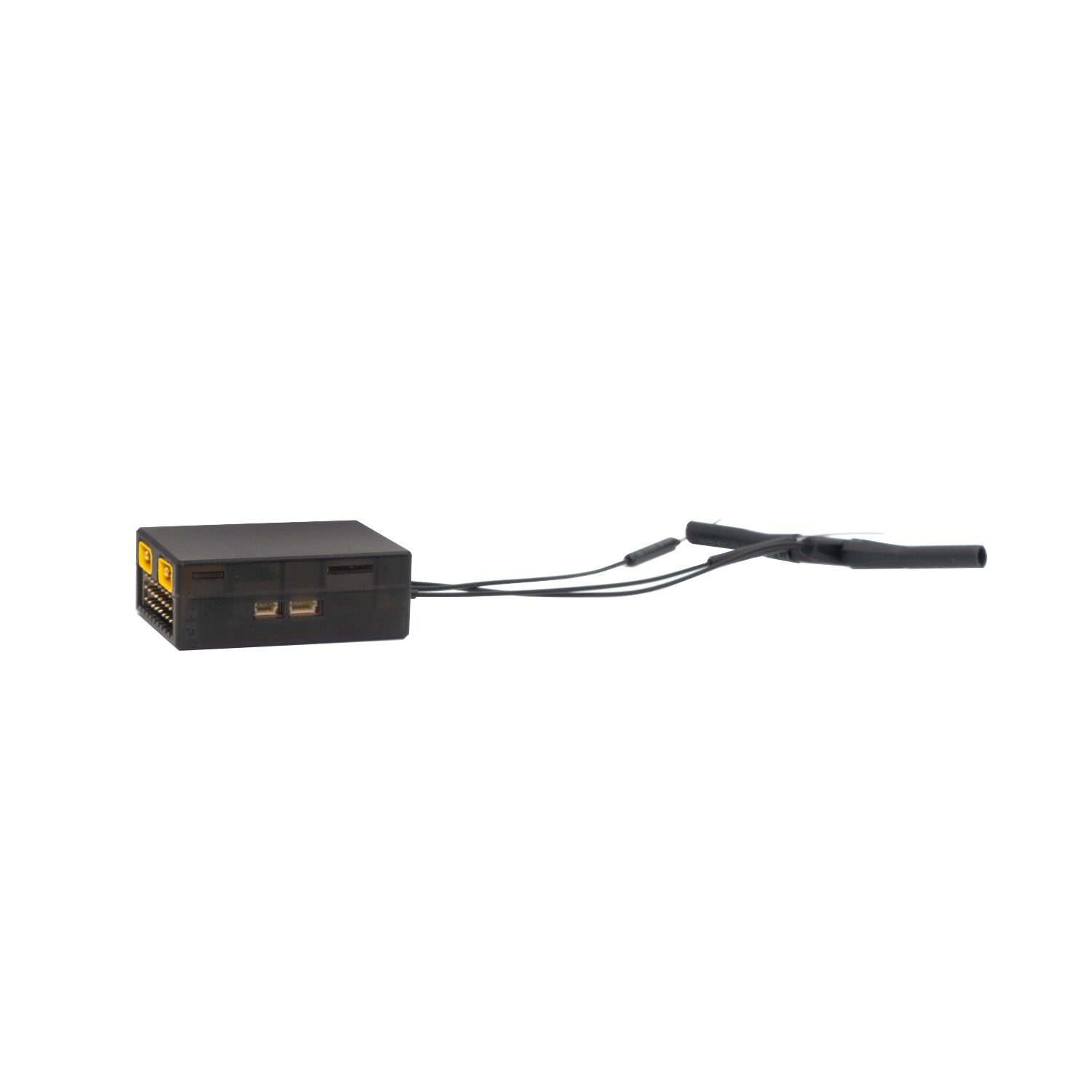

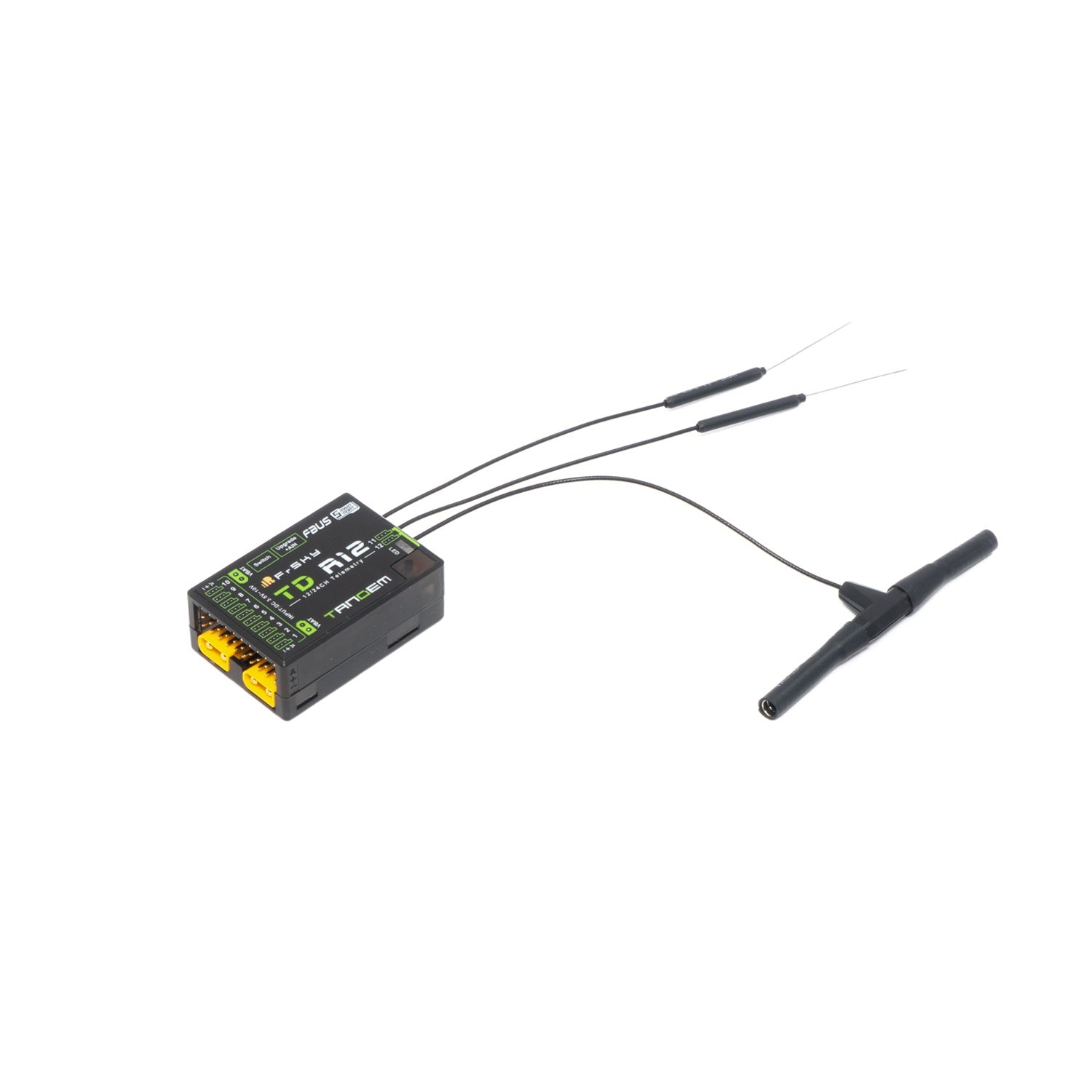

The FrSky TD R12 Tandem receiver isn't your average dual-band receiver—it's the multitasking overachiever your drone's been waiting for. Operating simultaneously across 2.4GHz and 900MHz frequencies, the TD R12 delivers ultra-reliable, low-latency control, no matter where you fly. Its triple-antenna design (2×2.4GHz & 1×900MHz) offers multi-directional, wide signal coverage, perfect for RC pilots who need resilience and long-range performance in their radio systems.
This receiver doesn't just stop at superior signal strength. It also features dual-power input via XT30 connectors, ensuring a balanced power draw from two sources. Whether you're racing or cruising, this system provides the confidence of uninterrupted power flow. Need to power up safely? The built-in NFC-compatible power switch function gives you easy control over your system, while the built-in black box records crucial telemetry data for post-flight analysis.
With 12 fully configurable channels that support PWM, SBUS, FBUS, and S.Port, the TD R12 is incredibly versatile. It easily integrates with multiple telemetry devices like Neuron ESCs and advanced sensors, streamlining your setup and making your builds simpler and smarter.
Key Features
- Dual-Band Powerhouse: Simultaneous 2.4GHz and 900MHz operation for maximum signal stability and interference resistance.

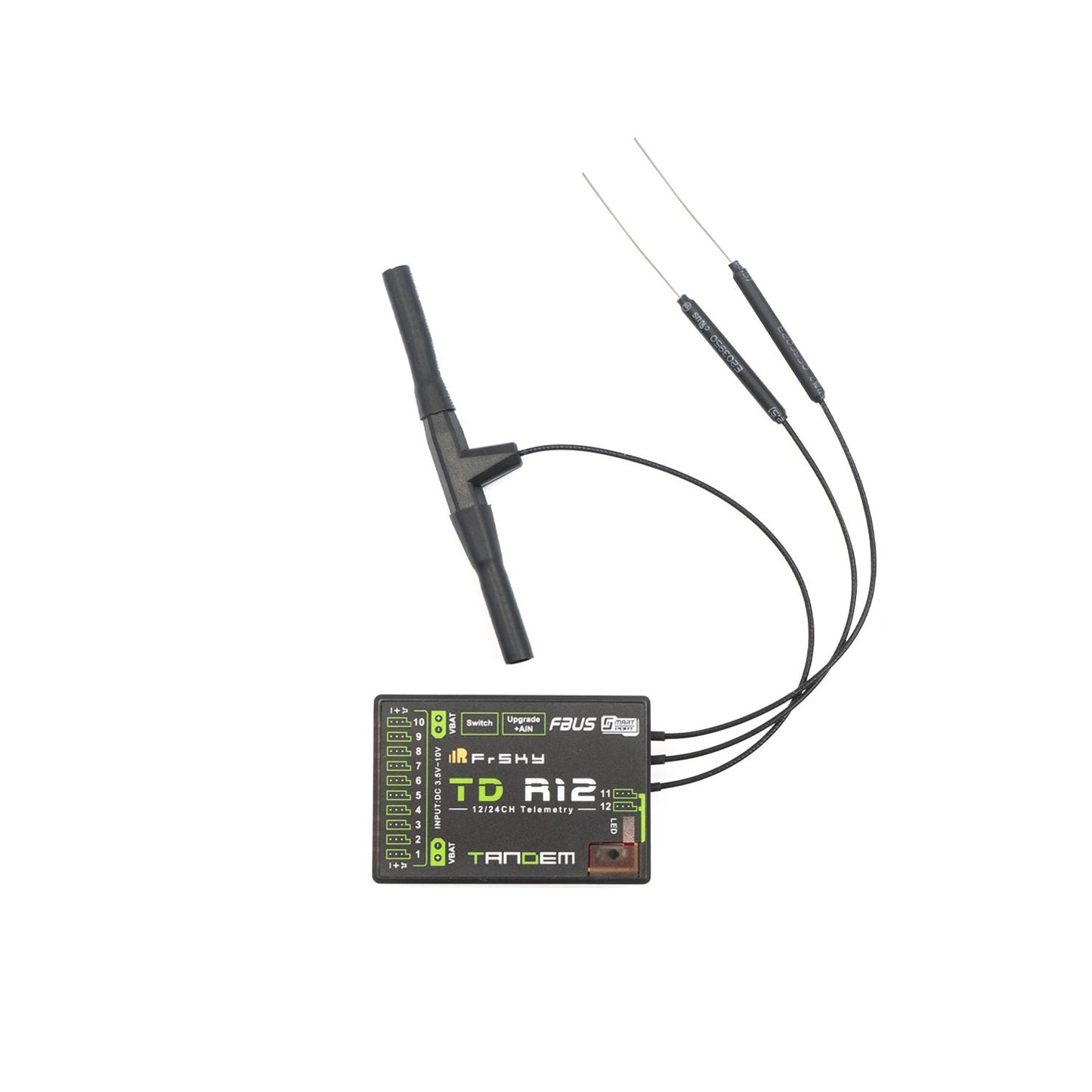

- Triple-Antenna Design: Multi-directional coverage with 2×2.4GHz and 1×900MHz antennas for robust, long-range performance.
- Dual-Power Balance Mode: Draws power from the higher-voltage source via two XT30 connectors, ensuring efficient, balanced consumption.
- Black Box Function: Records power and signal data for post-flight analysis of unusual activity.
- Built-in Power Switch: NFC-compatible switch panel option for seamless power control.
- Race-Ready Performance: 4ms latency with telemetry for ultra-responsive control.
- 12 Configurable Channels: Assign PWM, SBUS, FBUS, or S.Port to any channel for flexible builds.
- Signal Redundancy: SBUS In port supports signal redundancy for extra peace of mind.
- OTA Firmware Updates: Keep your receiver up to date without any cables, thanks to Over-The-Air firmware updates.
Specifications
- Frequency: 900MHz & 2.4GHz

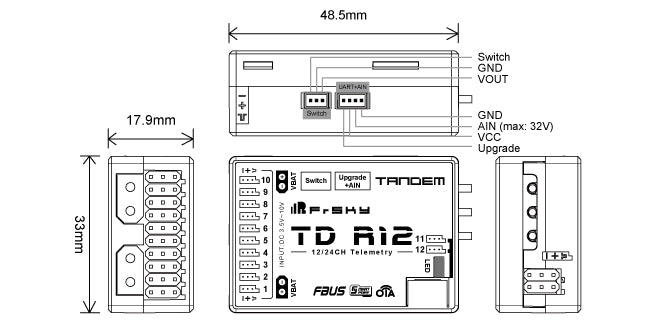

- Dimensions: 48.5mm x 33mm x 17.9mm
- Weight: 23g
- Operating Voltage: 3.5V - 12V (Recommended 2S LiPo)
- Current Draw: ≤170mA
- Power Input: Dual XT30 connectors
- Continuous Current: ≤20A; Instantaneous Current: ≤40A
- Voltage Measurement Range (AIN): 0-35V (1:10 ratio)
- Compatibility: Tandem series radios & TD protocol RF module
- Antenna Connector: IPEX1
- Triple Antenna Design: 2×2.4GHz & 1×900MHz antennas
What's in the Box?
- 1x FrSky TD R12 Receiver
- 3x Antennas
- 1x Manual
Note: Accessories may vary based on supply availability.
