Foxeer

Foxeer F405 V2 FC Reaper 55A Stack 8S, 30x30

Foxeer F405 V2 FC Reaper 55A Stack 8S, 30x30

FX-MR1836

£56.90 GBP
£0.00 GBP £56.90 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock
View full details

Product Details

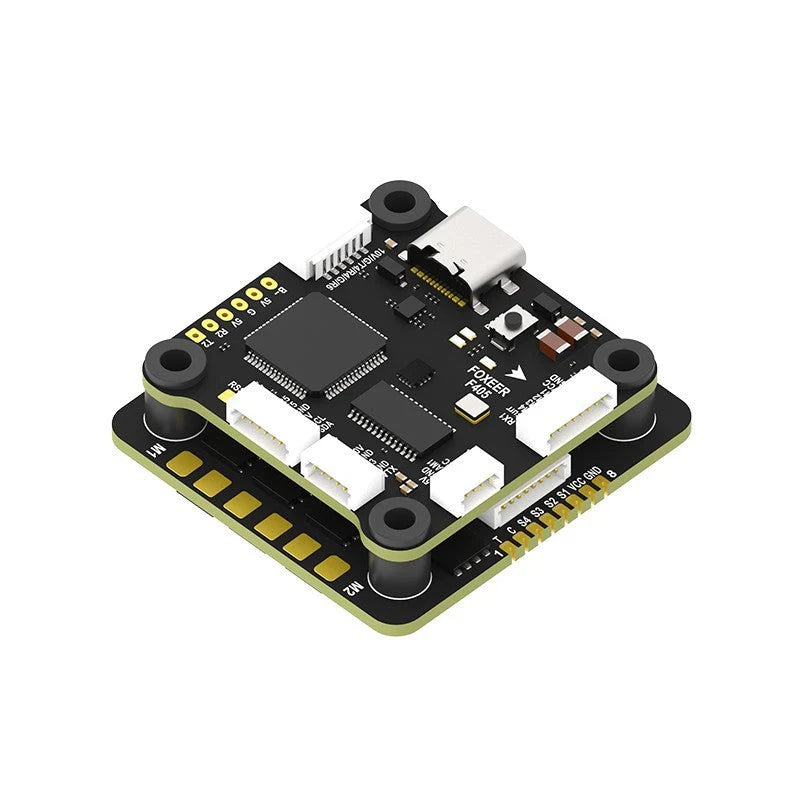

Welcome to the future of drone flight control with the Foxeer F405 V2 Flight Controller and Reaper 55A ESC 8S Stack. This dynamic duo promises high performance and a rich feature set at an unbeatable price.

When it comes to high-performance flight control, the Foxeer F405 V2 FC and Reaper 55A ESC 8S Stack is the ultimate choice for drone enthusiasts and professionals. The F405 V2 Flight Controller, equipped with the powerful STM32F405RGT6 MCU, is perfect for both analog and HD digital setups. Paired with the Reaper 55A 4-in-1 ESC, featuring BL32 firmware, this stack can handle up to 8S voltage input and delivers 55A continuous and 80A burst current per motor. This robust combo ensures a smooth and reliable flight experience, whether you're using Betaflight or Ardupilot.

Key Features

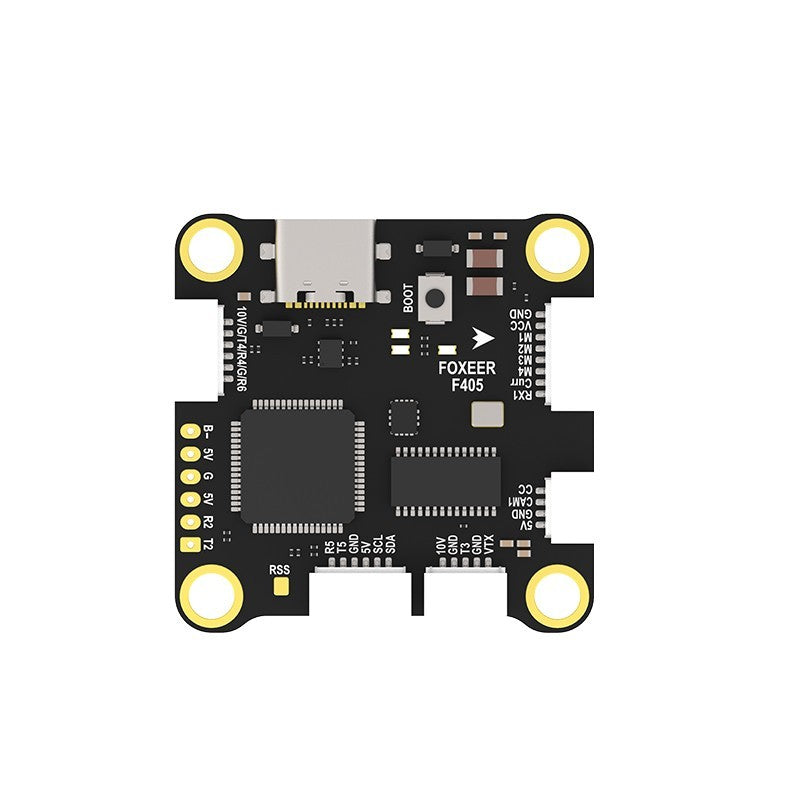

Foxeer F405 V2 Flight Controller:

  • CPU: STM32F405RGT6

  • Gyro: ICM42688-P

  • Barometer: DPS310

  • Power Supply: Supports 4-8S LiPo batteries

  • BEC Output: DC 5V/3A and 10V/3A

  • OSD: Betaflight OSD

  • Black Box: 64M Flash Memory

  • UART Ports: 6

  • Connectors: DJI, GPS/Compass, 2 Camera Switch, VTX

  • ESC Telemetry: RX1

  • X8 Supported: Yes

  • ADC: 3 Channels

  • PWM Channels: 1

  • Buzzer: Included

  • Smart Audio: Yes

  • LED: 1 Set 2812 LED

  • USB: Type-C

  • Firmware: FOXEERF405V2 (Betaflight) or F405V2 (Ardupilot)

  • Size: 37x37mm

  • Mounting Hole: 30x30mm, Φ4mm

  • Weight: 8.4g

  • Temperature Range: -20℃ to +55℃

  • Humidity Range: 20% to 95%

  • Storage Temperature: -20℃ to +70℃

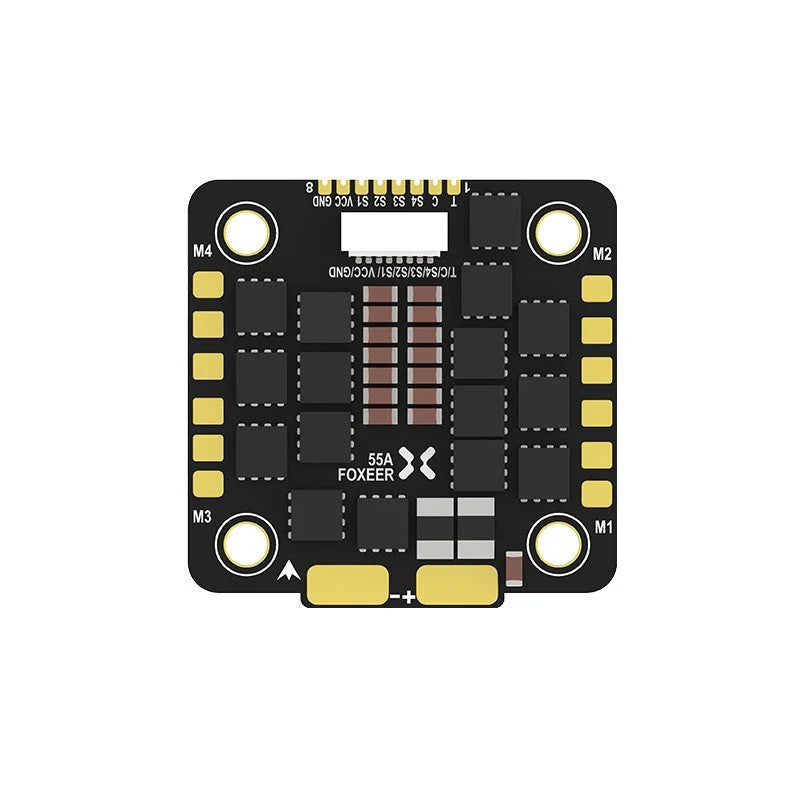

Foxeer Reaper 55A ESC:

  • Firmware: FOXEER_Reaper4IN1_F4_55A_128_Multi_32_9

  • Continuous/Burst Current: 55A/80A per motor

  • Input Voltage: DC 9V-36V (3-8S LiPo)

  • Telemetry: Supported

  • ESC Programming: BL32

  • Input Signal: DShot 150/300/600/1200, MultiShot, OneShot, etc.

  • Temperature Range: -20℃ to +55℃

  • Humidity Range: 20% to 95%

  • Storage Temperature: -20℃ to +70℃

  • Mounting Hole: 30.5x30.5mm, Φ4mm/M3

  • Dimensions: 42.5x42x5.5mm

  • Weight: 14.6g

What's in the Box?

  • 1 x Flight Controller (FC)

  • 1 x Electronic Speed Controller (ESC)

  • 1 x Capacitor

  • 1 x XT60 Cable

  • 1 x FC-ESC Cable

  • 5 x M3 Nylon Nuts

  • 1 x 90mm VTx Cable

  • 1 x 90mm DJI Cable

  • 1 x 120mm Camera Cable

  • 1 x 120mm GPS/Compass Cable

  • 8 x M3*8mm Silicone Grommets

Note: Accessories included may vary based on supply.
