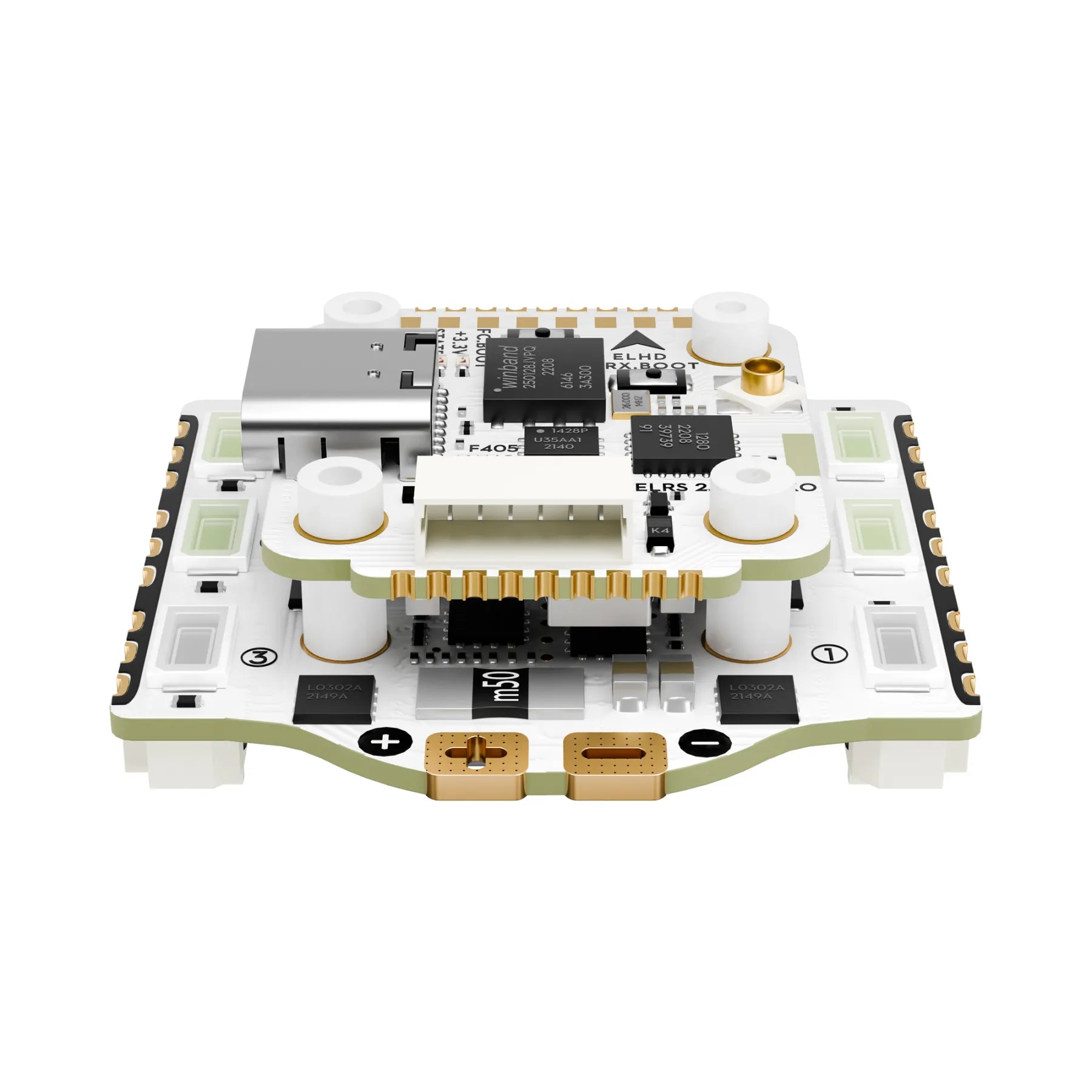

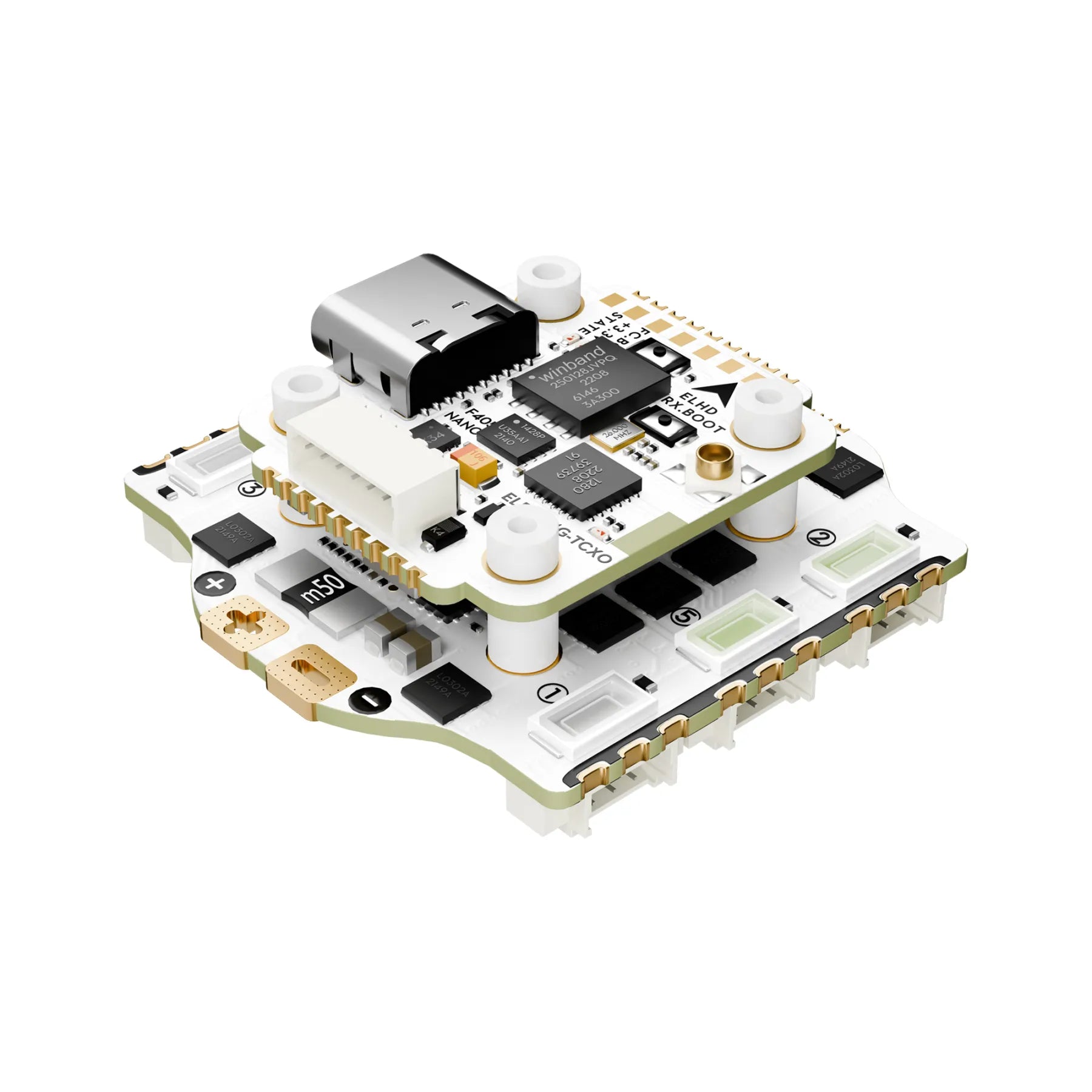

Flywoo GOKU HEX GN405 HD 20A Stack V3 w/ ELRS - Power Meets Precision for HEX Builds
The Flywoo GOKU HEX GN405 HD 20A Stack V3 w/ ELRS is a compact yet feature-packed solution designed to take your micro HEX drone to new heights. This stack combines the power of the GN405 Nano flight controller with a robust 20A 6-in-1 ESC , delivering smooth, precise control and reliable power distribution across six motors.
At the heart of this stack is the STM32F405 BGA MCU , offering fast processing speeds and responsive performance, paired with the ICM-42688P gyro for rock-solid stability in any flight condition. The built-in ExpressLRS 2.4G receiver ensures long-range, low-latency control, while the stack's plug-and-play compatibility with DJI O3/O4 provides seamless HD video transmission for crystal-clear visuals.
The 20A 6-in-1 ESC supports 2-4S LiPo input , making it an ideal choice for micro HEX builds that demand efficiency without sacrificing power. With support for PWM, Oneshot, Multishot, and DShot600 , the ESC delivers snappy throttle response to keep you in control at all times.
Whether you're building a cinematic hexacopter or an agile freestyle beast, the Flywoo GOKU HEX GN405 HD 20A Stack V3 offers a reliable, high-performance solution in a lightweight form factor.
Key Features:
- All-in-One HEX Solution - FC + 6-in-1 ESC for streamlined builds.
- STM32F405 BGA MCU - High-speed processing for precise control.
- ICM-42688P Gyro (SPI) - Smooth, stable, and responsive flight performance.
- Built-in ExpressLRS 2.4G Receiver - Reliable long-range control with minimal latency.

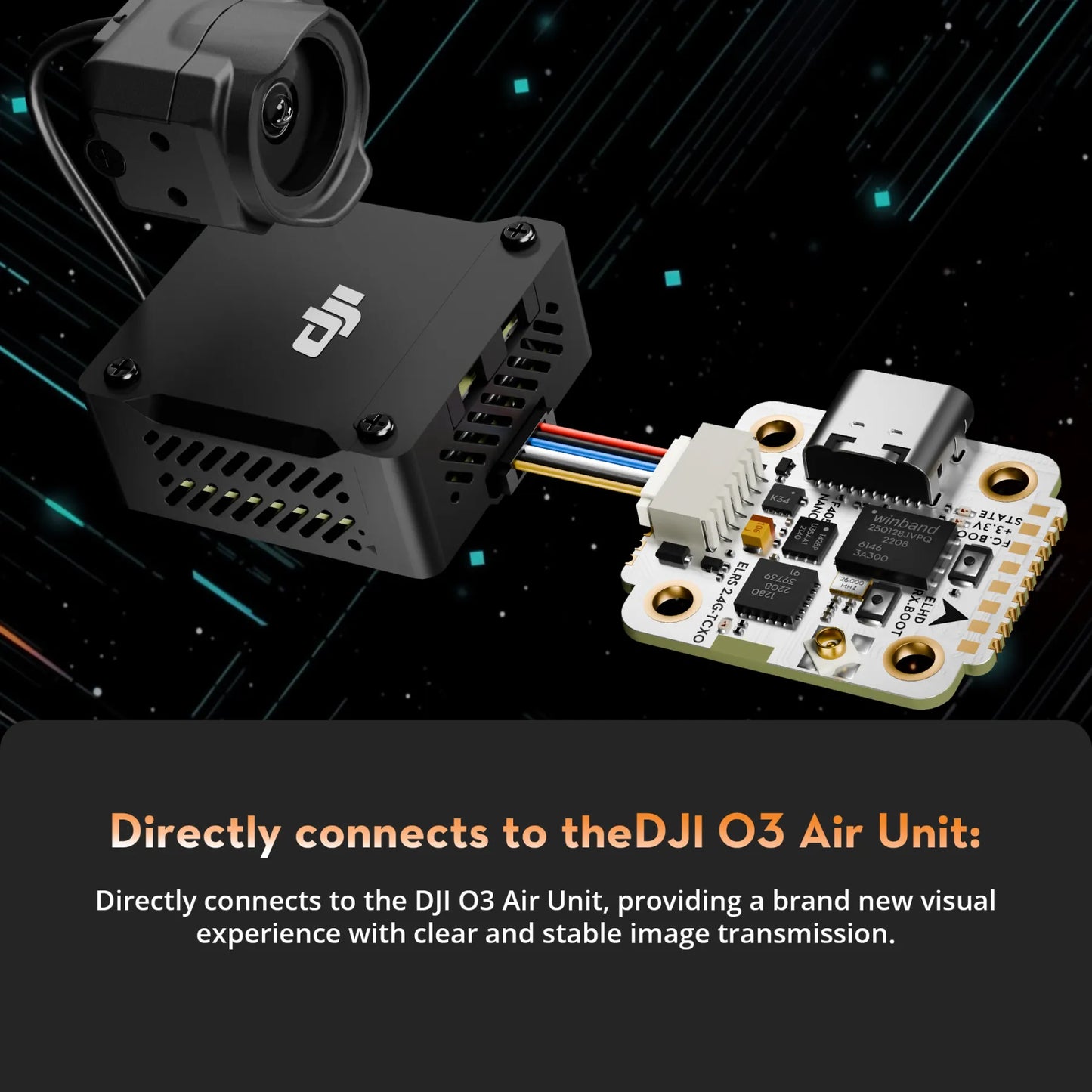

- DJI O3/O4 Plug-and-Play Support - Seamless integration for HD digital video.
- 6-in-1 20A ESC - Efficient power distribution for HEX setups.
- Six UART Ports - Connect multiple peripherals without compromise.

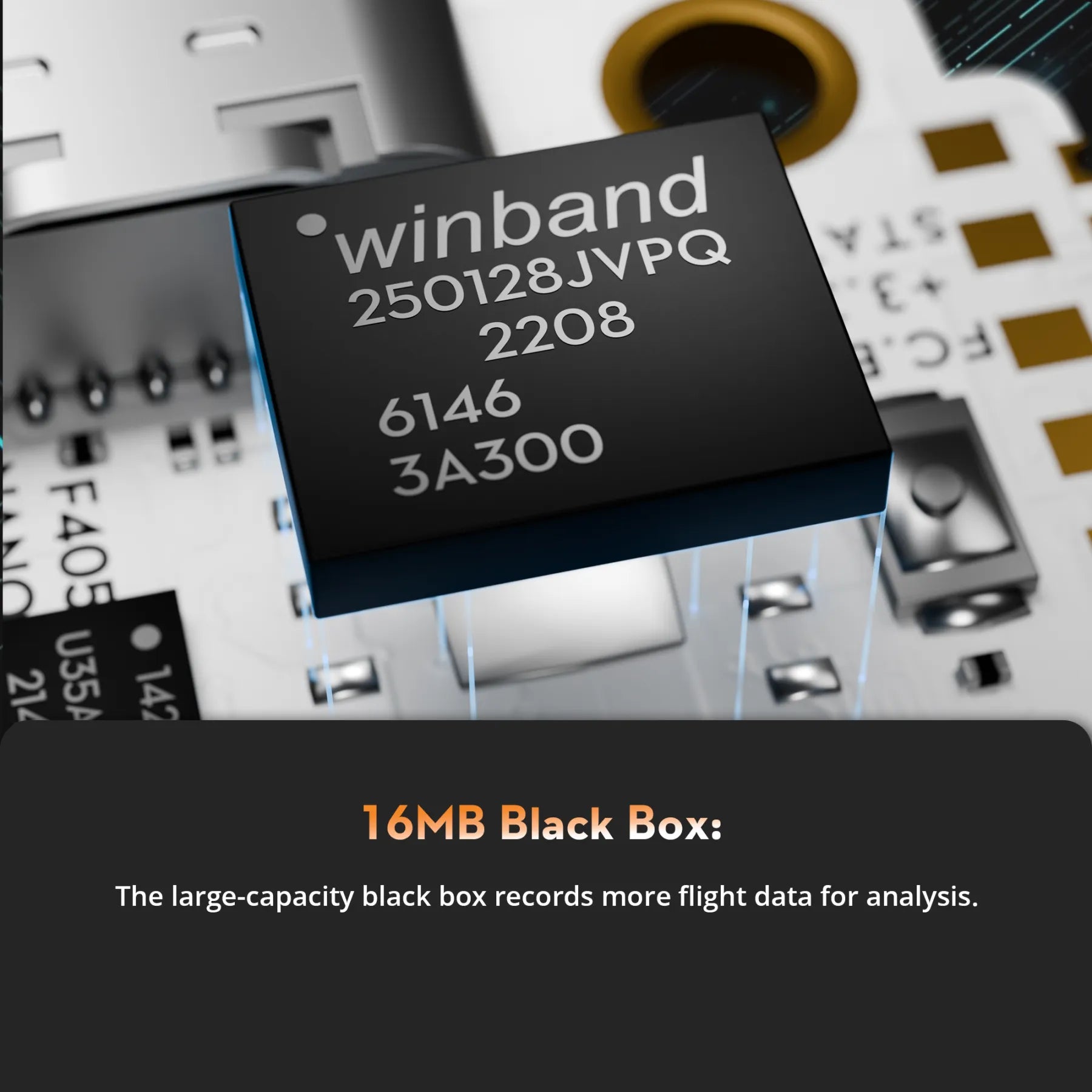

- 16MB Black Box - Flight data logging for easy tuning and diagnostics.

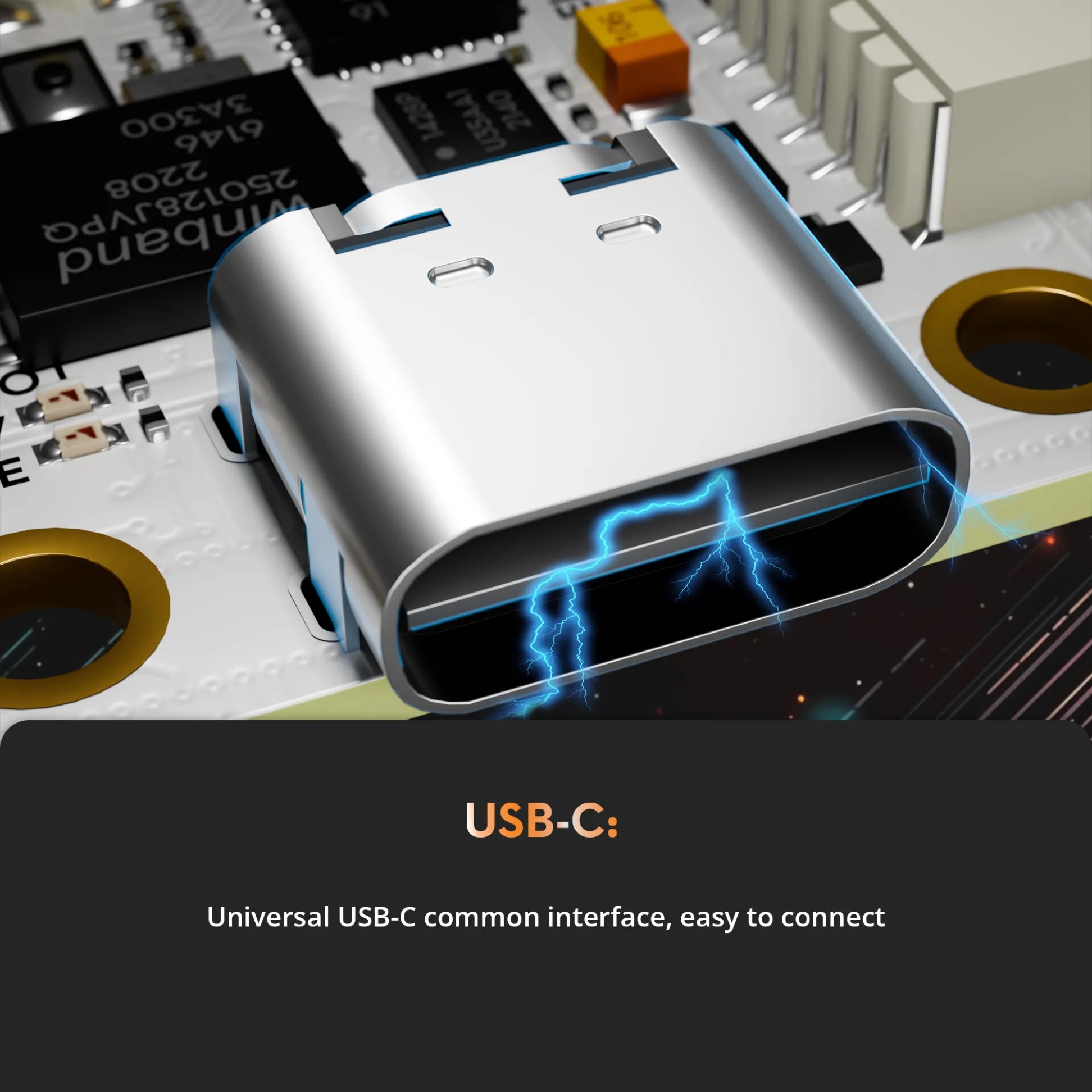

- USB-C Port - Modern connectivity for quick updates and setup.
- 2-4S LiPo Compatibility - Flexible power input for various flight styles.
Flight Controller Specifications:
- Model: Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4G
- MCU: STM32F405 BGA
- Gyro: ICM-42688P (SPI)
- OSD: Not included

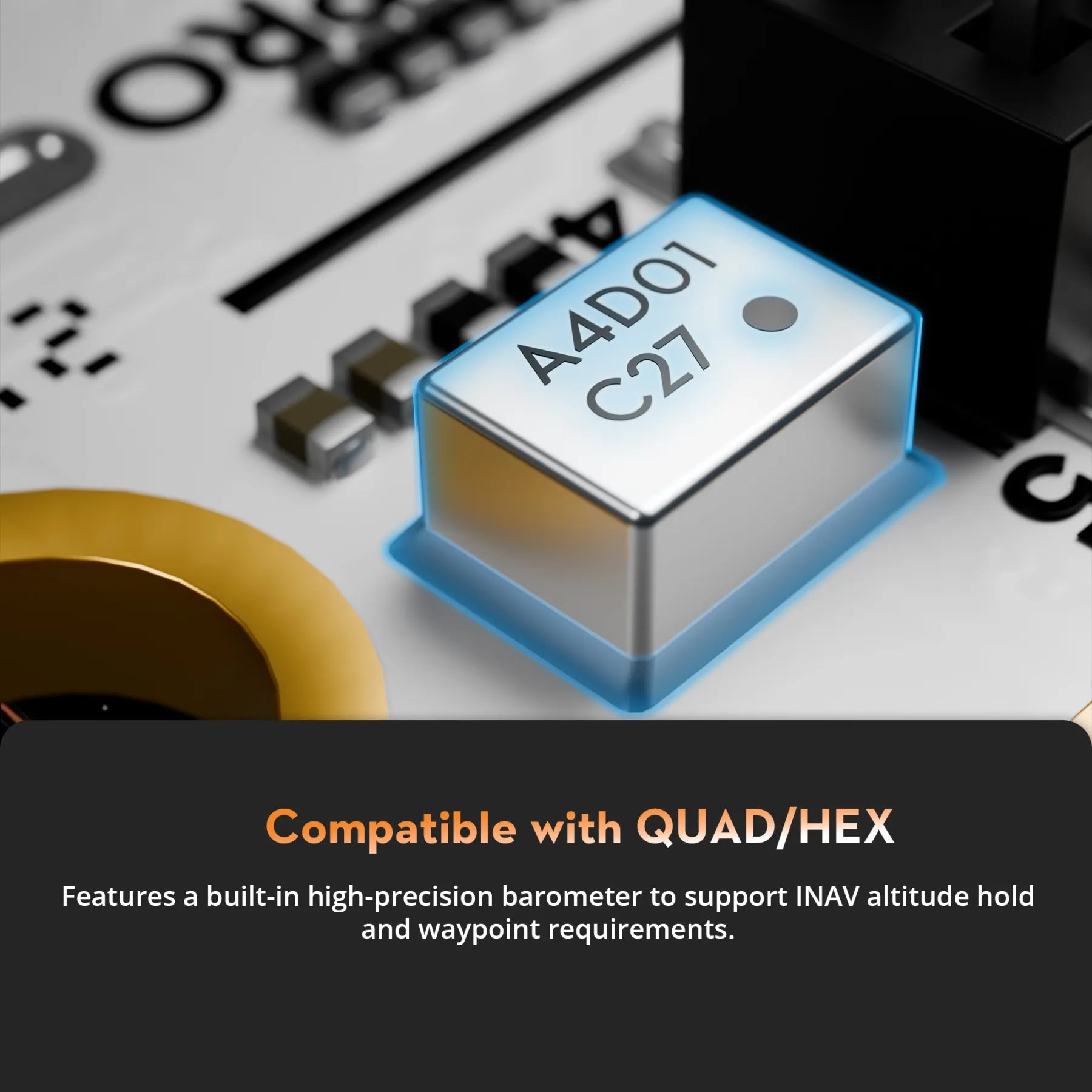

- Barometer: DP310
- Black Box Storage: 16MB
- USB Port: Type-C
- UART Ports: 6 (1,2,3,4,5,6)
- Input Voltage: 7.4V - 24V (2-6S LiPo)
- BEC Output: 5V 2A / 3.3V 0.5A
- Size: 25mm x 23mm x 8mm
- Mounting Holes: 16x16mm (M2)
- Weight: 3g (FC only)
ESC Specifications (6-in-1 20A HEX Version):
- Model: Flywoo GOKU HEX BS 6-in-1 20A ESC V3
- MCU: BB21F16G
- Continuous Current: 20A (per motor)
- Battery Input: 2-4S LiPo
- Supported Protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600
- Size: 33mm x 35mm (board)
- Mounting Holes: 16mm (M3)
- Weight: 6.4g
- Power LED: No
What's in the Box:
- 1x Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4G
- 1x Flywoo GOKU HEX BS 6-in-1 20A ESC V3
- 1x Cable set
- 1x Mounting hardware
Note: Included accessories may vary based on availability.
