Product Details
Flywoo GOKU GN 413 20A AIO V2.1 (MPU6000) - Lightweight Power for Toothpick Builds
Overview

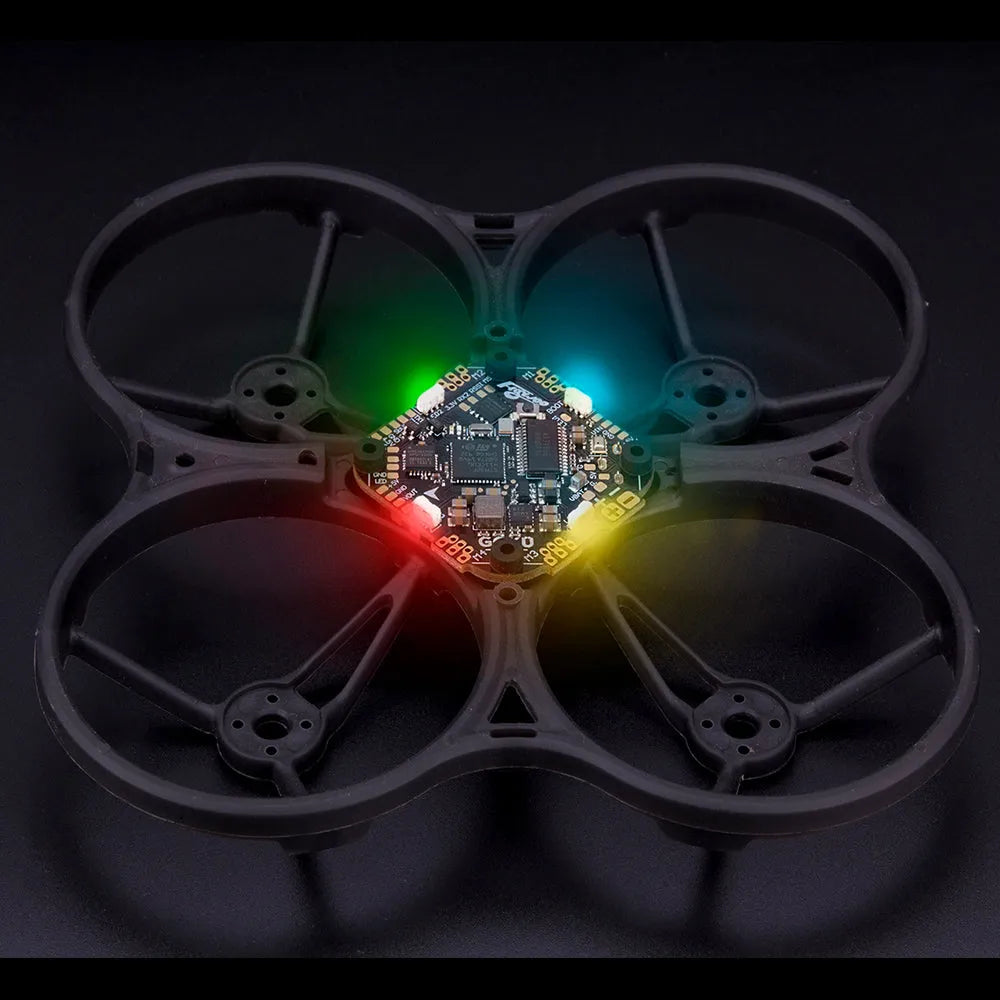

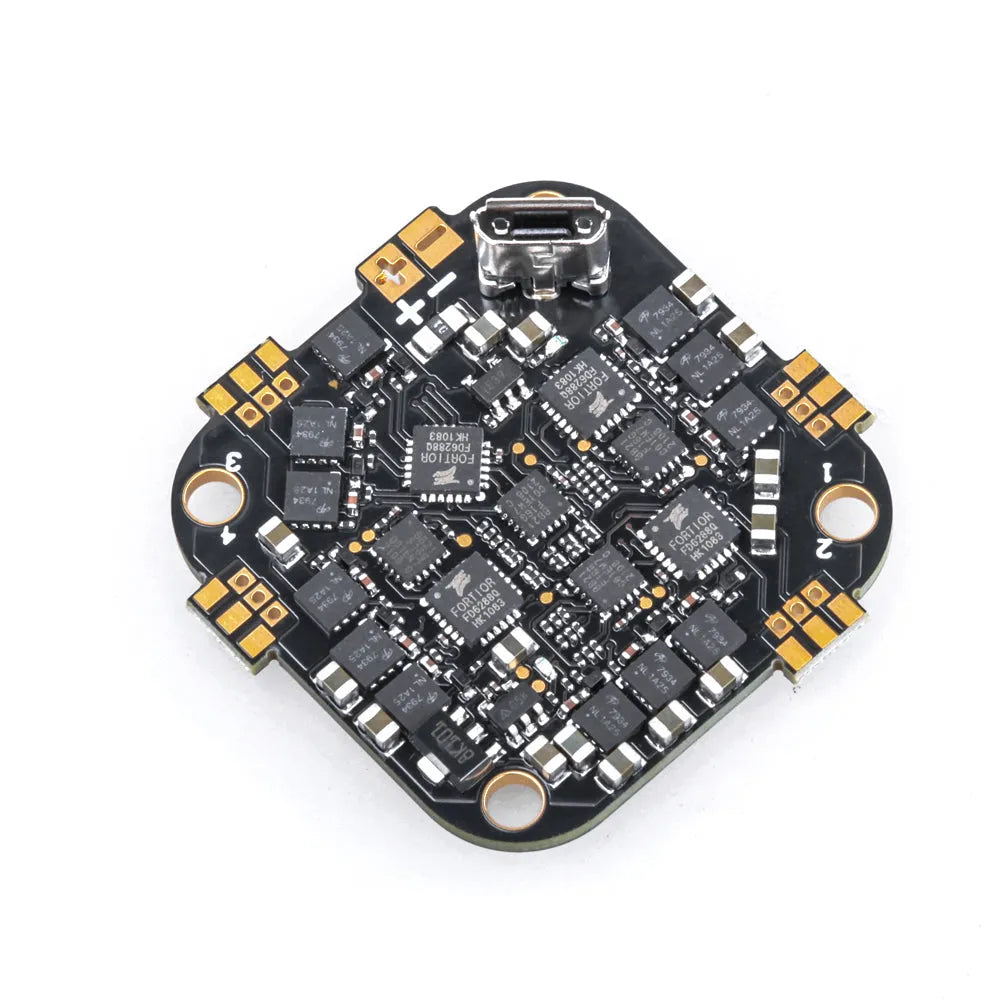

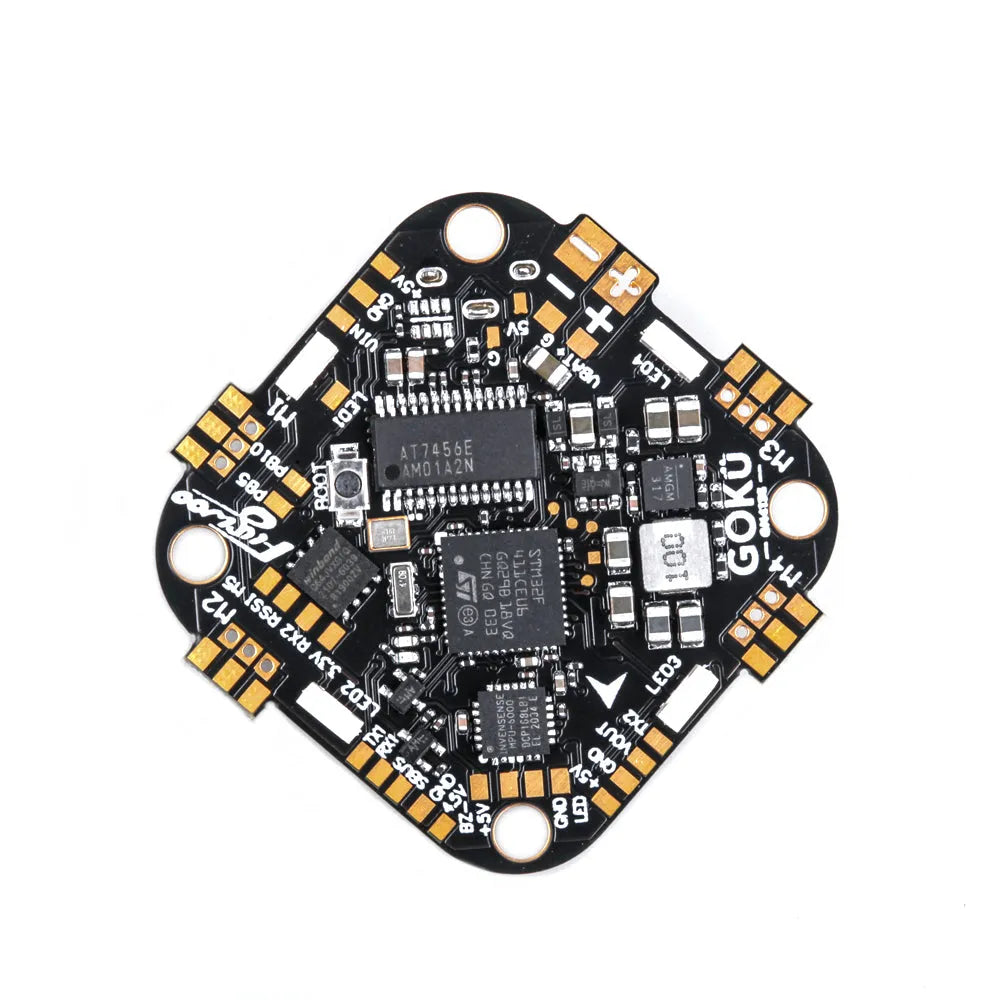

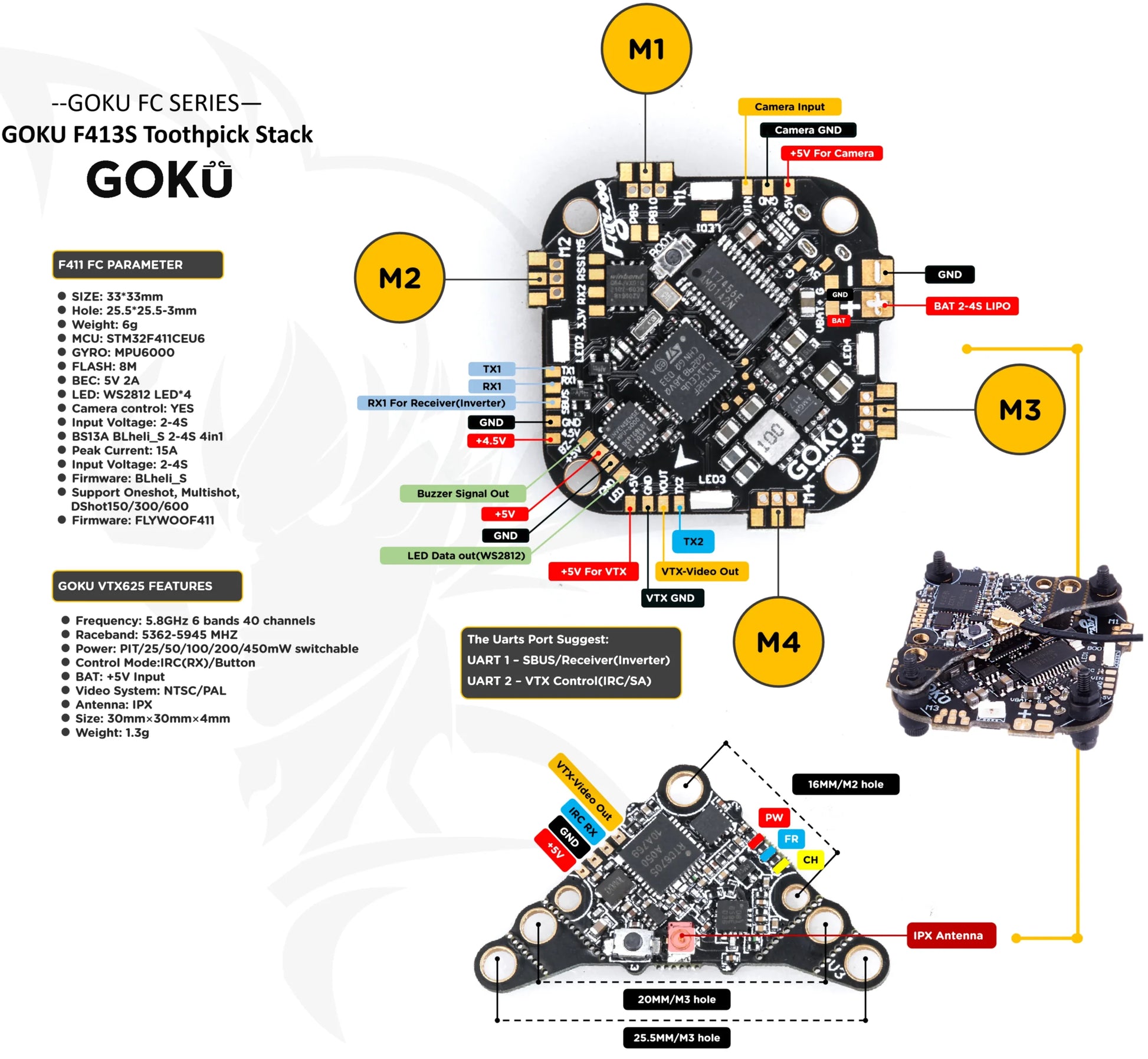

The Flywoo GOKU GN 413S AIO V2.1 is a compact yet powerful All-in-One (AIO) flight controller tailored specifically for toothpick builds . Weighing in at just 6g , it delivers impressive performance with its 13A continuous ESC , and supports 2-4S LiPo input for high-powered micro drones. This flight controller is built around the STM32F411 MCU and features the reliable MPU6000 gyro/accelerometer , known for its stability and accuracy in flight performance.
Integrated with BetaFlight OSD , 4x WS2812 LEDs , and an 8MB black box , the GN 413S offers full support for flight tuning and logging, helping you optimize your quad's performance. With Dshot600, Oneshot, and Multishot compatibility, the GN 413S gives you flexible ESC protocol options, making it a great fit for a range of flight styles.
Features
- MCU: STM32F411 for responsive flight control
- IMU: MPU6000 gyro/accelerometer for smooth flight performance (SPI)
- BetaFlight OSD with AT7456E chip for in-flight tuning
- 8MB black box for flight data logging
- Integrated LC Filter to reduce noise and smooth voltage
- 4x WS2812 LEDs for customizable lighting
- ESC: 13A continuous current, 2-4S LiPo input, 4-in-1 ESC design
- Dshot600 , Oneshot , and Multishot compatible for flexible control
- BEC Output: 5V@2A for powering peripherals
- Super lightweight at just 6g
Specifications
- MCU: STM32F411
- IMU: MPU6000 (SPI)
- OSD: BetaFlight OSD with AT7456E chip
- Black Box: 8MB onboard storage
- LEDs: 4x WS2812
- ESC MCU: BB21F16G
- Continuous Current: 13A (4-in-1 ESC)
- Input Voltage: 2-4S LiPo
- BEC Output: 5V @ 2A
- Board Dimensions: 34 x 34mm
- Mounting Holes: 25.5mm (M2 screws)
- Weight: 6g
- Firmware Target: FLYWOOF411
What's in the Box
- 1x Flywoo GOKU GN 413S AIO V2.1 Flight Controller
Note: Accessories may vary depending on supply.
