Product Details

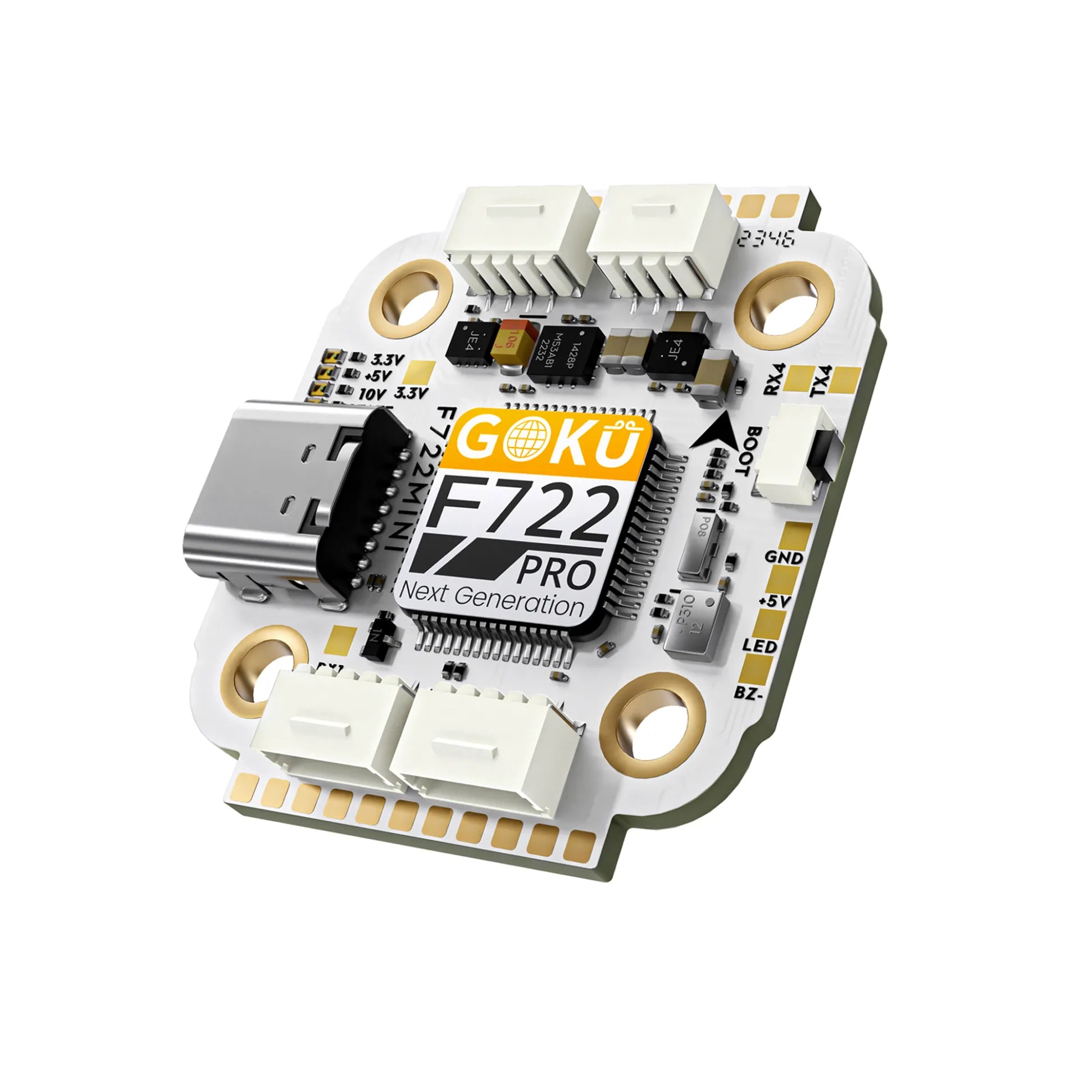

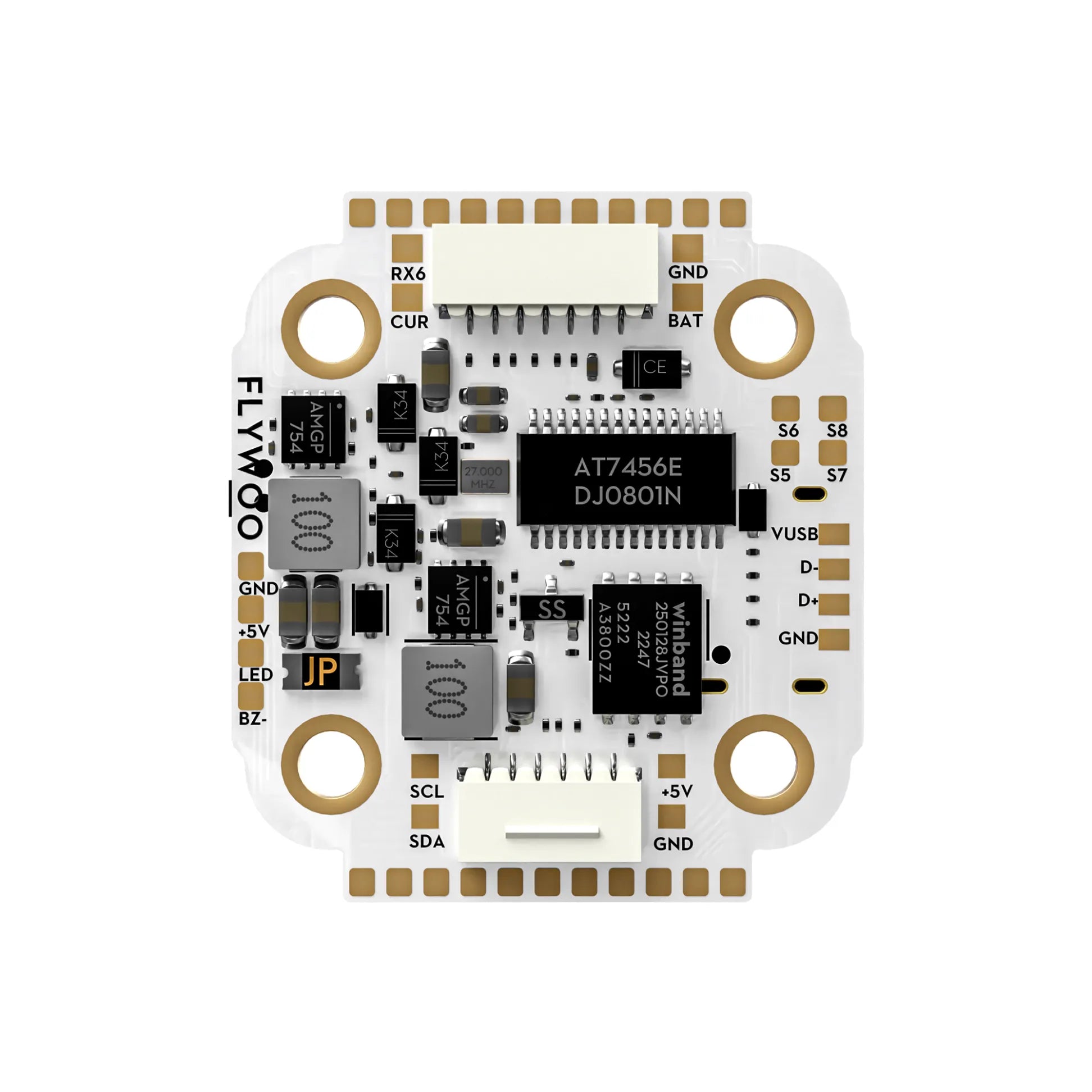

FLYWOO GOKU F722 PRO Mini V2 Flight Controller - High-Performance, Compact, and DJI-Ready
Looking to upgrade your drone's brains without the headache? The FLYWOO GOKU F722 PRO Mini V2 Flight Controller delivers serious performance in a compact 20mm form factor. Powered by the STM32F722 processor, it offers lightning-fast 216MHz processing speeds and supports 8 motor outputs , making it a powerhouse for both racing and freestyle builds.
With a plug-and-play design, connecting your peripherals has never been easier—thanks to the thoughtfully engineered snap-lock sockets that eliminate the need for soldering. Whether you're a pro pilot or just getting started, this feature makes installation and maintenance a breeze. And for those who like options, FLYWOO has kept the solder pads intact, giving you the freedom to choose your preferred setup method.
Designed with DJI pilots in mind , the GOKU F722 PRO Mini V2 includes dedicated plug-and-play support for the DJI O3 Air Unit , ensuring seamless integration with DJI's cutting-edge digital FPV system.
Need flight data? The built-in 16MB black box lets you record and analyze every maneuver, helping you fine-tune performance. Plus, with robust onboard 10V/2A and 5V/2A BECs , your VTX and peripherals get stable power delivery even during high-demand flights.
Key Features:
- High-performance processing: STM32F722 MCU with 216MHz speed for quick response times.
- Precision gyroscope: ICM42688 gyro for smoother flight and better stability.
- No-solder modular design: Snap-lock sockets make installation and maintenance easy.
- Black box logging: 16MB storage for detailed flight data analysis.
- Stable power output: 10V/2A and 5V/2A BECs ensure reliable power for VTX and accessories.
- Versatile motor support: 8 motor outputs and dual 4-in-1 ESC sockets for simplified wiring.
- Built to last: Durable immersion gold PCB resists high temperatures and currents.
Specifications:
- Model: GOKU F722 PRO Mini V2
- Firmware: Betaflight (FLYWOO F722PROV2), iNav (FLYWOO F722PRO)
- MCU: STM32F722
- Gyroscope: ICM42688
- OSD: AT7456E
- Barometer: DP310
- Black Box: 16MB
- UART Ports: 6 (1/2/3/4/5/6)
- Input Voltage: 7.4V-26V (2-6S LiPo)
- BEC Outputs: 10V/2A, 5V/2A

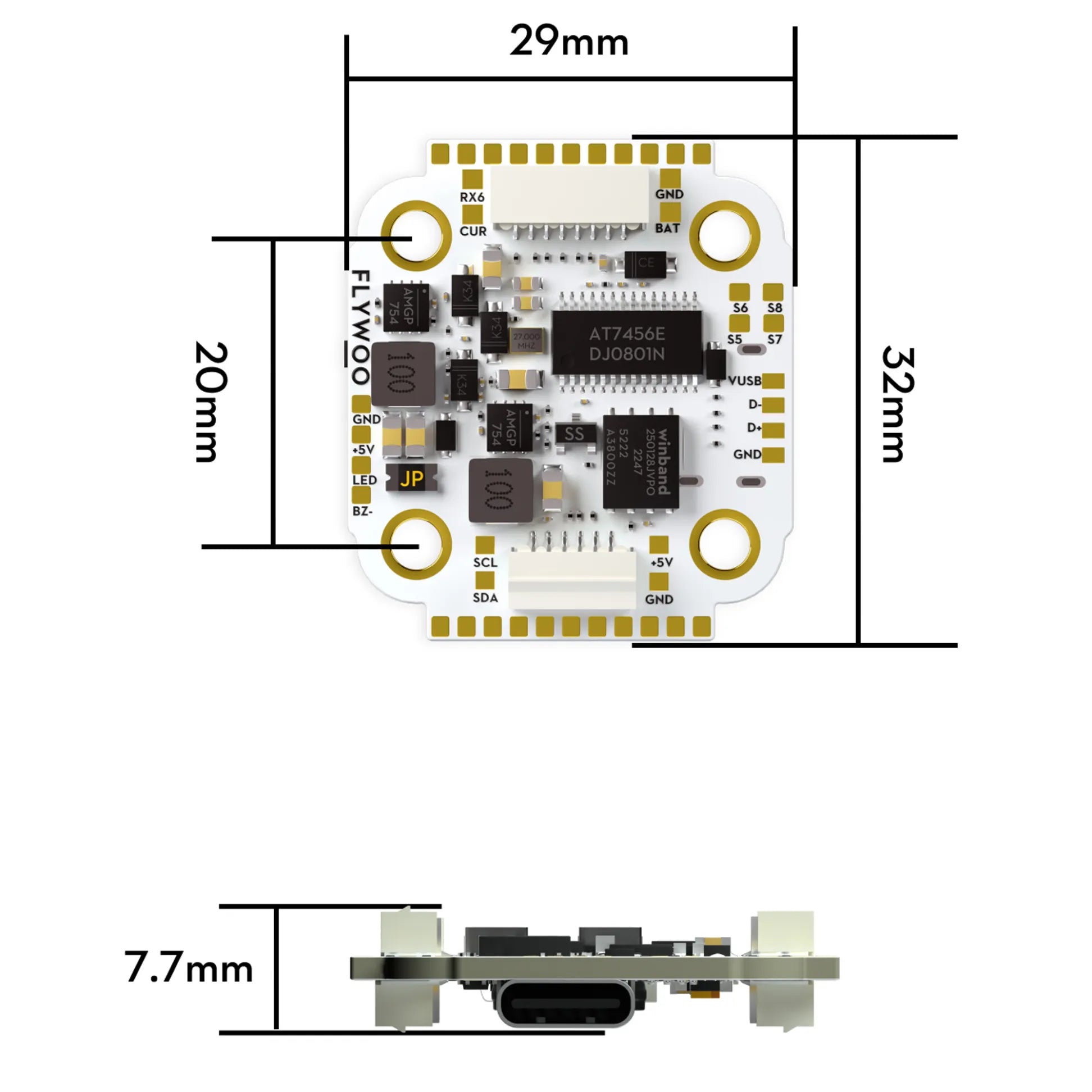

- Size: 32mm x 29mm x 20mm
- Mounting: M2 20x20mm
- Weight: 9.9g

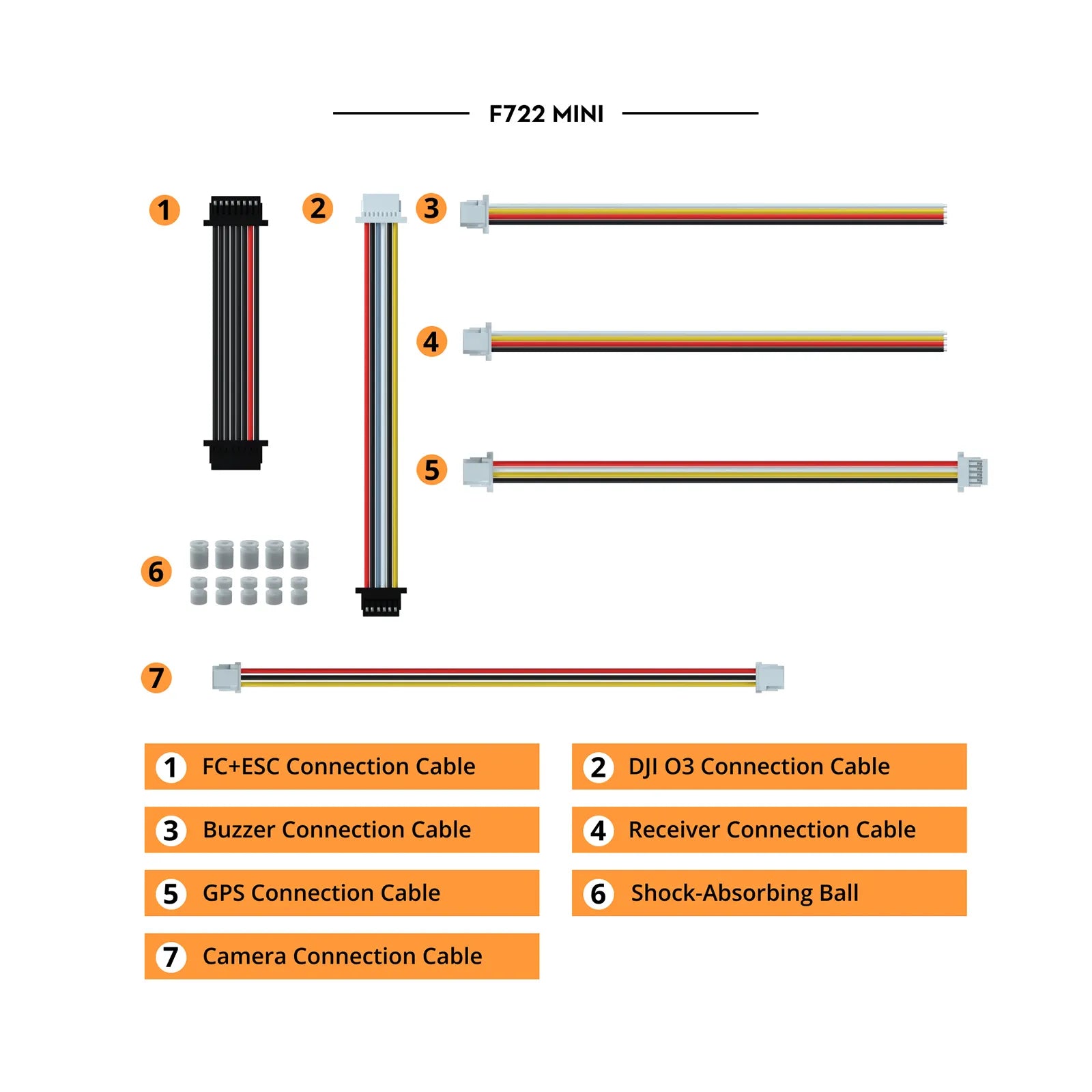

What's in the Box:
- 1 x FC & ESC Connection Cable
- 1 x Buzzer Connection Cable
- 1 x GPS Connection Cable
- 1 x DJI O3 Connection Cable
- 1 x Receiver Connection Cable
- 5 x M3 Shock-Absorbing Balls
- 5 x M2 Shock-Absorbing Balls
- 1 x Camera Connection Cable
Please note: Included accessories may vary based on availability.
