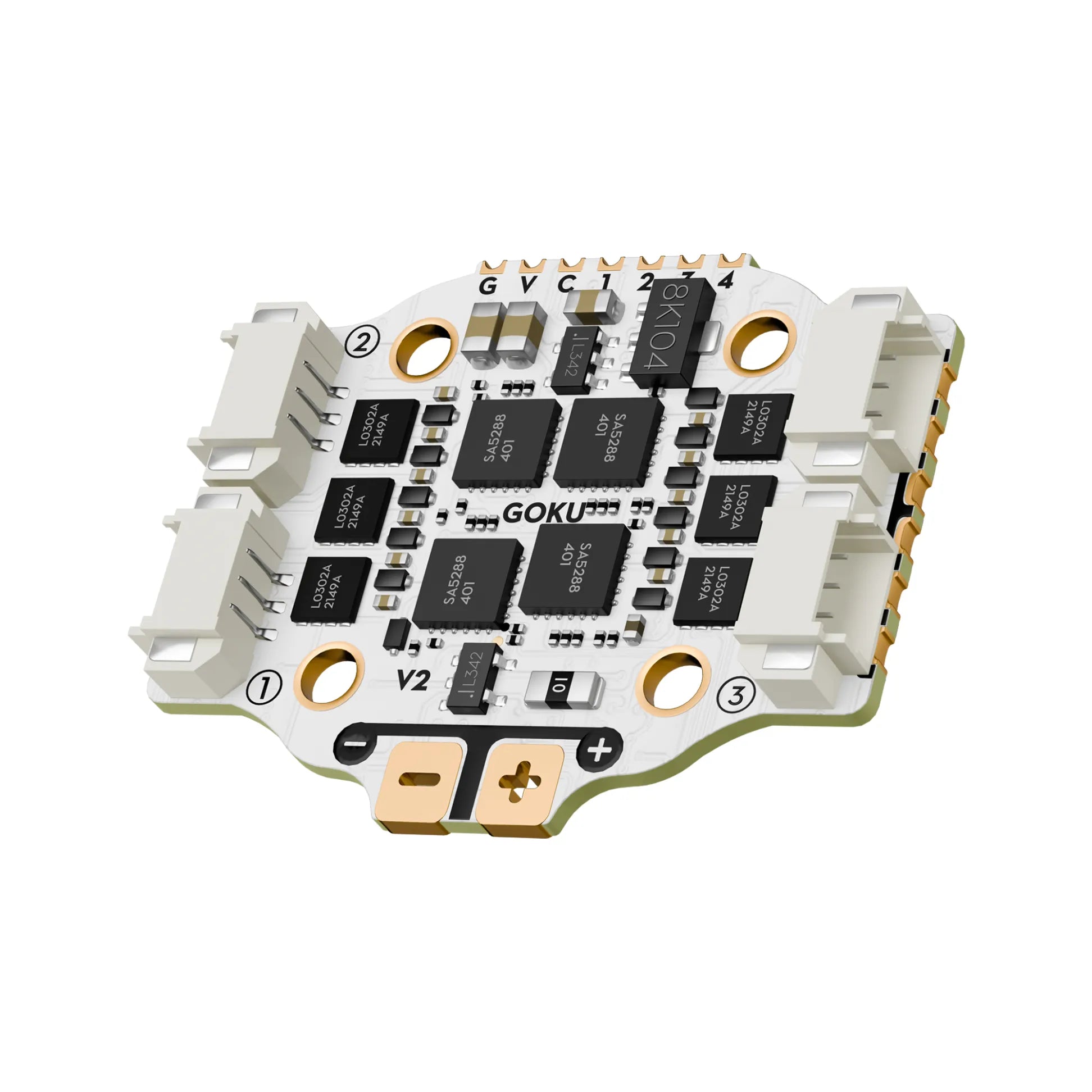

Flywoo GOKU BS 20A ESC w/ LED V3 (16x16) - Compact Power for Micro Drones
The Flywoo GOKU BS 20A ESC V3 delivers reliable power in a lightweight, micro-friendly package. Built around the BB21F16G MCU , this ESC offers smooth and responsive performance, making it an excellent choice for micro QUAD drone builds. With support for a range of protocols—including PWM, Oneshot, Multishot, and Dshot up to 600 —you'll experience precise throttle control whether you're racing, freestyling, or cruising through tight spaces.
Designed with 16x16mm M2 mounting holes , this ESC fits perfectly into compact builds without sacrificing power, supporting 2-4S LiPo batteries for an ideal balance of weight and efficiency. And with a built-in power LED , you'll always know when it's ready to fly.
Key Features:
- BB21F16G MCU - Reliable, high-speed processing for smooth performance.
- 20A continuous current - Handles demanding micro setups with ease.
- 2-4S LiPo input support - Versatile power range for different builds.
-
Supports multiple protocols:
- PWM
- Oneshot125/42
- Multishot
- Dshot150/300/600
-
Compact design:
- 27x33mm board
- 16x16mm mounting holes (M2)
- Built-in power LED - Quick visual power status check.
- Lightweight construction - Weighs just 4.5g , keeping your build agile.
Specifications:
- Model: Flywoo GOKU BS 20A ESC V3
- MCU: BB21F16G
- Continuous Current: 20A
- Battery Input: 2-4S LiPo
- Supported Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

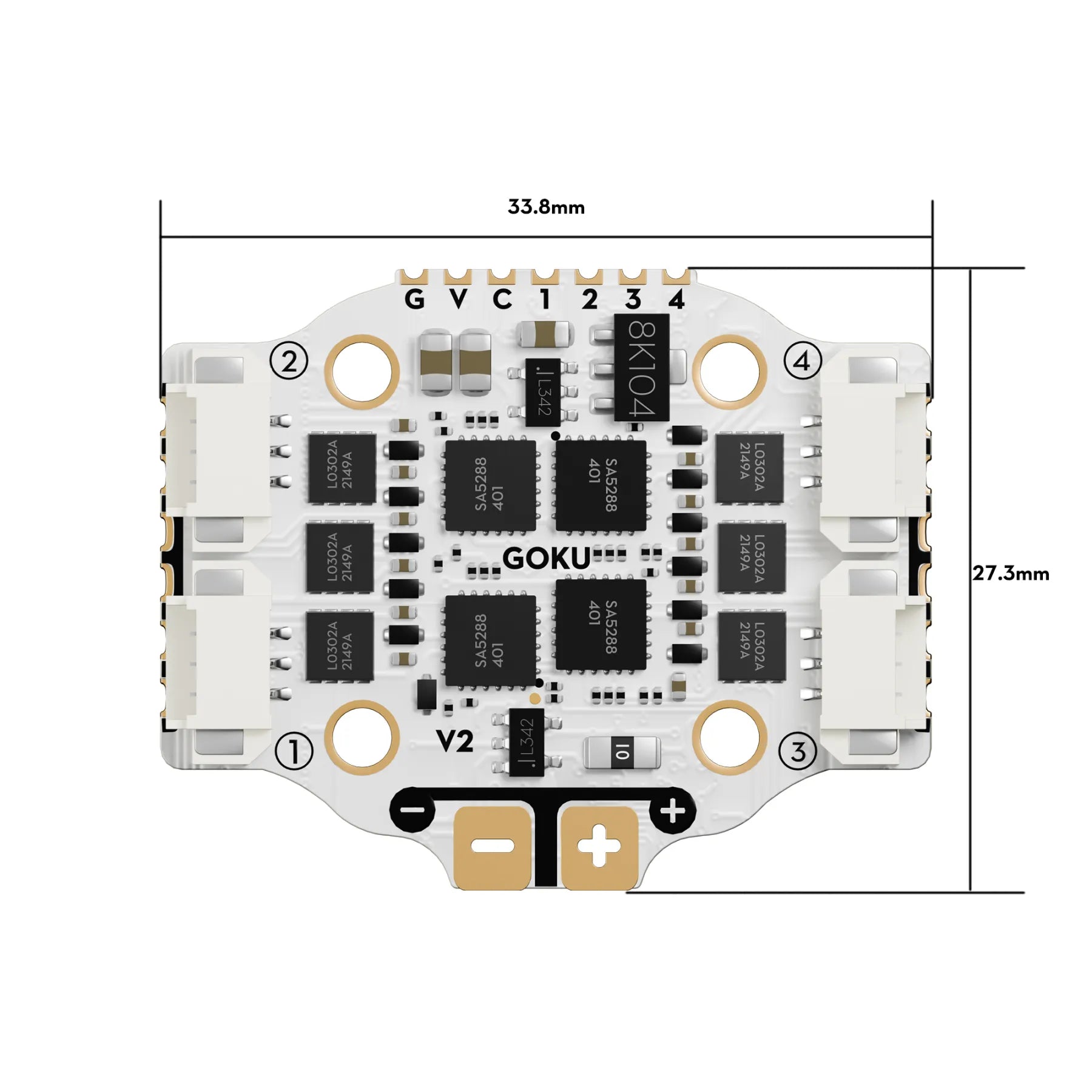

- Size: 27mm x 33mm (board)
- Mounting Holes: 16mm (M2)
- Weight: 4.5g
- Power LED: Yes
What's in the Box:
- 1x Flywoo GOKU BS 20A ESC V3
- 1x Cable set
- 1x Mounting hardware
Note: Included accessories may vary based on availability.
