Product Details

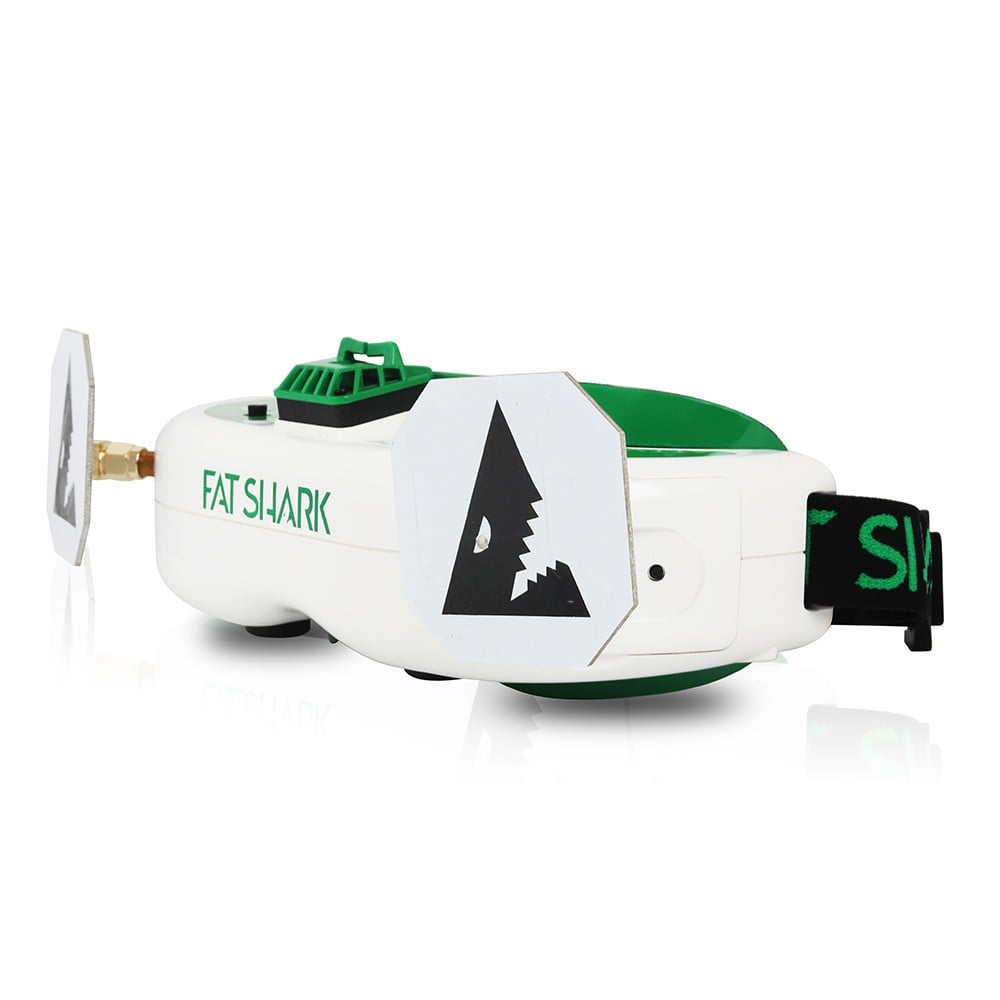

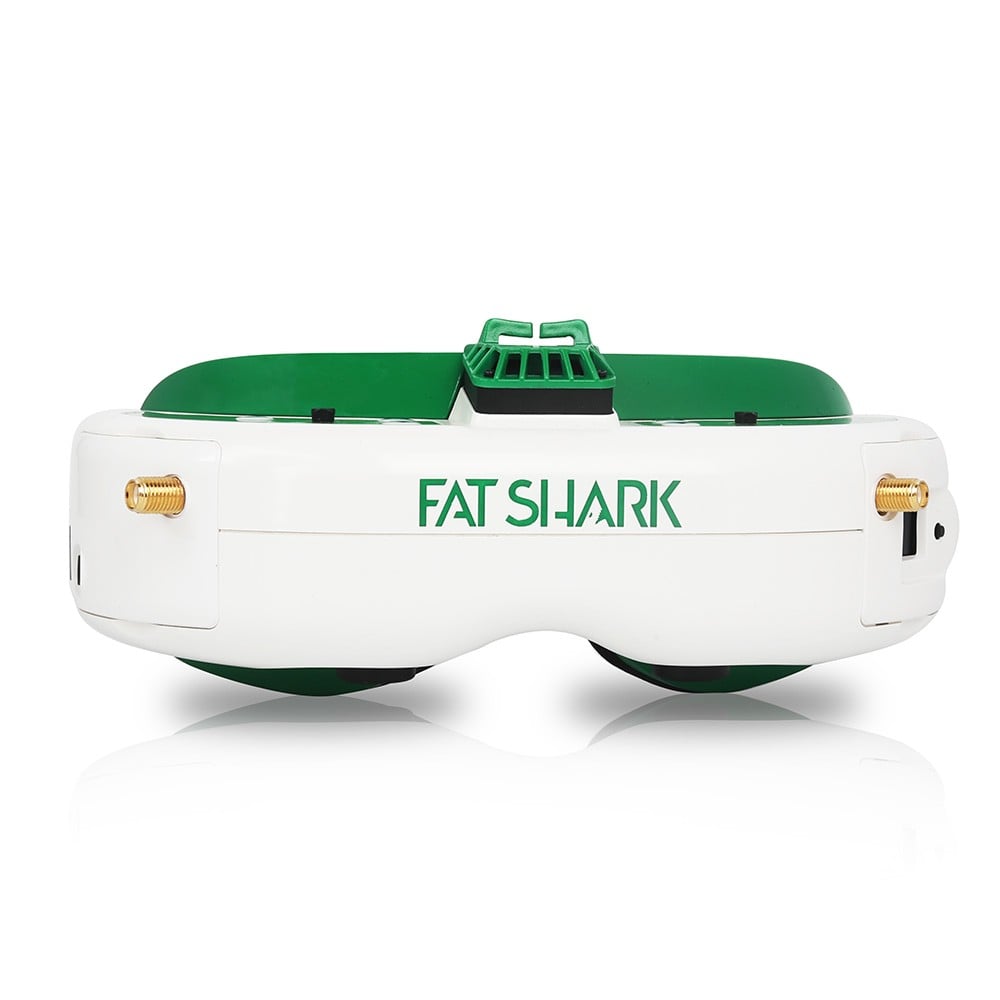

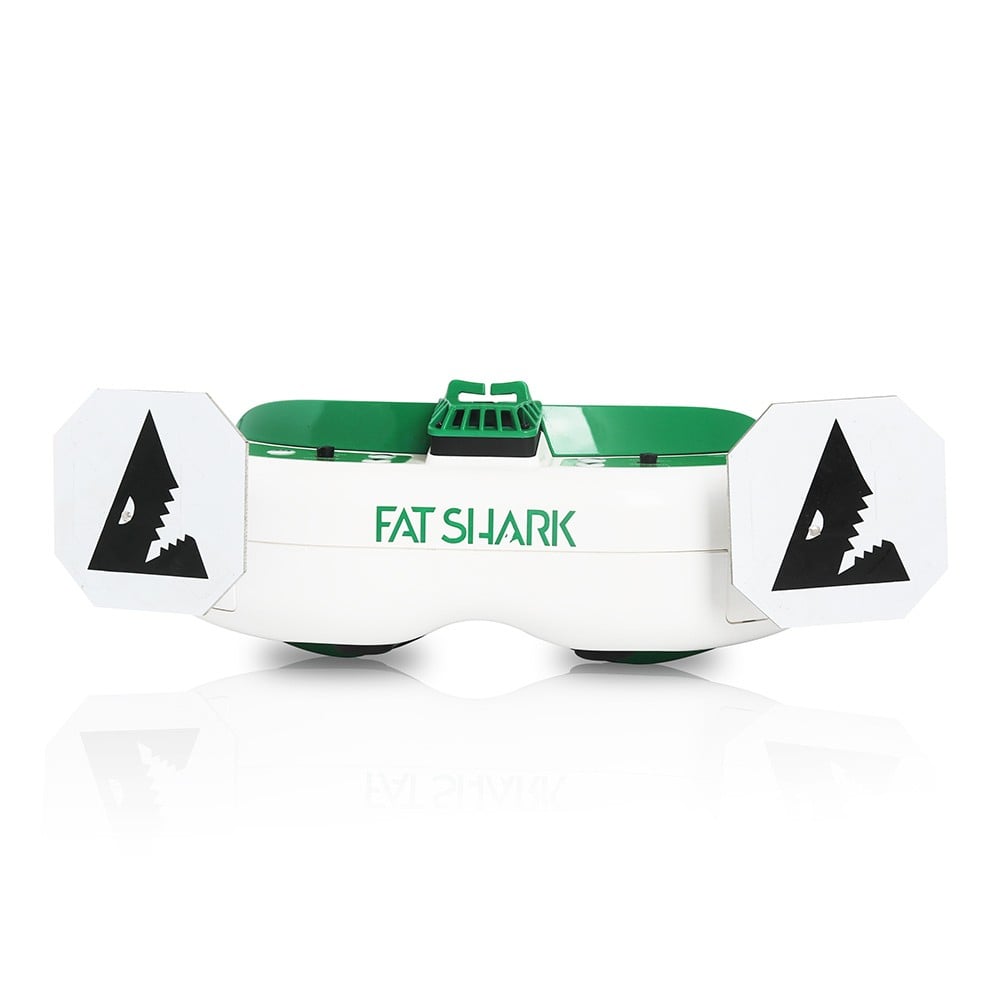

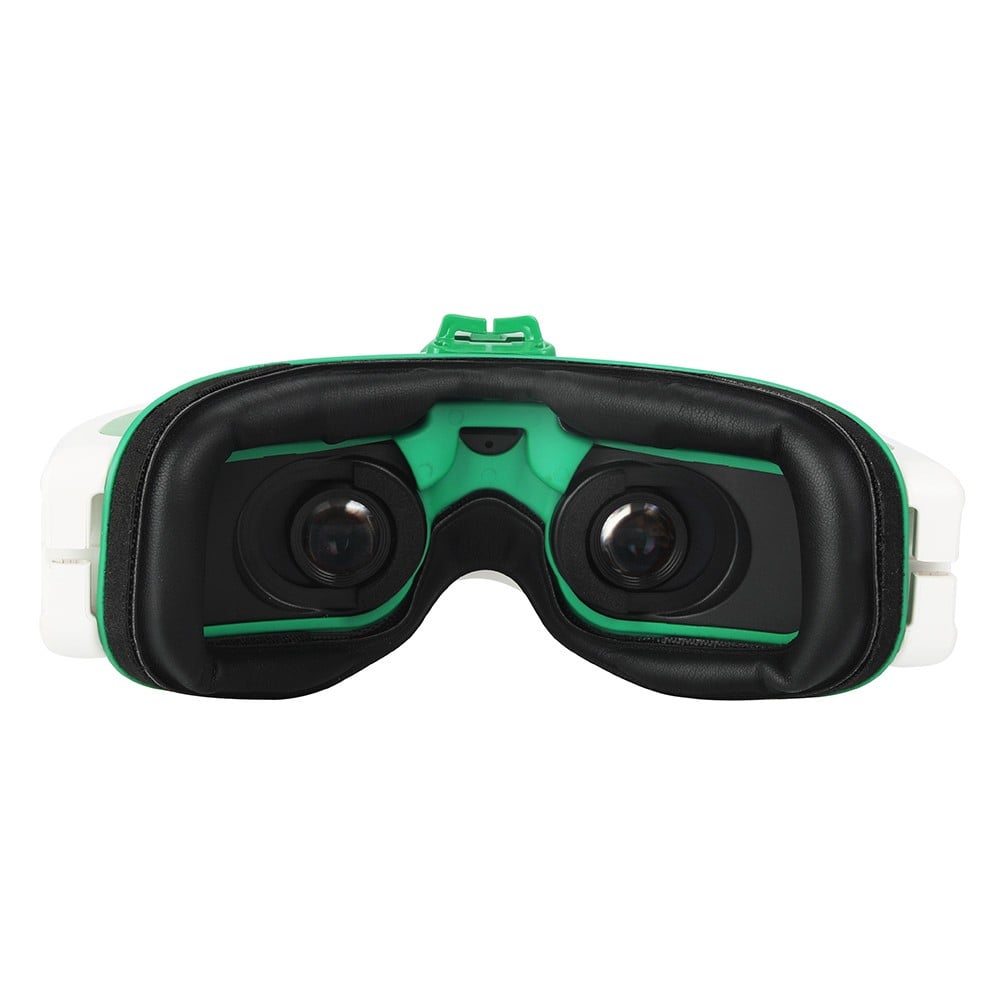

The Fat Shark Attitude V6 FPV Goggles (FSV1124). The modular UVGA LCOS FPV goggles with integrated DVR for analogue recording.
Features
- LCOS microdisplays with a resolution of 1280 x 960
- 39° field of view (FOV)
- In-built DVR
- HDMI Input Port

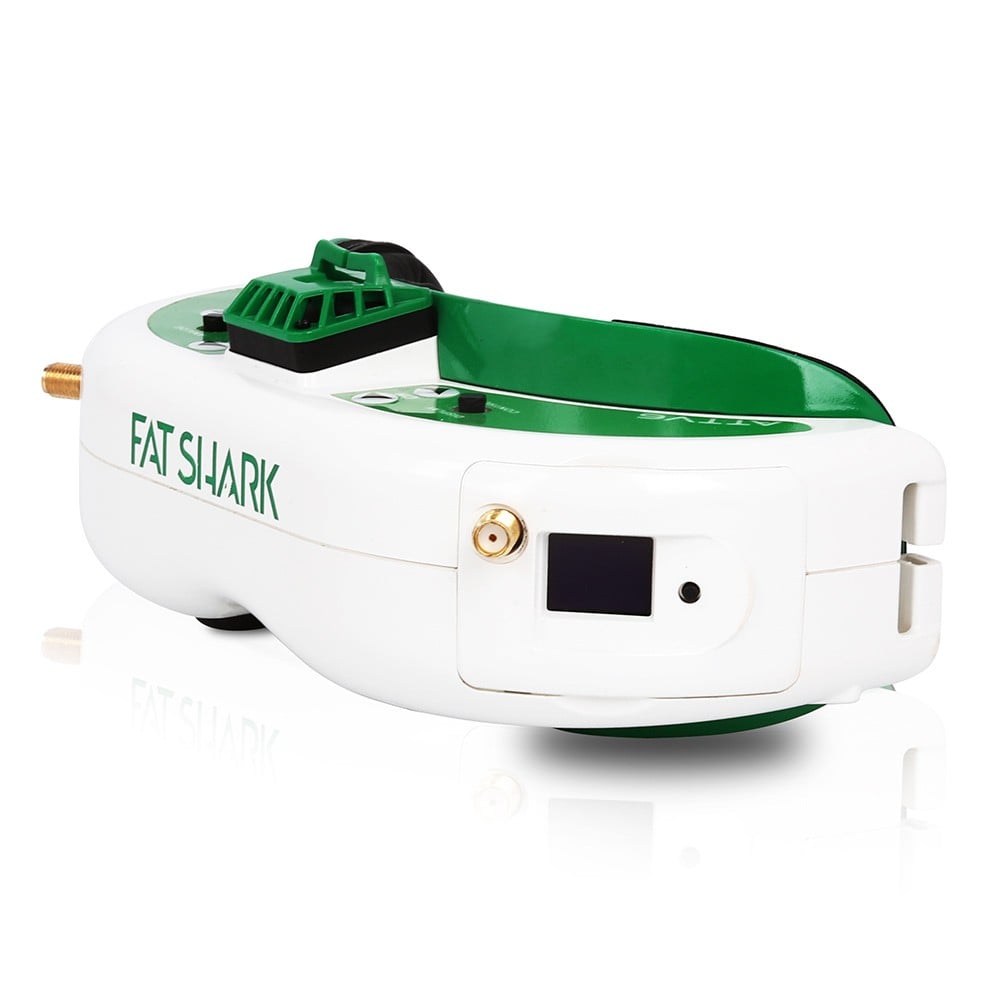

- True Diversity OLED 5.8GHz Receiver
- Comes with the 18650 Li-ion Battery Case, 2x FS patch antenna and carry case
Specifications
Optics:
FOV (field of view): 39 degrees diagonal
IPD (interpupillary distance): 54 to 74 mm (adjustable)
Focus: +2 to -6 diopters (adjustable)
Display: Two citizen 0.4" LCOS displays
Resolution 1280 X 960
NTCS/PAL auto selecting
AV Mode 4:3
AV Mode 16:9
HDMI Mode 16:9
Audio: Stereo

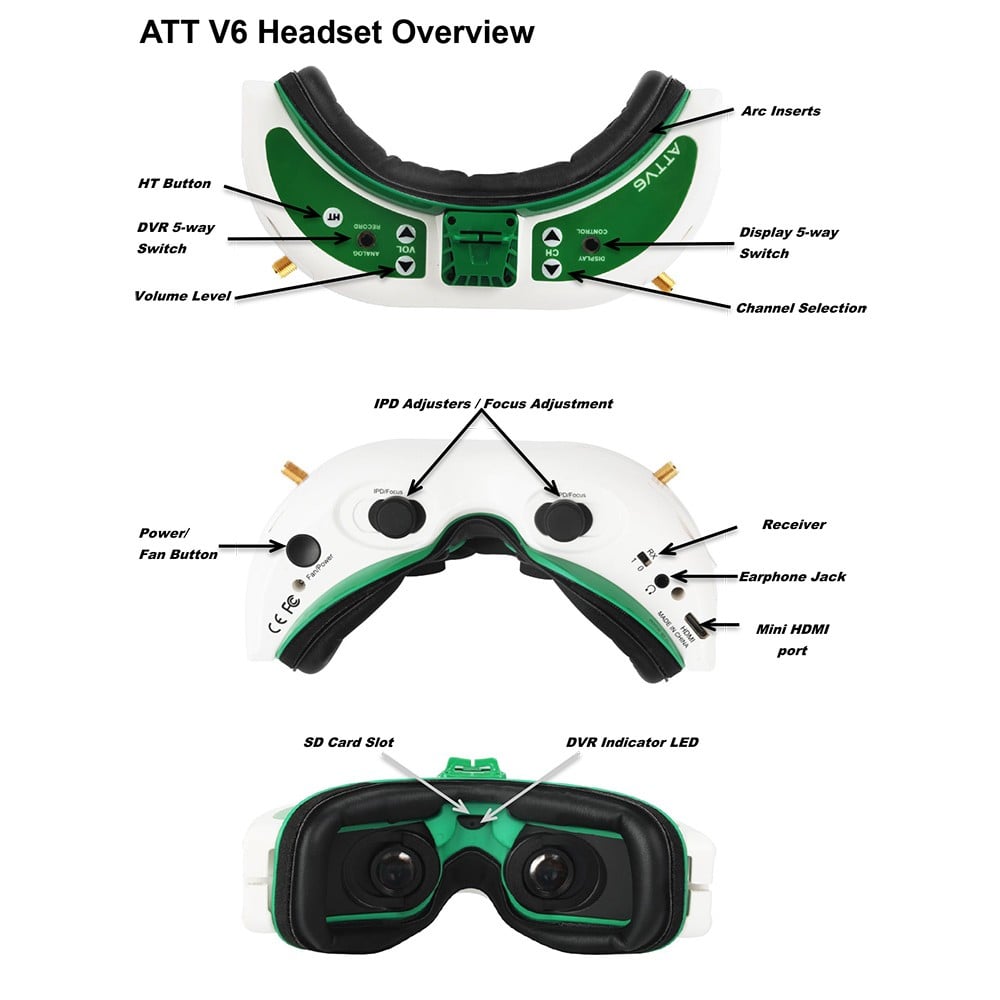

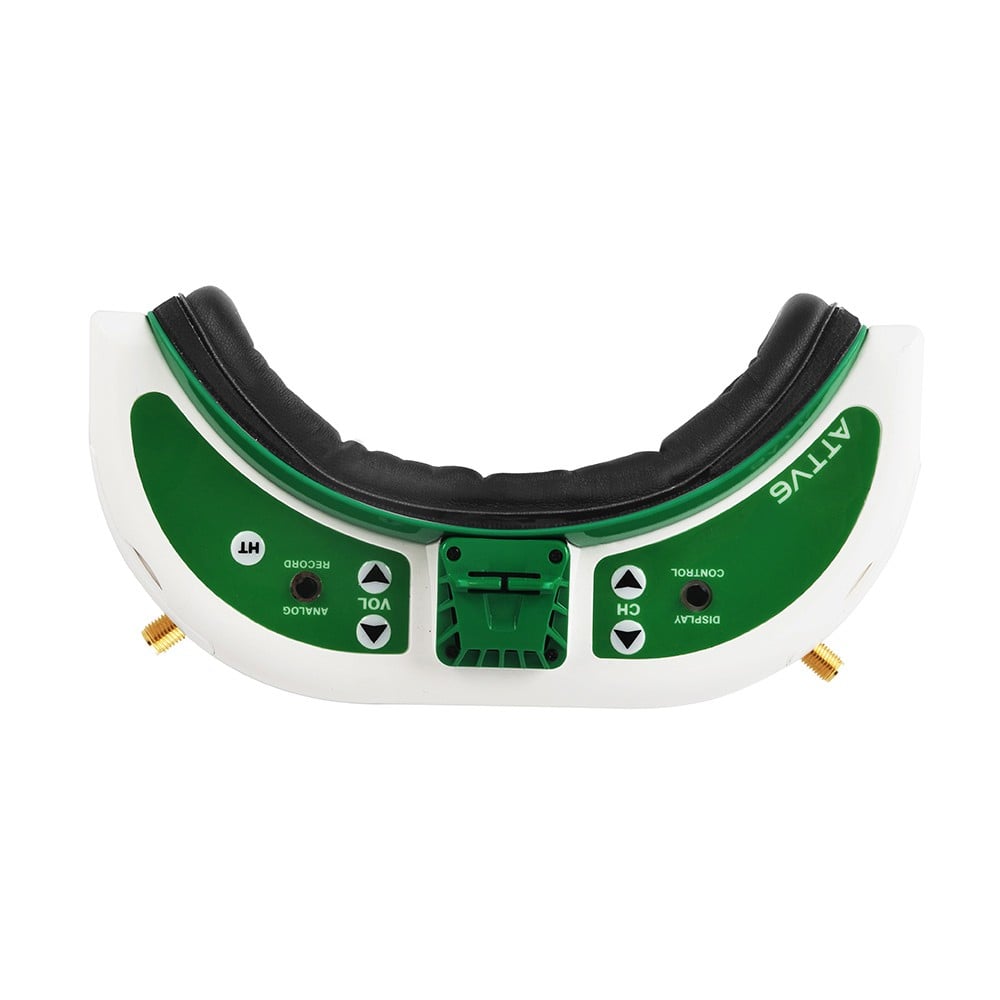

User Controls: Channel Selection
Volume Control
Mode Selection
Display Control (Brightness and Contrast)
DVR Control
Power Button / Fan Control
Electrical:
Power Supply: 7 - 13V input voltage (2S - 3S Supply)
Power Consumption: 320mA @ 7.5V input power (no RX module)
770mA @ 7.5V input power (Rapid
Analog DVR: MicroSD support to 32 GB
Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
File playback (native recording, no codec support)
Upgradeable via SD card
Battery: 7.4V, 1.8A 18650 Battery Case

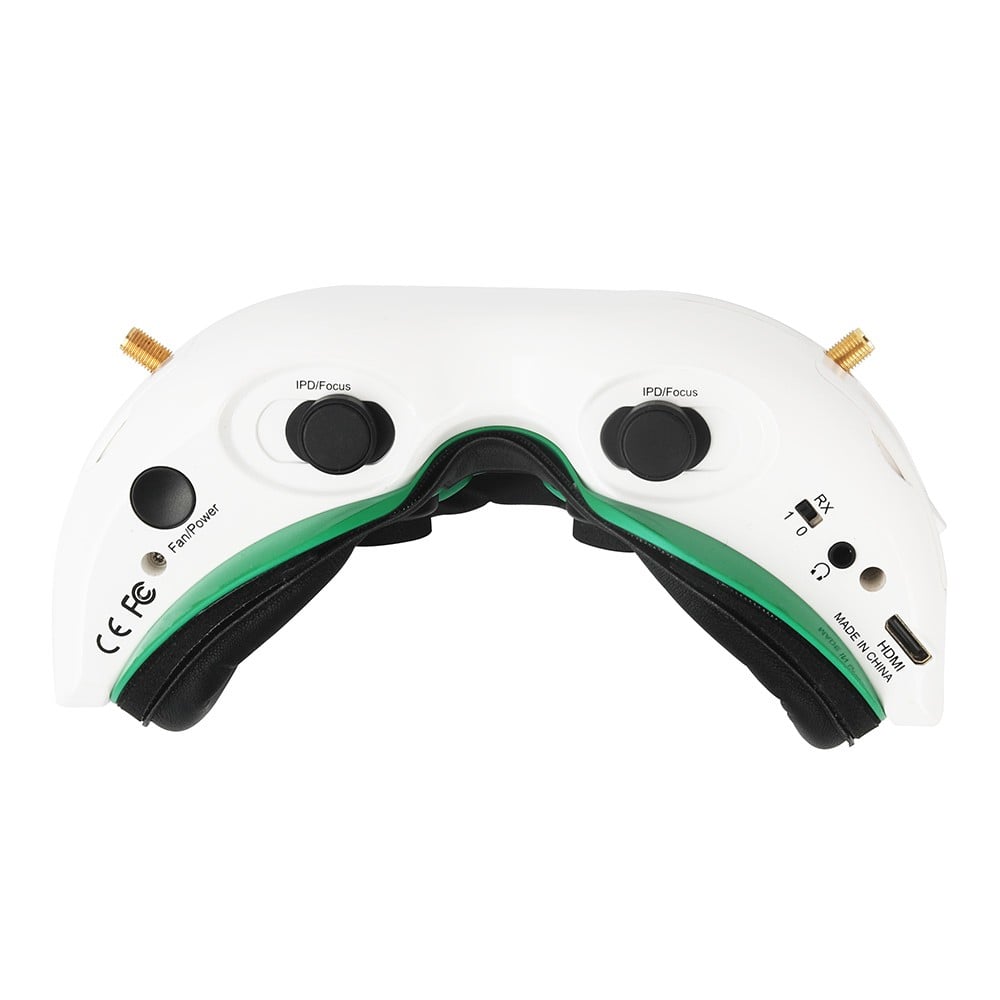

Interface: 3.5mm AV in/out port
Power input port
3.5mm 3p earphone port
MicroSD
RF Module Bay
HT connector 3 pin internal connection
Power Button
Mechanical: Ergonomic molded headset w/ adjustable headband
Dimensions: 169.2 x 80 x 45.5 mm
Weight: 199g
User Manual

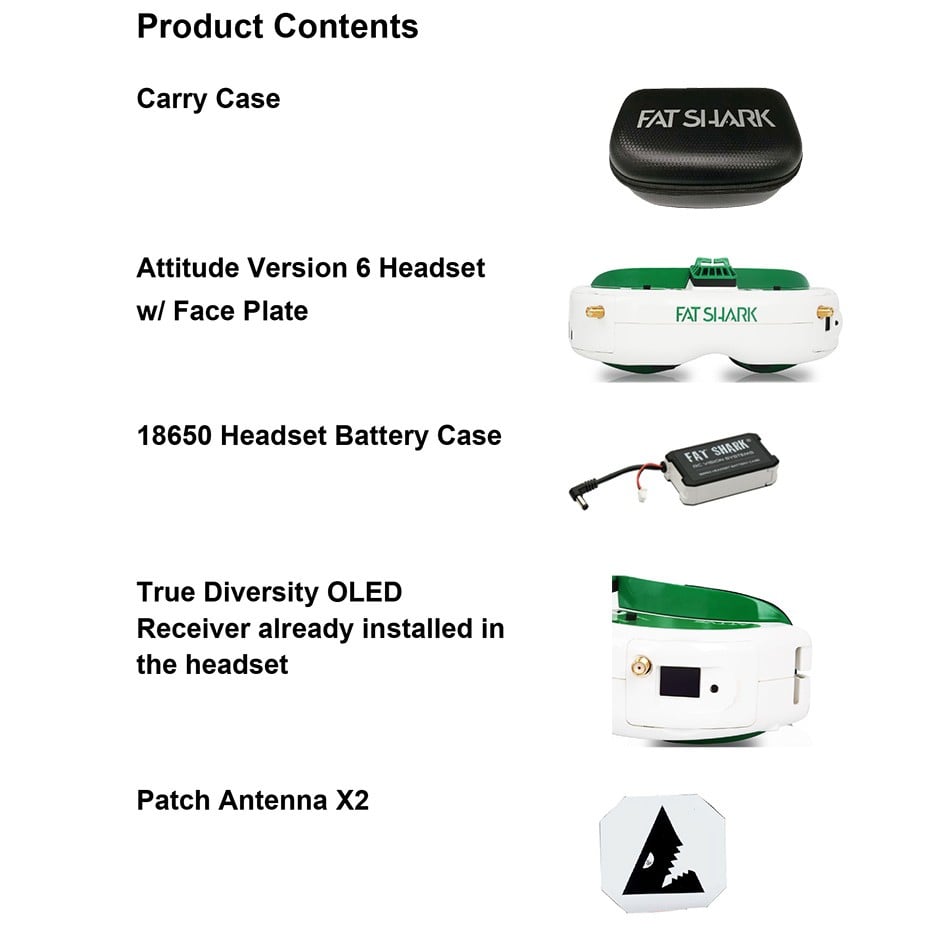

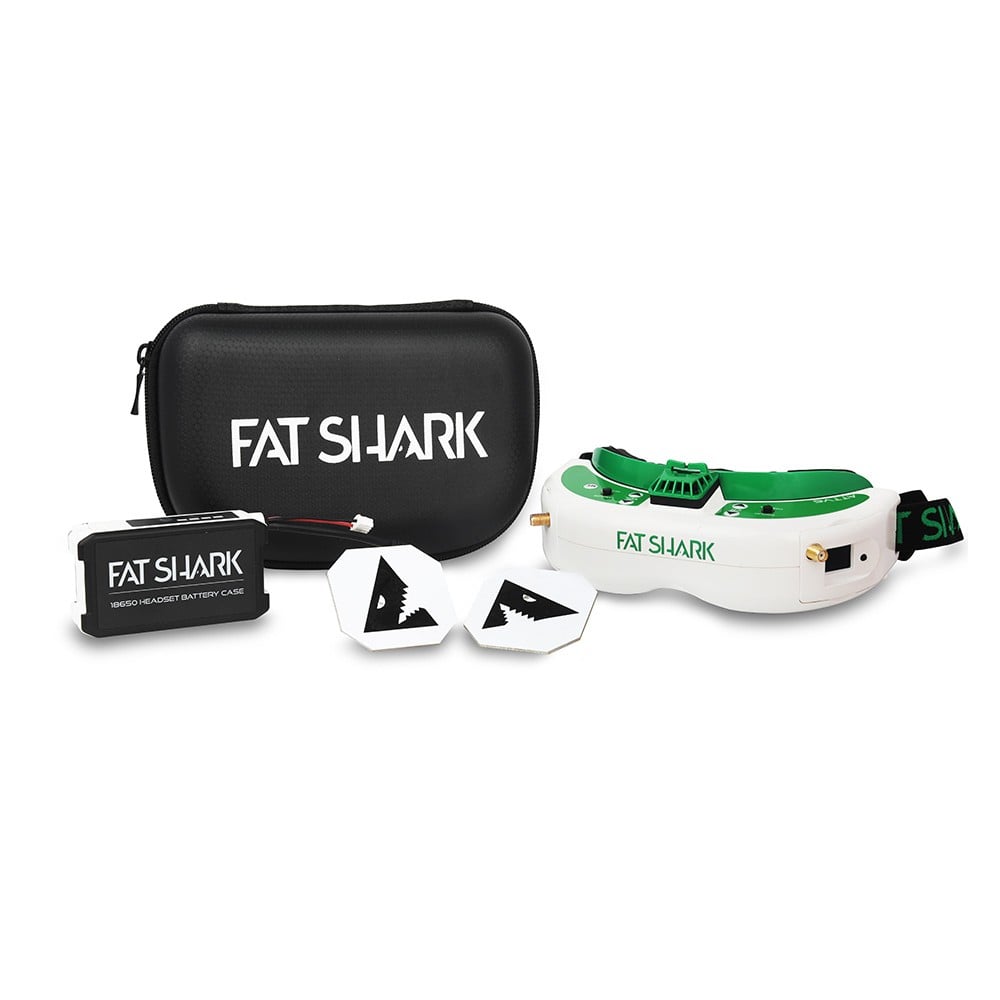

Includes
- 1x Fat Shark Attitude V6 FPV Goggles
- 1x Carry Case
- 1x 18650 Headset Battery Case (batteries not included)
- 1x True Diversity OLED Receiver already installed in the headset
- 2x Patch Antennas
