Product Details

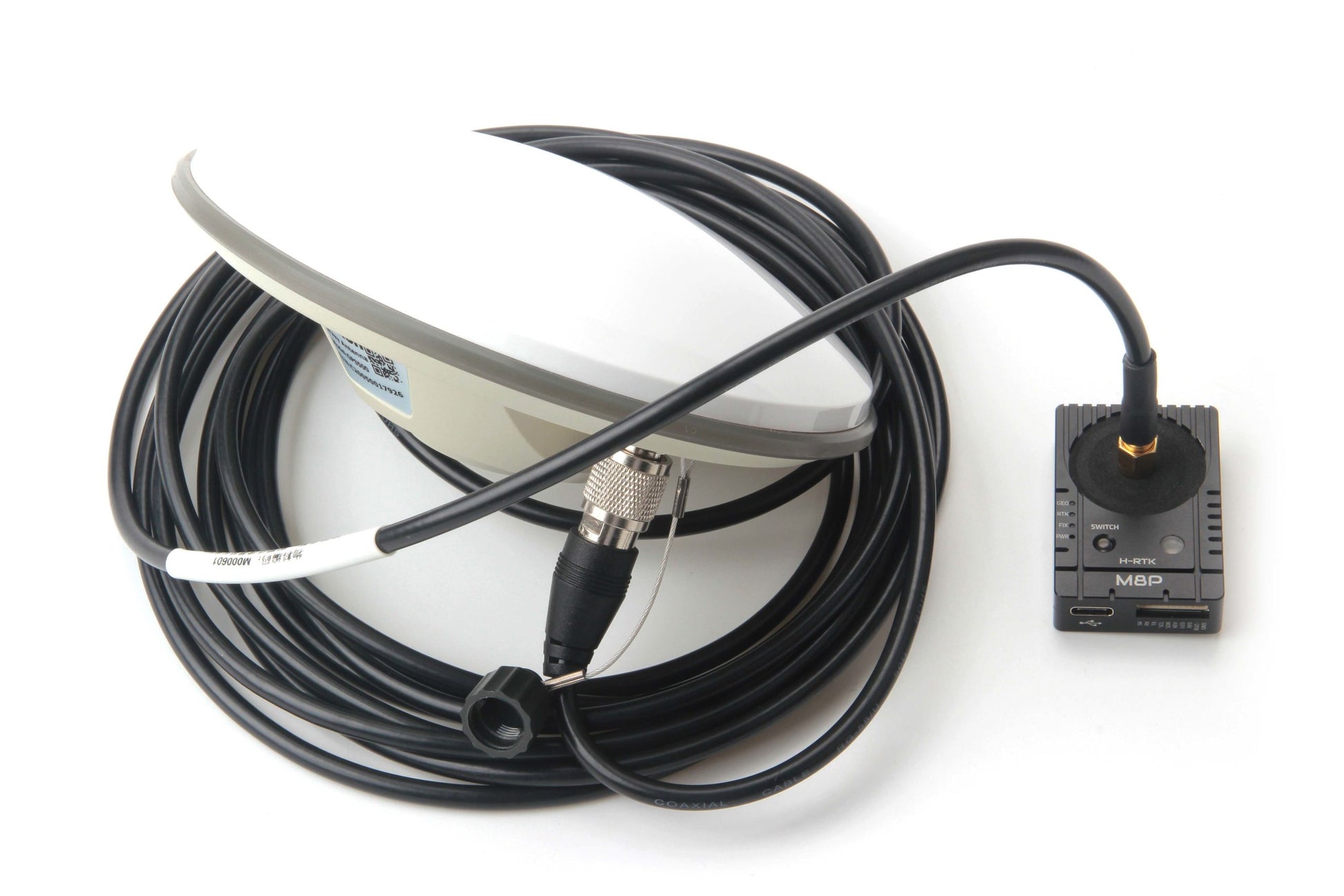

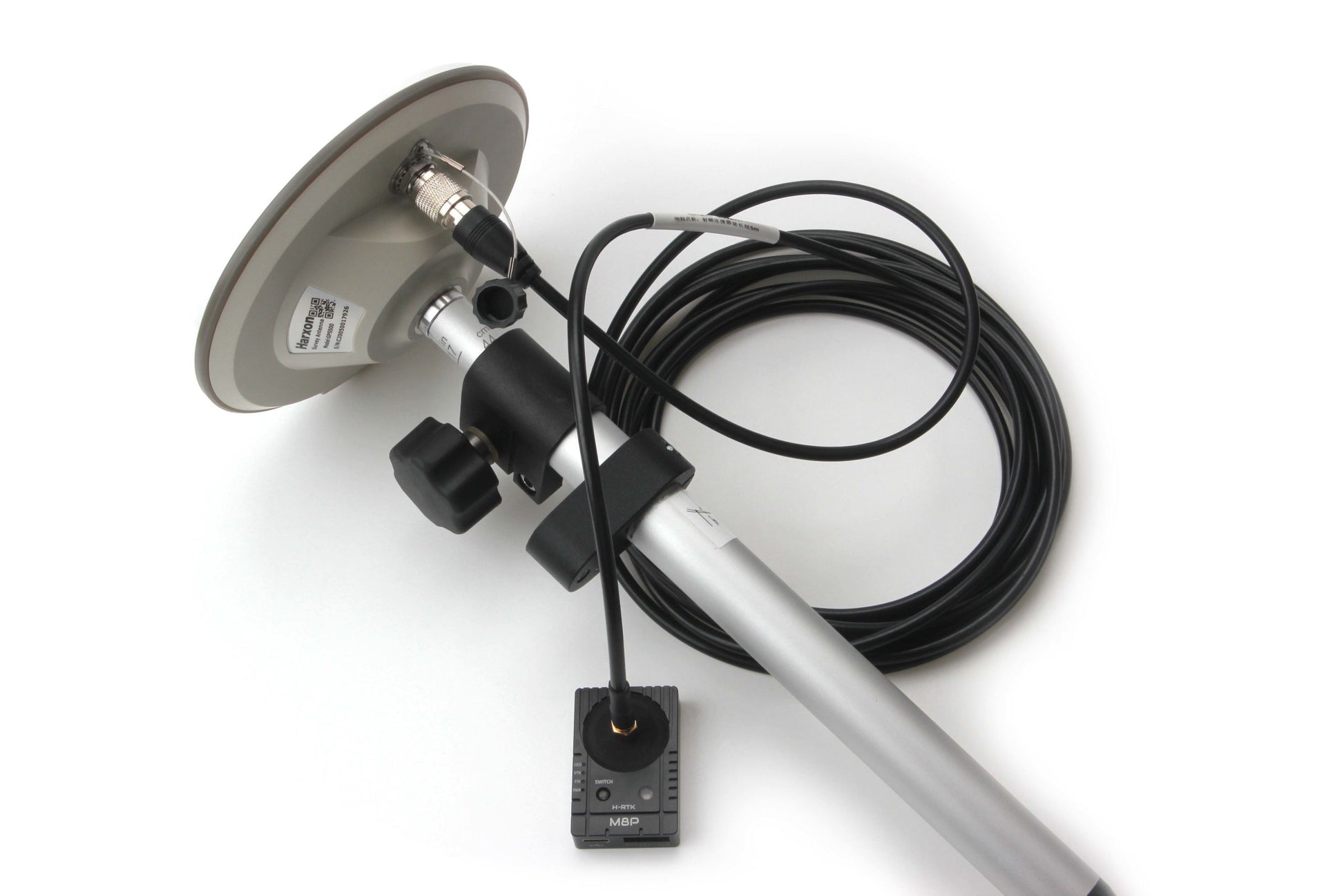

This H-RTK M8P module comes with a high gain antenna making it ideal for use as your RTK base station. The antenna itself can be mounted onto a 5/8" screw head as found on most survey tripods. This antenna gives you the highest accuracy and speed when it comes to your RTK needs.
Holybro_H-RTK_M8P_GNSS_Spec_V1.2

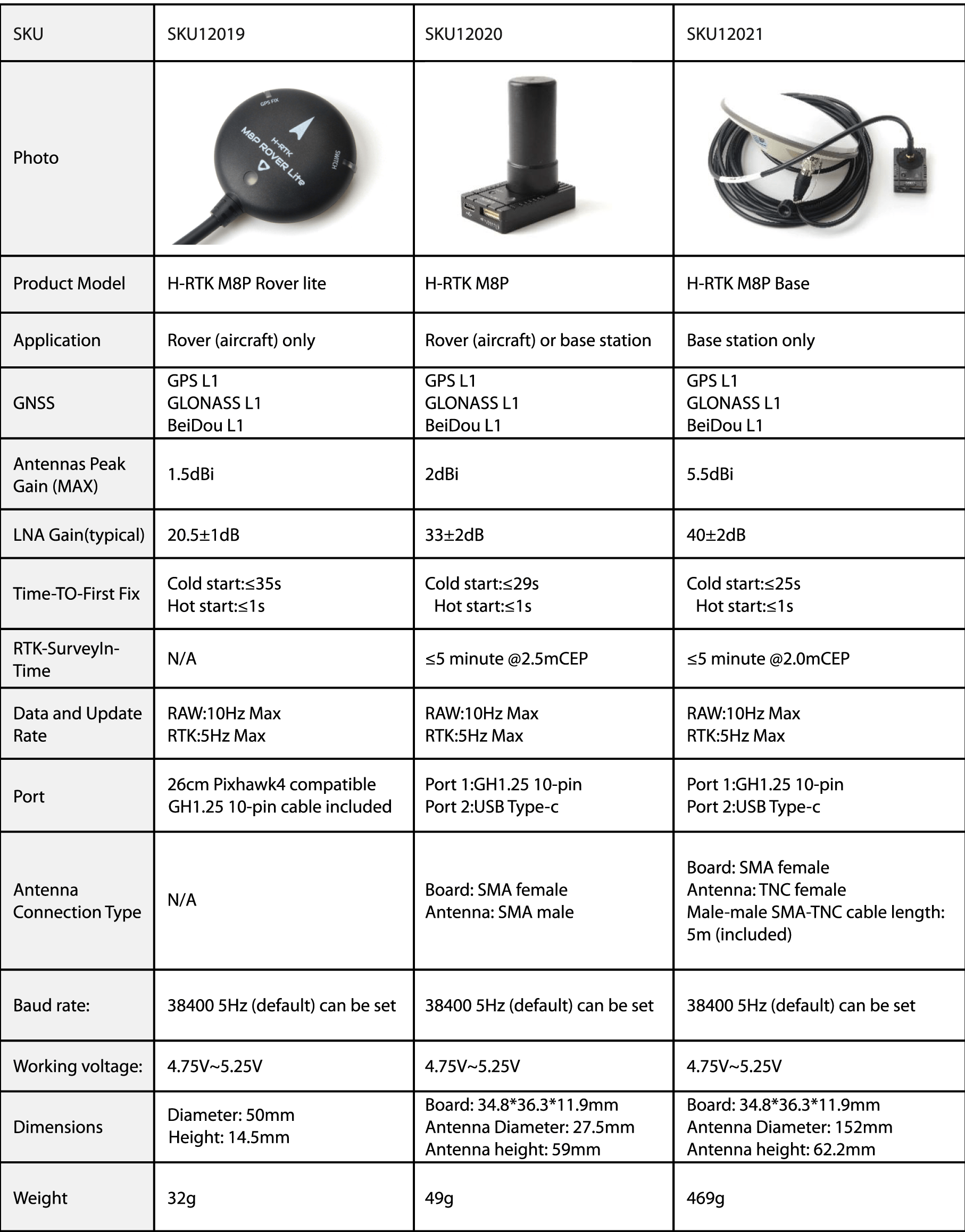

Specification
- Name: H-RTK M8P Base
- Application: Base station only
- GNSS: GPS L1, GLONASS L1, BeiDou L1
- Antenna Peak Gain (Max): 5.5dBi
- LNA Gain (typical): 40 (+- 2dB)
-
Time to first Fix:
- Cold Start 25s
- Hot Start 1s
- RTK Survey In Time: 5 minute at 2.0m CEP
-
Data update rate:
- Raw - 10Hz Max
- RTK 5Hz Max
-
Ports:
- Port 1: GH1.25 10 pin
- Port 2: USB Type C
- Antenna connection type: SMA Female on (antenna includes a 5m SMA-TNC cable)
- Baud Rate: 38400 5Hz Default, can be changed
- Working Voltage: 4.75V - 5.25V
- Dimension 34.8x36.3x11.9 (board only), Helical Antenna is 152x62mm
- Weight: 469g

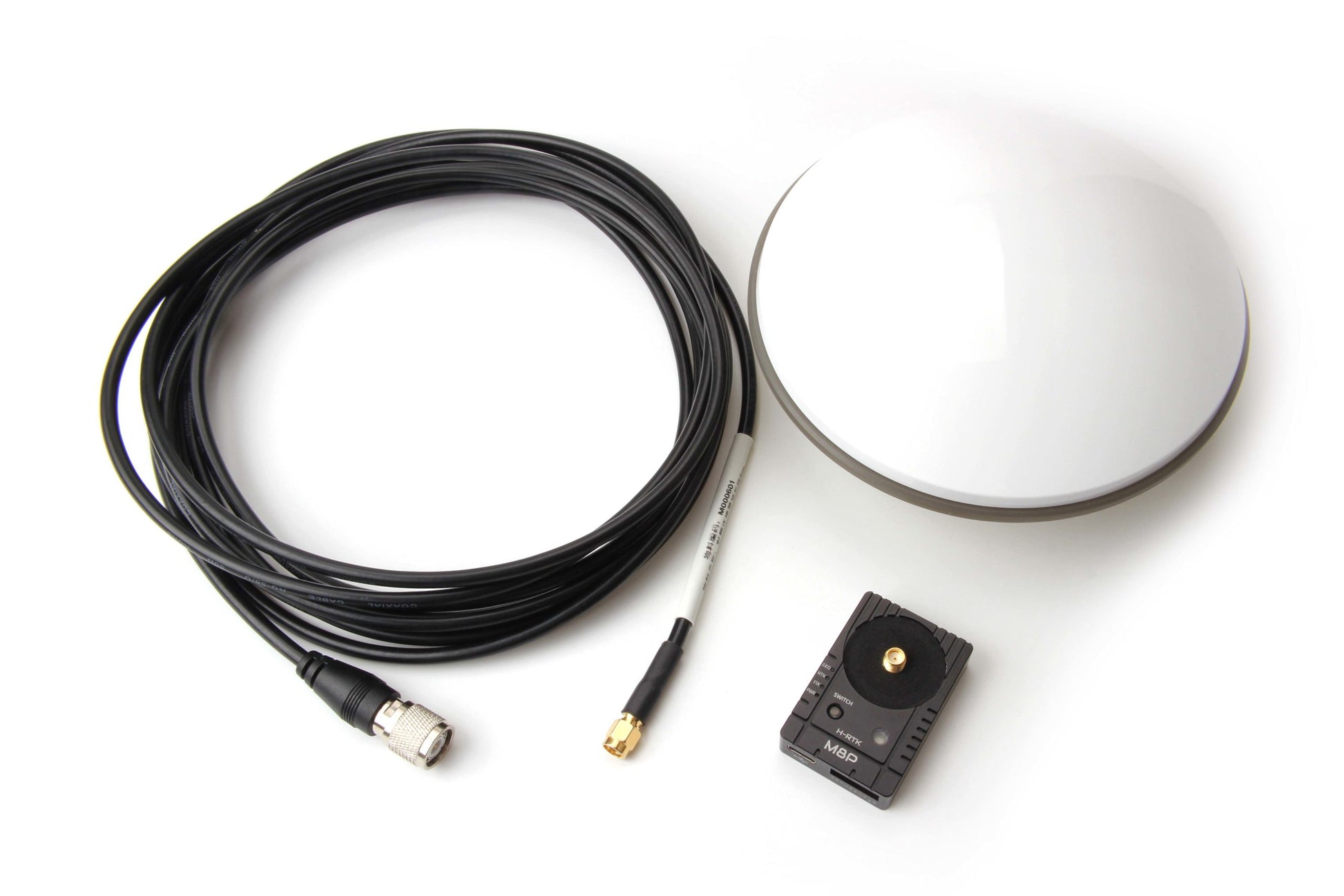

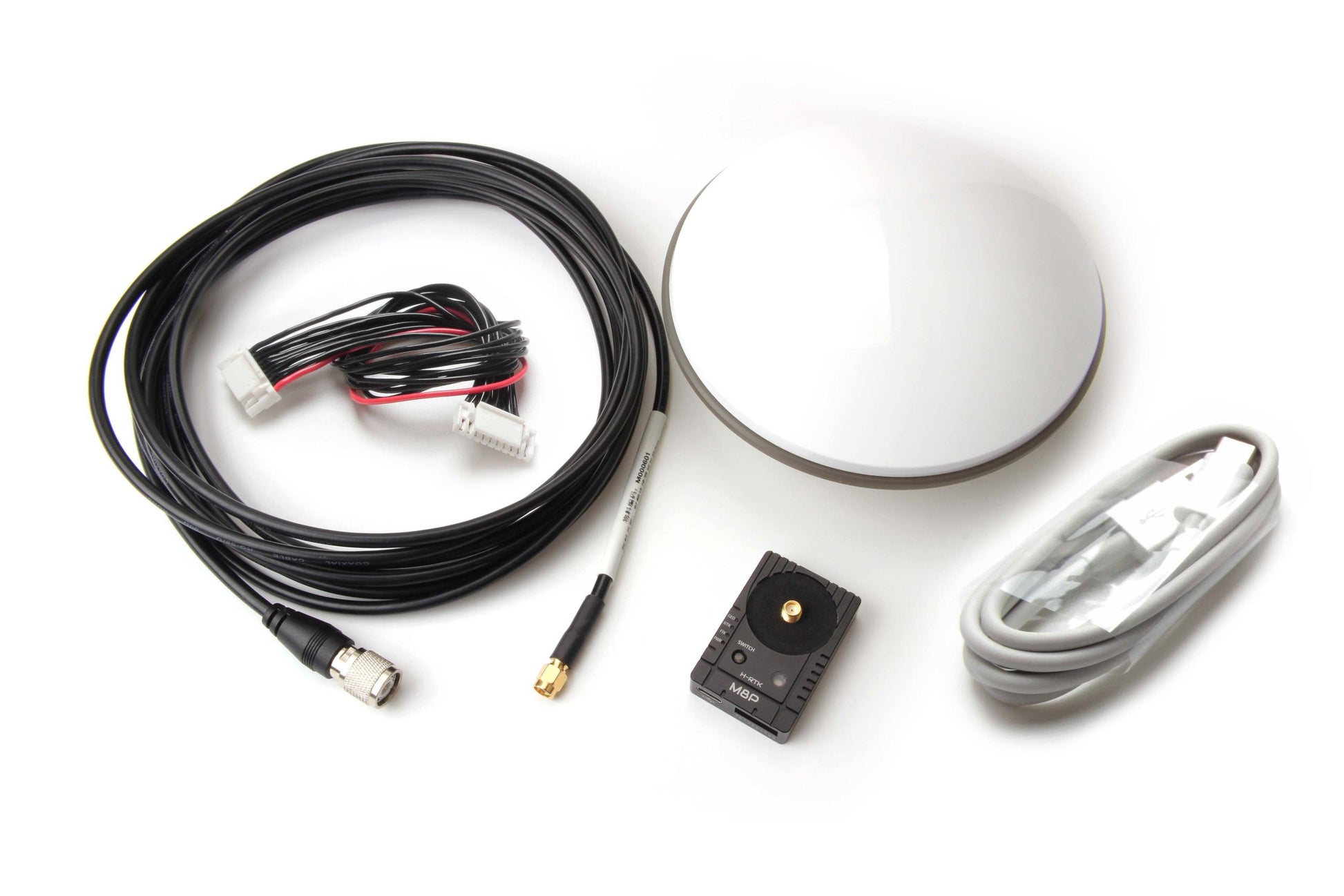

Included
- H-RTK M8P Base *1
- High Precision GNSS Antenna *1
- Male-male SMA-TNC cable(length: 5m) *1
- GH 10P cable *1
- USB type-c cable *1

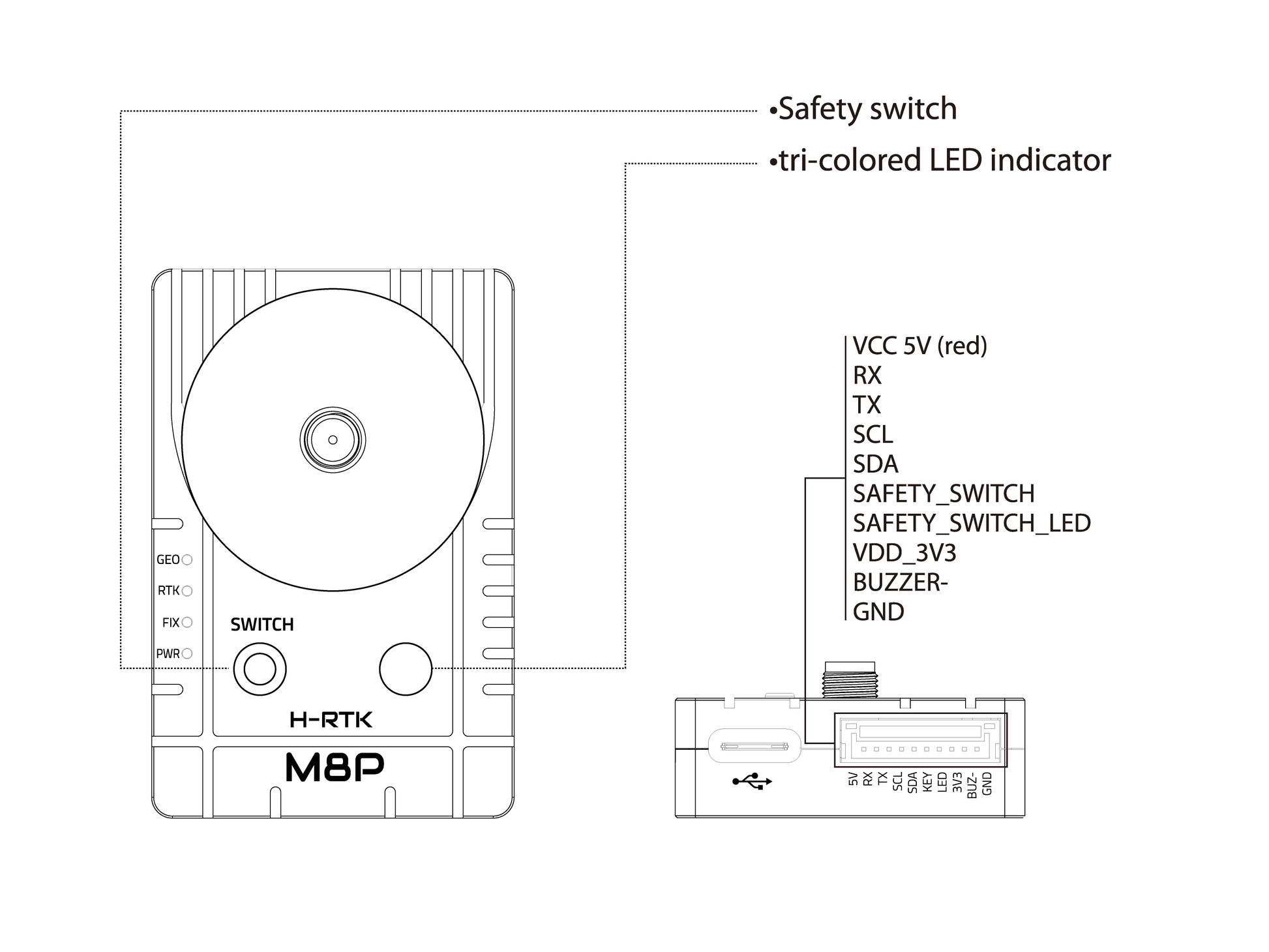

H-RTK M8P Pinout
