Product Details

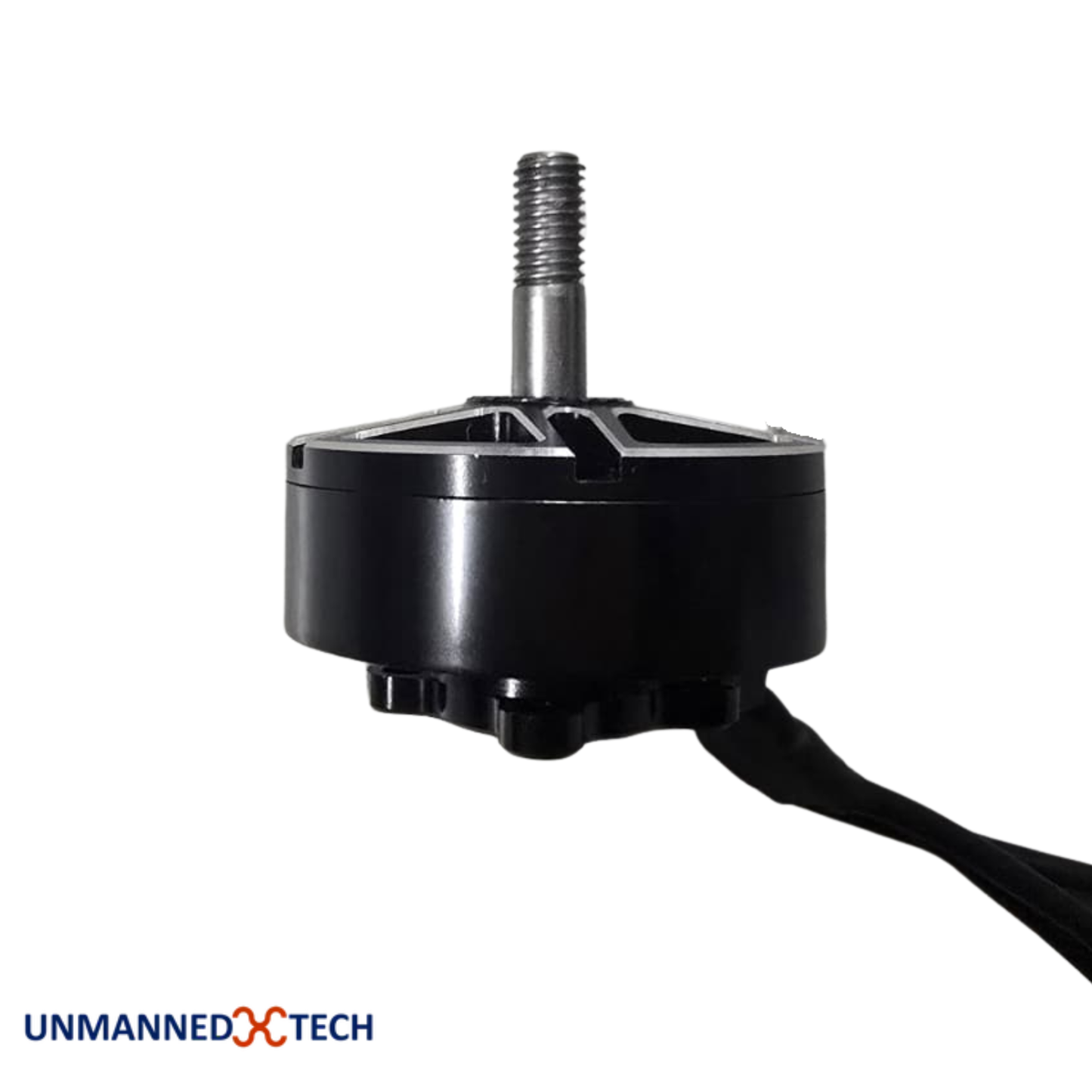

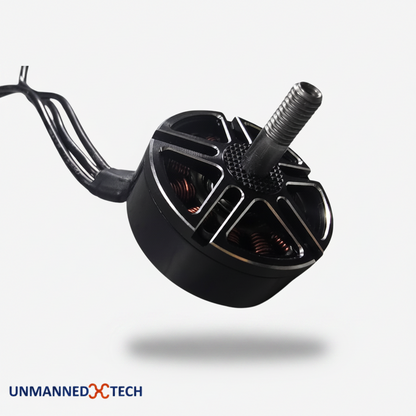

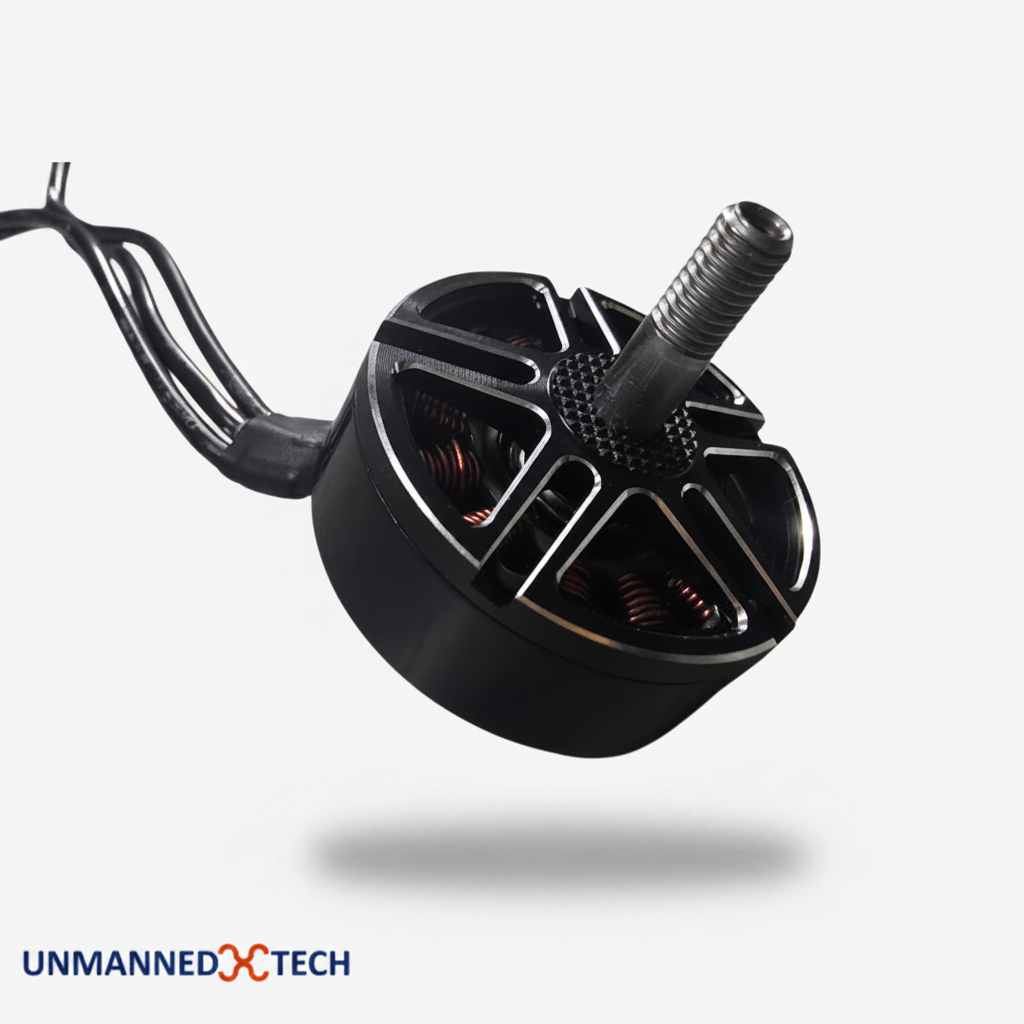

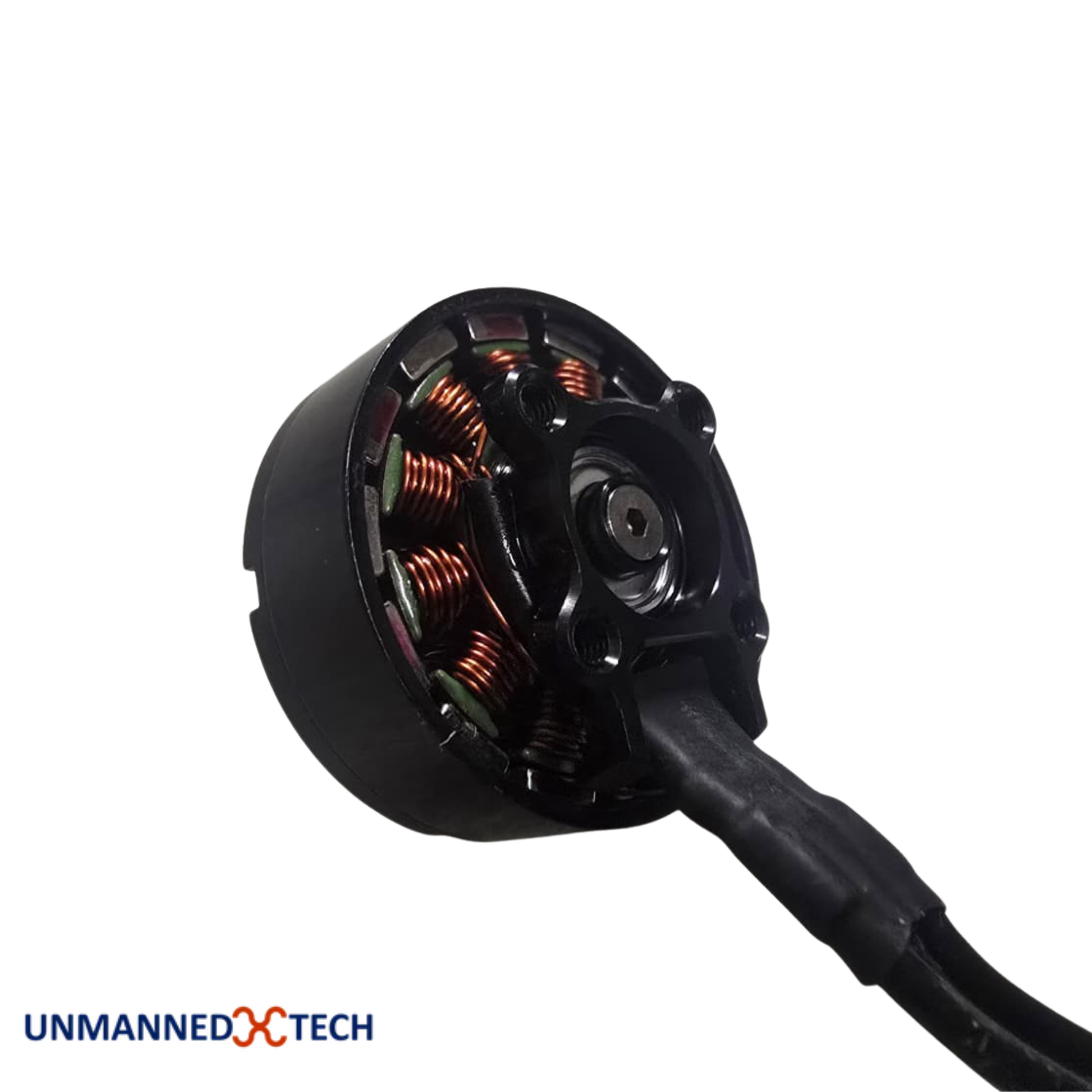

UMT 2807 1300KV Brushless Motor
Unless your daily flight plan involves full-throttle bando concrete dives, you don't need to pay double for boutique 7075 alloy. The UMT 2807 1300KV hits the sweet spot for 7-inch mountain surfers, long-range cruisers, and light cinelifters. By pairing a proven 6065 aluminium bell with smooth, torquey 2807 stators, it delivers all the low-end authority and clean thrust you need for open-air cruising and cinematic lines at a fraction of the cost—leaving plenty of budget left over for spare props and packs.
(Planning on full-send bando abuse? We’ve got a heavy-duty 7075-series motor in the pipeline for extreme impacts—but for everything else, this 6065 version delivers the exact same flight performance for far less cash.)
Key Features
- Practical 6065 Aluminium Bell: Tough enough for everyday grass landings, branch clips, and general field use, without the 2x price tag of 7075 alloy.
- Heavy-Duty 2807 Stator (12N14P): Generates up to 2818g of thrust to spin 7" and 8" props efficiently with smooth, controllable 6S power.
- Stealth All-Black Aesthetic: Minimalist, understated finish matches any frame and carbon weave.
- 200mm 18AWG Motor Wires: Extra-long silicone leads make routing straightforward on stretched, true-X, and deadcat long-range arms.
- Standard 19x19mm Base: Industry-standard M3 bolt pattern ready to drop onto most 7" and 8" frames.
Technical Specifications (1300KV Variant)
| Product Number | 30418000 |
| KV Rating | 1300KV |
| Input Voltage | 4–6S LiPo |
| Bell Material | 6065 Aluminium |
| Motor Dimensions | Φ34 × 20.5mm |
| Configuration | 12N14P |
| Shaft Dimensions | D5 internal, M5 prop shaft / 15mm length |
| Motor Weight (With Wires) | 59.0g |
| Internal Resistance | 53.8mΩ |
| No-Load Current | 2.0A / 24V |
| Max Continuous Current | 56.7A (6 seconds) |
| Max Continuous Power | 1361W (6 seconds) |
| Max Thrust Output | 2818g |
| Wire Size / Length | 18AWG / 200mm silicone |
| Mounting Bolt Pattern | 19 × 19mm (4 × M3 screws) |
| Recommended Propellers | HQ 7x3.5x3 / HQ 7x4x3 (7" to 8" props) |
Frequently Asked Questions
What is the difference between a 6065 and 7075 aluminium motor bell?
6065 aluminium provides reliable structural strength for long-range cruising, tree branch clips, and field landings while keeping manufacturing costs low. 7075 aluminium is harder and more resistant to high-speed concrete impacts (such as in hardcore bando freestyle), but typically doubles the cost of the motor. For open-air long-range and cinematic filming, 6065 delivers identical flight efficiency and performance at a much lower price.
What propeller size and pitch work best with the UMT 2807 1300KV?
The 1300KV rating on 6S LiPo is optimised for 7-inch to 8-inch propellers. For smooth, efficient cruising and maximum flight time, 7x3.5x3 or 7x4x3 tri-blades (such as HQProp) are ideal. If you want maximum efficiency on open long-range flights, 7x3.5x2 bi-blades are also an excellent pairing.
What ESC rating do I need for this motor?
With a maximum continuous current draw of 56.7A on 6S, we recommend pairing the UMT 2807 with a 50A to 60A 4-in-1 ESC or individual ESCs with adequate burst ratings to ensure cool and reliable operation under peak loads.
Will the 200mm motor wires reach a 4-in-1 ESC on large frames?
Yes. The pre-soldered 200mm 18AWG silicone wires are specifically sized to route cleanly across extended arms on 7-inch, 8-inch, DeadCat, and stretched-X frames directly to a central 4-in-1 ESC stack without needing wire extensions.
Can I run this motor on 4S LiPo?
While the motor supports 4S to 6S, running 1300KV on 4S will result in lower RPM and reduced thrust. For 4S builds, a higher KV variant (such as 1700KV) is recommended. The 1300KV is purpose-built for 6S LiPo power.
In the Box
- 1x UMT 2807 1300KV Brushless Motor
- 1x M5 Flanged Propeller Locknut
- 1x Motor Mounting Screw Pack
