Product Details

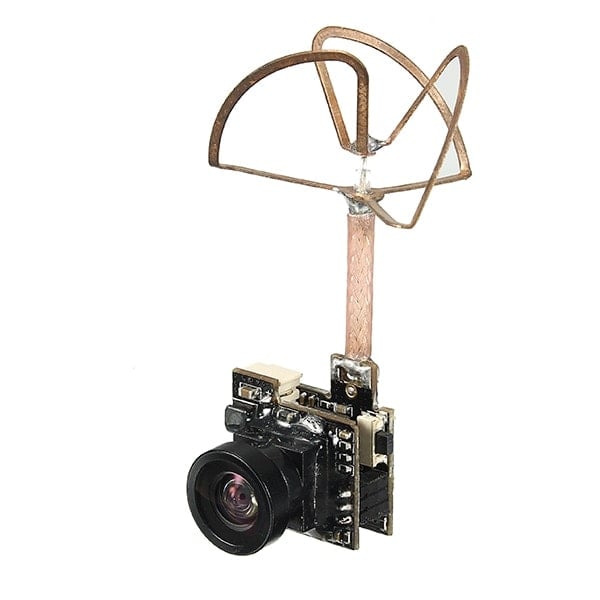

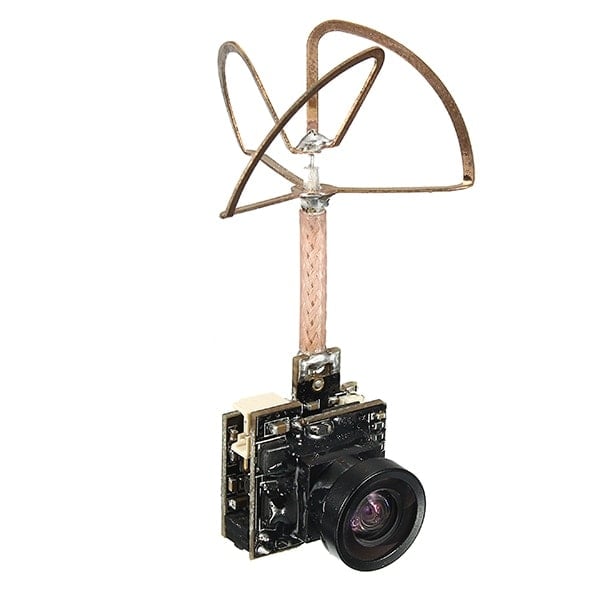

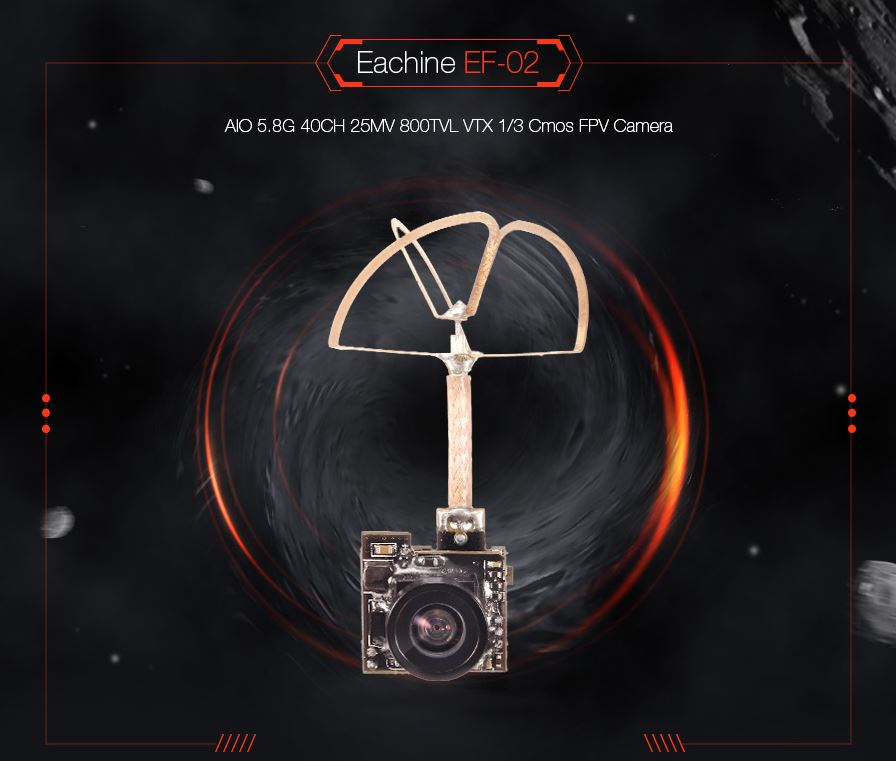

This is the EF-02 FPV All-In-One (AIO) 800TVL camera with built-in 40Ch 25mW transmitter and antenna. This is the new and updated version of the popular EF-01 AIO camera from Eachine. This is a great little FPV camera that you can switch between PAL and NTSC (Blue LED on = NTSC and blue LED off = PAL) with 150 degree FOV. One of the biggest upgraded from the EF-01 is the size and weight - the EF-02 only weighs 3.8g! Your quad won't even notice it's there! T he high resolution 800TVL camera bundled to a cloverleaf antenna mean you are not loosing any video quality at this tiny form factor.
Features:
- AIO FPV camera, transmitter and antenna built into a single unit.
- 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
- Five bands 40 channels with Raceband
- Ideal for mounting on small, space-constrained vehicles
Specifications:
FPV Camera
Sensor: 1/3 "CMOS
Lens: M7 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 · 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

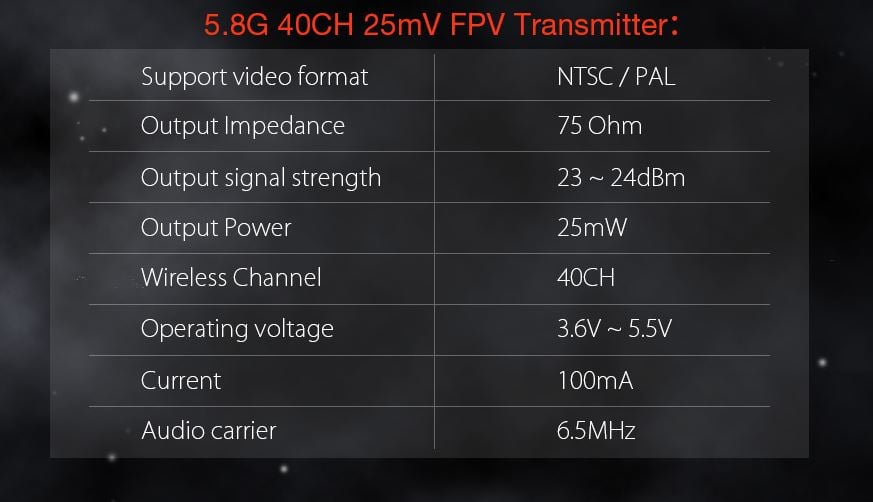

Video Transmitter
Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH

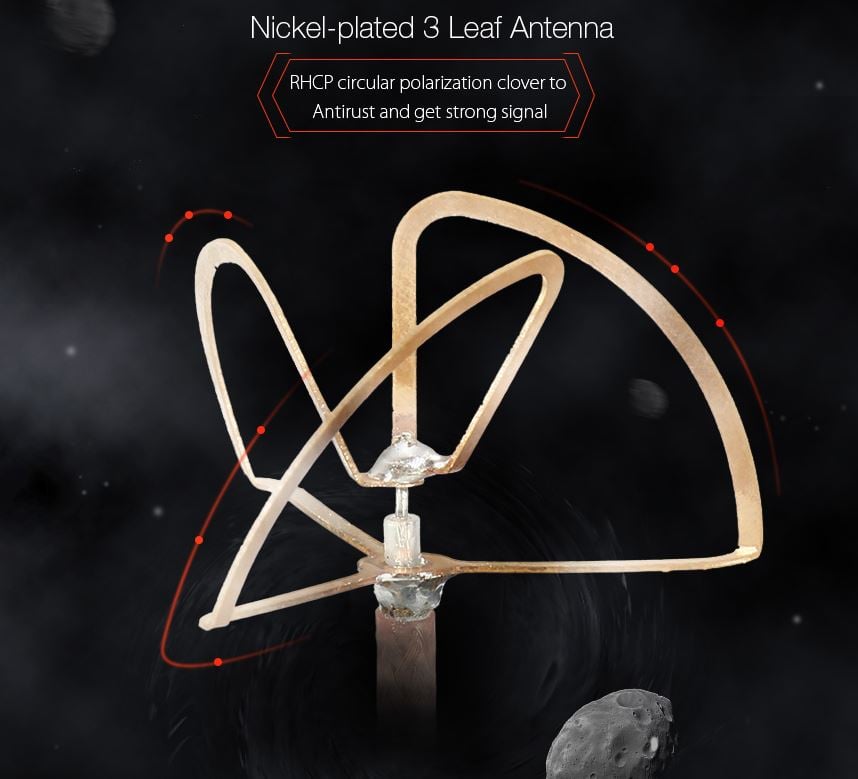

Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz

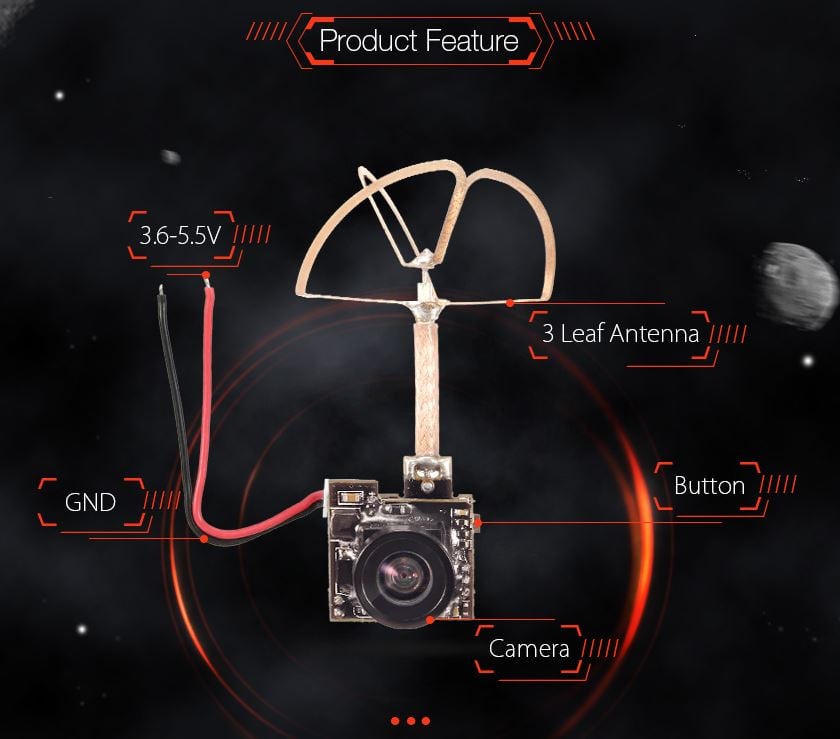

Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
Body
Weight: 3.8g

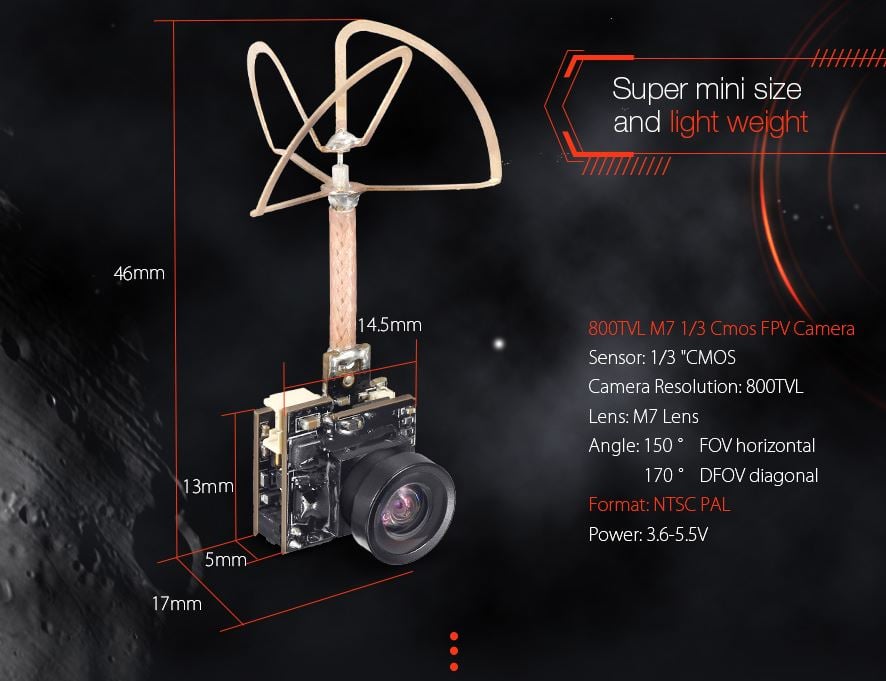

Size: 17x13x14.5mm (without antenna)

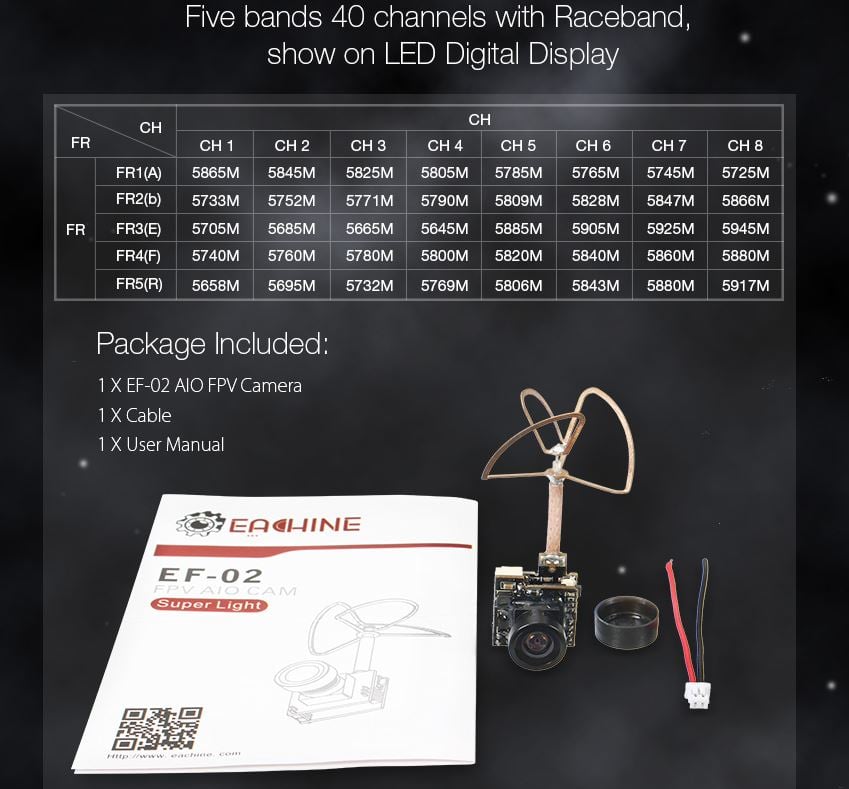

Package Includes:
- 1 X EF-02 AIO FPV Camera
- 1 X wiring harness
- 1 X User Manual
