Product Details

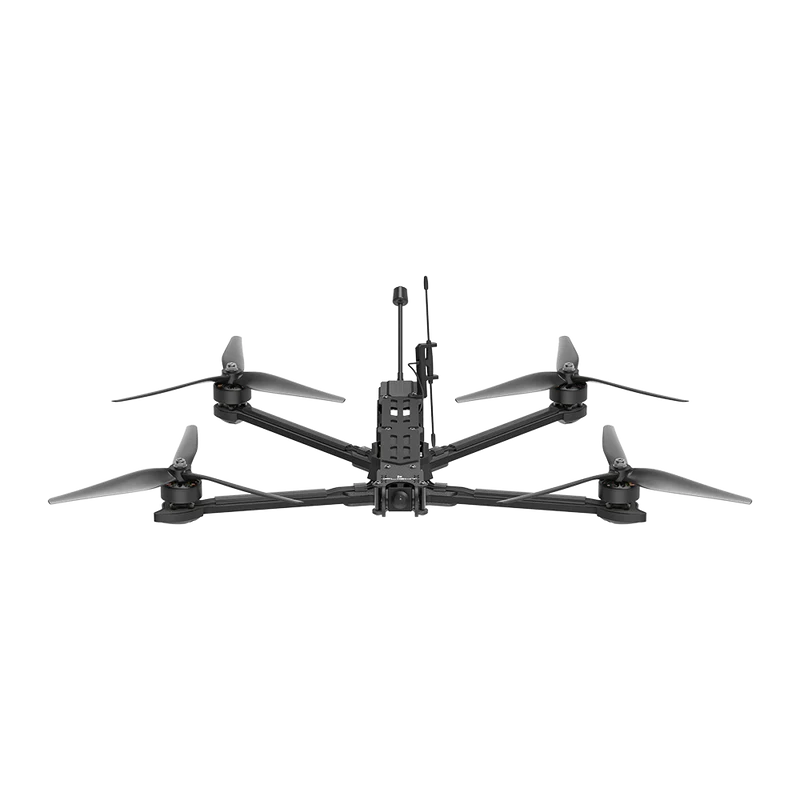

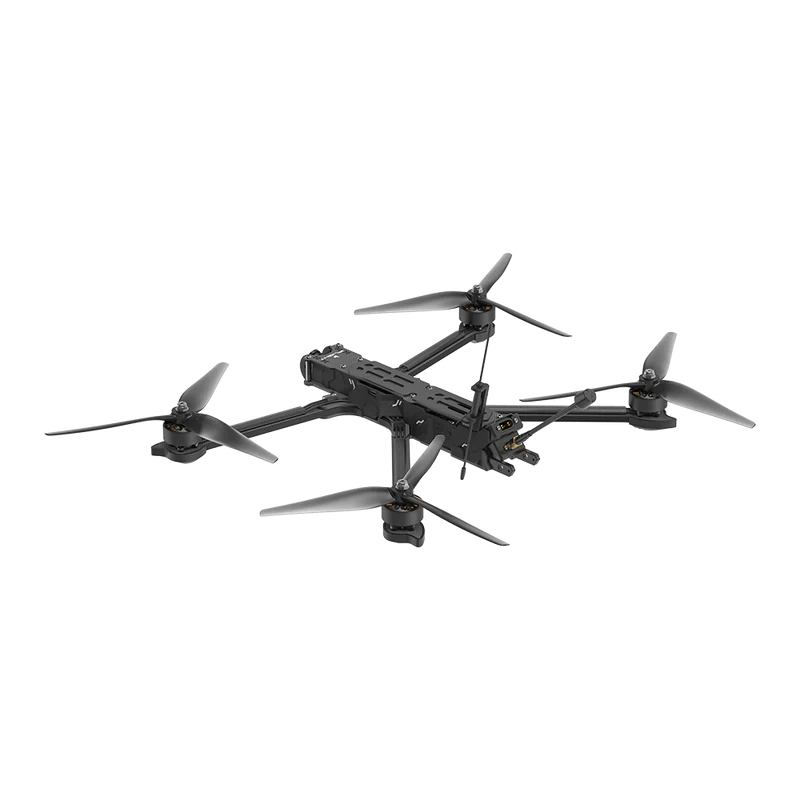

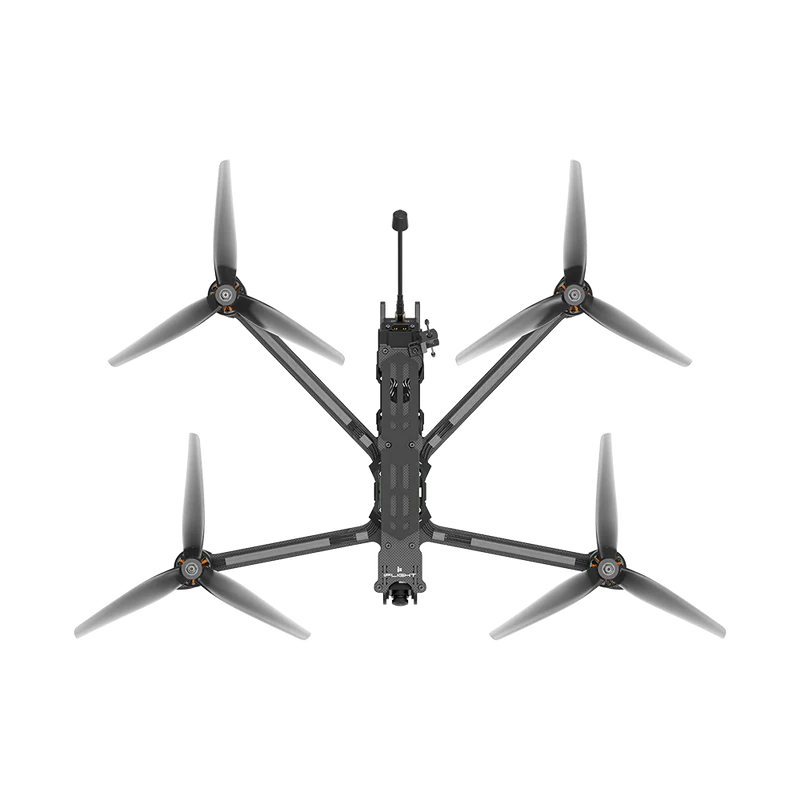

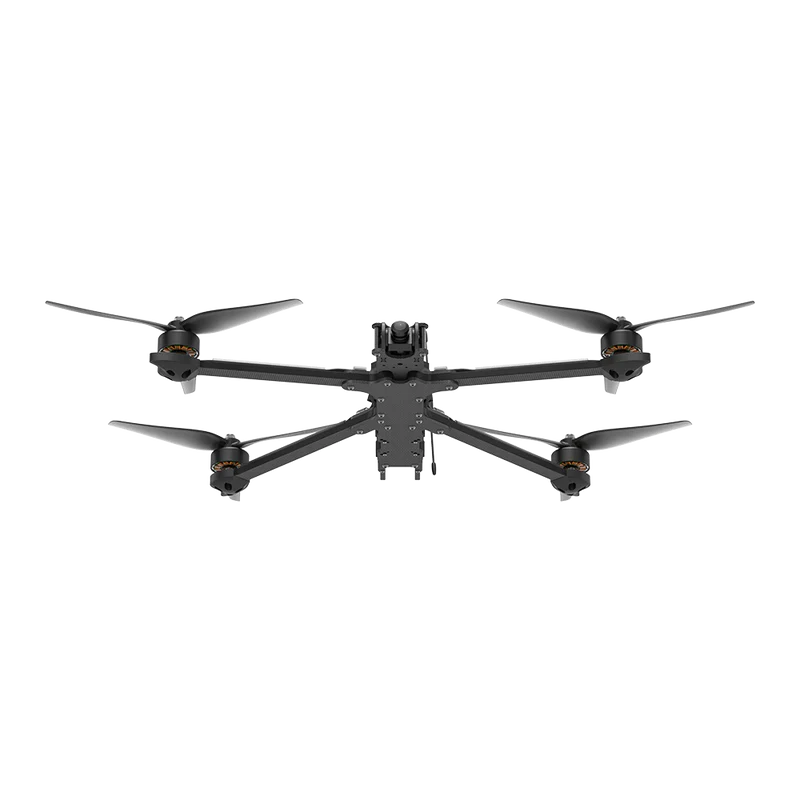

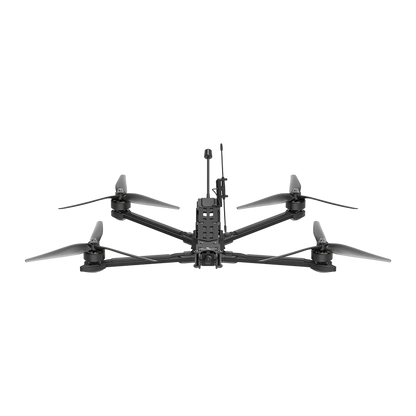

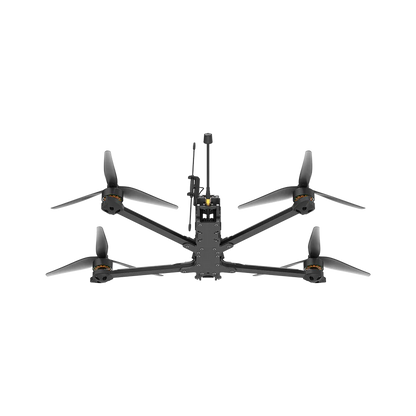

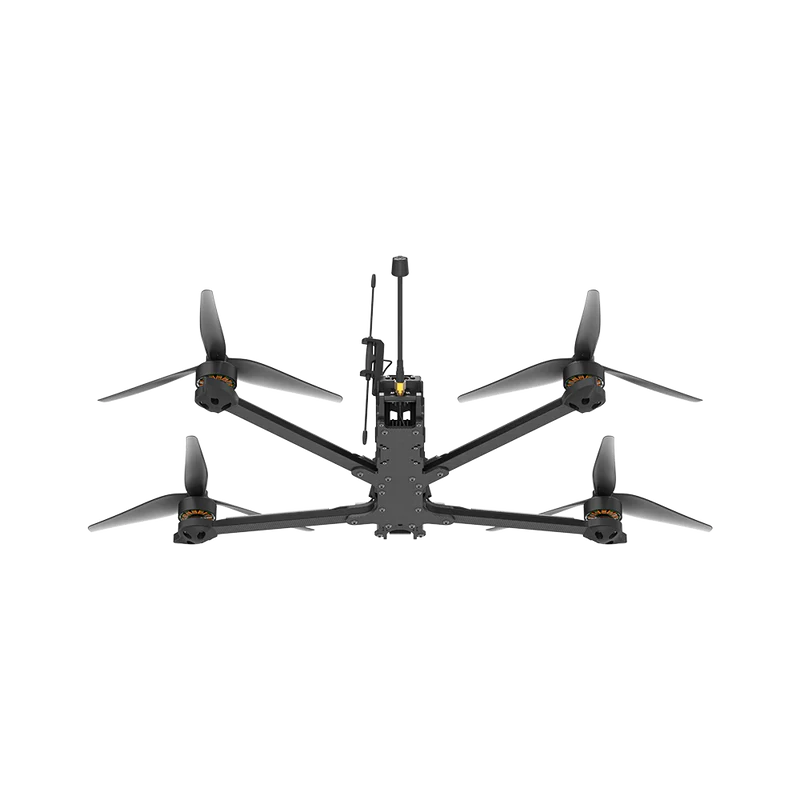

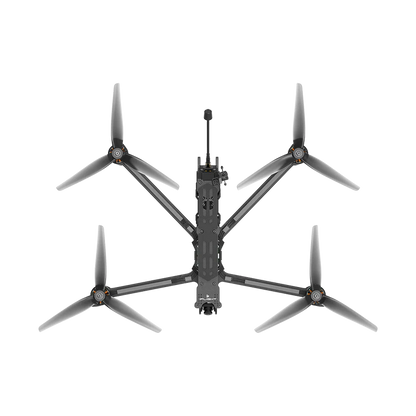

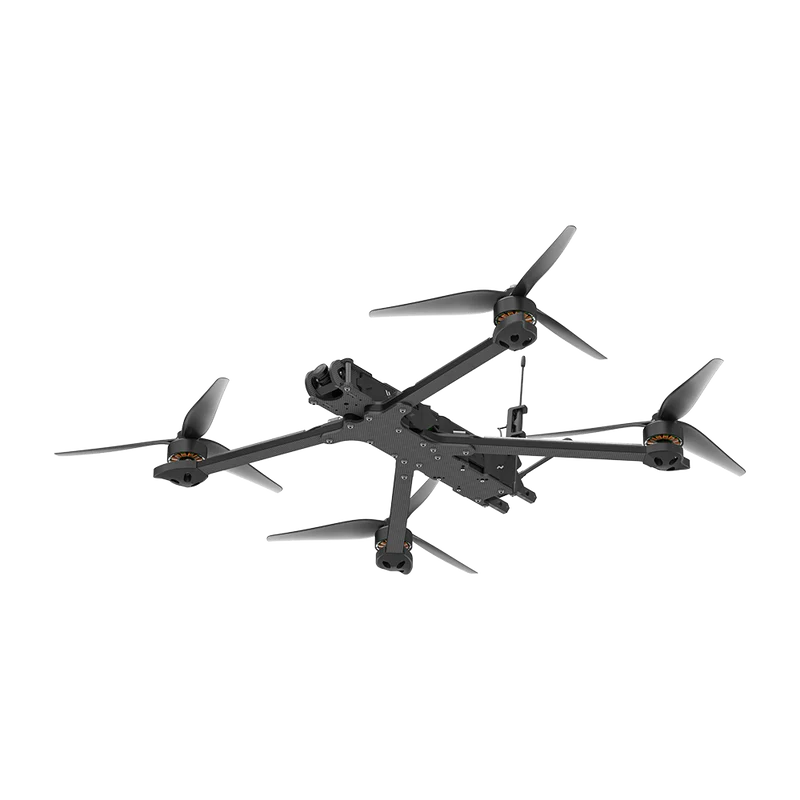

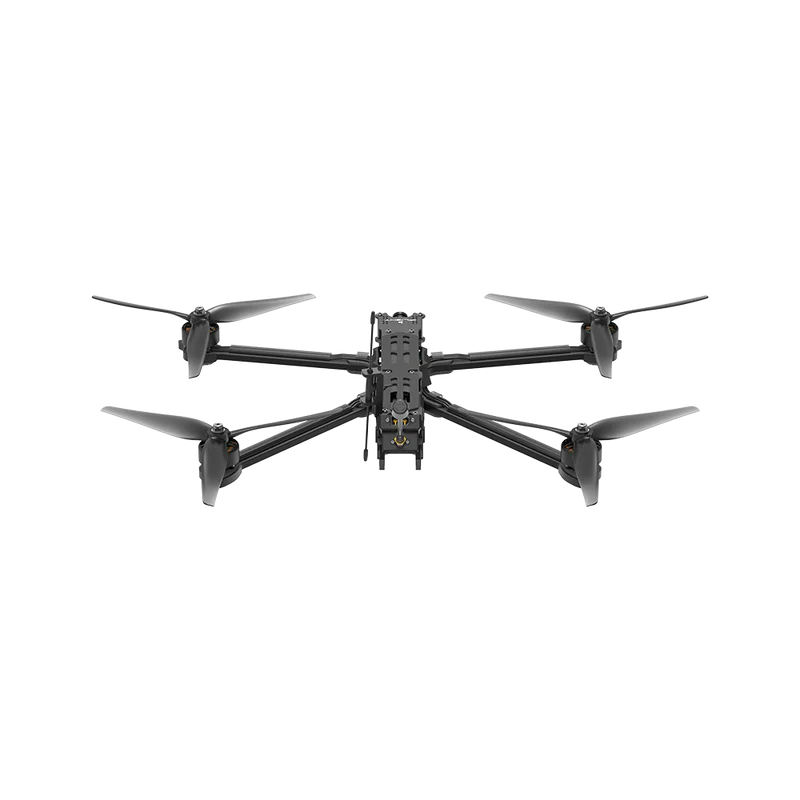

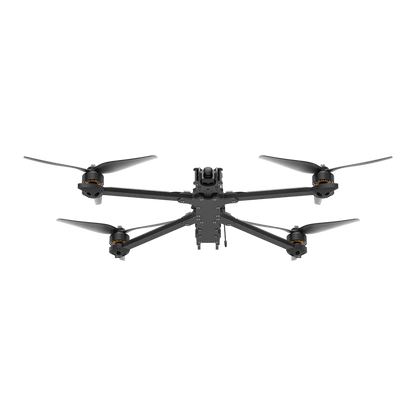

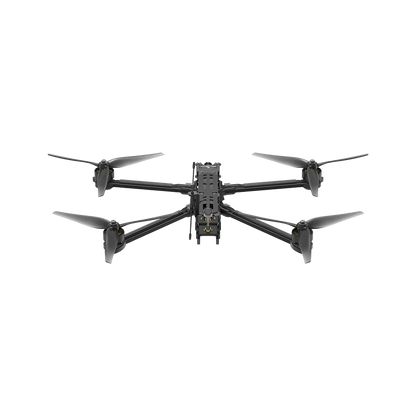

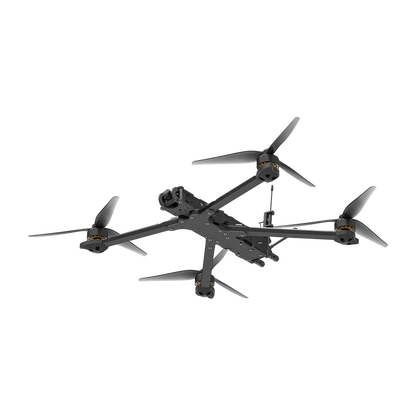

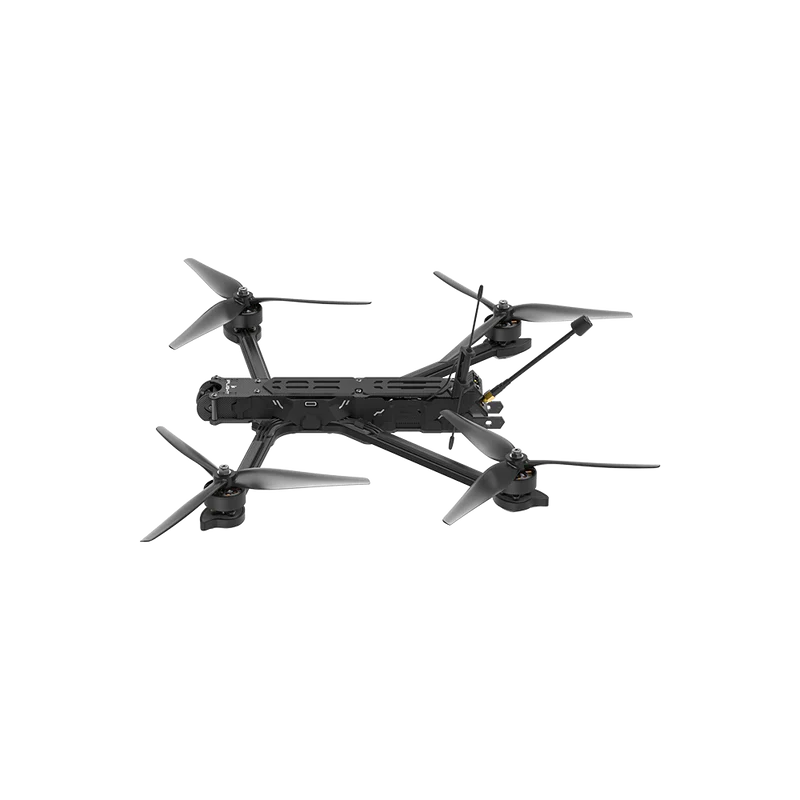

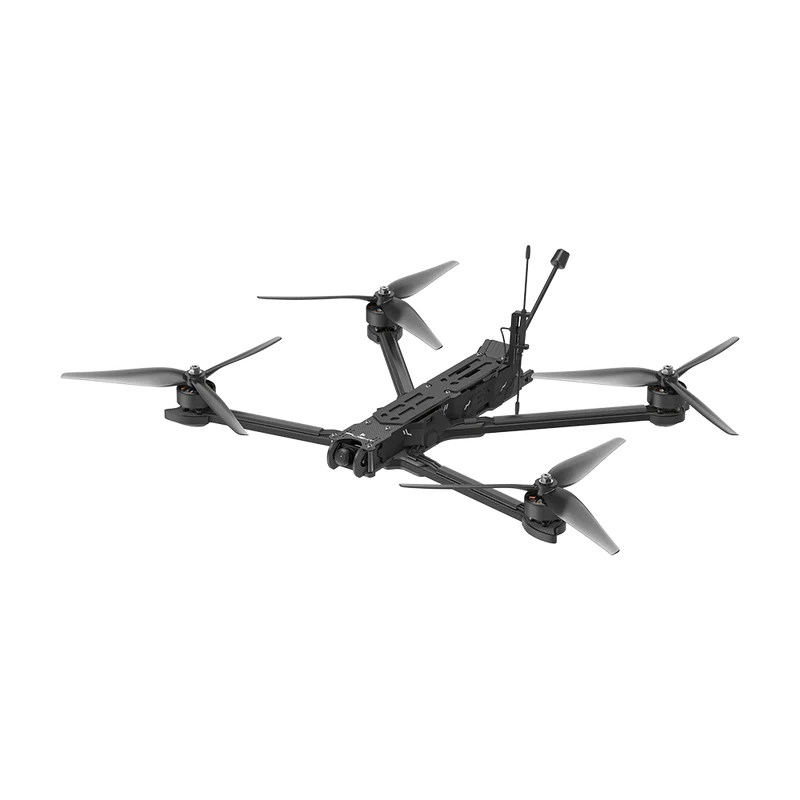

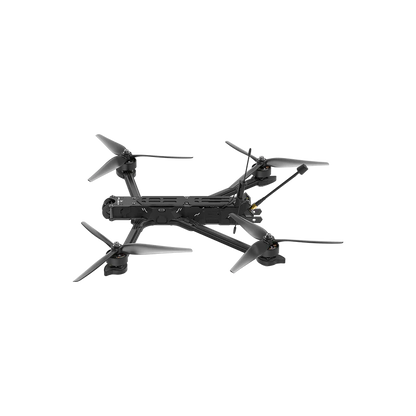

Durability Meets Precision: The Chimera9 ECO Frame
Say goodbye to soggy electronics and muddy missteps. The iFlight Chimera9 ECO Frame is here to protect your precious internals from dirt, grass, and moisture after those inevitable crashes. With its innovative airflow design, this frame keeps your components cool, clean, and operating at peak performance. Add in illuminated side panels and robust TPU protective parts, and you've got a sleek, rugged workhorse ready for the wildest FPV adventures.
Economic, Efficient, and Powerful Electronics
The Chimera9 ECO 6S Analog doesn't skimp on power or precision. Packed with the BLITZ ATF435 Flight Controller, BLITZ E55S ESC, and a choice of BLITZ Whoop VTX options (1.6W or 2.5W), this setup combines high performance with reliability. It's the perfect match for the XING-E 2809 800KV motors and 9-inch props, delivering a smooth, controlled flight experience with efficiency to spare.
Key Features:
- Latest Chimera9 ECO frame: Keeps components safe and clean.
- Efficient airflow design: Cools without compromising performance.
- XING-E 2809 motors: Reliable power for 9-inch propellers.
- Illuminated side panels: Adds visibility and style.
Specifications:
- Model: Chimera9 ECO 6S Analog
- Flight Controller: BLITZ ATF435
- ESC: BLITZ E55S 4-IN-1 55A
- Receiver : Iflight ELRS 2.4Ghz
- Video Transmission: BLITZ Whoop 1.6W/2.5W VTX (Optional)
- Frame Geometry: DeadCat (405mm wheelbase)
- Propellers: 9x4x3
- Weight: 721g (without battery)
- Dimensions: 360x235x34mm
- Max Speed: 140 km/h
- Max Hover Time: Approx. 33 minutes
- Operating Temp Range: -10°C to 40°C (14°F to 104°F)
- Payload Capacity: 1.5-2.2 kg
What's in the Box?
- 1 x iFlight Chimera9 ECO 6S Analog BNF
- 1 x Battery pad
- 1 x Antenna
- 2 x Propeller sets (pairs)
- 2 x Battery straps
Disclaimer: Accessories may vary depending on supply.
