Product Details

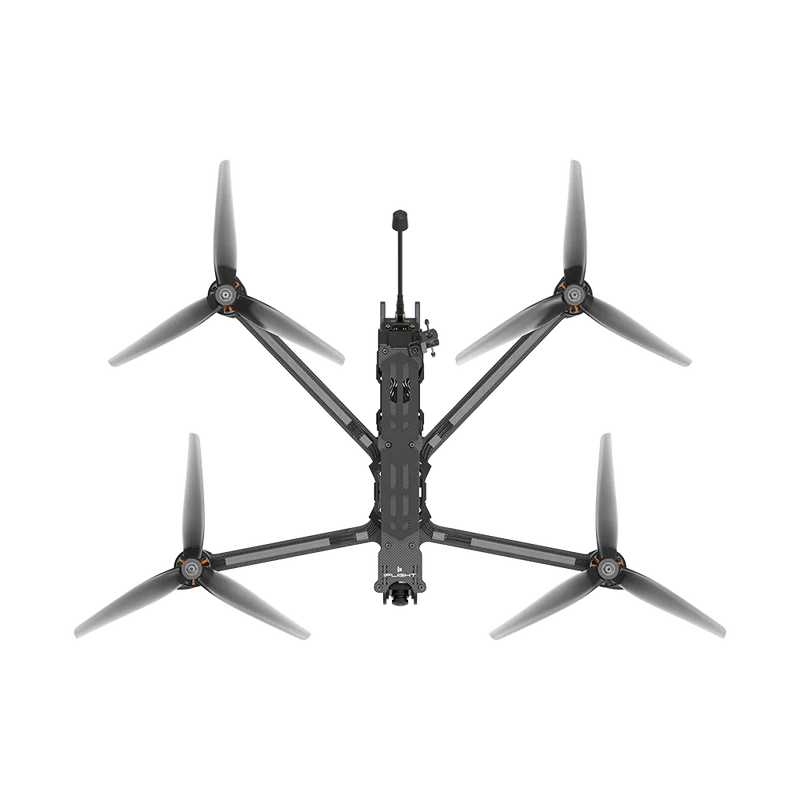

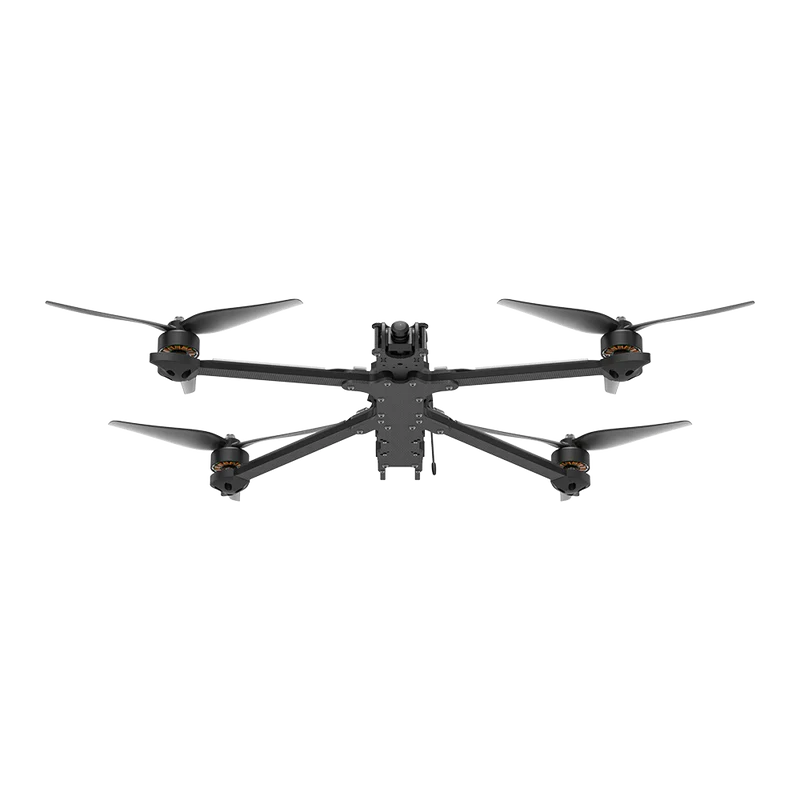

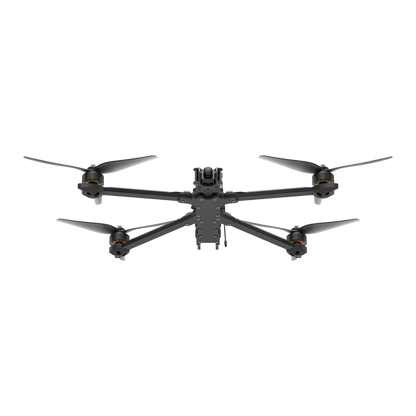

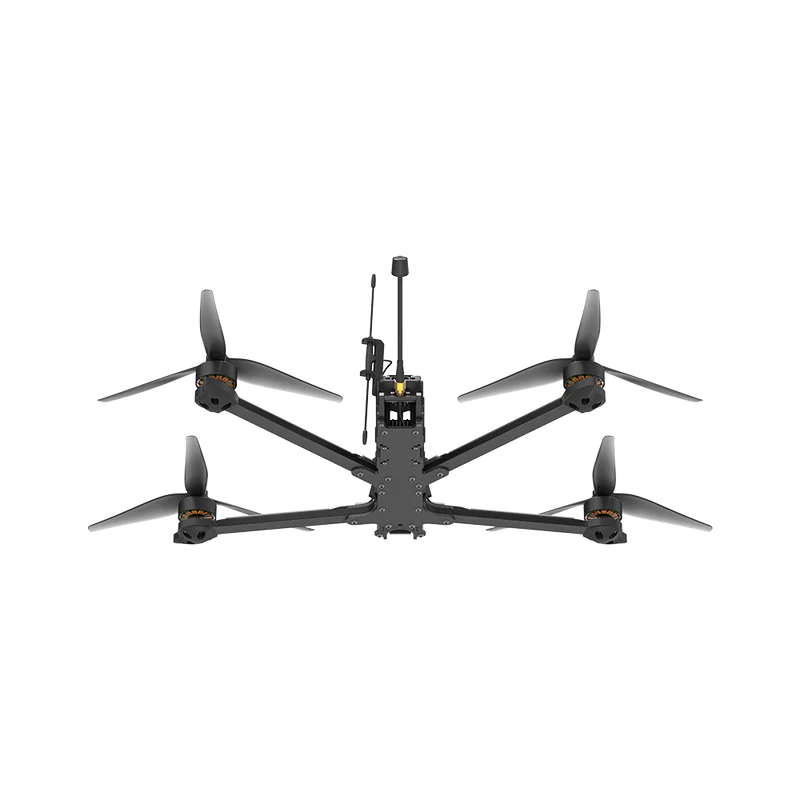

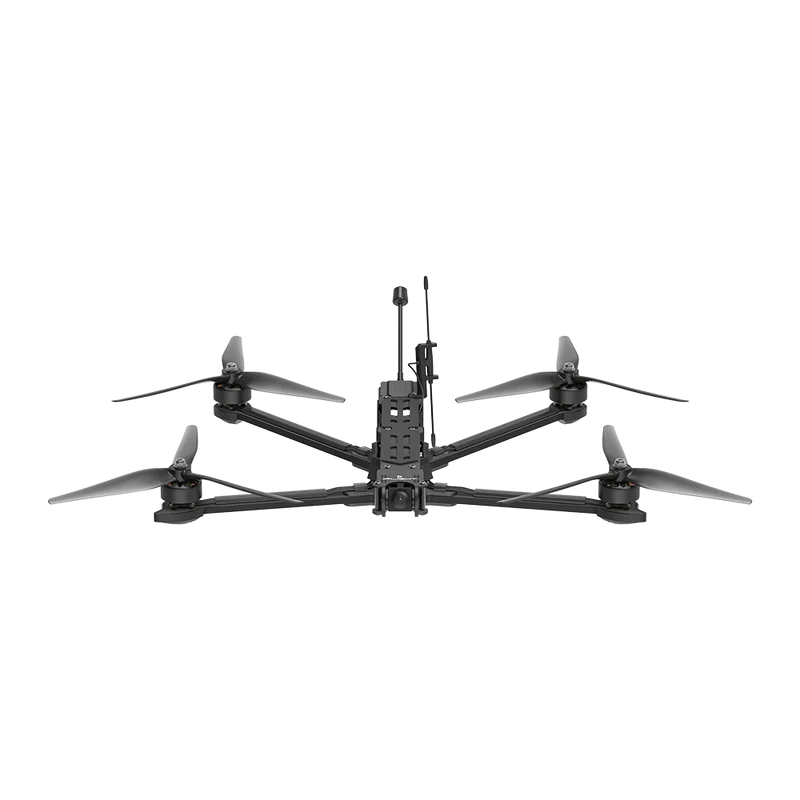

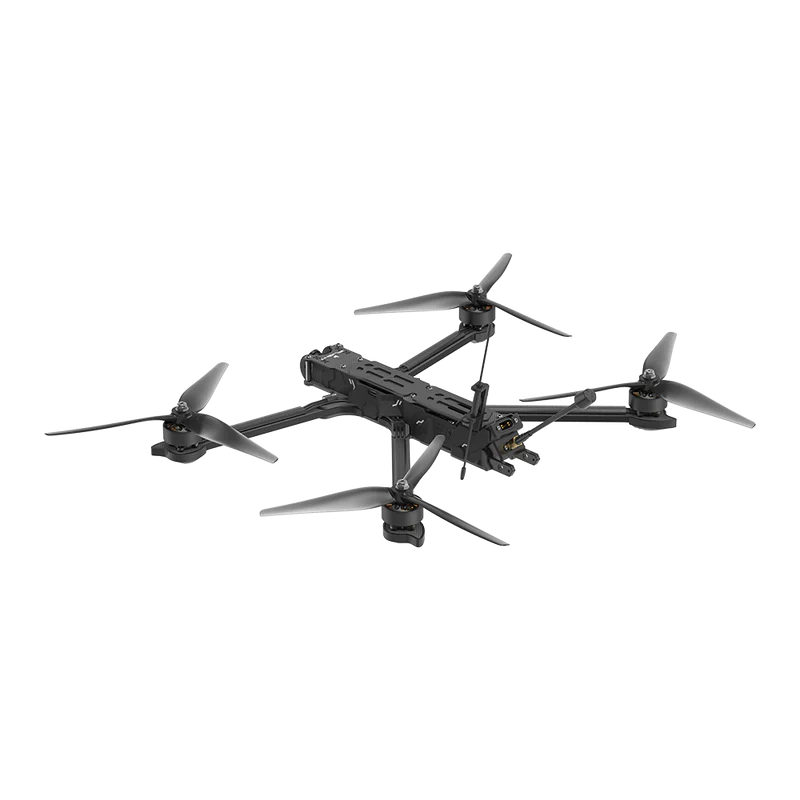

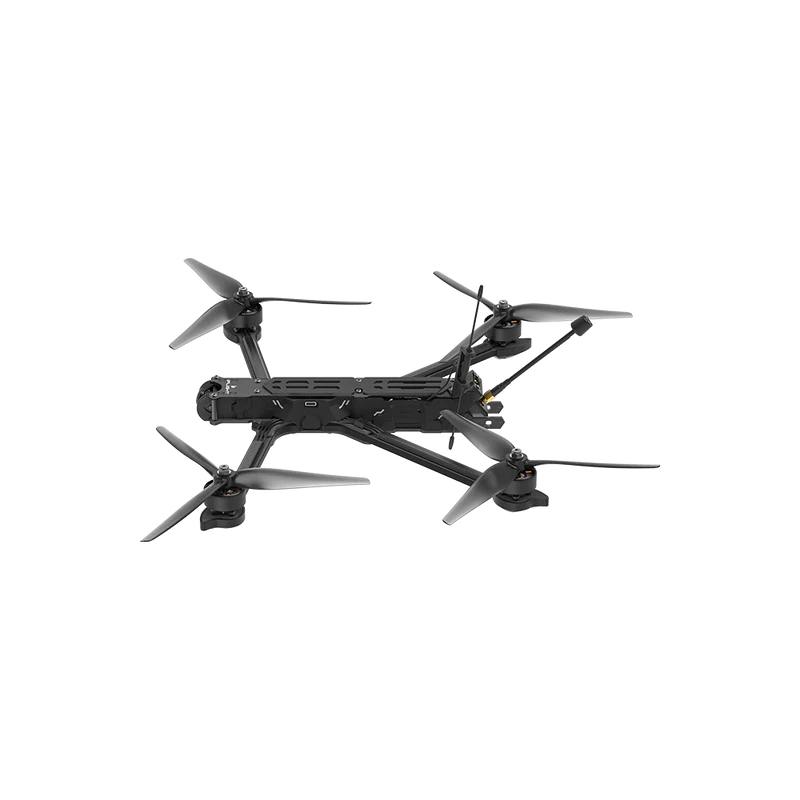

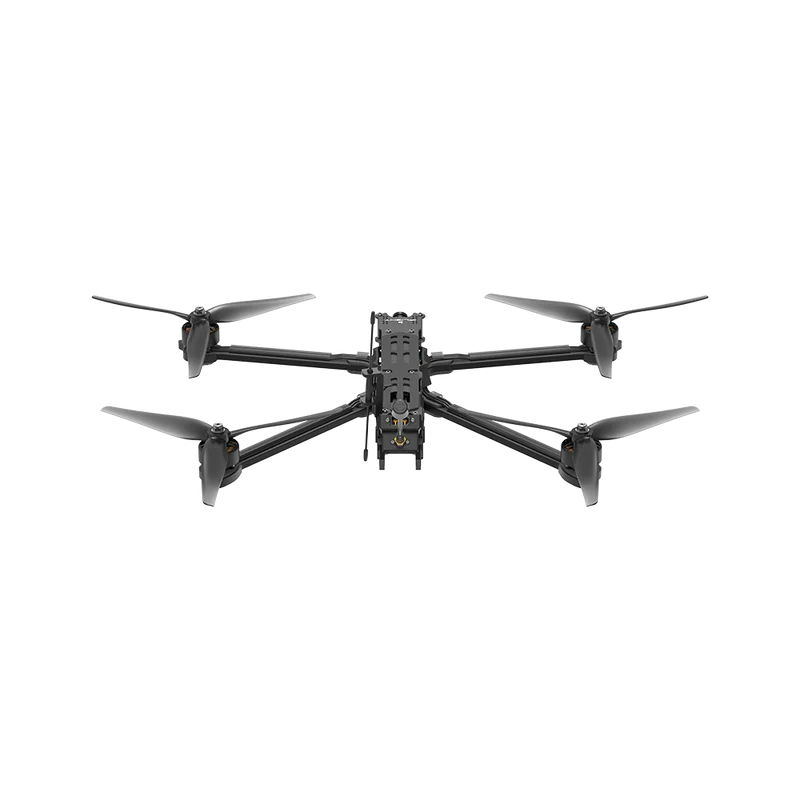

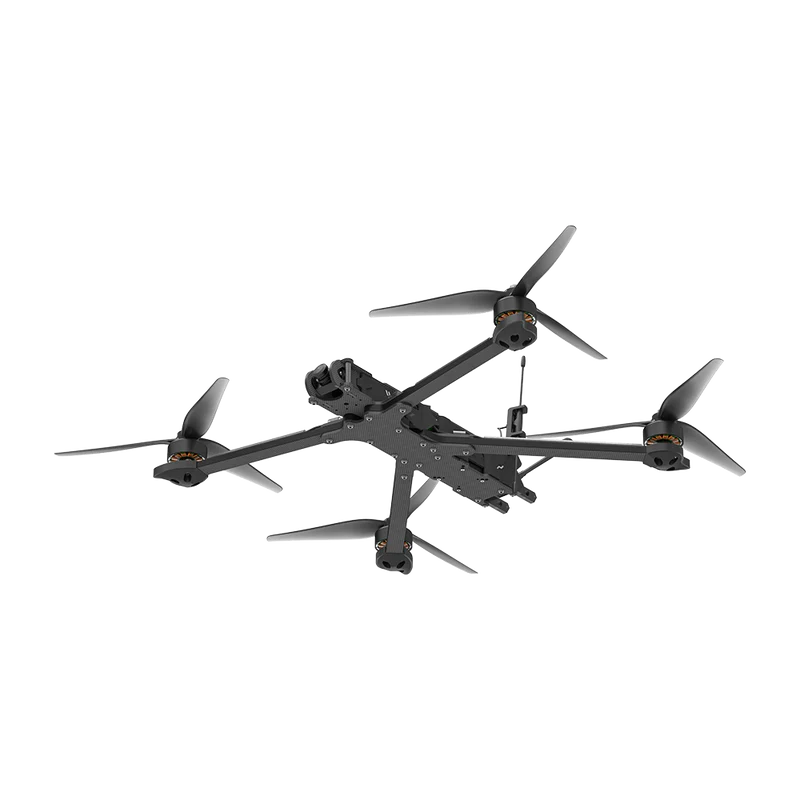

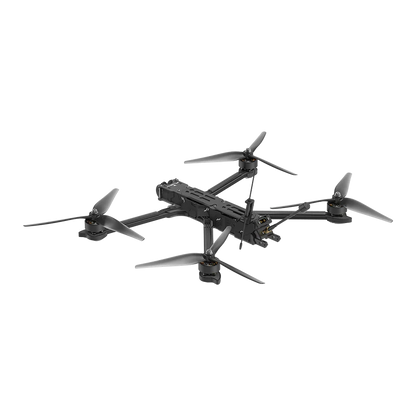

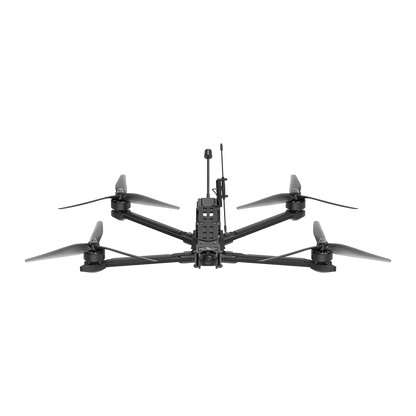

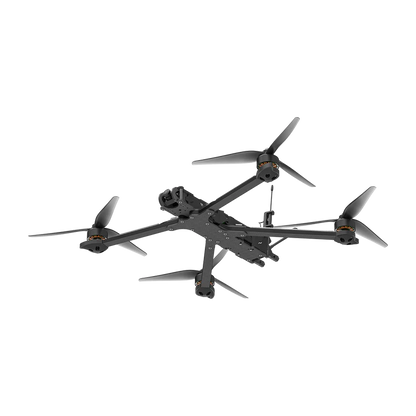

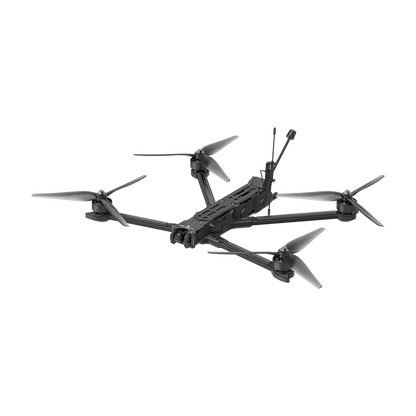

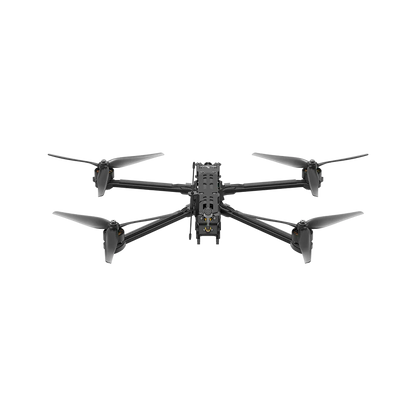

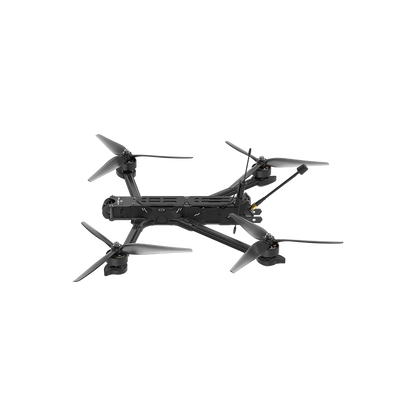

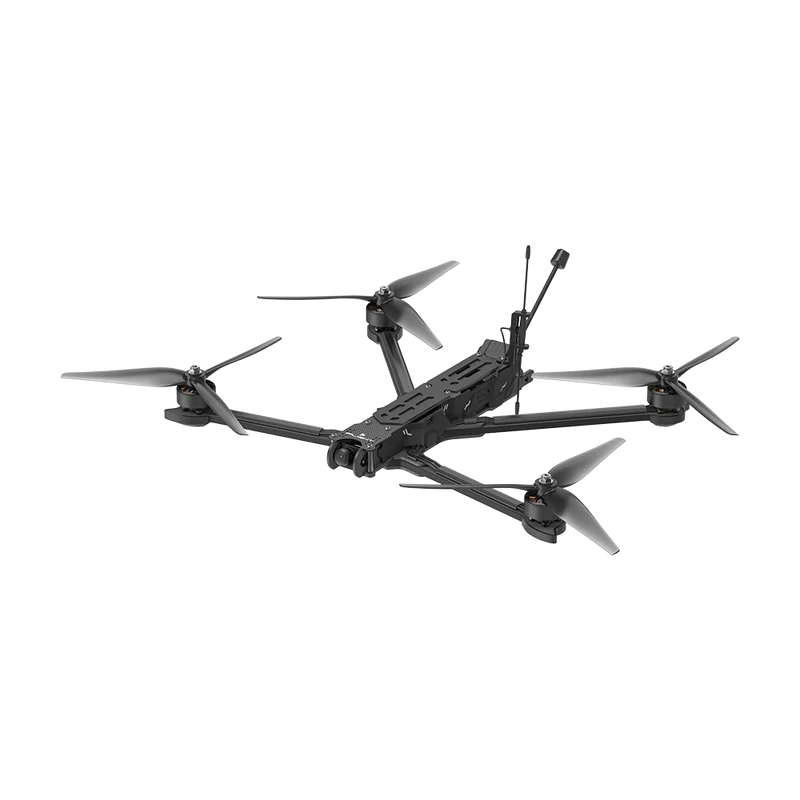

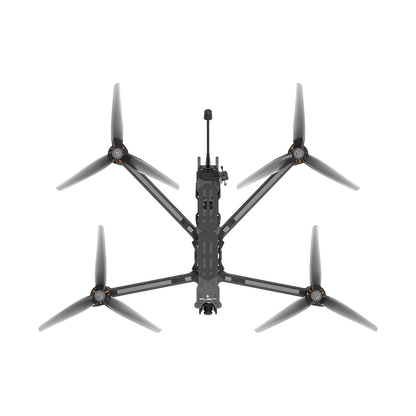

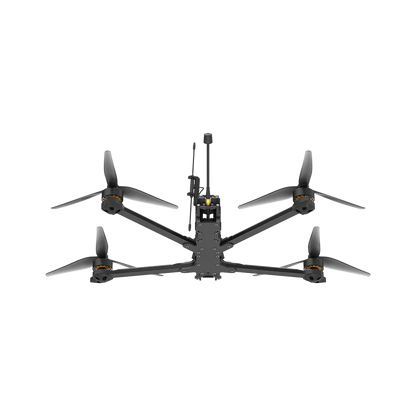

Chimera9 ECO 6S Analog BNF (ELRS 868/915) - The King of Long-Range FPV
Meet the Chimera9 ECO 6S Analog , a 9-inch FPV quadcopter built for adventurers who crave distance, endurance, and performance. With its advanced design and economic electrical system, this powerhouse is ideal for long-range missions and slow-cruising exploration. Equipped to carry larger batteries and featuring an aerodynamic, dirt-resistant frame, the Chimera9 ECO is your ticket to taking the road—or the sky—less traveled.
Whether you're soaring over mountain ranges or cruising the coast, the Chimera9 ECO's efficient setup ensures you can stay in the air longer and capture breathtaking views.
Key Features
- Long-Range Dominance : Designed to handle big 9" props and larger batteries, delivering up to 33 minutes of hover time on a 6S2P 8000mAh battery.
- Durable Chimera9 ECO Frame : Protects vital electronics from dirt and debris while allowing optimal airflow to keep components cool and functional.
- Efficient Electronics : Features the BLITZ ATF435 FC, BLITZ 1.6W/2.5W Whoop VTX, and BLITZ E55S 4-in-1 ESC for a reliable and powerful flying experience.
- Powerful Propulsion : XING-E 2809 800KV motors paired with 9X4X3 props offer exceptional control and thrust for stable long-range flights.
- Top/Bottom Battery Mount Options : Allows versatile battery configurations to suit your flight needs, with 6S batteries recommended for slow cruising.
Specifications
- Product Name : Chimera9 ECO 6S Analog
- Flight Controller : BLITZ ATF435
- ESC : BLITZ E55S 4-in-1 55A 2-6S
- VTX : BLITZ Whoop 1.6W/2.5W
- Receiver: Blitz 868/915Mhz ELRS RX
- Frame Geometry : DeadCat (DC), 405mm wheelbase
- Motors : XING-E 2809 800KV
- Props : 9X4X3
- Weight : 721g (without battery)
- Dimensions : 360×235×34mm
- Max Speed : 140km/h
- Max Hover Time : ~33 mins with 6S2P 8000mAh battery (no load)
- Operating Range : -10°C to 40°C (14°F to 104°F)
- GNSS Support : GPS+SBAS+Galileo+QZSS+Glonass (optional)
- Payload Capacity : 1.5-2.2kg
What's in the Box
- 1 × Chimera9 ECO 6S Analog BNF
- 1 × Battery Pad
- 1 × Antenna
- 2 × Propeller Pairs
- 2 × Battery Straps
Note: Accessories may vary depending on availability.
