C04 Camera & VTX Module for Cetus X

So, you introduced your Cetus X to a solid object at speed. It happens. Before you bin it or threaten your soldering iron, here’s the easy way out. The C04 Camera and VTX Module is a direct, plug-and-play replacement part that gets you flying again faster than you can say "that'll buff out." No microscopic soldering, no confusing wiring diagrams—just a simple, effective Cetus X replacement camera to undo your latest gravity experiment.

Why You Want It

Because your current camera now offers a lovely 50/50 split-screen view of the ground and the sky. This tiny 4.14g all-in-one unit combines a surprisingly crisp 1200TVL camera with a capable video transmitter. It’s the original factory part, meaning the fit is perfect and the installation takes minutes. It’s the difference between an afternoon of flying and an evening of swearing at a tiny circuit board. (Existential shrug: We sell soldering irons too, but you probably don't need one for this).

Which Version Do I Need? (Read This!)

Pay attention, this bit is important. Your Cetus X came in two flavours, and you need the matching camera module. Don't be that person who orders the wrong one.

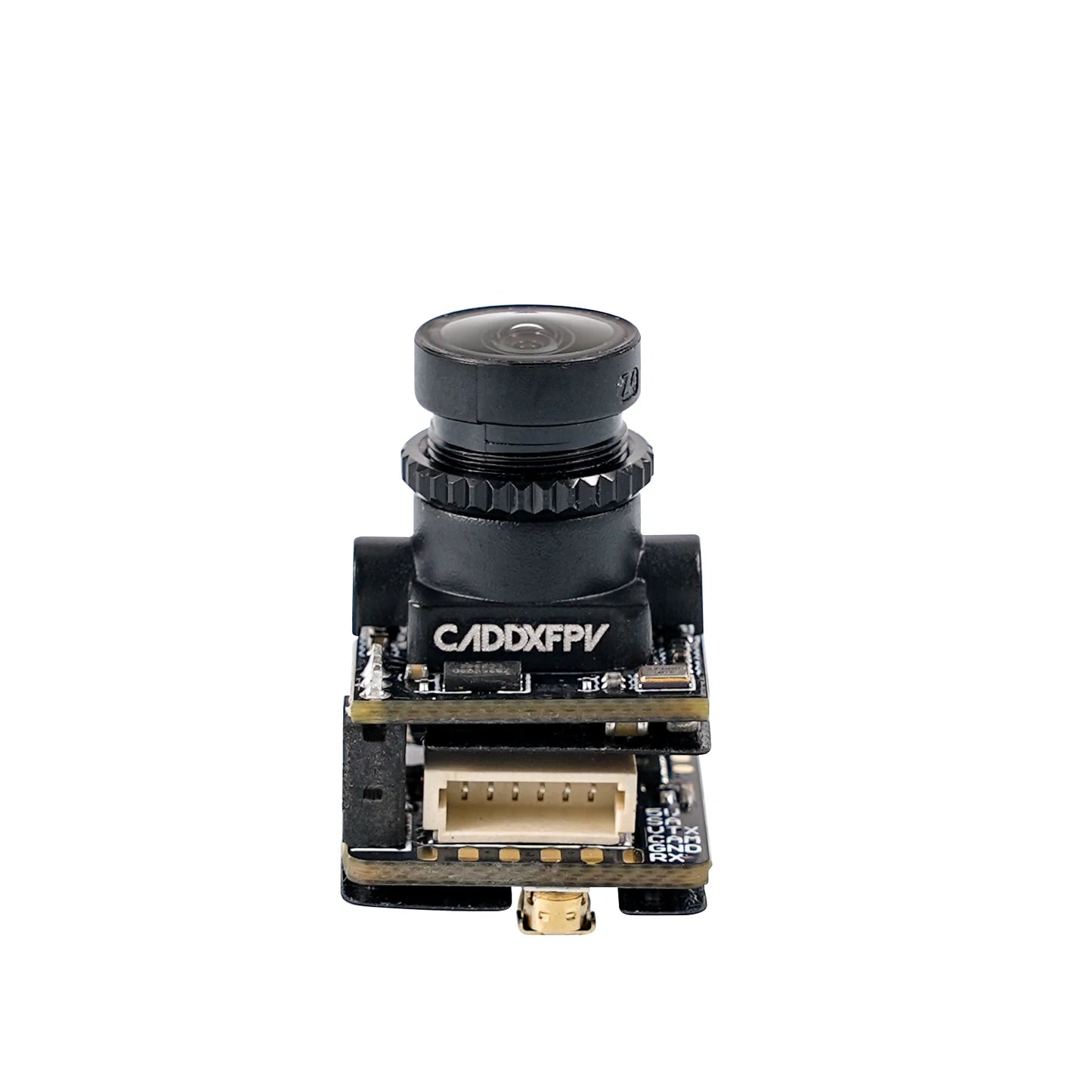

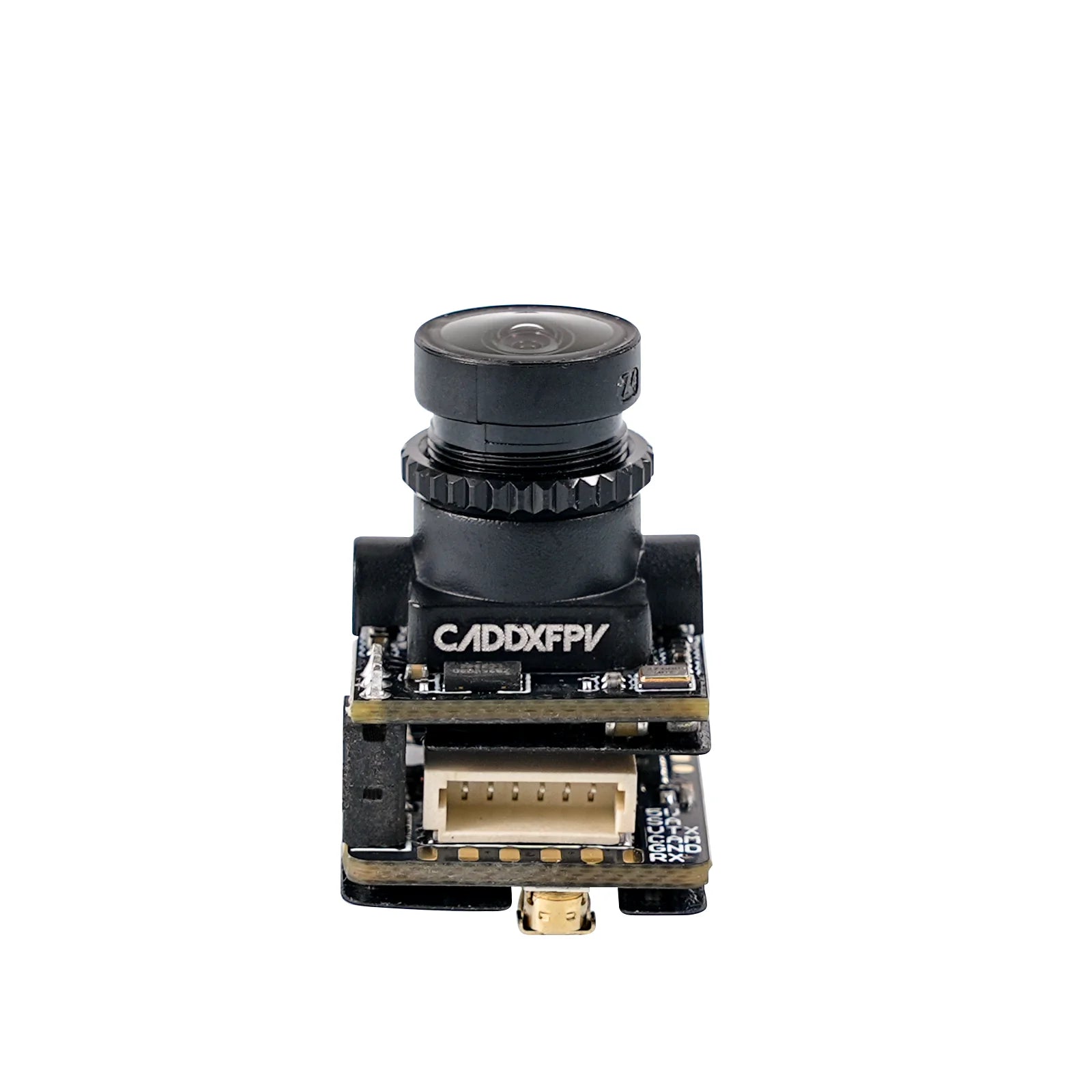

• M04 Version: For the Betaflight Version of the Cetus X. This is the one with more power (up to 400mW) and all 40 channels, including Raceband. You know, for when you and your mates want to fly without knocking each other out of the sky.
• Cetus V2 Version: For the standard, non-Betaflight Version of the Cetus X. This one is simpler, locked to 8 channels on B-band with up to 350mW of power.

Specifications

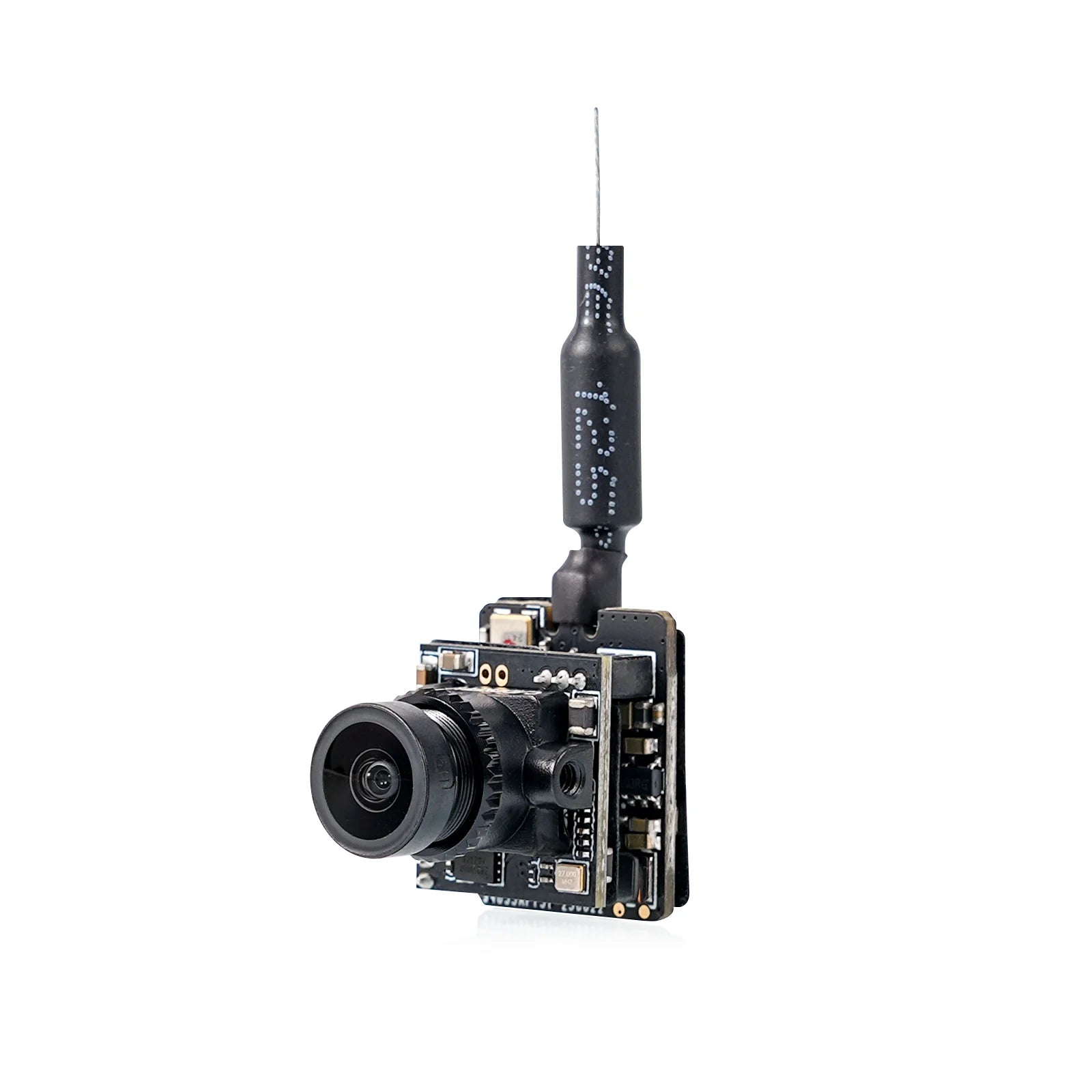

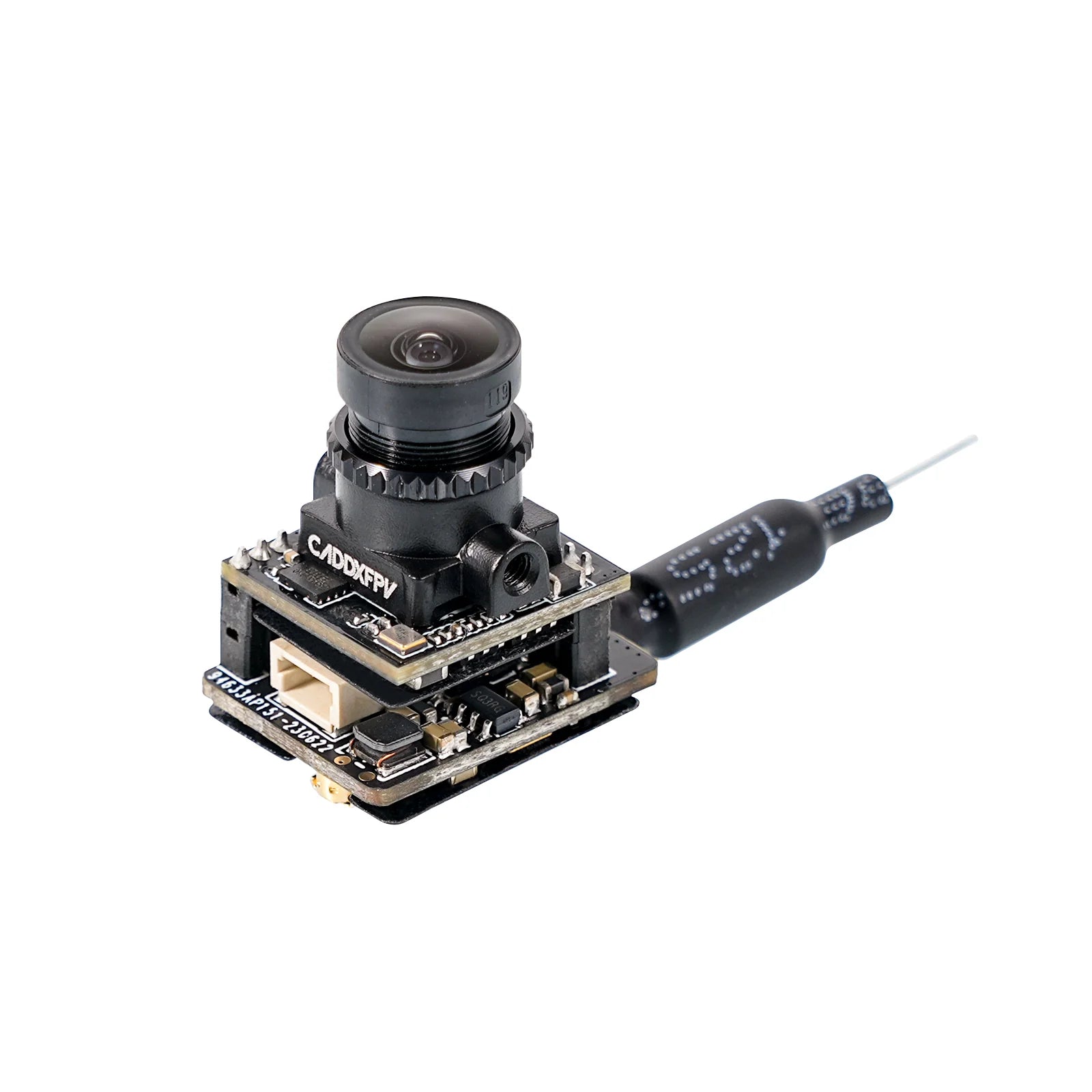

• Item: C04 Camera and VTX Module
• Image Sensor: 1/3" CMOS Sensor
• Resolution: 1200TVL (Way better than it has any right to be on a whoop)
• Field of View (FOV): 160° (So you can see the branch you're about to hit)
• Video System: NTSC (4:3)
• VTX Power (M04): 25mW - 400mW
• VTX Power (Cetus V2): 25mW - 350mW
• Frequency (M04): 5 Bands, 40 Channels w/ Raceband
• Frequency (Cetus V2): 1 Band, 8 Channels (B-Band only)

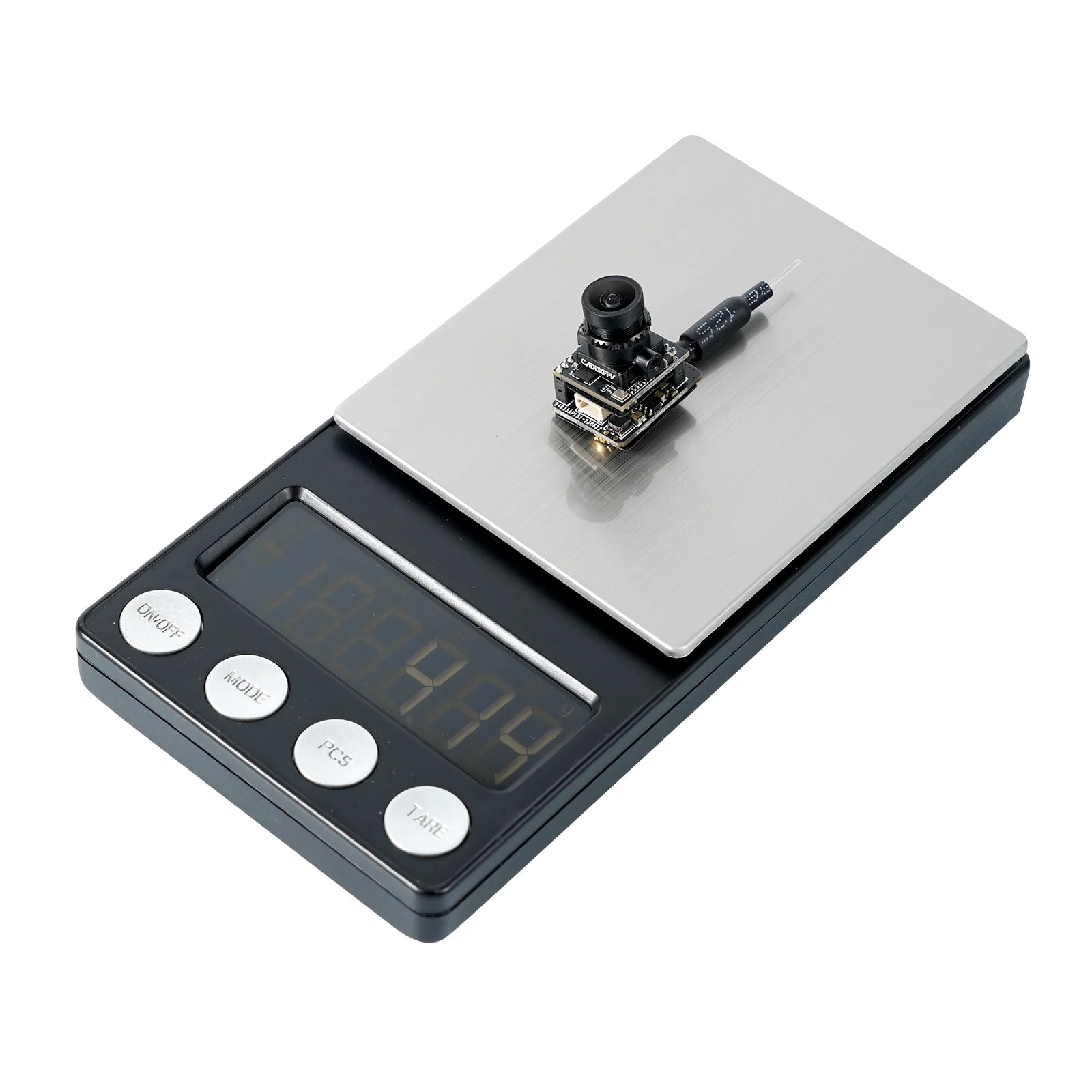

• Weight: 4.14g (with antenna)

What’s in the Box*

• 1x C04 Camera and VTX Module (Choose M04 or Cetus V2 version)
• 1x Connecting Cable
• Screws (The M04 gets 4, the V2 gets 2. Don't ask why.)

Disclaimer

*You'll get the camera/VTX and its cable. The number of screws is pre-determined by ancient prophecy and is not grounds for a refund.

Still Here? Just Buy The Cetus X Camera Already.

Look, it's a replacement camera. You broke yours, this one isn't broken. It's a simple plug-in part for your Cetus X quad that will take you less than five minutes to install. You've already spent more time reading this page than the actual repair will take. Add the right version to your basket and get back to annoying the neighbours.
