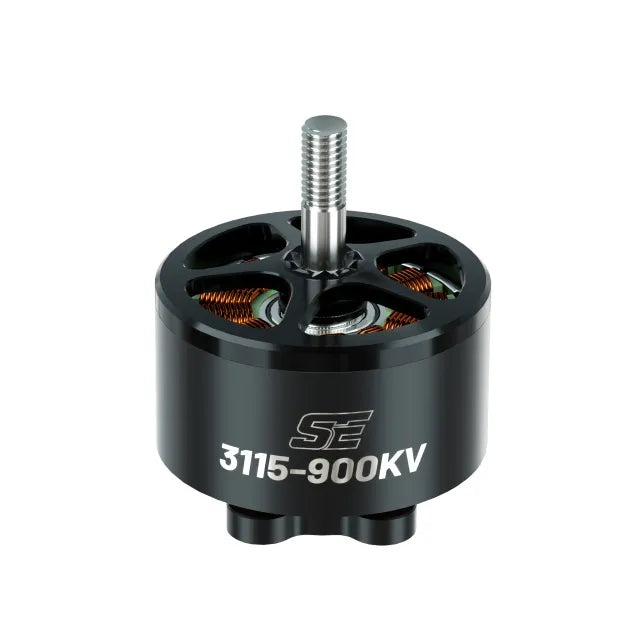

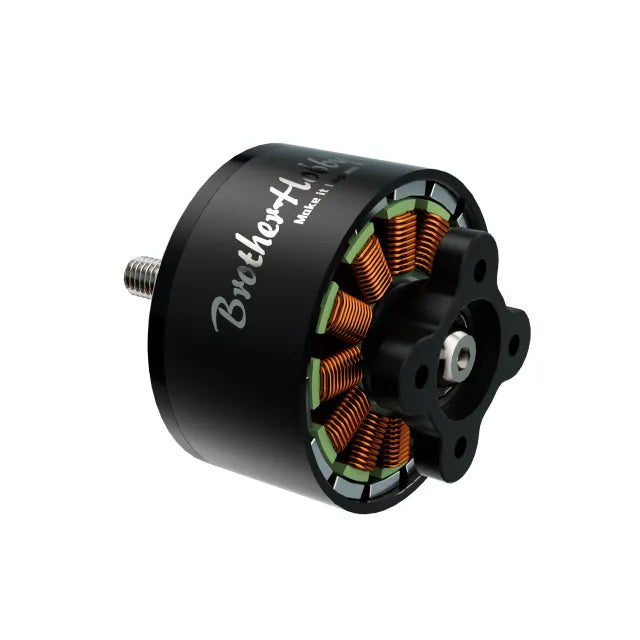

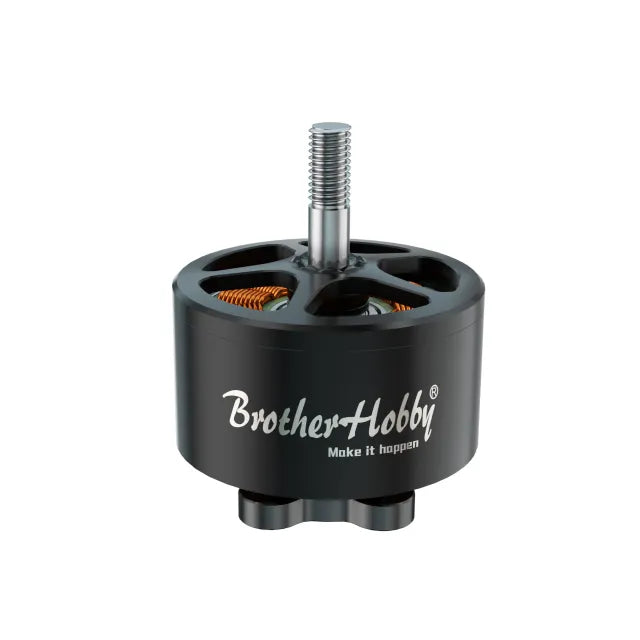

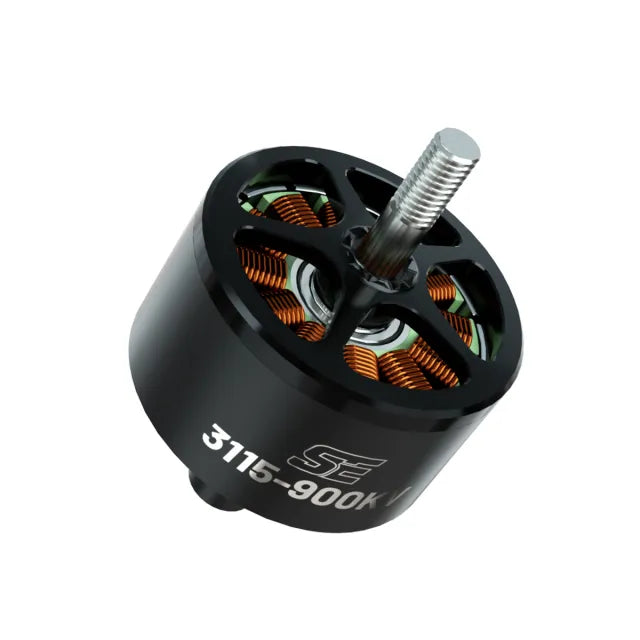

900KV 6S FPV Motor — Torque Without the Therapy

Looking for a 900KV FPV motor that plays nicely with 6S LiPo, laughs at heat, and doesn’t feel like a mystery meat special? This one’s built with Al 7075, N52H arc magnets, and proper Japanese bearings. Yes, we’re selling you a motor. No, we’re not pretending physics took the day off.

Why You Want It

This motor exists for pilots who want controlled aggression—smooth throttle, real torque, and fewer post-flight existential questions. The 12N14P layout and thin 0.2mm silicon steel stator keep efficiency high and temps sensible. Will it make you fly like a DRL finalist? No. Will it stop your quad feeling like a caffeinated shopping trolley? Absolutely.

Specifications

• KV: 900KV (torque-first, ego second)
• Voltage: 6S LiPo (because 4S had its time)
• Stator: 0.2mm Nippon silicon steel (thin laminations, thick reliability)
• Configuration: 12N14P (the crowd favourite for smooth power)
• Base Casing: Al 7075 (aircraft-grade, crash-tested by customers)
• Rotor: N52H arc magnets (high-temp magnets, low-drama flights)
• Shaft: SUS420 with M5 thread (strong enough for your prop choices)
• Bolt Pattern: M3, 19×19mm (because standards matter)
• Bearings: Japanese NMB 12×6×4 (spinny parts done properly)
• Wire: 16AWG, 30cm (long enough to regret not trimming)
• Weight: 125.2g (yes, torque has mass—welcome to reality)

What’s in the Box*

• 1× 900KV Brushless Motor
• 1× Pre-installed shaft & bearings

Disclaimer

Specs are locked, accessories may vary slightly, and no—this motor will not make you immune to trees.

Still Here?

You read the whole spec list, so you already know this motor isn’t for casual cruising. It’s for builders chasing efficient torque, smooth response, and fewer overheated regrets. Add it to your build, or send this page to the mate who keeps cooking motors and “can’t work out why.”
