- MCU: STM32G473C EU6
- Gyro: ICM42688P
- Blackbox memory: 16MB
- Sensor: Voltage & Current
- BEC: 5V, Max. 3A
- UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
- BetaFlight OSD: AT7456E
- ESC: 5A continuous
- RX: Serial ELRS 2.4GHz (V3.4.3)
- VTX: 5.8GHz 48 channels, Max. 400mW
- FC firmware: Betaflight_4.5.0_BETAFPVG473
- USB port: SH1.0-4Pin
- Motor Connector: JST1.25
- Battery connector: BT2.0
- Mounting hole size: 26mm x 26mm

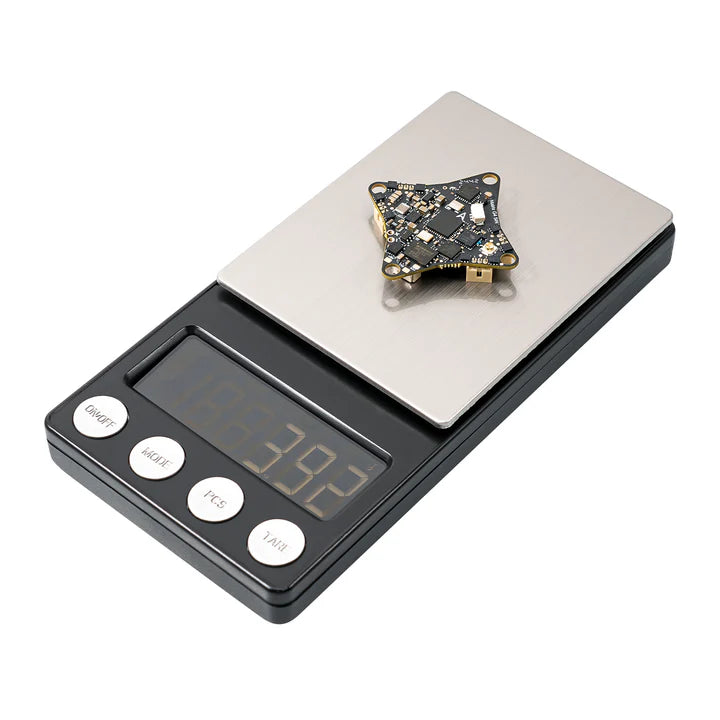

- Wei ght: 3.92±0.1g
Product Details

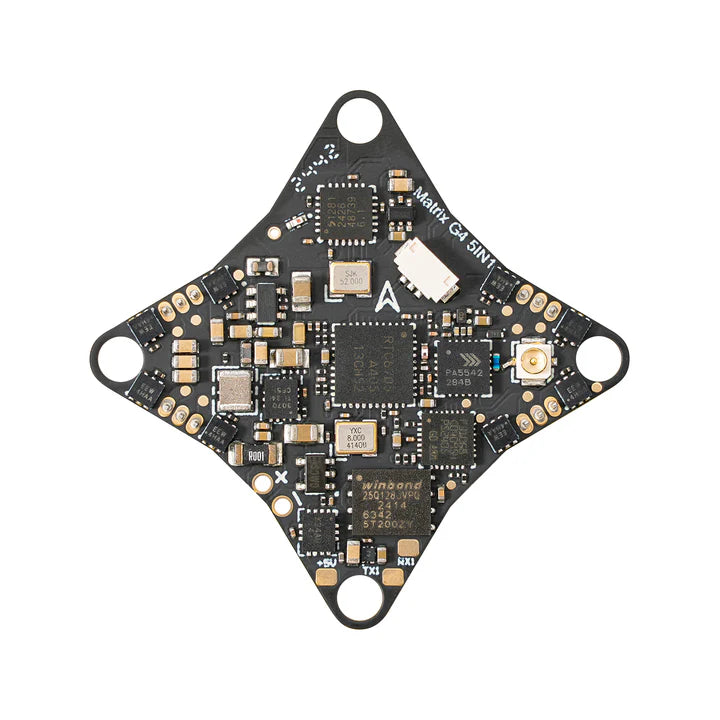

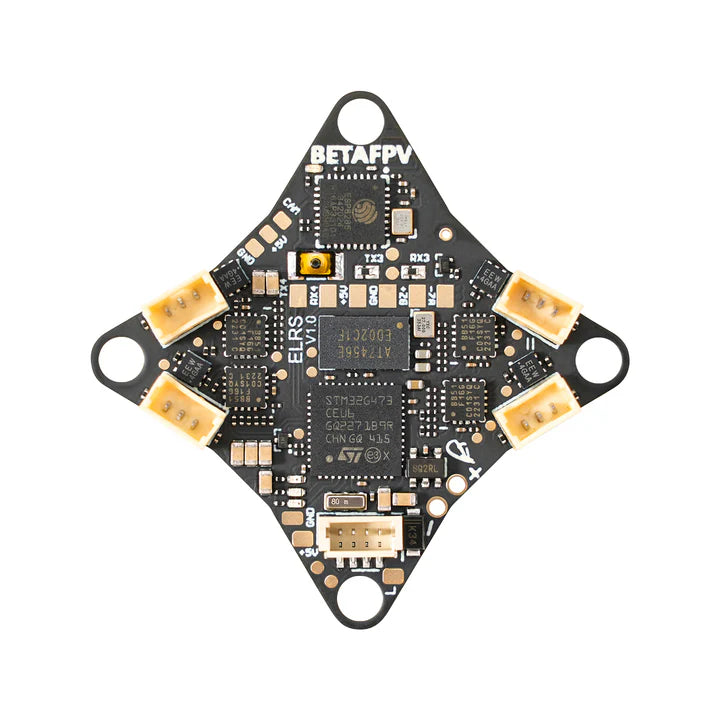

BetaFPV Matrix 1S Brushless Flight Controller - Ultra-Light, Ultra-Smart
Looking for a high-performance 1S flight controller to power your micro FPV drone? The BetaFPV Matrix 1S Brushless Flight Controller is a compact, feature-packed FC designed to provide smooth, precise control with minimal weight. Whether you're building a whoop racer, micro freestyle quad, or ultra-light cinematic flyer , this board delivers next-level flight performance with integrated high-efficiency F4 processing and BLHeli_S ESCs .
Why Choose the BetaFPV Matrix 1S FC?
✔
F4 Processor for Stable, Responsive Flight
- Ensures
precise control and rapid response
in tight spaces.
✔
Integrated 5A BLHeli_S ESCs
-
Plug-and-play brushless motor support
without extra wiring hassle.
✔
Onboard ELRS 2.4G
(Serial ELRS 2.4GHz (V3.4.3 or later))
✔
Lightweight & Compact
- Designed for
tiny whoops and micro drones
where every gram matters.
✔
Plug & Solder Pads for Easy Setup
- Compatible with
BetaFPV and third-party micro drone builds
.
Specifications:
FC
- Power inpu t: 1S Only
- Current: 5A continuous, 8A peak
- ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
- Digital signal protocol: DShot300, DShot600
VTX
- Output power: 25/100/200/400/PIT
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.0
- Modulation type: FM
- Frequency control: PLL
- All harmonic: Max -50dBm
- Frequency stability: ±100KHz (Typ.)
- Frequency precision: ±200KHz (Typ.)
- Channel carrier error: ±1.5dB
- Antenna port: 50 Ω
- Operating temperature: -10℃~+80℃
What's in the Box?
- 1 x BetaFPV Matrix 1S Brushless Flight Controller
- 1 x Set of Grommets for Mounting
- 1 x JST Battery Connector (varies based on stock availability)
- User Manual
⚠ Disclaimer: Included accessories may vary depending on stock availability.
