Product Details
M03 VTX: The Powerhouse of Whoop Drones
Take your whoop drone game to the next level with our M03 VTX! Engineered for peak performance, this ultralight and high-output power 5.8GHz analog VTX brings longer range flights to your 65-85mm whoop drones. With an ExpressLRS 2.4G radio link, get ready to dive into a universe of uncharted territories and endless fun.
Let's explore what makes the M03 VTX the drone enthusiast's best friend:
Unfathomable Output Power
Sporting a robust 25-350mW output power, this tiny beast ensures stable imagery and strong transmission, even over long distances.
Light as a Feather
Weighting just 1.1g, it's perfect for your nimble 65-85mm whoop drones. It comes with a BETAFPV-compatible micro canopy, with screw mounting holes that'll fit like a dream.
Plug & Play Antenna

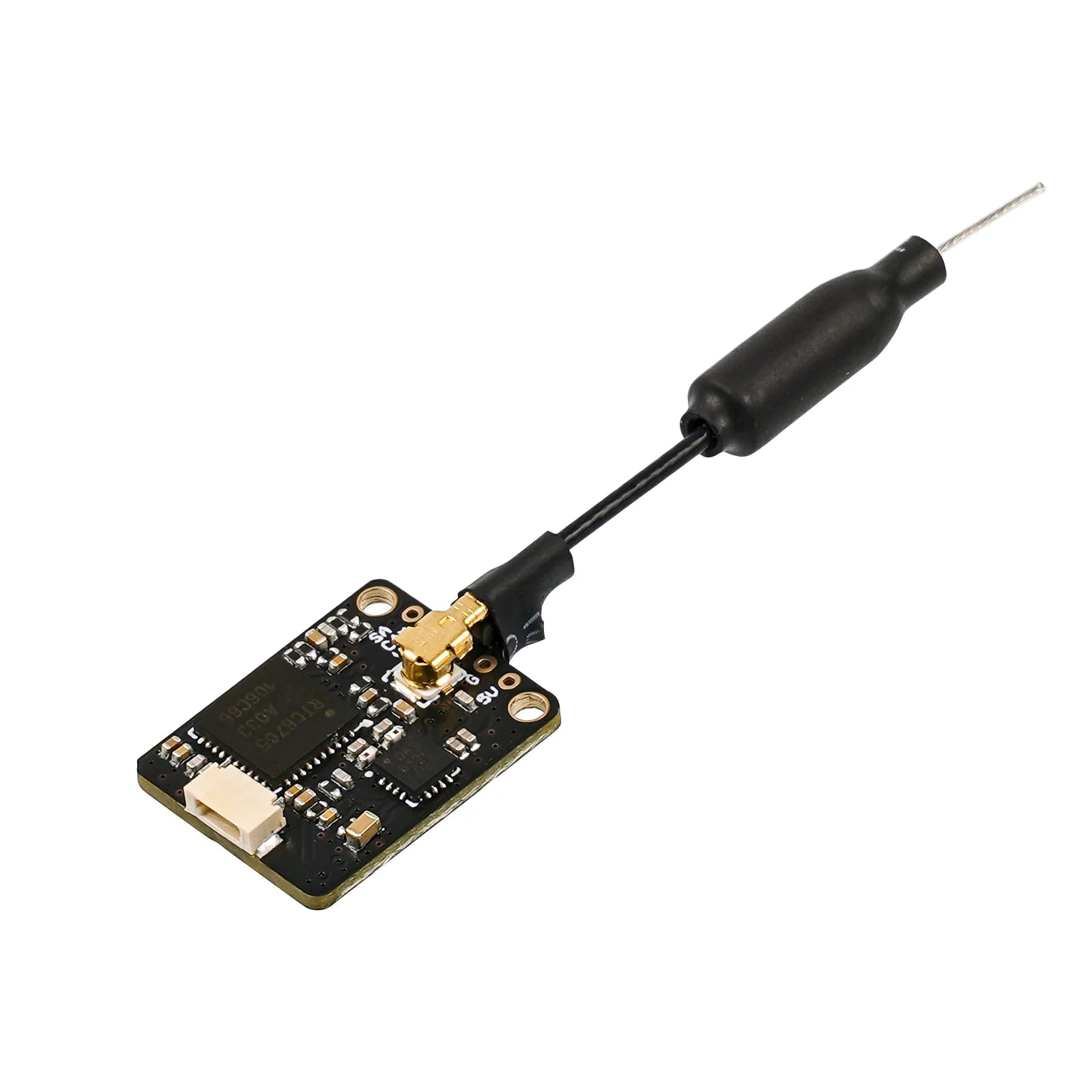

No more soldering woes! The M03 VTX is equipped with an IPX type antenna. Just plug it in and take to the skies.
Harmonious Companionship
This VTX plays exceptionally well with the ELRS 2.4G FC board. Whether you're rocking an F4 1S 5A FC (ELRS 2.4G) or F4 1S 12A FC (ELRS 2.4G), they're a match made in drone heaven.
Cool & Steady
Stay cool, stay steady with the M03 VTX's stellar operating temperature range of -10℃~+80℃, ensuring top-notch performance at all times.
Technical Tidbits:
- Item: M03 5.8G VTX
- Output power: PIT/25/100/200/400mW (V1.1, adjustable)
- Supply voltage range: 4.5-5.5V

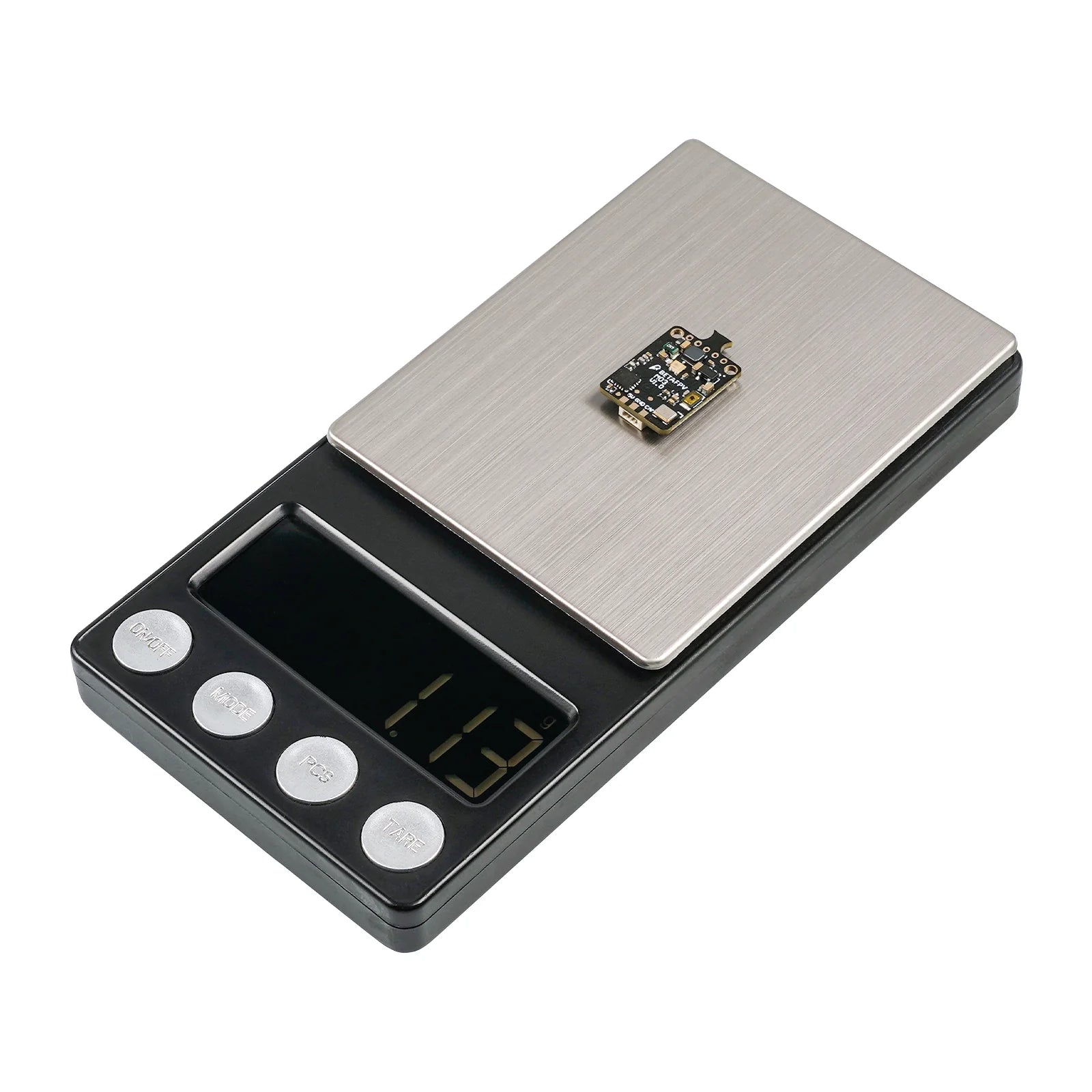

- Weight: 1.1g (antenna not included)
- VTX internal size: 18X14mm
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Modulation type: FM
- Frequency stability: ±100KHz (Typ.)
- Frequency precision: ±200KHz (Typ.)
- Camera connector: JST-0.8, compatible with BETAFPV C01, BETAFPV C02, C03, and NewBeeDrone BeeEye.
Stay light, stay powerful, and stay airborne for longer with our M03 VTX. You'll wonder how your whoop drones ever flew without it. Unleash your inner drone adventurer and soar with Unmanned Tech!

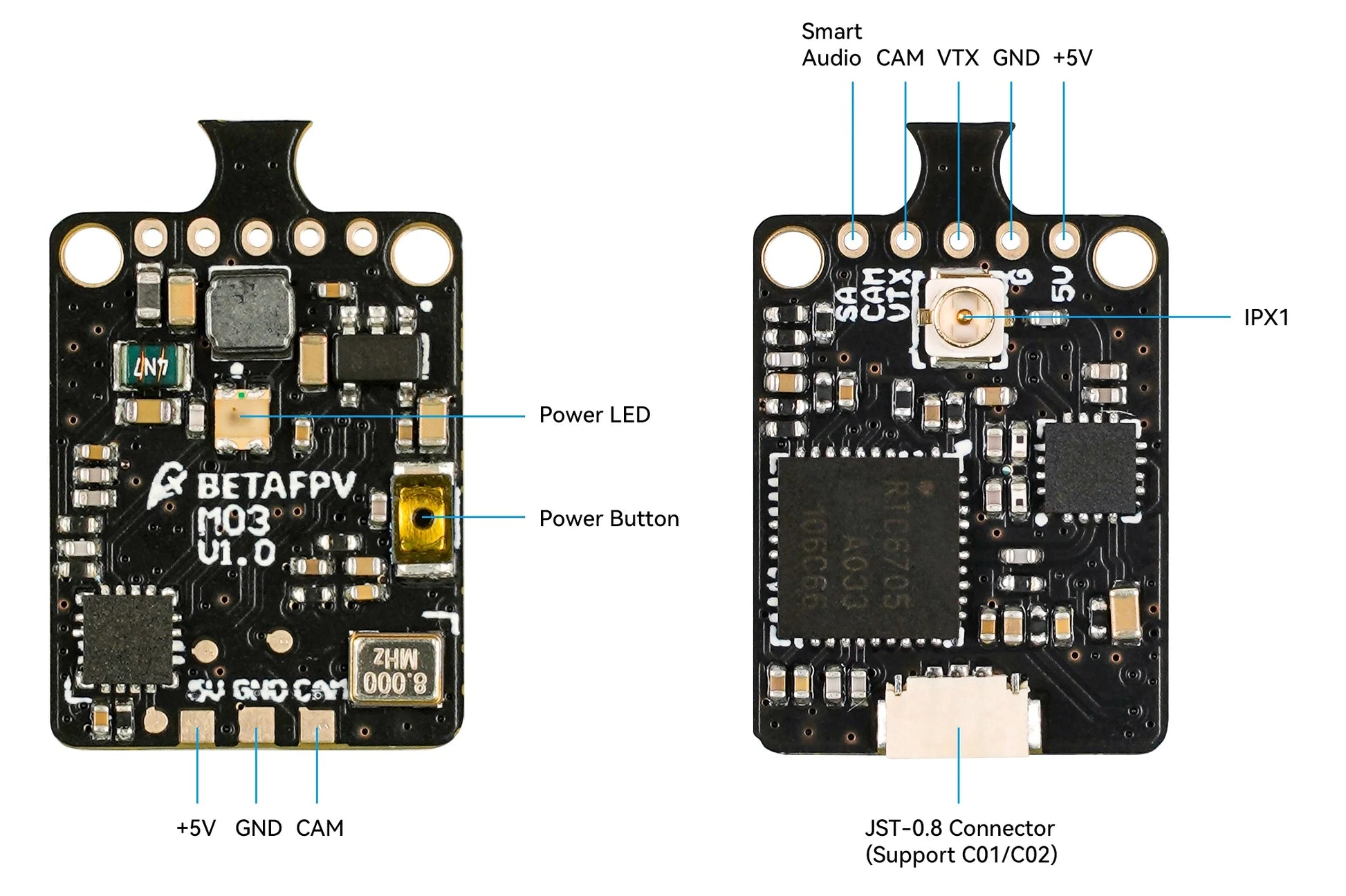

Note: Current version for M03 VTX is V1.1. Diagram available below.
