Product Details

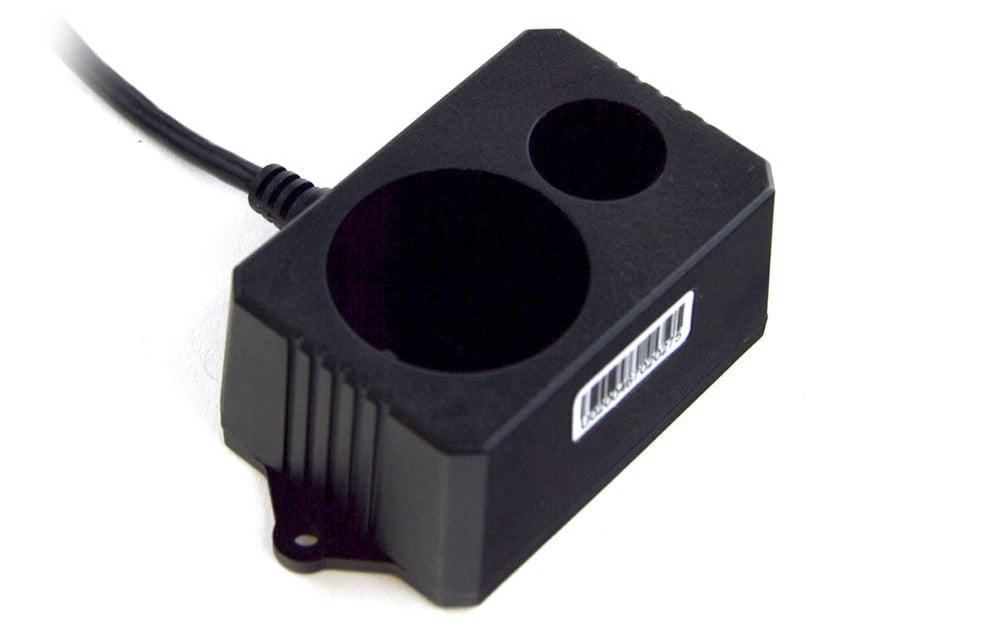

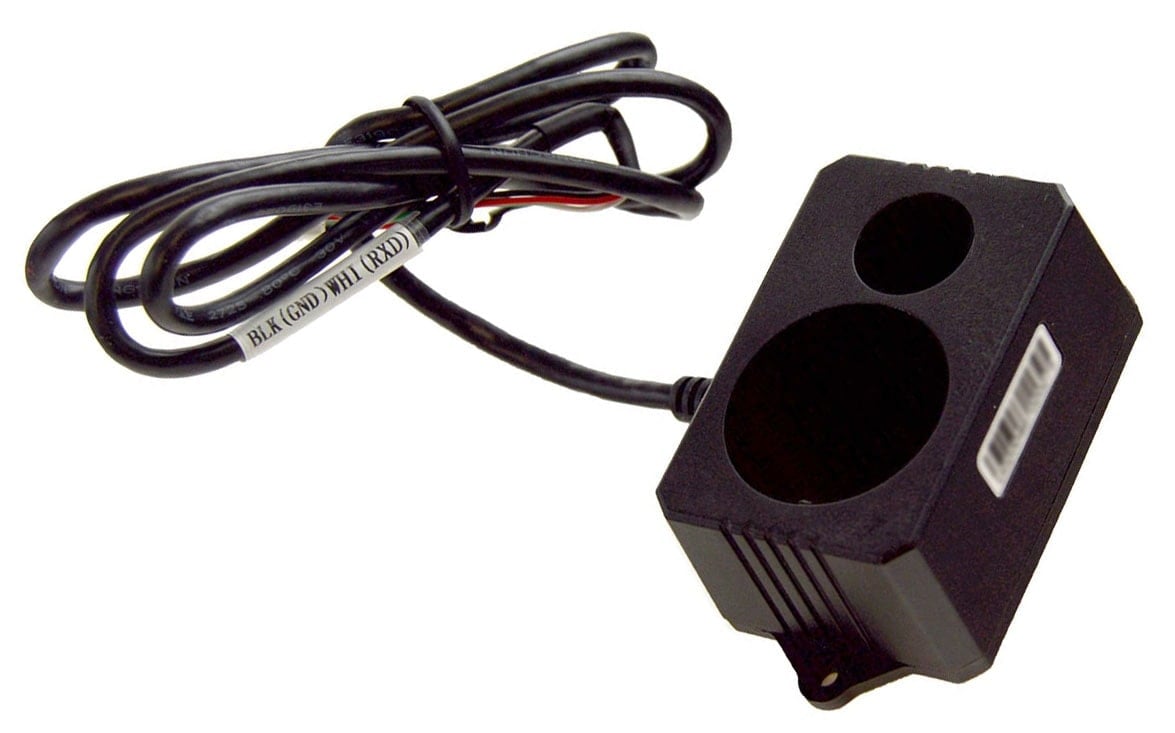

The TF02 Lidar from Benewake is a laser rangefinder capable of 22m in range. Unlike other Lidar rangefinders on the market, the TF02 ships in a rugged enclosure making this unit IP65 certified so you dont need to worry about dust or water damaging the lidar. The TF02 outputs centimeter accurate distance readings at 100Hz and can work in bright conditions as high as 100k Lux. All this in a package weighing less than 50g.
Furthermore with direct support for many autopilo systems the TF02 is ideal for use as a altitude ranging, or terrain following Lidar unit on your drone. Currently the TF02 is supported by Pixhawk systems (ardupilot/arducopter) and other such as TopXGun, FFY Technology, aiAero, DAISCH. Other applications include machine control and other safety sensors and distance measuring systems.
Key Features
- Range of up to 22m outdoors
- Fully enclosed IP65 unit
- Fast measurements up to 100Hz that are centemeter accurate
- Works under high brightness condisitons up to 100k Lux
- Lightweight Lidar module at under 50g
Datasheet
Electrical Specifications
| Project | Symbol | Minimum Value | Typical Value | Maximum Value | Unit |
| Input Voltage | DC | 4.5 | 5 | 6 | V |
| Power | P | 0.6 |
W
|
Optical Specifications
| Project | Symbol | Condition or Description | TypicalValue | Unit |
| Working Distance | L | Indoor |
0.4 - 10 (Reflectivity 10%)
0.4 - 22(Reflectivity 90%) |
m |
| Outdoor illumination intensity of 100k Lux | 0.3-10 | |||
| Emission Semi-angle of Signal Light | α | 2 | Degree | |
| Reception Semi-angle of Signal Light | β | 1.5 | Degree | |
| Detection Range | D | Object size detected from 5m away | 26 | cm |
| Distance Resolution Ratio | Re | Sensitivity to distance change | 1 | cm |
| Distance Precision | σ | Deviation between measuring distance and actual distance |
1 - 5（within 10m）
5 - 10（10m - 22m） |
cm |
| Working Temperature | T | -10 - 60 | ︒C | |
| Work Center Wave Length | λ | 850 | nm |
