Product Details

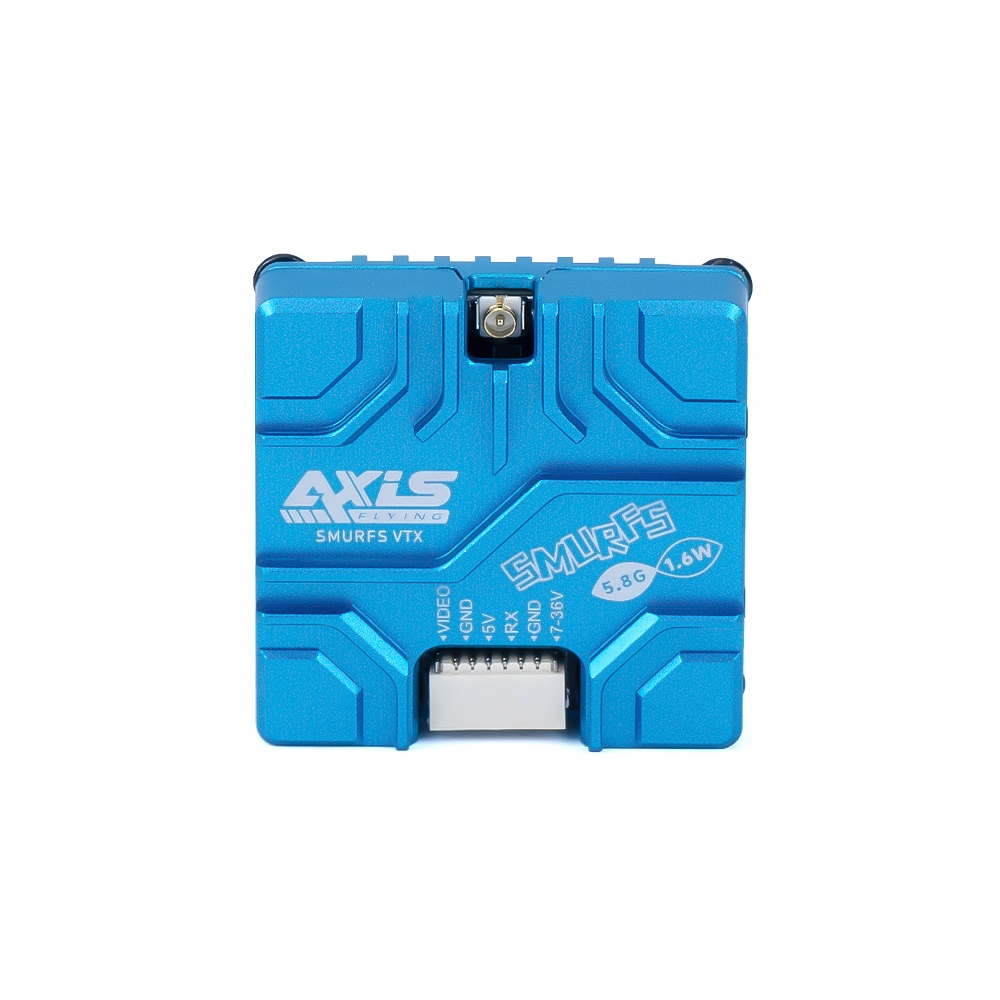

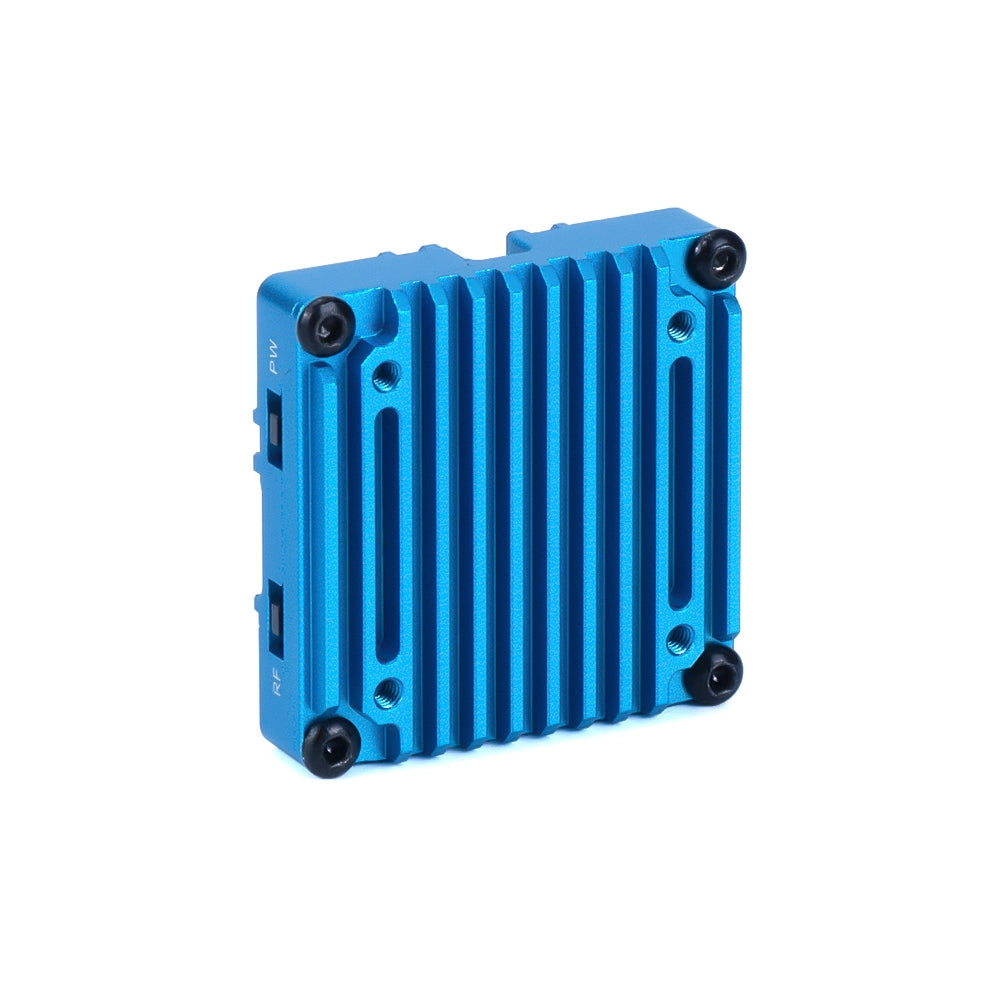

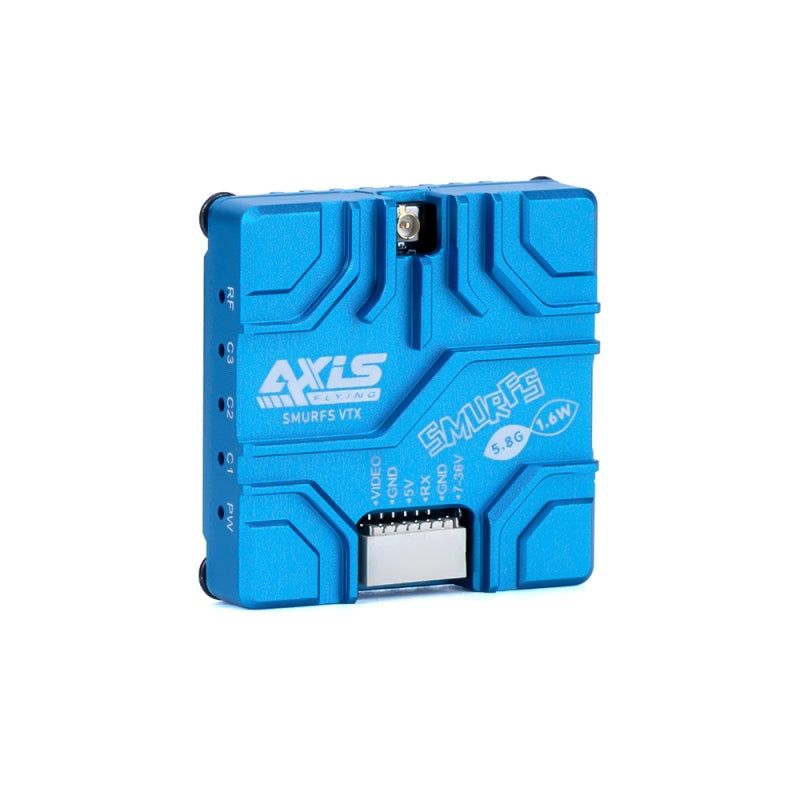

Axisflying SMURFS VTX 5.8G 1.6W Analog Image Transmission - Reliable FPV for RC Drones
The Axisflying SMURFS VTX 5.8G 1.6W is a high-performance analog video transmitter designed to provide crystal-clear FPV transmission for your RC drone. This lightweight, compact VTX offers five power output levels , ranging from 25mW to 1600mW , so you can adjust your transmission power based on your flight environment. Whether you're racing through tight spaces or cruising through long-range flights, the SMURFS VTX delivers a rock-solid, stable connection.
With 40 transmission frequencies spread across 5 frequency groups , this VTX ensures excellent signal strength and adaptability to crowded airwaves. The IPEX Gen 1 antenna interface allows for easy connection to various antenna setups, while its IRC Tramp protocol provides seamless integration with OSD control for quick adjustments mid-flight. Designed to handle input power from 7V to 36V , the SMURFS VTX is versatile enough for various drone builds without needing extra converters.
Despite its powerful performance, the SMURFS VTX weighs in at just 12.7g , minimizing its impact on your drone's flight dynamics. Plus, its compact design (30×30×9mm) fits snugly into most setups without hassle.
Key Features:
- 5.8G Analog Transmission : Operates on 5 frequency groups with 40 transmission frequencies for a stable signal.
- Adjustable Power Rates : Choose between 25 / 100 / 250 / 800 / 1600mW depending on your range needs.
- Antenna Interface : IPEX Gen 1 for secure and efficient antenna connection.
- Wide Input Range : Supports input power from 7V to 36V for versatility across different drone setups.
- Lightweight & Compact : Weighs only 12.7g, with a size of 30×30×9mm, ensuring it won't slow down your quad.
Specifications:
- Brand : Axisflying
- Model : SMURFS VTX
- Frequency : 5.8G band, 5 frequency groups, 40 transmission frequencies
- Power Output : 25 / 100 / 250 / 800 / 1600mW
- Antenna Interface : IPEX Gen 1
- Input Power : 7V~36V
- Control : Button operation & OSD control
- Dimensions : 30×30×9mm
- Weight : 12.7g
- Mounting Holes : M2, 20×20mm distance
- Protocol : IRC Tramp
What's in the Box:

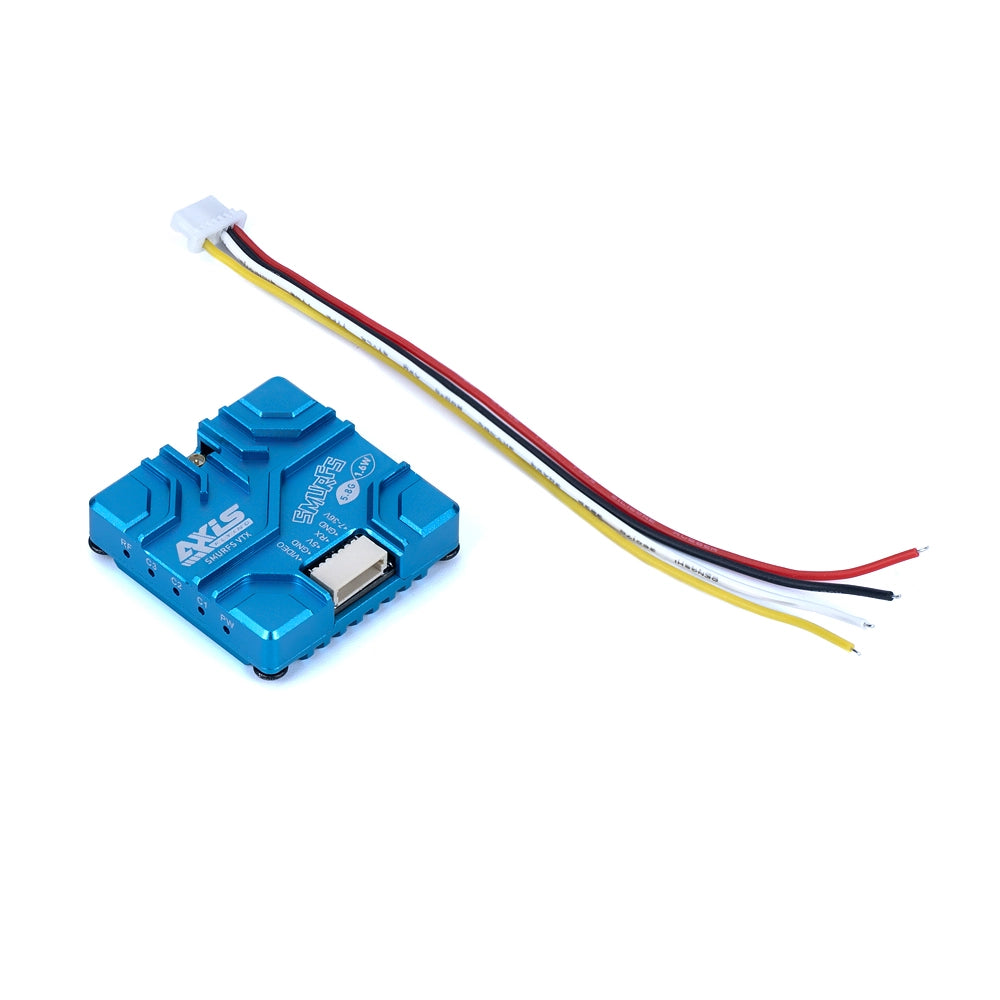

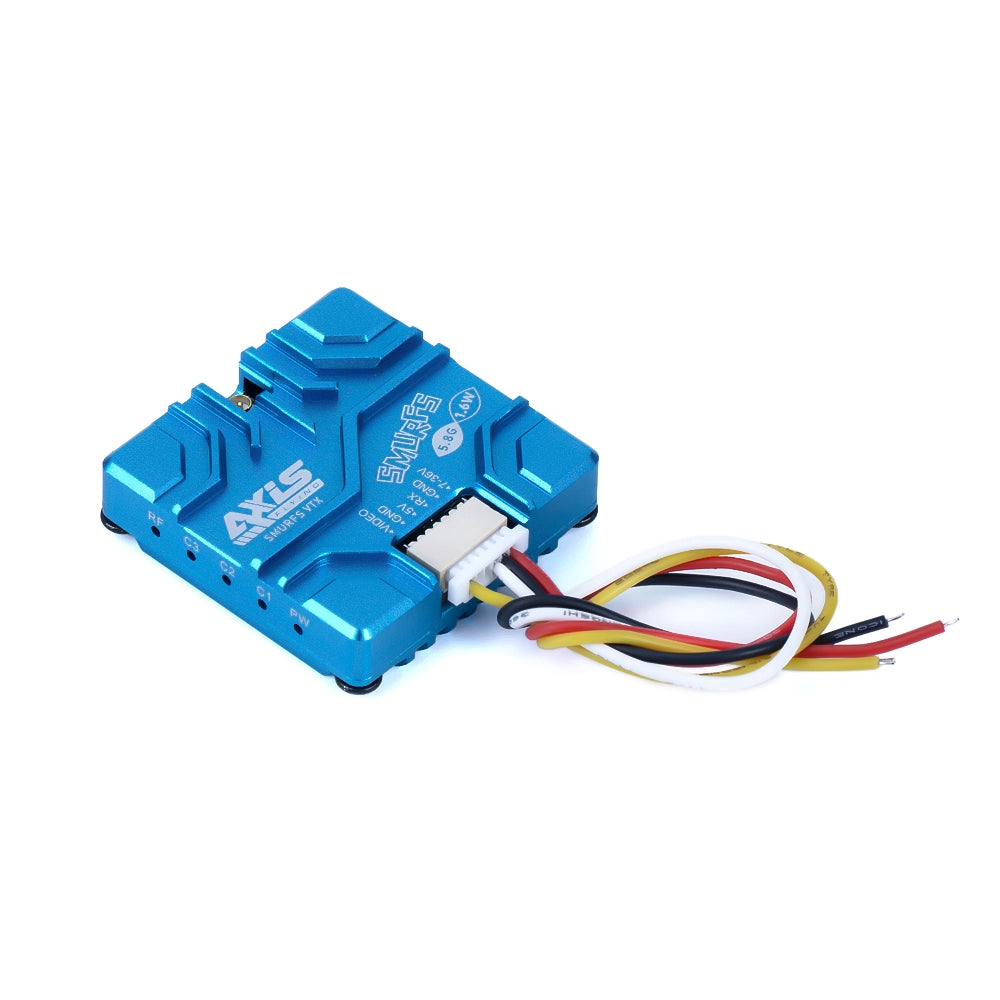

- 1x Axisflying SMURFS VTX 5.8G 1.6W
- Accessories
Disclaimer: Included accessories may vary based on stock availability. Be sure to connect the antenna before powering up to avoid damage.
