Product Details

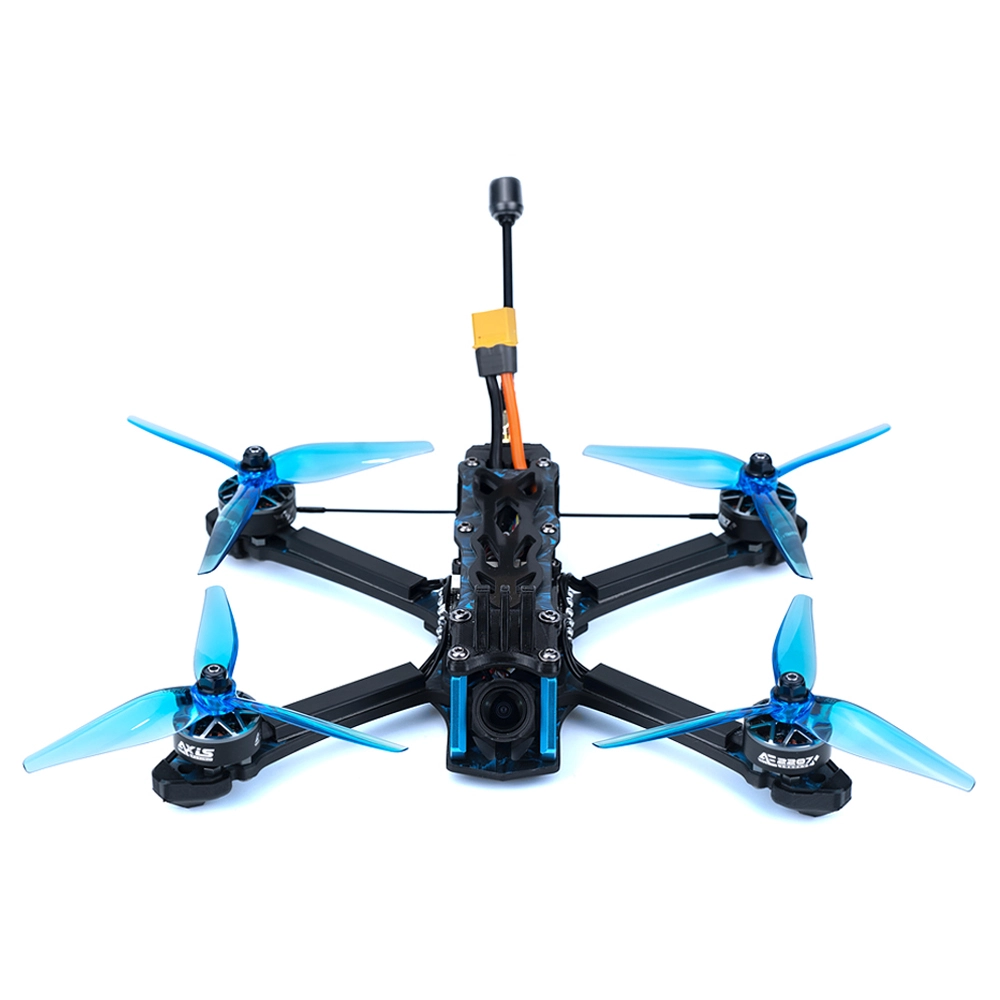

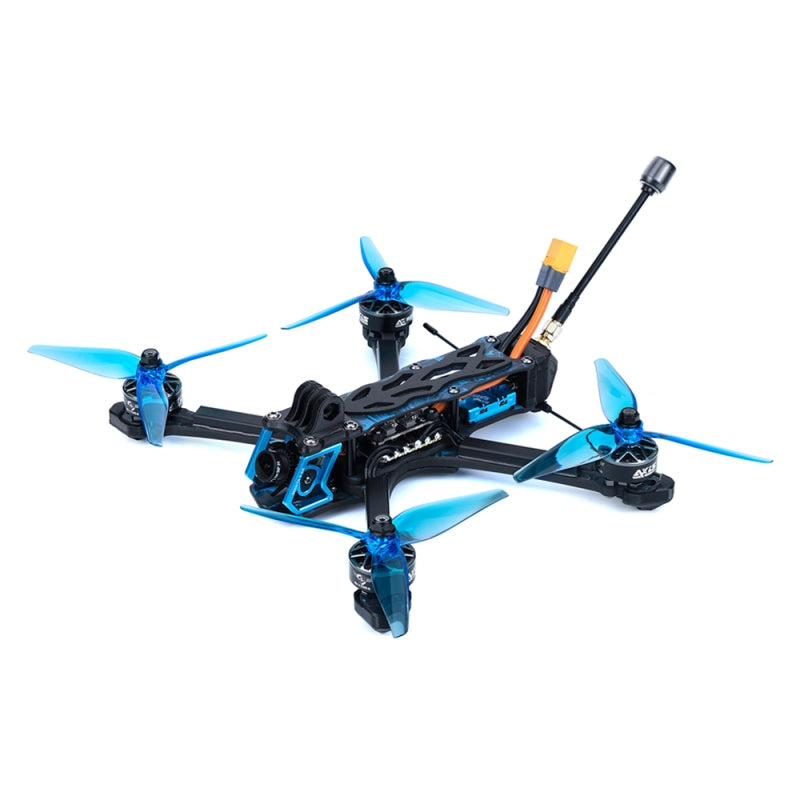

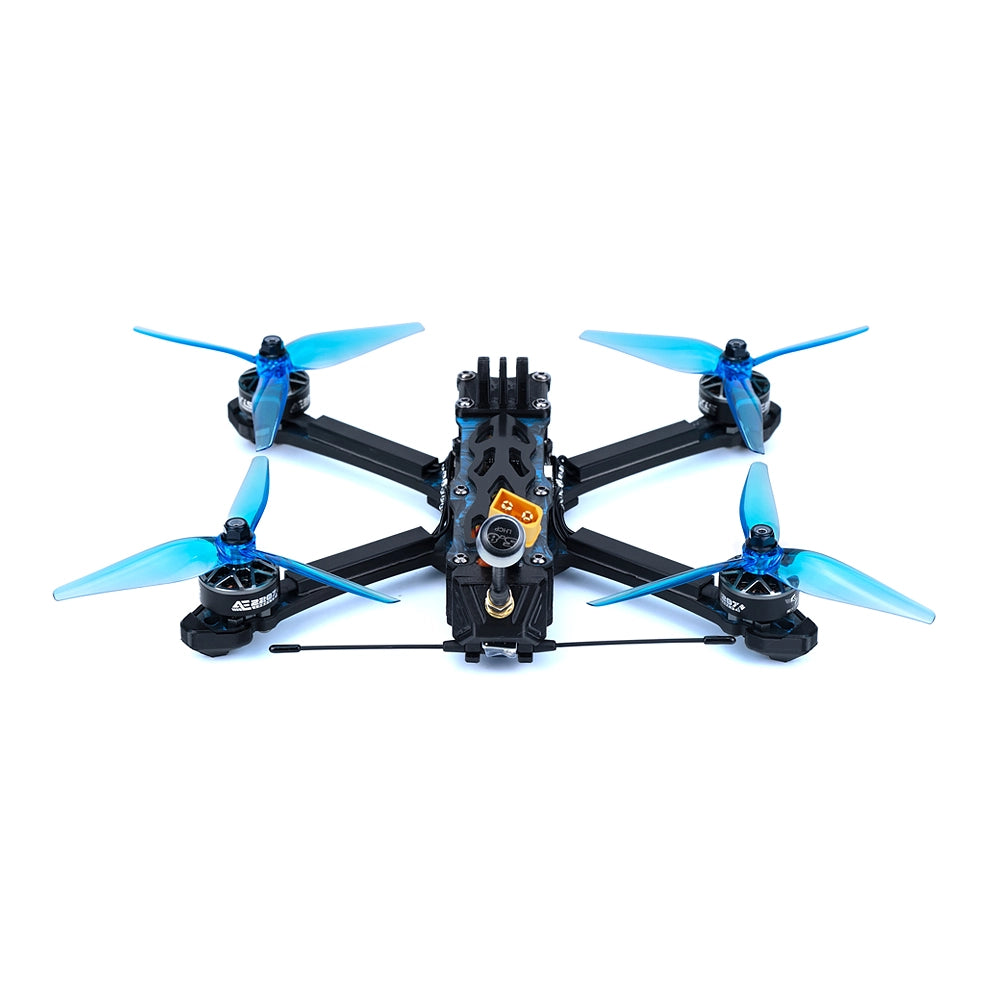

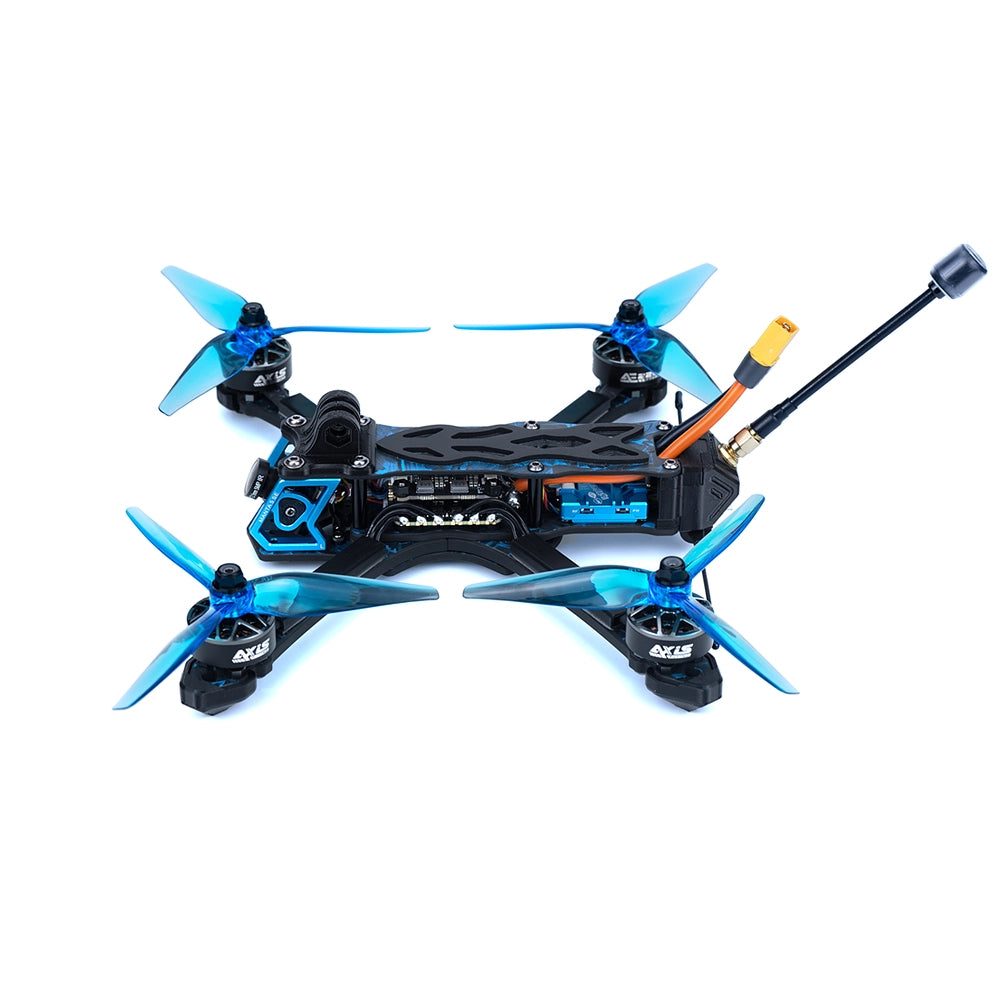

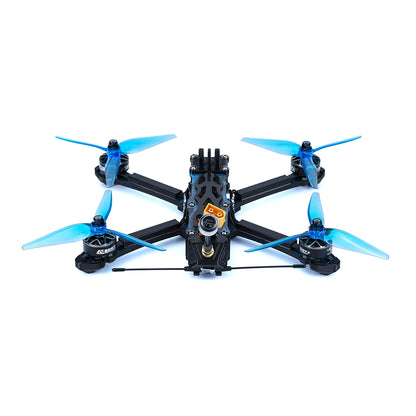

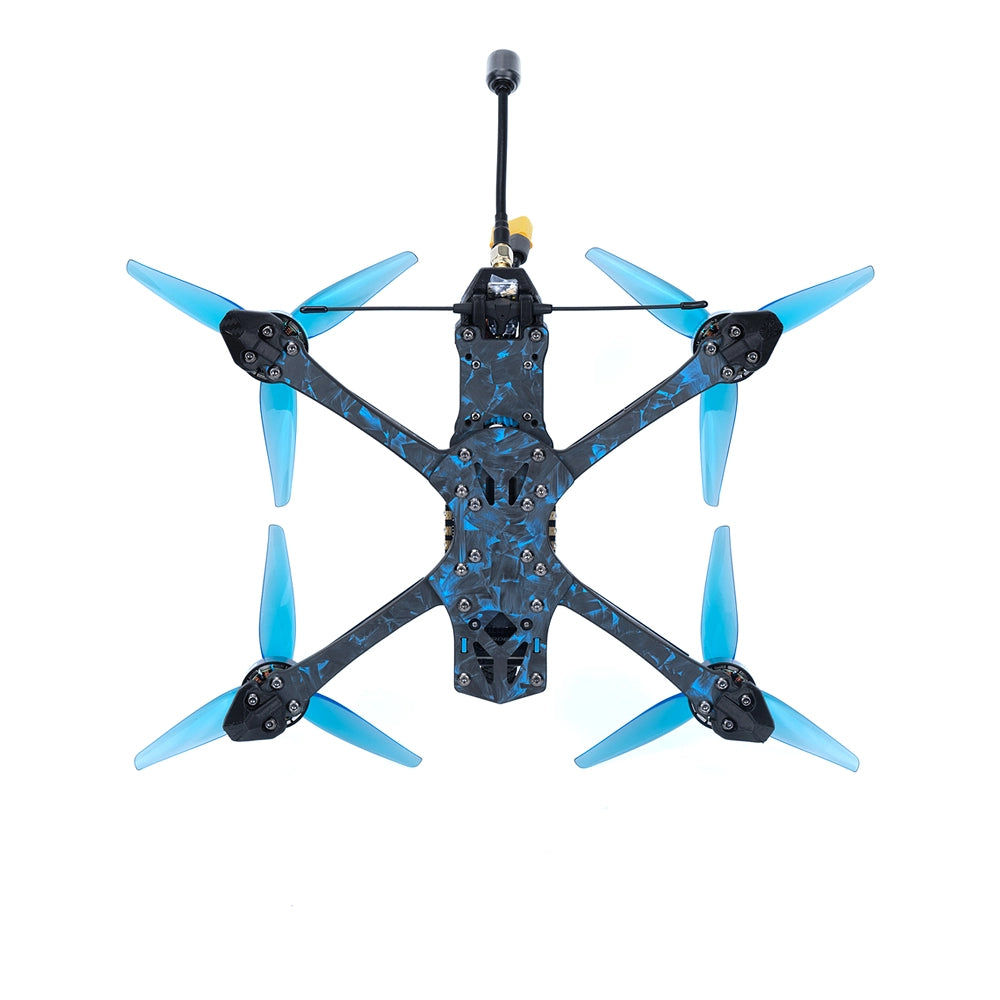

Axisflying Manta 5 SE Squashed X Analog Smurfs VTX-5.8G-1.6W FPV Drone - 6S: Pure Analog Power, No Compromises
Meet the Axisflying Manta 5 SE—an analog FPV drone that doesn't shy away from delivering the speed, precision, and adrenaline rush you crave. Built on the durable Manta 5 SE frame, this drone features the Axisflying Smurfs VTX-5.8G-1.6W, offering a reliable analog signal for those who prefer low-latency performance over digital distractions. Equipped with an integrated GPS module and your choice of TBS Nano RX or ELRS 2.4G receiver options, this squashed X configuration is optimized for aggressive, freestyle flying.
Key Features:
- Analog VTX Powerhouse: The Smurfs VTX-5.8G-1.6W delivers robust analog video transmission, perfect for high-speed, low-latency FPV racing.
- Integrated GPS Module: Keep track of your flight path and find your way home when things get wild.
- Flexible Receiver Options: Choose between TBS Nano RX or ELRS 2.4G for customized control and maximum range.
- Rugged Frame Design: A 223mm wheelbase with reinforced arms ensures this drone can handle rough landings and sharp maneuvers.
- High-Torque Motors: The AE2207 V2-1960KV motors provide the thrust and responsiveness needed for tight freestyle tricks.
- 6S Battery Compatibility: Optimized for 1050-1300 mAh 6S batteries, this drone delivers more punch and longer flight times without compromising agility.
Specifications:
- Frame: Axisflying Manta 5 SE Squashed X
- Wheelbase Size: 223mm
- Weight: 362g (Analog) ±10g
- Top Plate Thickness: 2mm
- Center Plate Thickness: 3mm
- Bottom Plate Thickness: 3mm
- Arm Thickness: 5.5mm
- Flight Controller: Axisflying Argus ECO FC F405
- ESC System: Axisflying Argus ECO ESC 60A-6S (Bluejay 8 Bit)
- Gyro: ICM-42688-P
- VTX: Axisflying Smurfs VTX-5.8G-1.6W
- Motors: AE2207 V2-1960KV
- Propellers: 5.1 3.7 3
- Battery Interface: XT60
- Receiver Version: TBS Nano RX, ELRS 2.4G
- Recommended Battery: LIHV / LIPO 1050-1300 mAh 6S
What's in the Box:
- FPV Drone x1
- Propellers x2 bags
- VTX Antenna
- Screwdriver (M3)
- Spare Battery Anti-Slip Sticker
- Spare Battery Straps
- GoPro Fixing Screws (including nuts)
- Manual
Disclaimer: Accessories included in the package may vary based on supply.
