Product Details
This is a low cost pancake style motor designed for high efficiency multi-rotors running 15-17 inch props. These motors have been used on DIY quadcopters achieving over 50 min flight times, quite impressive considering the cost of these motors.
Features

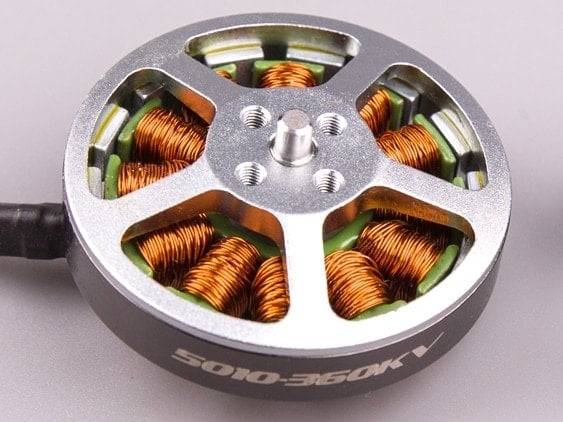

- Machined aluminum front housing with four fan-style cooling holes that pump air through the motor while it runs.
- Rear threaded mounting holes with both 16 mm and 19mm hole spacings fit a variety of applications.
- Specially designed NdFeB magnets with high temperature rating for trouble-free operation.
- High Temperature 140 C (356 F) rated wire is used for winding the motors to minimize the risk of burning up the motor.
- High quality stator plates are epoxy coated on the inner surface to prevent winding shorts. 0.20mm stator plate id used on this
- motor 5010.
- High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.
- High temperature adhesives are used to secure the stator winding and prevent them from shifting and getting pinched or shorting out .
Specifications
- KV: 360
- Configu-ration: 12N14P
- Shaft Diameter(out size): 4mm
- Shaft Diameter(inside size): 5mm

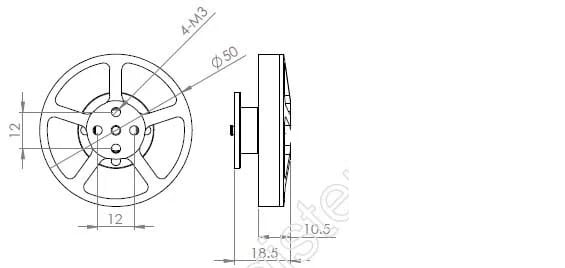

- Motor Dimension(Dia.*Len): Φ50х26
- Weight(g): 92g
- Cable 40cm
Test Data
|
No. |
Voltage(V) |
Current(A) |
Power(W) |
RPM/V |
Statick Thrust (g) |
Pull/Power(g/w) |
Note |
|
1 |
14 |
0.2 |
2.8 |
1000 |
81 |
28.9 |
|
|
2 |
14 |
0.4 |
5.6 |
1200 |
110 |
19.6 |
|
|
3 |
14 |
0.6 |
8.4 |
1400 |
160 |
19.0 |
|
|
4 |
14 |
1.1 |
15.4 |
1600 |
220 |
14.3 |
|
|
5 |
14 |
1.7 |
23.8 |
1800 |
288 |
12.1 |
|
|
6 |
14 |
2.4 |
33.6 |
2000 |
350 |
10.4 |
|
|
7 |
14 |
3.4 |
47.6 |
2200 |
430 |
9.0 |
|
|
8 |
14 |
4.2 |
58.8 |
2400 |
490 |
8.3 |
|
|
9 |
14 |
5.9 |
82.6 |
2600 |
570 |
6.9 |
|
|
10 |
14 |
8.5 |
119 |
2800 |
730 |
6.1 |
|
|
11 |
14 |
10.7 |
149.8 |
3000 |
800 |
5.3 |
|
