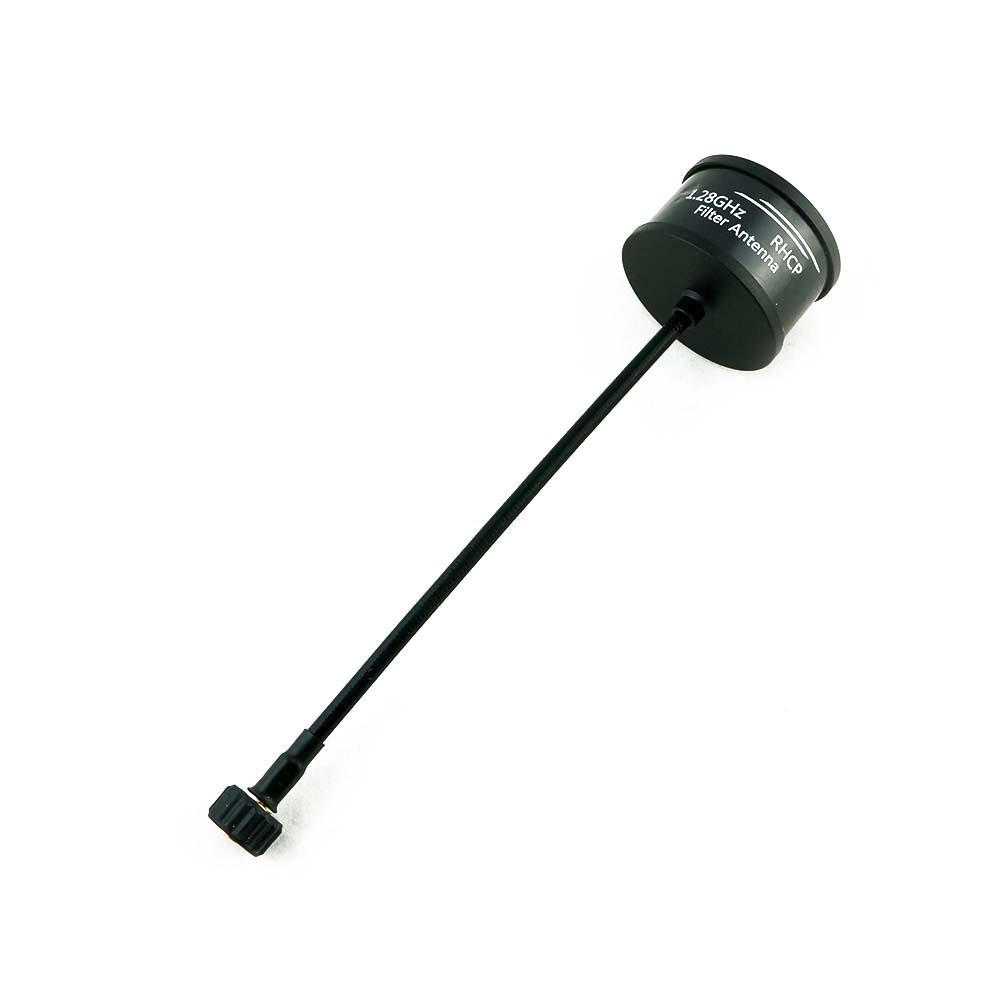

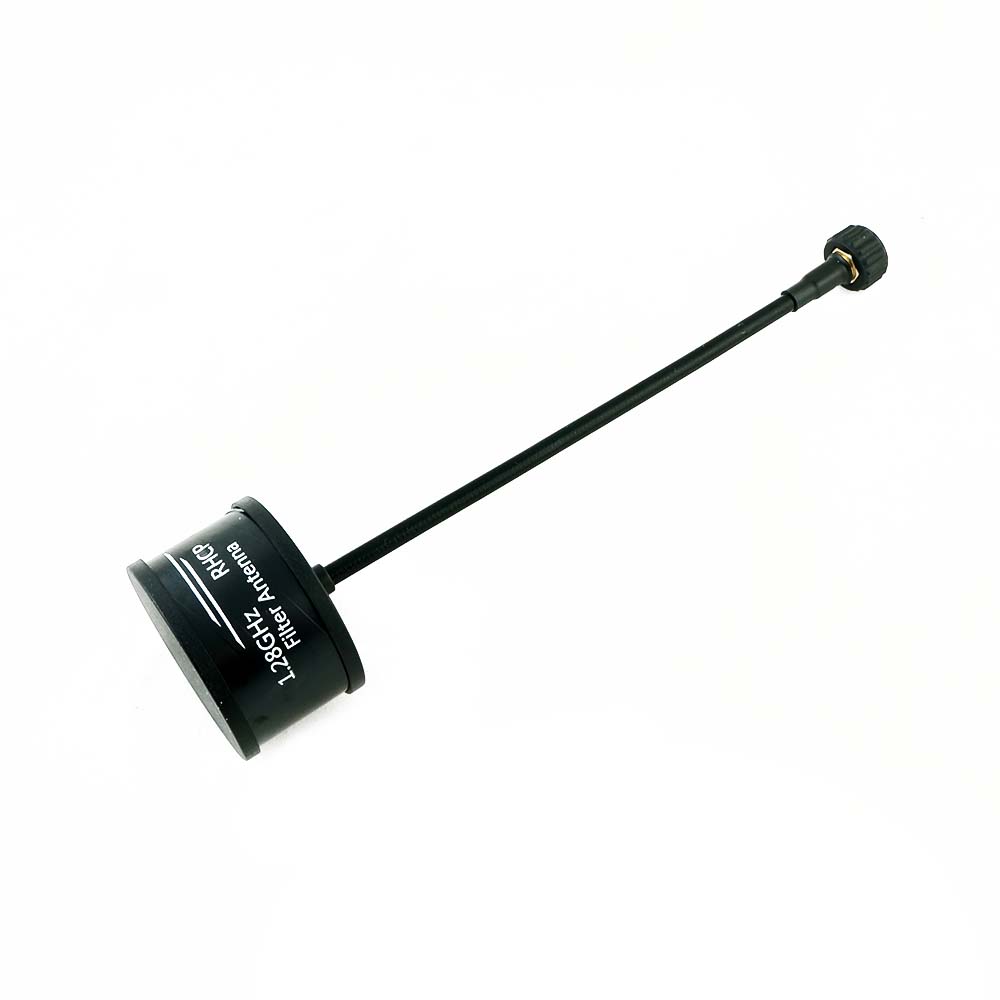

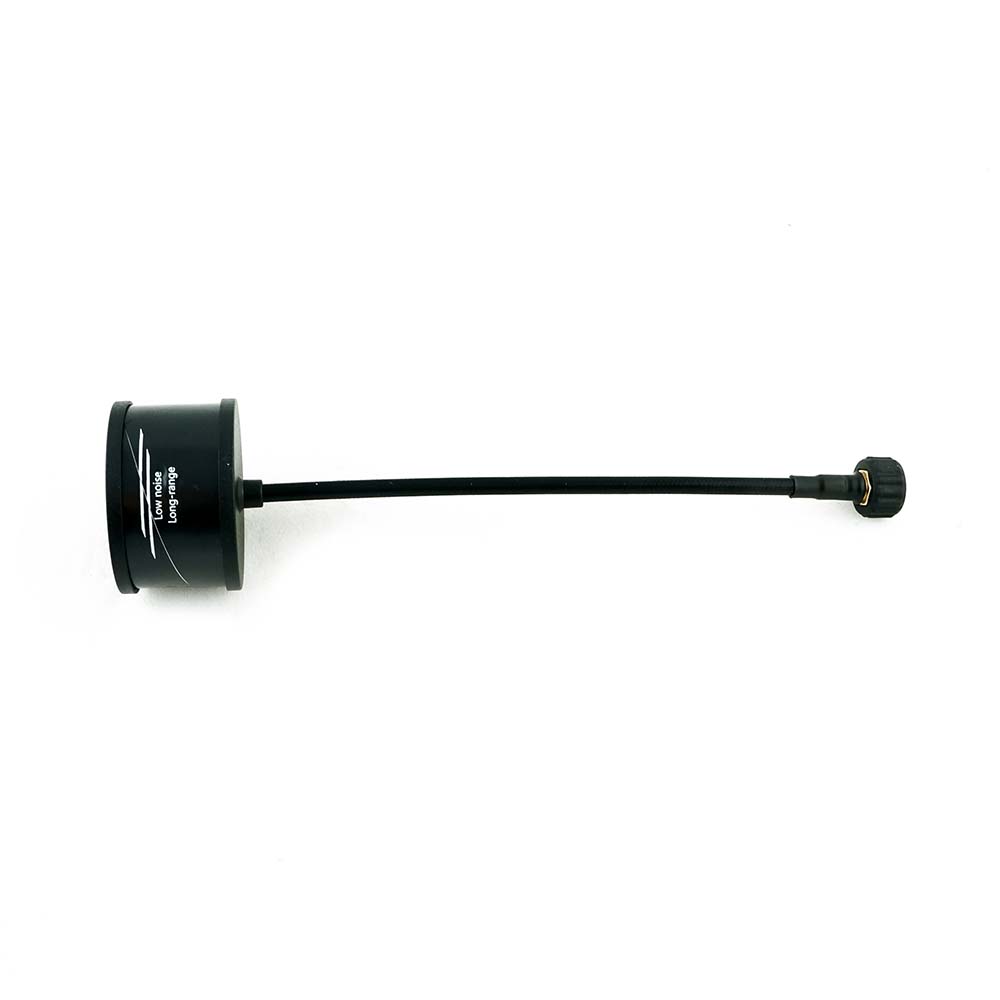

Maple Wireless 1.2G Omni Antenna (RHCP)

Stop letting your 868MHz or 915MHz crossfire links turn your long-range FPV video feed into static mush. The Maple Wireless 1.2G Omni is a high-performance 1.2-1.3GHz RHCP video transmitter antenna engineered with an integrated notch filter to suppress sub-GHz RC radio interference. With over 10 years of experience in the manufacturing and delivery of commercial FPV systems, Unmanned Tech stocks this dedicated FPV antenna so you can push past tree lines without losing your link or your sanity.

Key Highlights

• Interference Suppression: Built-in notch filter blocks 868MHz and 915MHz RC control link bleed from blinding your 1.2GHz video receiver.
• Clean RHCP Radiation: True right-hand circular polarization (RHCP) rejects multipathing and signal bounce in complex environments.
• Extended 145mm Lead: Generous coaxial cable allows clear clearance above battery packs, carbon fiber plates, and GPS masts.

Why You Want It

Running high-power long-range control links right next to sensitive 1.2GHz-1.3GHz video gear is usually a recipe for instant video breakup. This omnidirectional antenna solves that specific headache by filtering out aggressive sub-GHz RC harmonics before they trash your analog video feed. At Unmanned Tech, we know that clean RF separation is the difference between a triumphant long-range return and a sad hike across a muddy field.

Specifications

• Frequency Range: 1240–1290MHz (1.2–1.3GHz band)
• Polarization: RHCP (Right-Hand Circular Polarization)
• Antenna Type: Omnidirectional
• Gain: 1.5dBi
• Vertical Beamwidth: 80°
• Total Length: 17cm (14cm / 145mm cable)
• Weight: 17g
• Connector: Standard SMA

FAQ

Does this antenna block interference from 868MHz and 915MHz long-range radios?

Yes. The Maple Wireless 1.2G Omni features an integrated filter specifically tuned to suppress out-of-band noise from typical 868MHz and 915MHz RC transmitters, preventing control link harmonic desensitization on 1.2GHz-1.3GHz video systems.

What connector does this antenna use, and does it require an adapter?

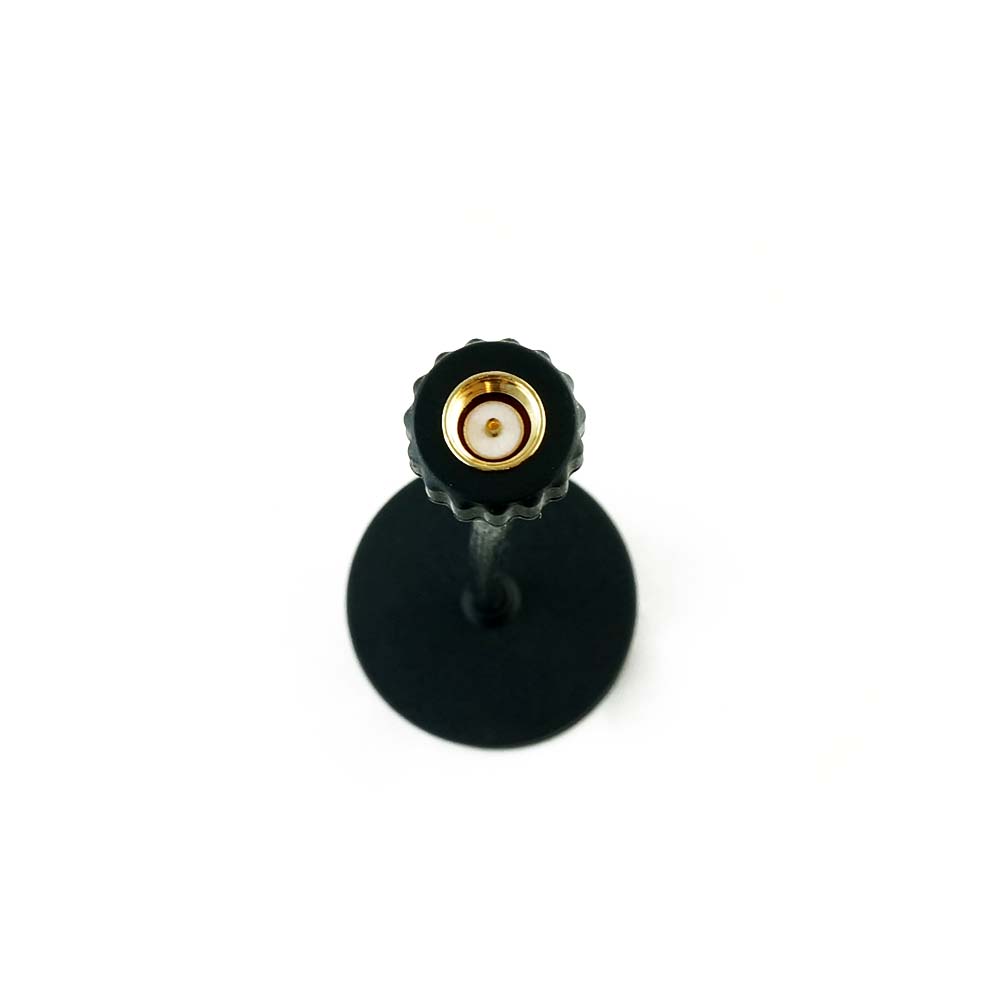

It comes terminated with a standard male SMA connector designed for direct attachment to compatible 1.2GHz video transmitters or receivers without extra lossy pigtails.

What’s in the Box*

• 1× Maple Wireless 1.2G / 1.3G RHCP Omni Antenna (SMA)

Disclaimer

This antenna suppresses RF bleed; it does not fix inverted solder joints, dead batteries, or poor line-of-sight flying. Unmanned Tech accepts no liability for long-range aircraft lost to reckless throttle inputs.

Still Here?

You have read an entire spec sheet for a 17g piece of tuned wire. Add it to your basket, clean up your video feed, and help us keep the lights on in Milton Keynes.
