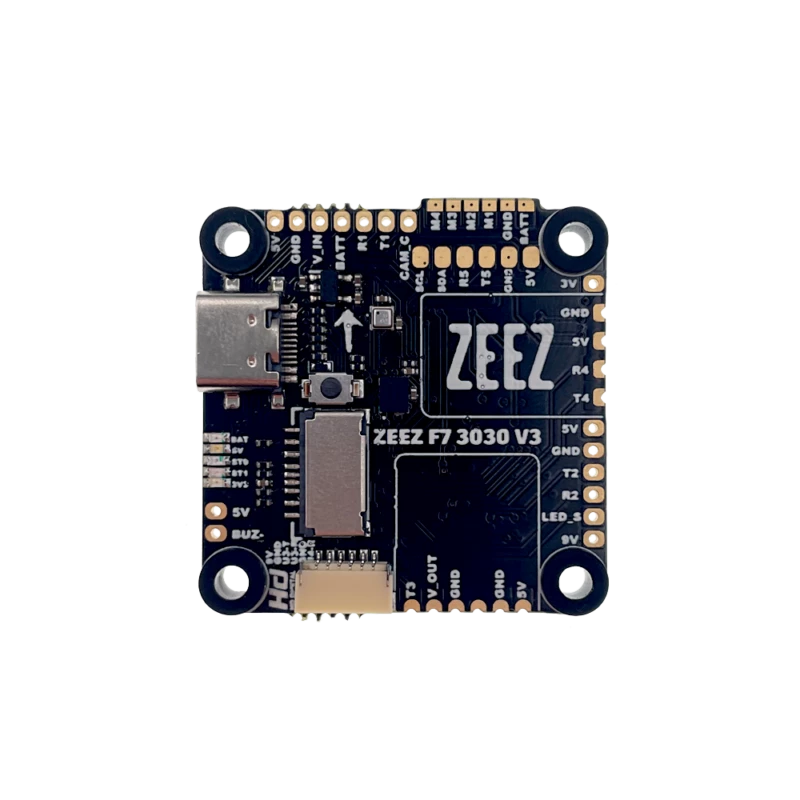

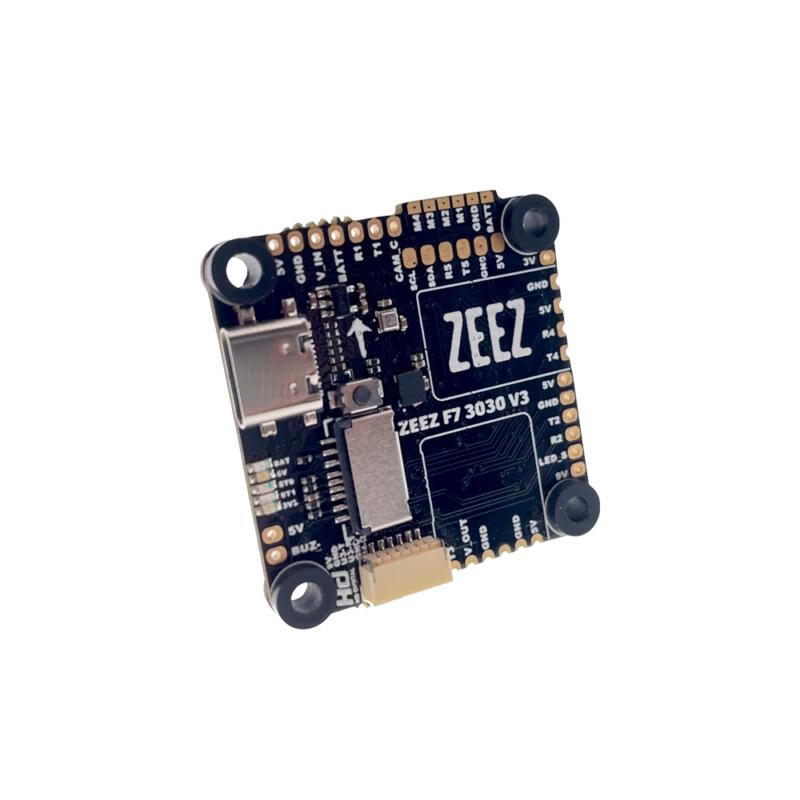

Zeez F7 3030 Betaflight Flight Controller V2

The ZEEZ F7 V2 3030 is an 8 Motor Output, DJI HD System Ready Flight Controller with an on-board 9V@3A regulator to power the DJI Air Unit, with a simple plug and play configuration and 5V@3A regulator to power all the peripheral.

It uses a powerful F7 processor along with top-of-the-line hardware: MPU6000 Gyro, BMP280 Barometer. The ZEEZ F7 V2 3030 comes in a standard 30×30 form factor. It comes with spaces and pads for TBS Crossfire and TBS Unify Nano32 for a very clean and low-profile assembly. It has easy plug and play RGB led with 4 connectors on the corners plus 4 onboard RGB LED. There are 5 UARTS available as well as, I2C port, 16MB Flash memory for Blackbox data record, an OSD chip for analog video and LC Filter to power the Analog camera and VTX.

We took all the feedback given to us from the V1 and have improved the overall stability and power supply cleaning. We made the pads easier to solder and improved the strength of all the solder pads, by adding additional copper around the pads.

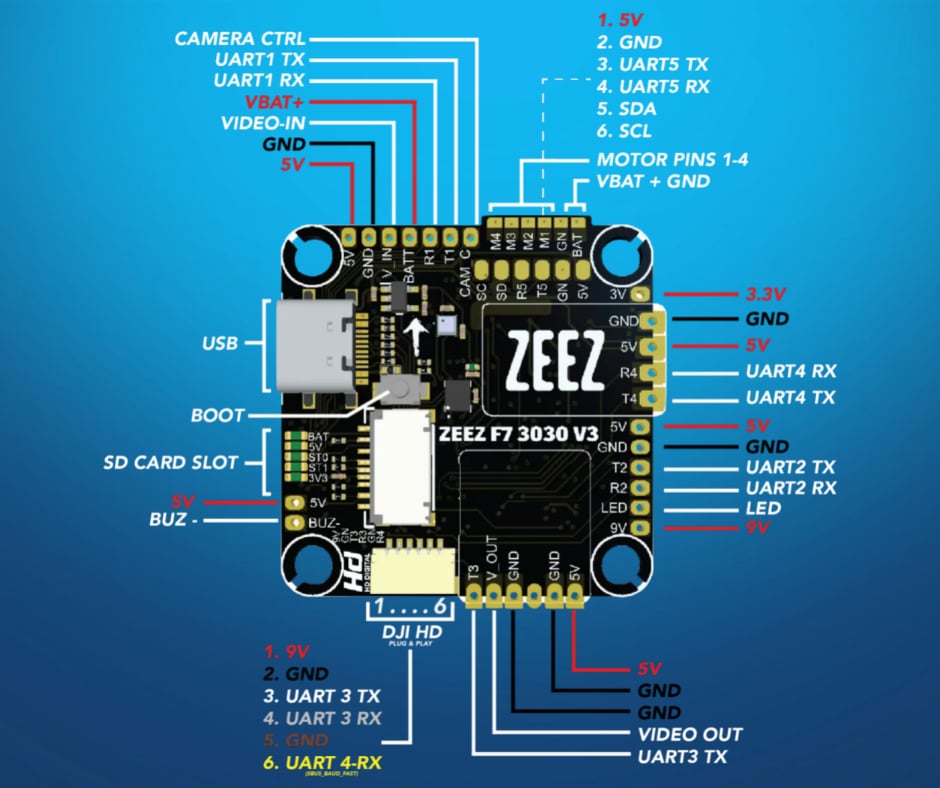

Zeez F7 V2 3030 FC Manual

Features

• Mounting holes: 30.5×30.5mm
• LiPo Power input: 3S-6S

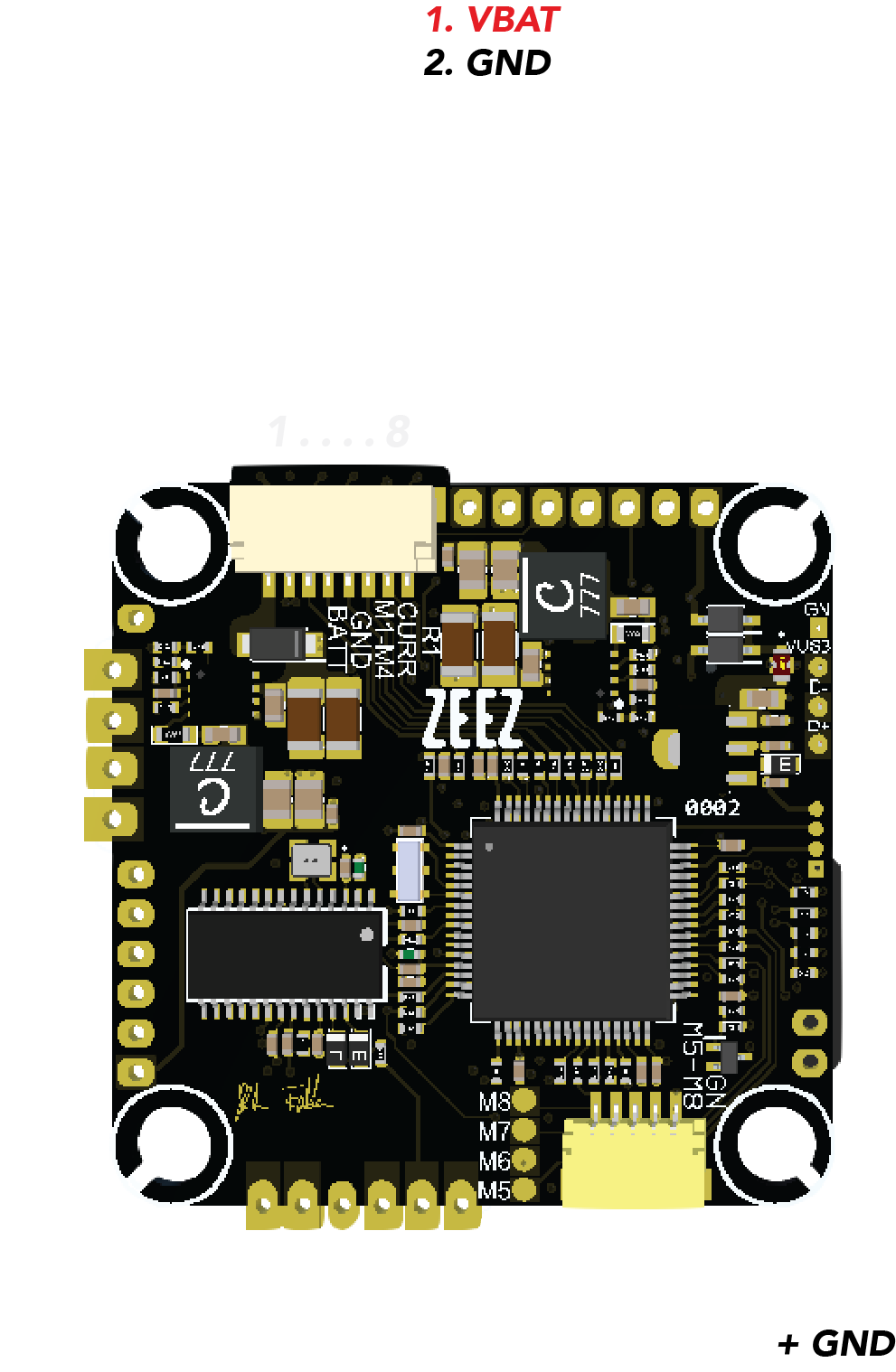

• 8 Motor output
• BEC 5V-3A / 9V-3A

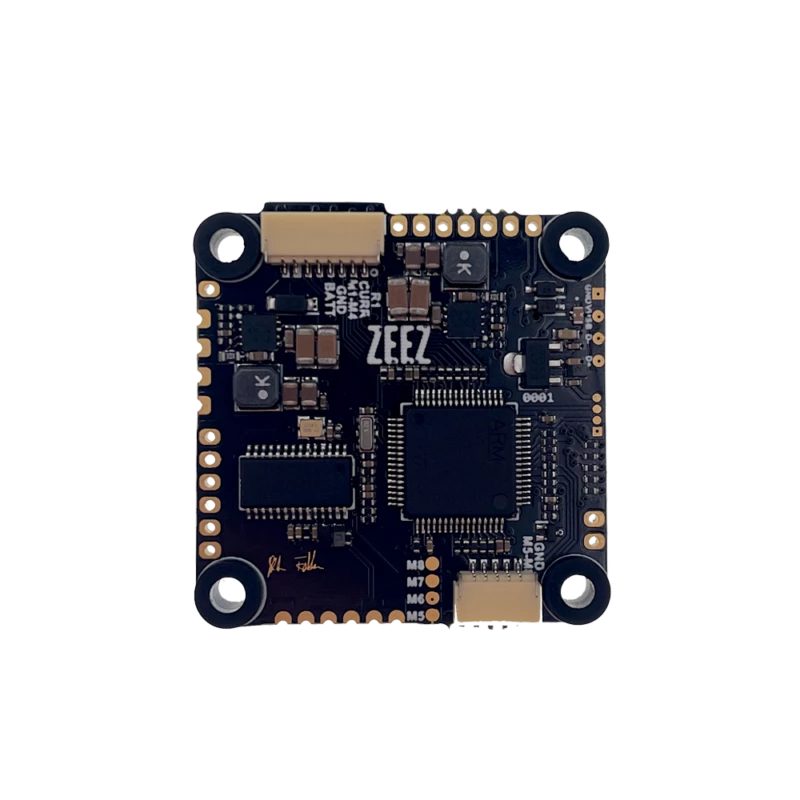

• STM32F722 MCU (216MHz max frequency)
• MPU6000 Gyro/ACC for smooth performance
• BMP280 Barometer
• OSD chip Onboard
• 5 available UARTs / I2C bus
• 16MB Onboard flash
• LC Filter for 5V VTX and CAM
• HD Plug for DJI Air Unit or Caddx Vista
• USB Type C connector
• Onboard RGB LED distribution for clean wiring to the LED on the arm of the quad.
• Onboard 4 WS2812B RBG LED
• Direct solder connection and board space for TBS Nano RX and TBS Unify Pro32 Nano providing the ultimate in clean stack installation.
• Logic Side and USB current protection

Included

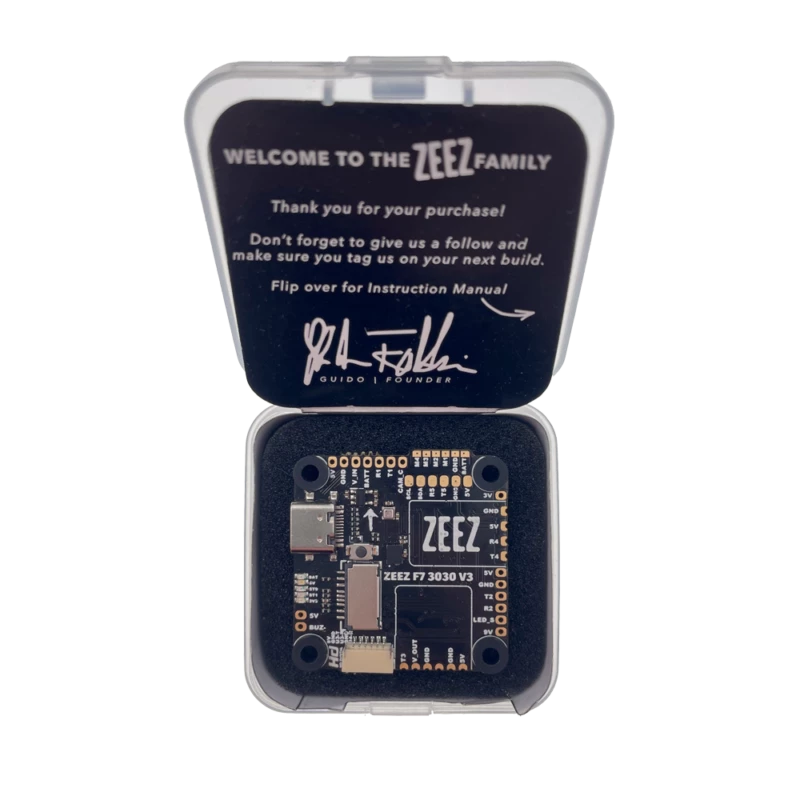

• 1x Zeez F7 V2 3030 Flight Controller
• 1x Connector Cable Pack
