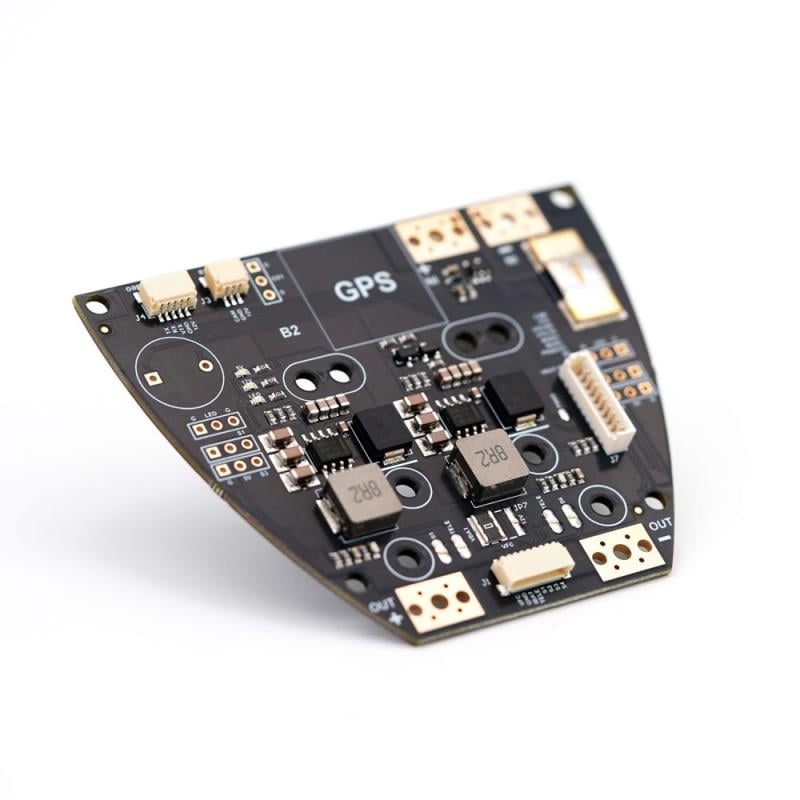

TBS Lucid Wing PDB – Wing Builds, Simplified

Building a wing should be about aerodynamics and performance, not wrestling with a jungle of wires. Enter the TBS Lucid Wing PDB: the ultimate power and servo distribution board for your wing setups. Designed for wings with up to 14S power, this PDB takes care of your wiring chaos while delivering clean voltage to your flight controller, servos, and peripherals. Whether you’re flying analog or digital, this board ensures your build is tidy, reliable, and optimized for performance.

Perfectly compatible with TBS Lucid 20×20 FC Freestyle or the TBS Lucid H7, this PDB integrates seamlessly with modern components like GPS, BLHeli ESCs, and digital VTX systems.

If you’ve ever cursed at wire spaghetti or cringed at a messy wing, the TBS Lucid Wing PDB is your answer.

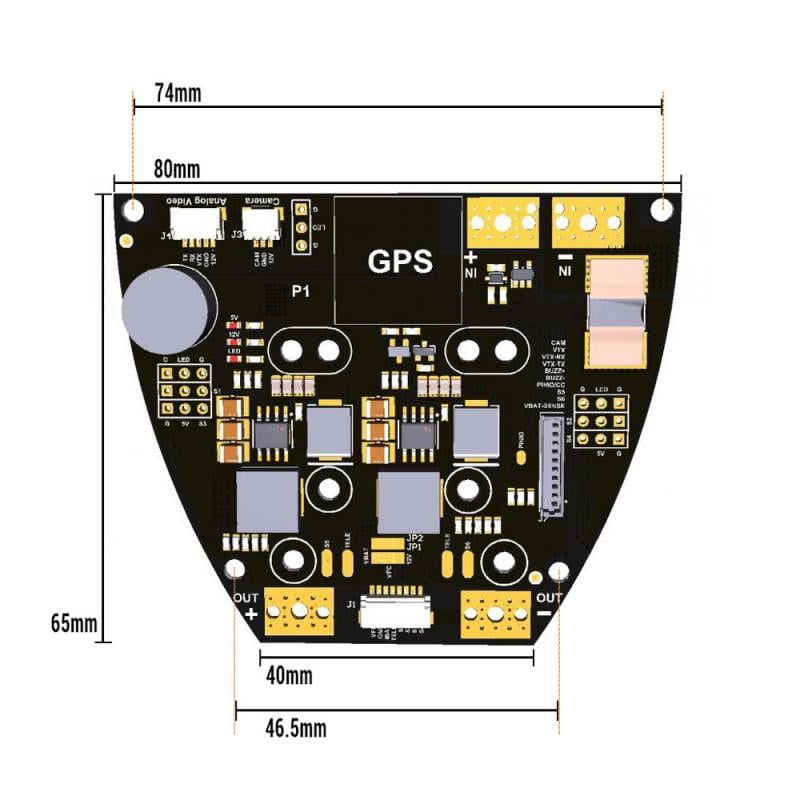

Key Features and Specifications

Power Capabilities

• Max Input Voltage: Up to 60V (14S LiPo)
• Voltage Output:
  • 12V @ 4A (LEDs, FC, peripherals)
  • 6V @ 4A (Servos)
• Current Sensor: Handles up to 200A bursts, 90A continuous

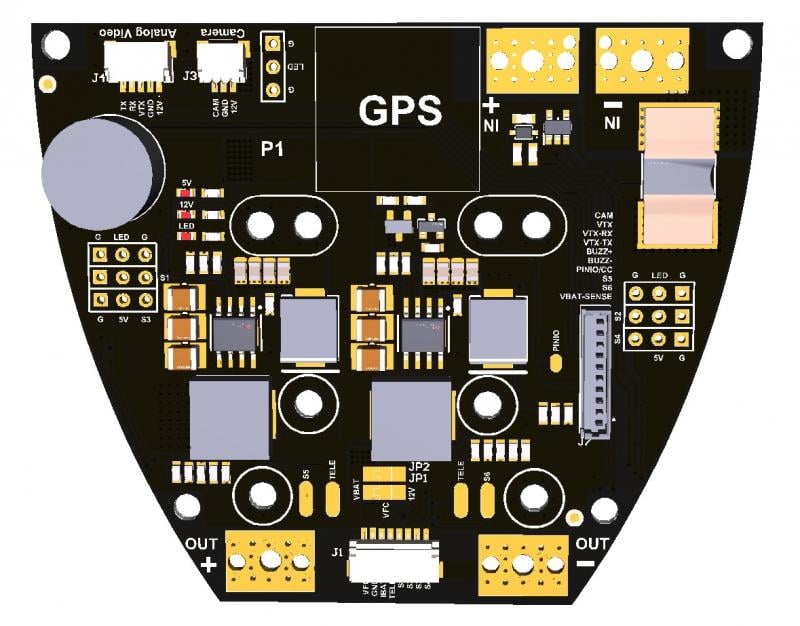

Compatibility

• Supports 20×20 or 30.5×30.5 iNav and ArduPilot FCs
• Works with up to 4 servos and 1-2 motors
• Compatible peripherals:
  • BLHeli/AM32 ESCs with telemetry
  • TBS M10 GPS
  • Analog cameras (3-pin)
  • Analog VTX (5-pin)
  • COB LEDs (12V)
  • Digital VTX and other peripherals via the FC

Extras

• Voltage input to FC can be switched between VBat and 12V
• Voltage divider included for ADC pin VBAT sensing

What’s in the Box?

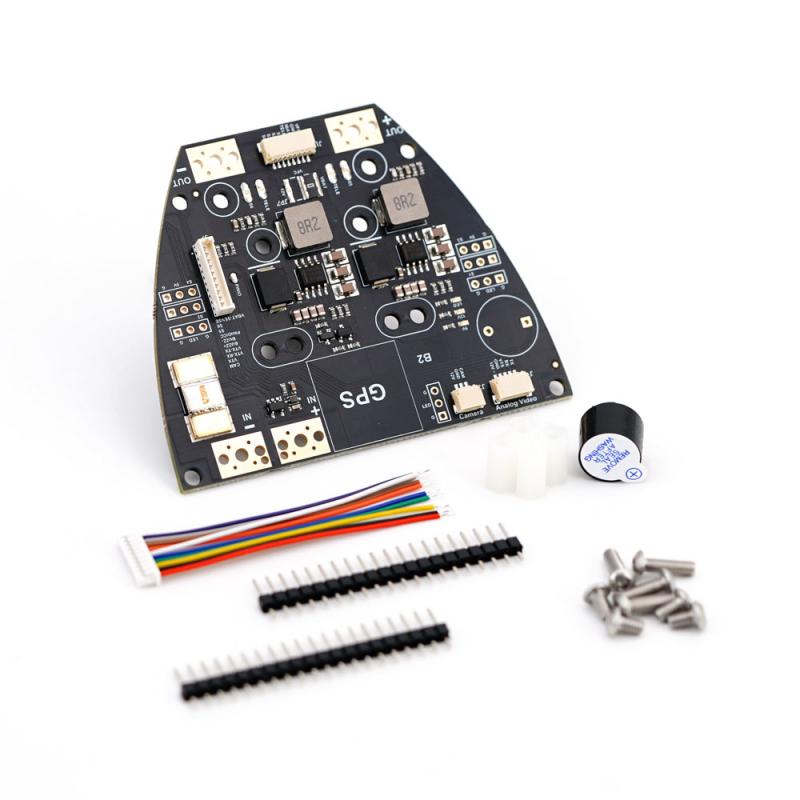

• 1 x TBS Wing FC Circuit Board
• Cables for FC peripheral connections
• Pin headers for servo plugs (2×20)
• FC mounting hardware:
  • 4 x M3x5mm screws
  • 4 x M3x10mm screws
  • 4 x M3 Nylon standoffs (10mm)

Disclaimer: Accessories and included components may vary depending on stock availability.
