TBS Lucid Flight Controller Pro (MPU6000)

TBS Lucid Flight Stack: Your Drone’s New Best Friend

Welcome to the cutting edge of FPV racing and freestyle flying. The TBS Lucid Flight Stack is not just another piece of hardware; it’s a symphony of engineering brilliance from Team BlackSheep, crafted for both seasoned aces and bright-eyed rookies alike.

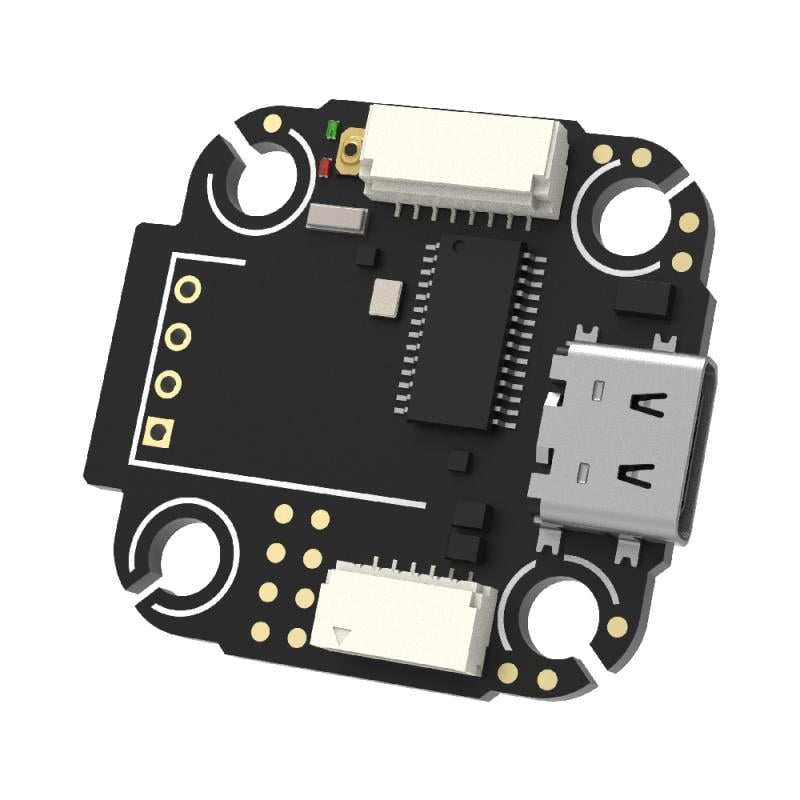

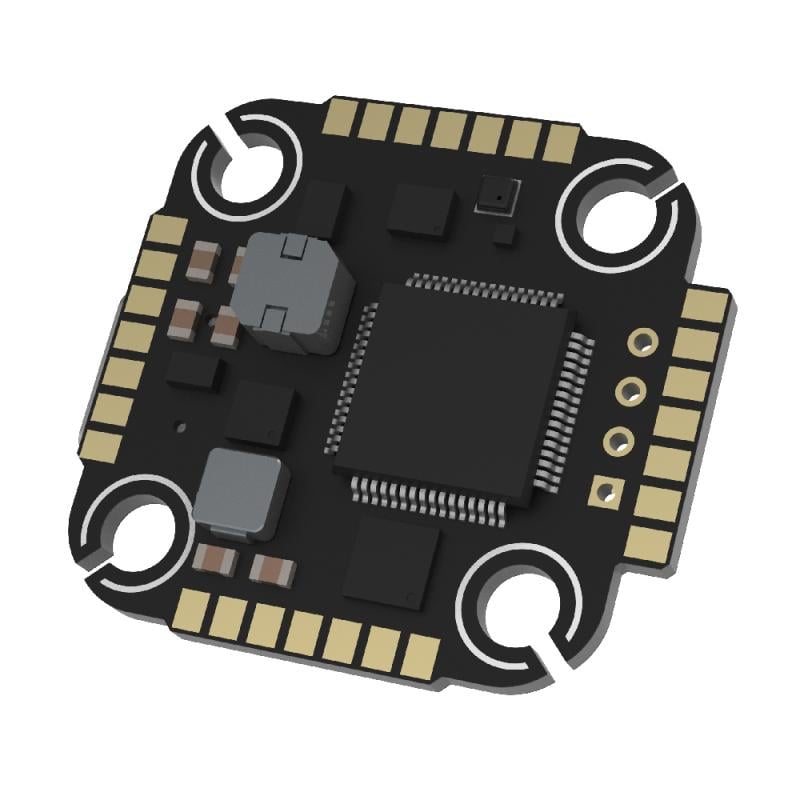

The Controller: Lucid Brilliance in 20×20

Meet the TBS Lucid Flight Controller, a 20×20 marvel that seamlessly fits into the Lucid flight stack while happily mingling with all 20×20 ESCs. It’s designed to play nice with the TBS Crossfire & TBS Tracer ecosystems, but feel free to pair it with any radio receiver that catches your fancy—we’re all about inclusivity here.

Plug, Play, and Take Off

Say goodbye to soldering nightmares. The TBS Lucid features plug & play connectors for the DJI O3 digital system and 4in1 ESCs, adhering to the Betaflight connector standard. The auxiliary device solder pads are laid out with the precision and logic you’d expect from a Swiss watch, making installation in frames like the TBS Source One a breeze.

Pro and Freestyle: A Choice of Gyros

For the pros, we have the MPU6000 (Pro) variant—because you know what you need. For those who crave cutting-edge gyro solutions at a more accessible price, the ICM-42688P (Freestyle) version offers a state-of-the-art option.

Key Specifications

• MCU: AT32F435RMT7, 288MHz
• Gyro: MPU-6000
• Motors: 4 motors, with telemetry and current sensor
• BEC: 9V, 2.5A. 5V 2A
• OSD: AT7456E
• Blackbox: 8M
• UARTs: 6 (UART1/UART3/UART4/UART5/UART7/UART8)
• Input: 3S-6S
• Size: 31mm x 29mm
• Mounting: 20mm x 20mm
• Weight: 4.51g

Default/Recommended Port Assignment:

• UART2: ESC Telemetry
• UART3: DJI O3 Air Unit
• UART4: DJI O3 SBus
• UART5: CRSF Rx
• UART7: GPS
• UART8: Smart Audio

What’s in the Box?

• 1 x TBS Lucid 20×20 FC
• Accessories

In short, the TBS Lucid Flight Stack isn’t just another flight controller; it’s a leap into the future of drone performance. Whether you’re threading needles on a racecourse or flipping through the skies freestyle, the TBS Lucid is ready to elevate your experience without the cheesy clichés. Ready for liftoff?
