TBS Lucid Flight Controller Freestyle (ICM-42688P)

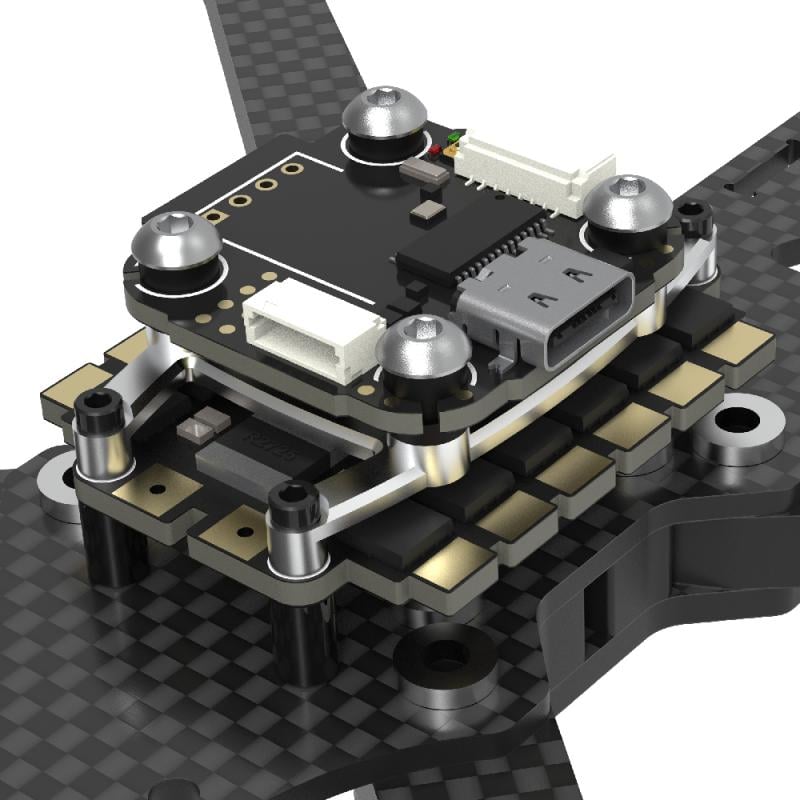

TBS Lucid Flight Stack: The Latest in FPV Wizardry

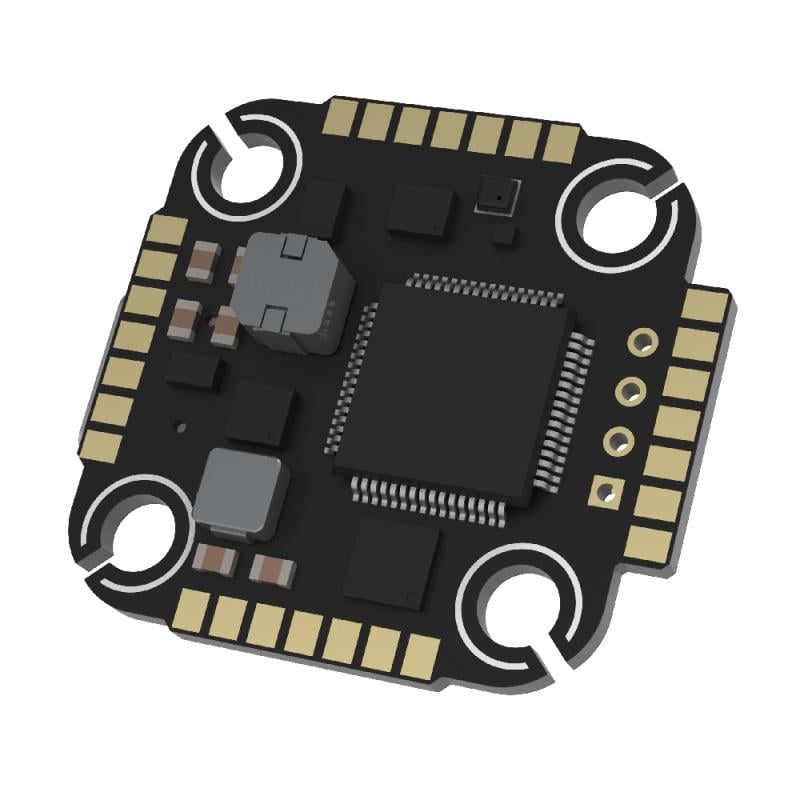

Built for racing and freestyle, the TBS Lucid Flight Stack caters to both seasoned pilots and enthusiastic newcomers. Its 20×20 flight controller is compatible with all 20×20 ESCs and designed to work seamlessly with the TBS Crossfire & TBS Tracer ecosystems, though it’ll play nice with any radio receiver.

Plug & Play Simplicity

Featuring plug & play connectors for the DJI O3 digital system and 4in1 ESCs, the TBS Lucid adheres to the Betaflight connector standard. Its solder pads for auxiliary devices are easy to use and logically arranged, making installation in frames like the TBS Source One straightforward.

Gyro Options for Pros and Enthusiasts

Choose between the MPU6000 (Pro) variant for professional pilots or the ICM-42688P (Freestyle) version for a state-of-the-art gyro solution at a better price.

Key Specifications

• MCU: AT32F435RMT7, 288MHz
• Gyro: ICM-42688P
• Motors: 4 motors, with telemetry and current sensor
• BEC: 9V, 2.5A; 5V, 2A
• OSD: AT7456E
• Blackbox: 8M
• UARTs: 6 (UART1, UART3, UART4, UART5, UART7, UART8)
• Input: 3S-6S
• Size: 31mm x 29mm
• Mounting: 20mm x 20mm
• Weight: 4.51g

Default/Recommended Port Assignment

• UART2: ESC Telemetry
• UART3: DJI O3 Air Unit
• UART4: DJI O3 SBus
• UART5: CRSF Rx
• UART7: GPS
• UART8: Smart Audio

In the Box

• 1 x TBS Lucid 20×20 FC
• Accessories
