TBS Lucid 3S-12S 90A Single ESC with AM32

NOTE.

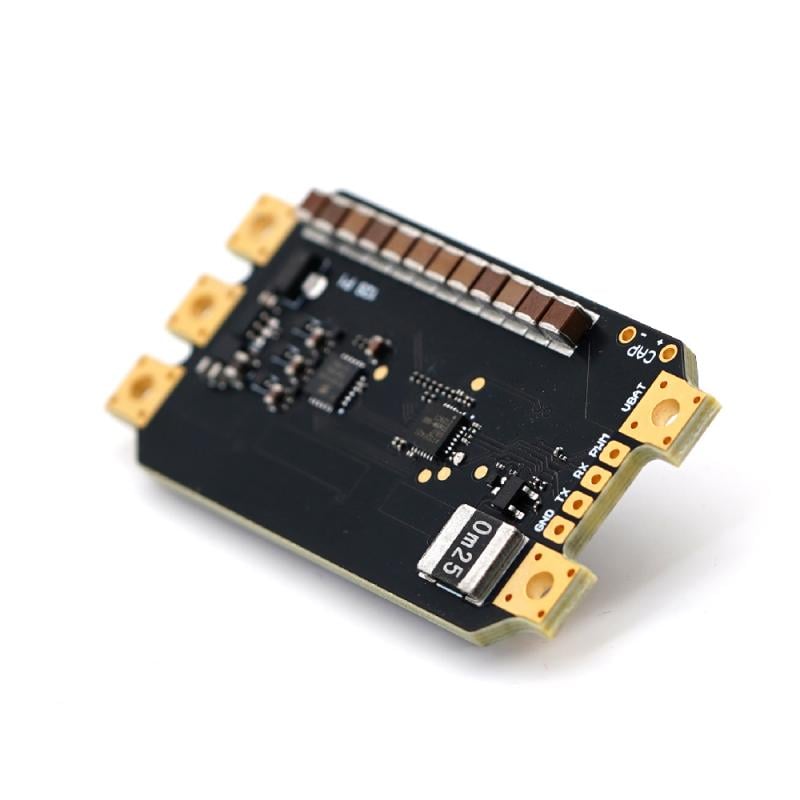

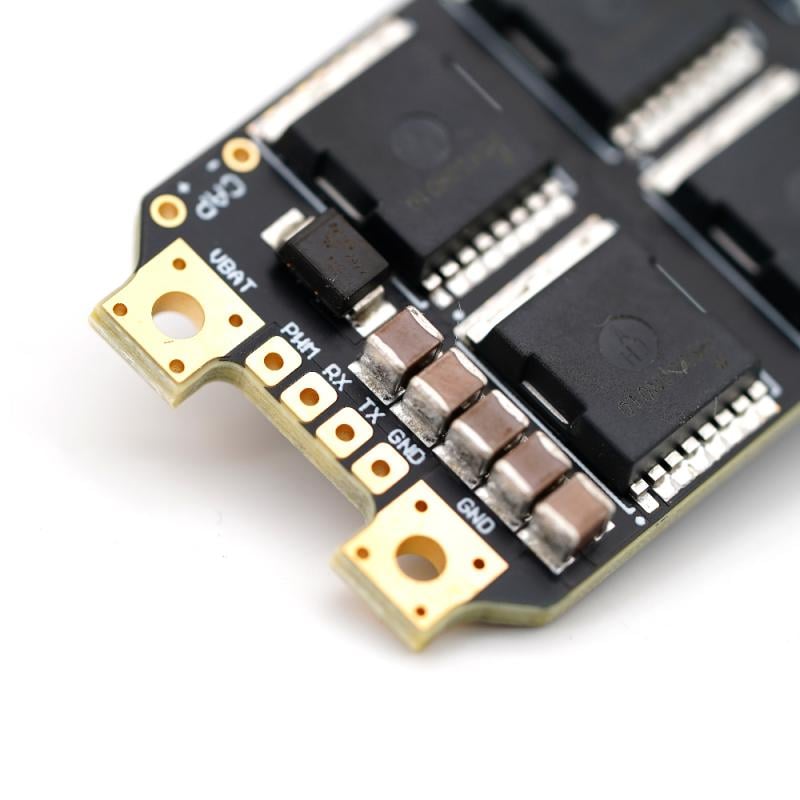

The RX and TX pads are for Crossfire signal!

Please also consult the TBS Lucid manual for more details and explanation.

TBS Lucid 12S ESC: High Voltage Power, Without the Sticker Shock

The TBS Lucid 12S ESC is the no-nonsense, high-voltage powerhouse you need for your cinelifters and wings. Whether you’re hauling cameras for cinematic shots or pushing the limits of your FPV setup, this ESC delivers unmatched performance and reliability at a price that won’t make your wallet weep.

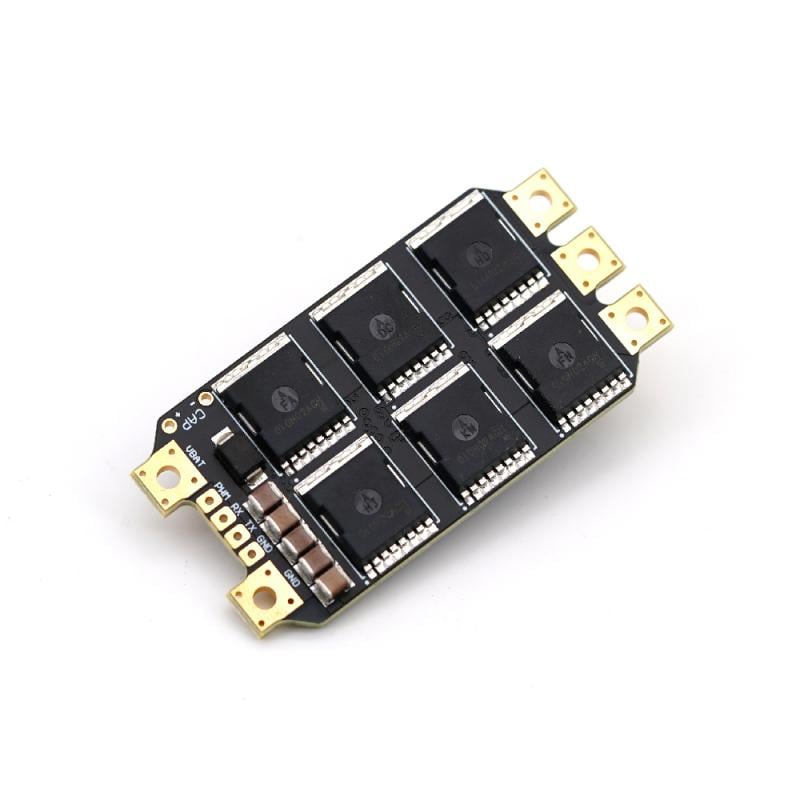

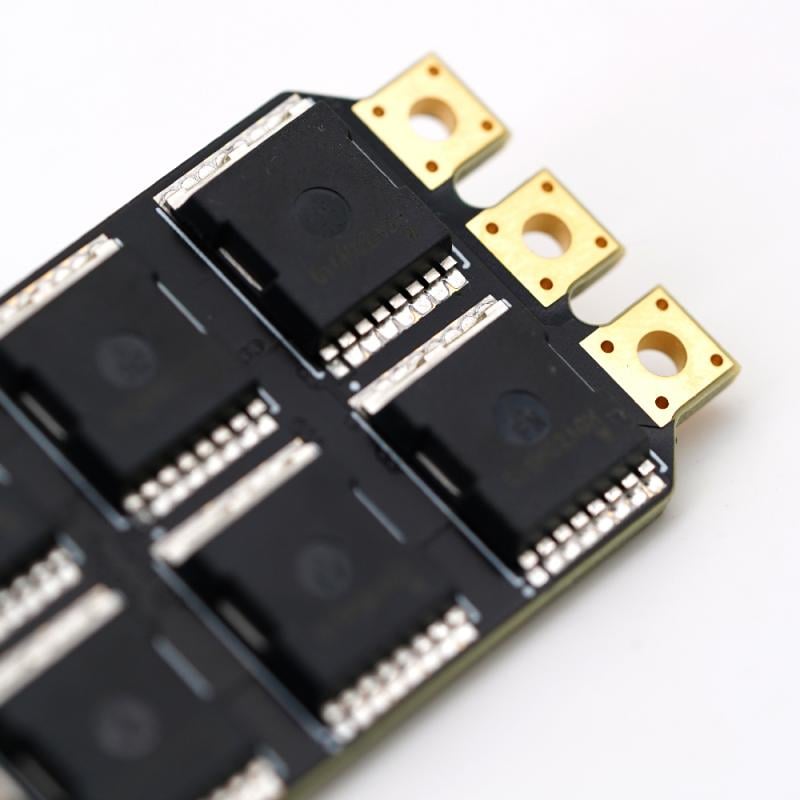

Designed for the toughest flying conditions, the Lucid 12S features an 8-layer, high-current density PCB engineered for superior heat resistance. Say goodbye to thermal throttling and voltage spikes thanks to built-in TVS protection and optimized thermal dissipation. This ESC packs robust power-to-weight performance without the bulk of heavy heatsinks.

Powered by the highly customizable AM32 firmware, the Lucid 12S unlocks next-level efficiency and control for demanding aerial applications. Whether you’re spinning 15-inch props or using bi-directional DShot protocols, this ESC is ready to deliver smooth, responsive performance.

TBS Lucid Manual

TBS_LUCID_manual

Key Features:

• Durability Meets Performance: 70A sustained, 90A for 40 seconds, and a peak of 120A.
• High Compatibility: Supports up to 12S LiPo with bi-directional DShot 300/600 and KISS ESC telemetry.
• Compact Design: Weighs just 19g (excluding cables and capacitors).
• Thermal Protection: Built for extreme heat resistance and voltage spike mitigation.
• Firmware Excellence: Runs on AlkaMotors32 (AM32), optimized for efficiency and reliability.

Specifications:

• ESC Software: AlkaMotors32 (AM32)
• ESC Target: AM32_TBS_12S_F421
• Input Voltage: 3-12S LiPo
• Rated Current: 70A (60s), 90A (40s), 120A peak (30s)
• Weight: 19g (without cables/capacitors)
• Dimensions: 57.75mm x 29mm

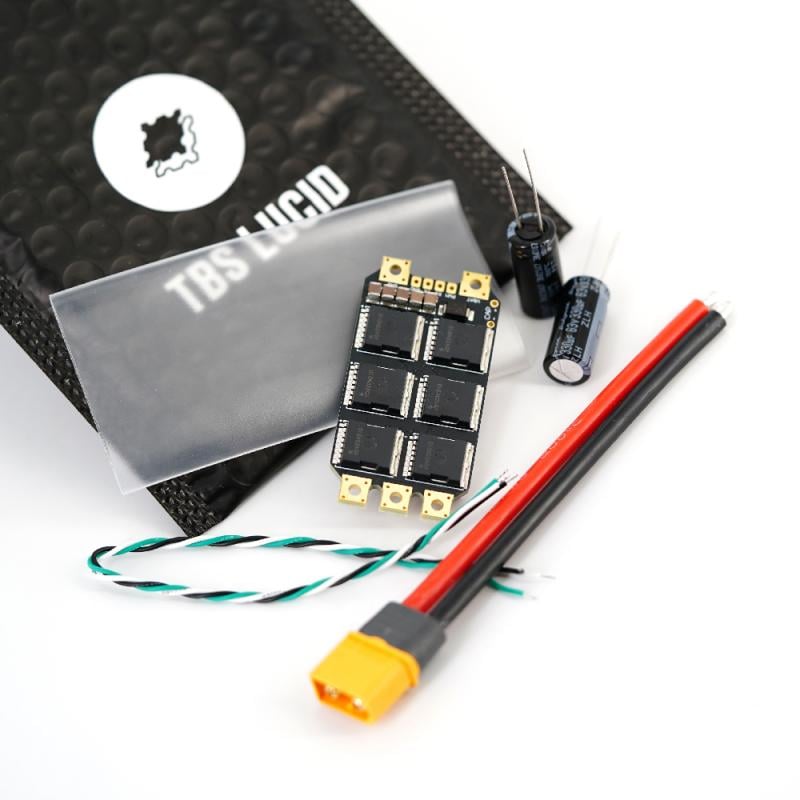

What’s in the Box?

• 1x TBS Lucid 12S ESC
• 1x XT60 12 AWG wire
• 1x 3-color PWM/Serial wire
• 1x Transparent shrink tube
• 2x 330uF 12S low-ESR capacitors

Note: Accessories may vary depending on supply. Always check contents before use.
