Features
- Built in Wi-Fi with 33% faster wireless firmware flashing
- Supports up to 8 motors
- 500mb Blackbox with easy wireless download of Blackbox data
- Onboard 4-level battery life indicator
- Solder free plugs for digital vTX, receiver, camera, analog VTX, GPS, and 4x LED strips
Specifications
Product Name | SpeedyBee F7 V3 Flight Controller |
MCU | STM32F722 |
IMU(Gyro) | BMI270 |
USB Port Type | Type-C |
Barometer | BMP280 |
OSD Chip | AT7456E chip |
BLE Bluetooth | Supported. Used for Flight Controller configuration |
Flash FC Firmware Wirelessly | Supported. Please enter MENU > FC Firmware Flasher |
Download/Analyze Blackbox | Supported.Please enter MENU > Blackbox Analyzer |
DJI Air Unit Connection Way | Two ways supported: 6-pin connector or direct soldering. |
Flash(for BlackBox) | 500MB |

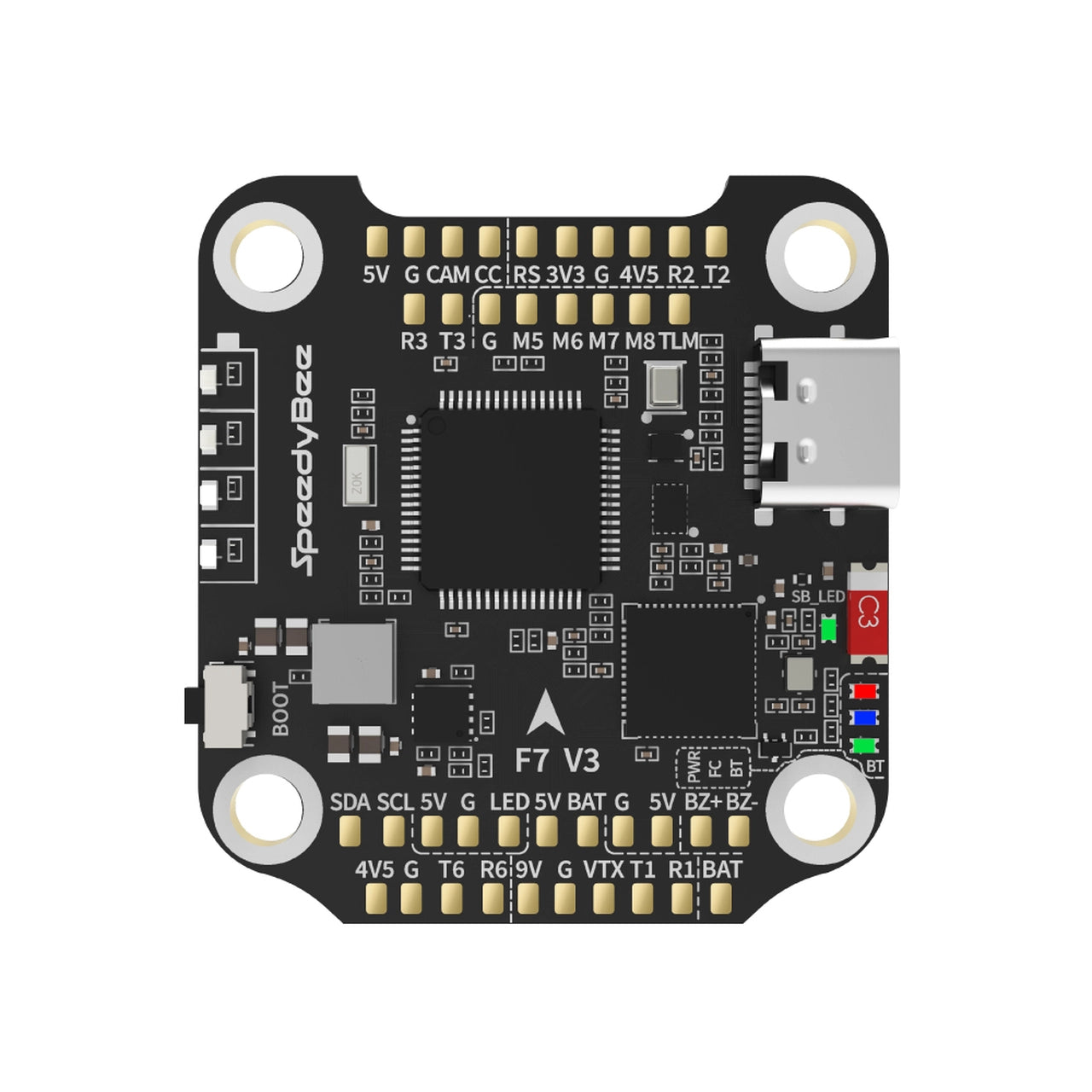

BetaFlight Camera Control Pad | Yes(CC pad on the front side) |
Power Input | 3S – 6S Lipo |
5V Output | 10 groups of 5V output, three +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 6 +5V output included in the connectors on bottom side. The total current load is 2A. |
9V Output | 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 4A. |
3.3V Output | Supported. Designed for 3.3V-input receivers. Up to 500mA current load. |
4.5V Output | Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load. |

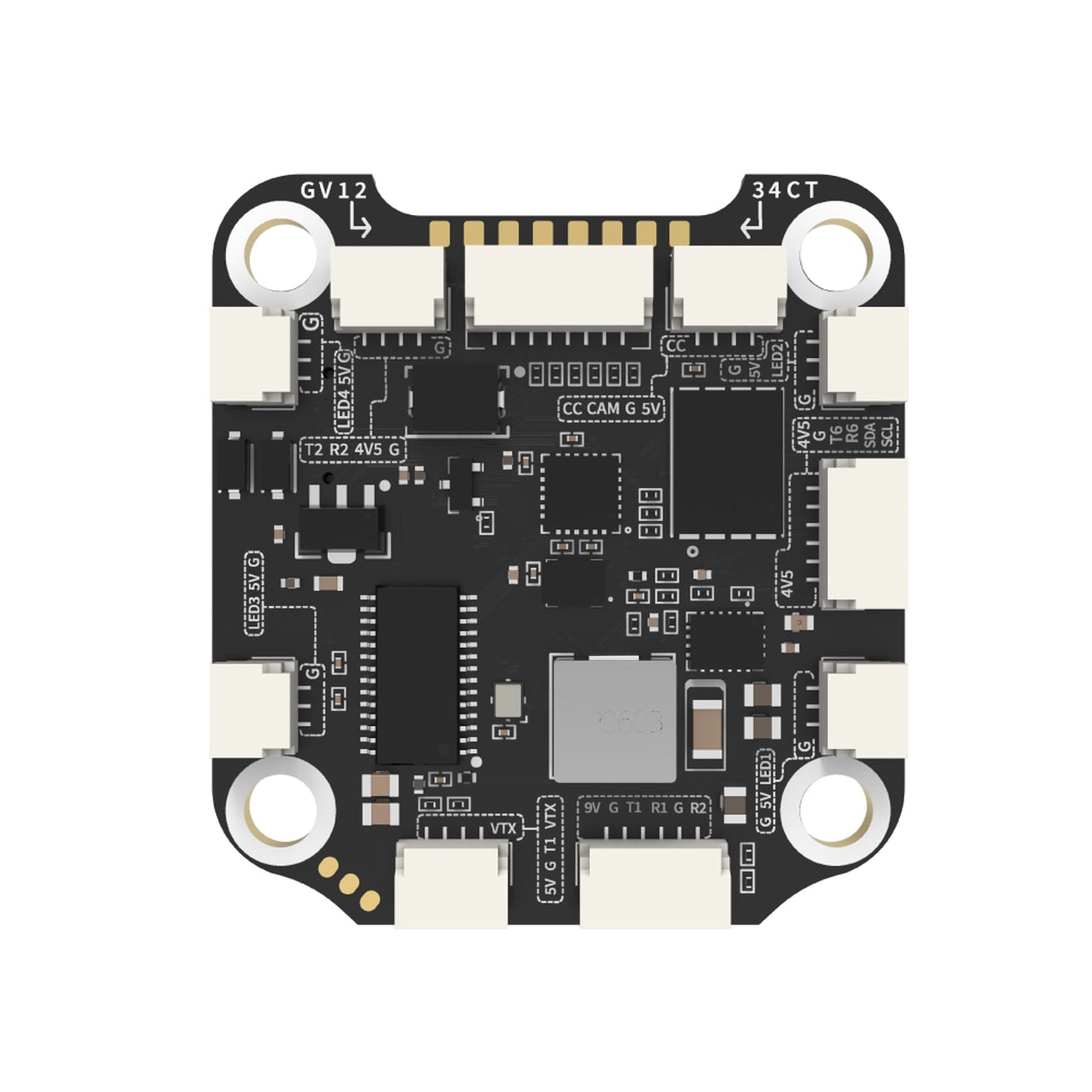

ESC Signal Pads | M1 – M4 on bottom side and M5-M8 on front side. |
UART | 5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6) |
ESC Telemetry UART | R4(UART4) |
I2C | Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc. |
LED Pad | Used for WS2812 LED controlled by Betaflight firmware. |
Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
BOOT Button | Supported. [A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked. [B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware. |
RSSI Input | Supported. Named as RS on the front side. |
SmartPort | Use any TX pad of UART for the SmartPort feature. |
Supported Flight Controller Firmware | BetaFlight(Default), EMUFlight, INAV |
Firmware Target Name | SPEEDYBEEF7V3 |
Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
Dimension | 41(L) x 38(W) x 8.1(H)mm |
Weight | 10.7g |
Includes
- 1x SpeedyBee F7 V3 30×30 Flight Controller
