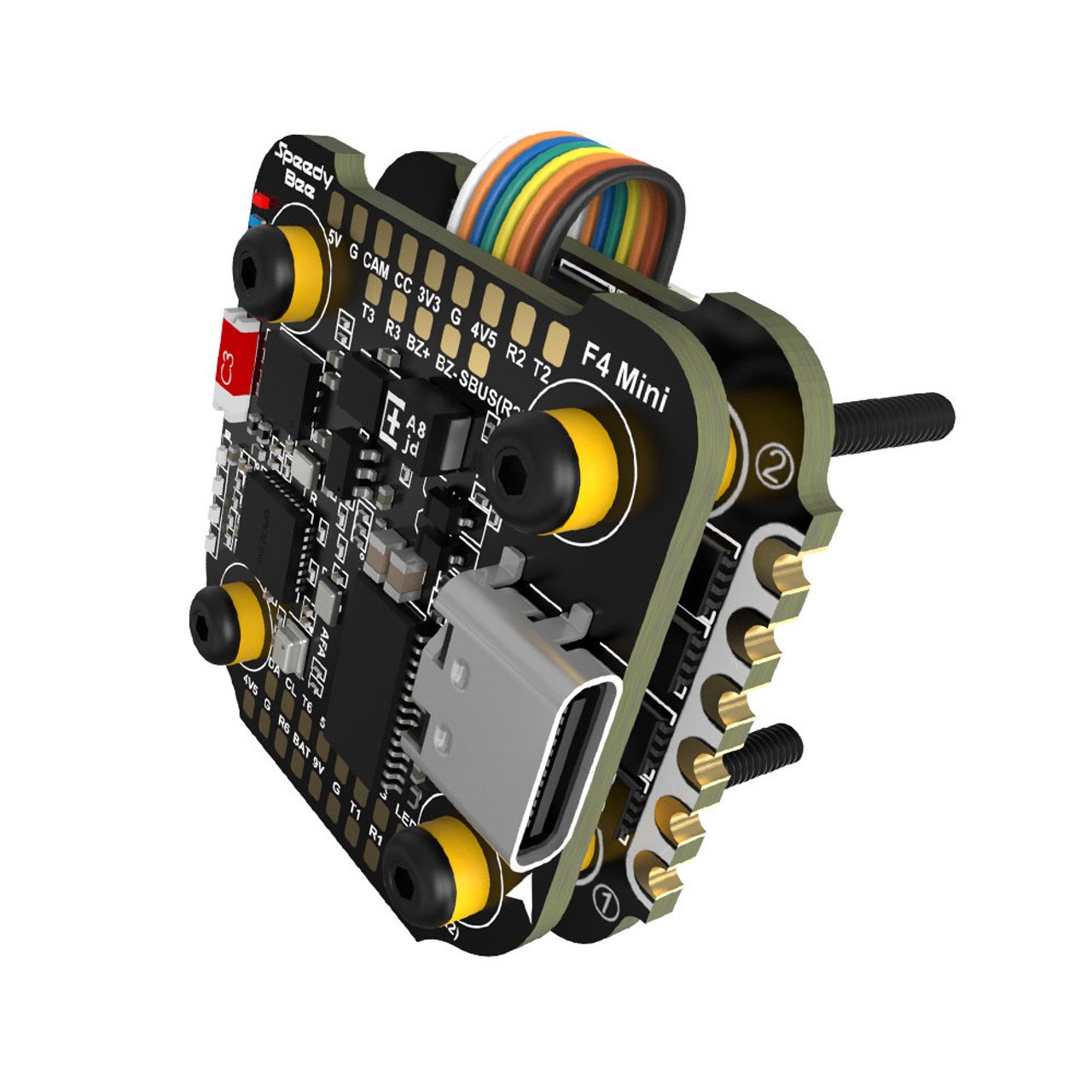

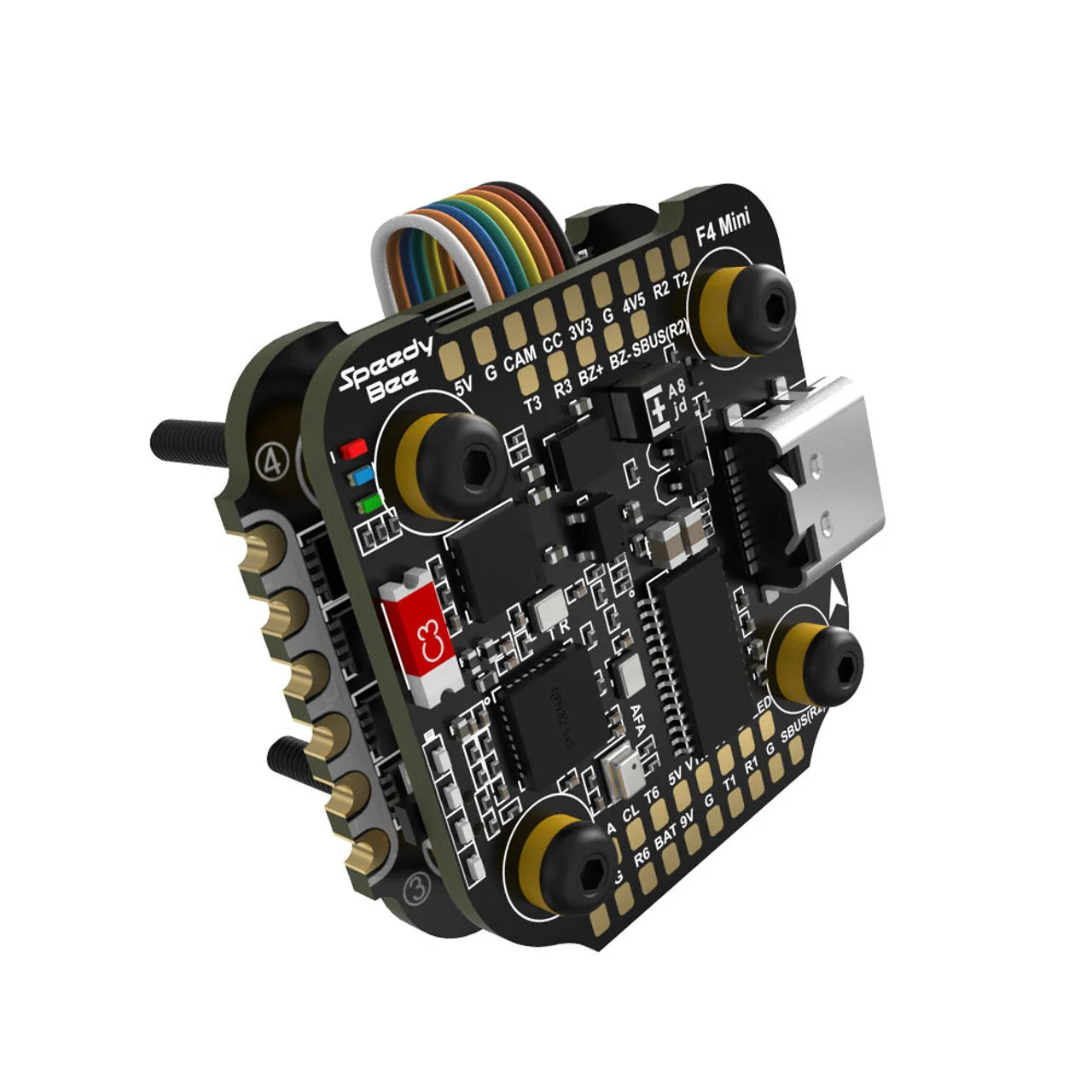

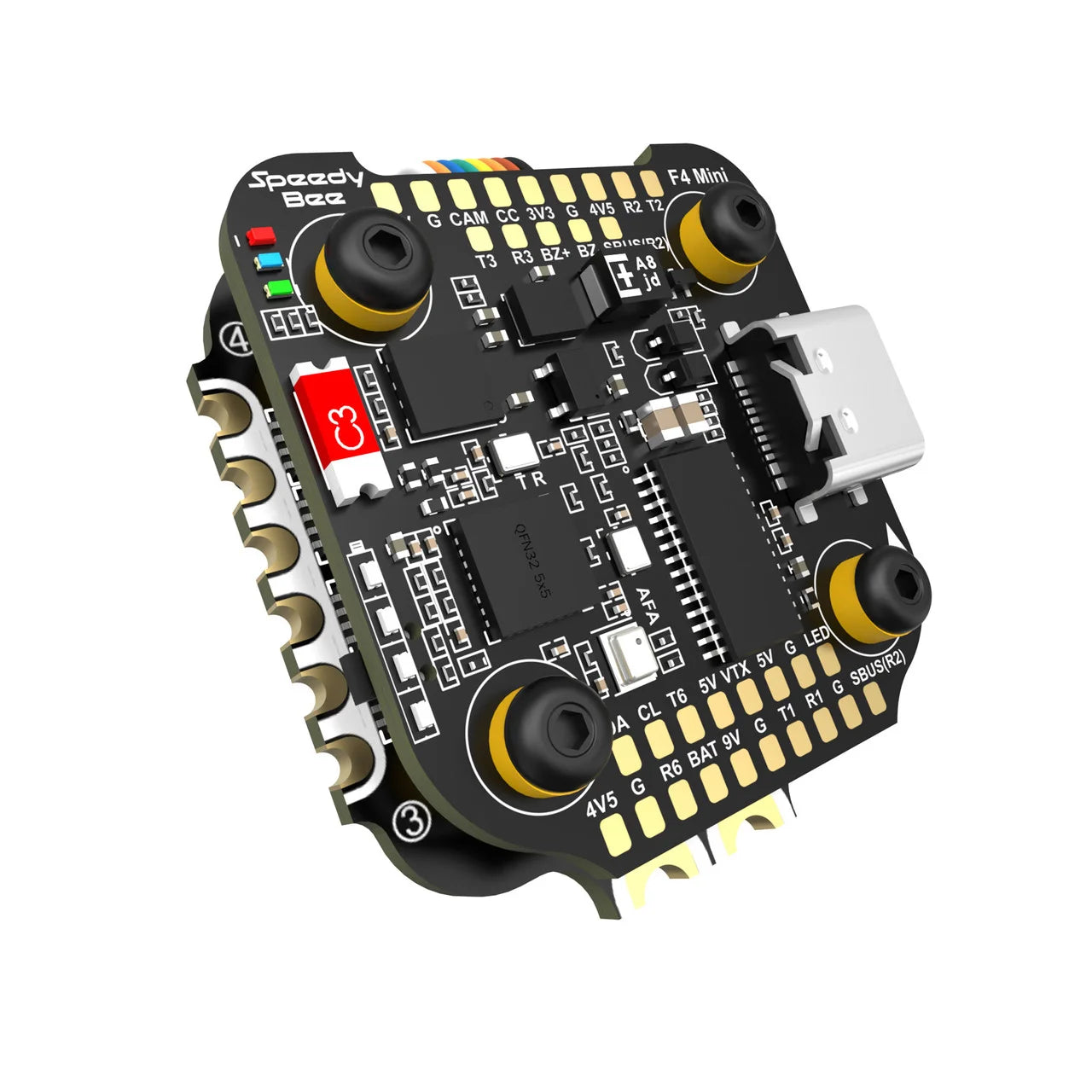

SpeedyBee F405 Mini BLS 35A 20×20 Flight Stack

Oh, drone enthusiasts, it’s time to have your circuits tickled! 🎉

Are you ready to boost your drone’s prowess with an electrifying blend of quality and quirk? Enter the Speedybee F405 Mini 35A Flight Stack. It’s the David in the world of Goliaths; small but hella mighty.

Product Highlights

• 📡 Wireless configuration via SpeedyB’s divine app.
• 💡 LED indicators that scream, “Look at me! I’m alive and kicking!” when your battery’s juiced.
• ⚡ Built-in Bluetooth for those who like their gadgets whispering sweet nothings via the SpeedyB app.
• 🔌 USB-C port. Because… 2023! Duh.
• 🚀 Gyro that’s as stable as your grandma’s secret sauce recipe.
• 💥 TVS diode on the ESC. Think of it as the guardian angel of your drone’s delicate insides.

Specifications

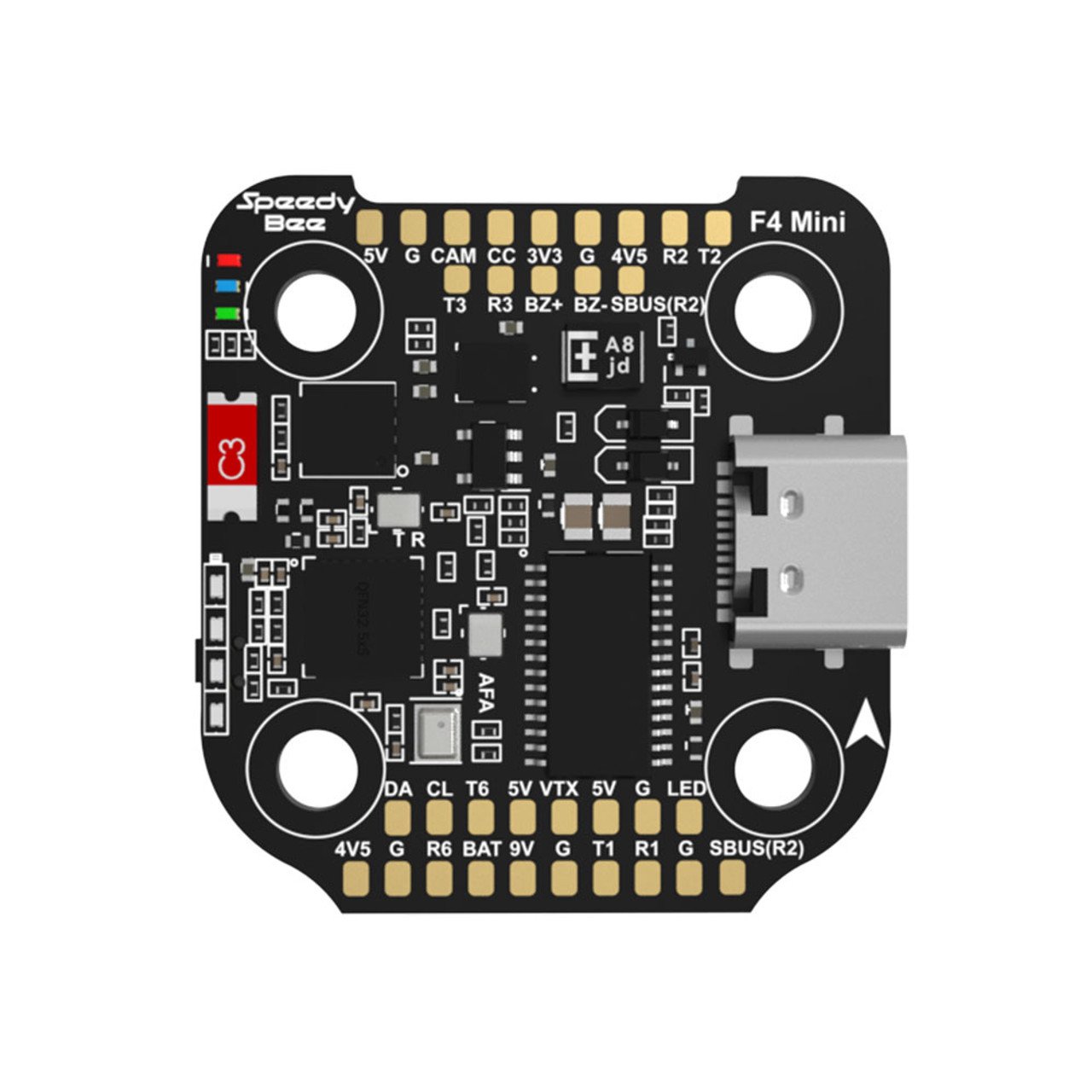

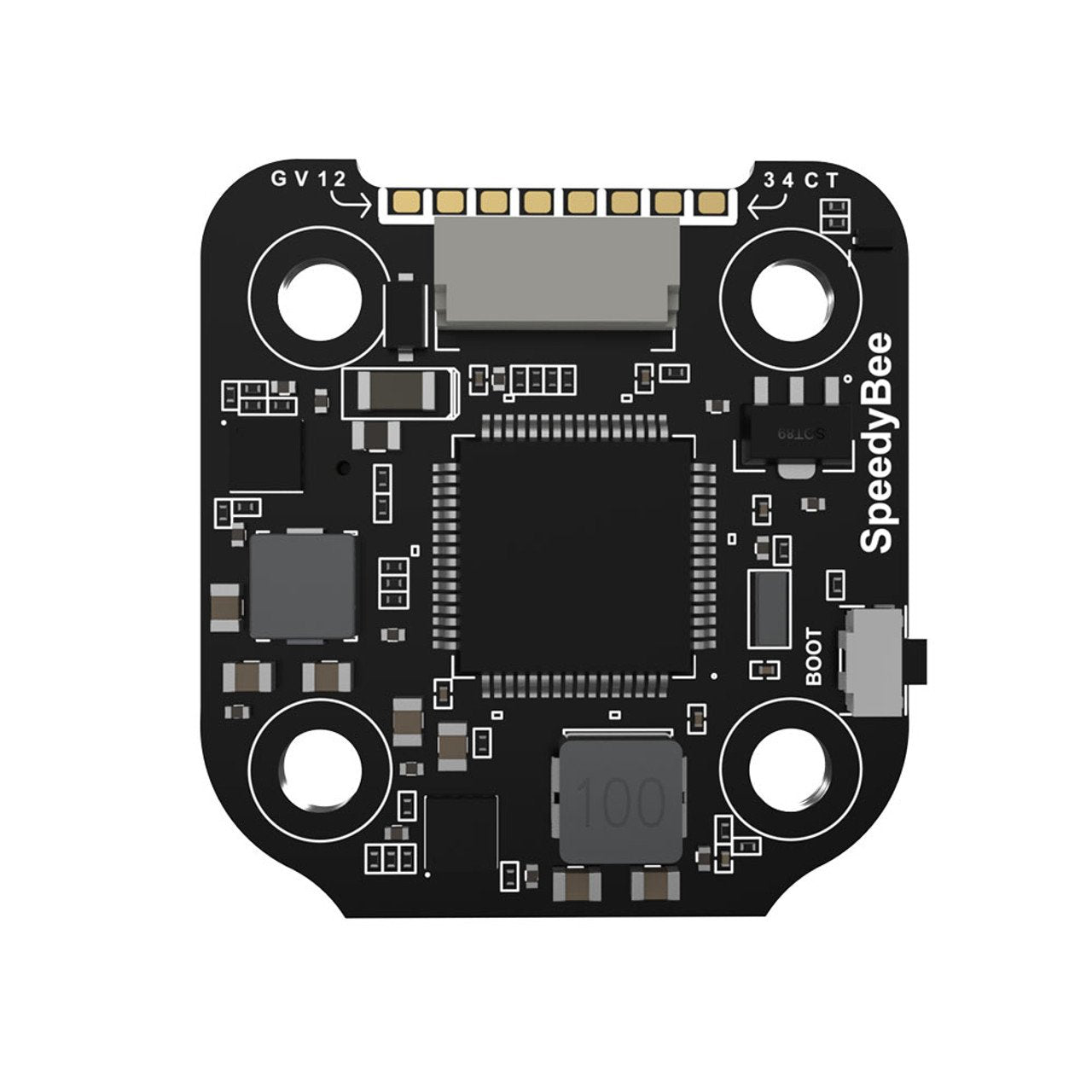

Flight Controller:

• Built on the sturdy shoulders of F4 405.
• Analog OSD chipset, always ready to flirt with digital.
• Designed with eyes only for digital VTXs.
• Not one, not two, but FOUR UARTs.
• Two BECs giving out 5V 2A & a debated 9V (Is it 2A? Or 3A? The suspense!).
• Pads dedicated to digital, DJI Avatar, or HD zero, giving you choices aplenty.
• Gyro: ICM-42688P – it’s like the caviar of gyro chips.
• Built-in barometer for all the atmospheric vibes.
• Manual wiring required. It’s like a DIY project but cooler.

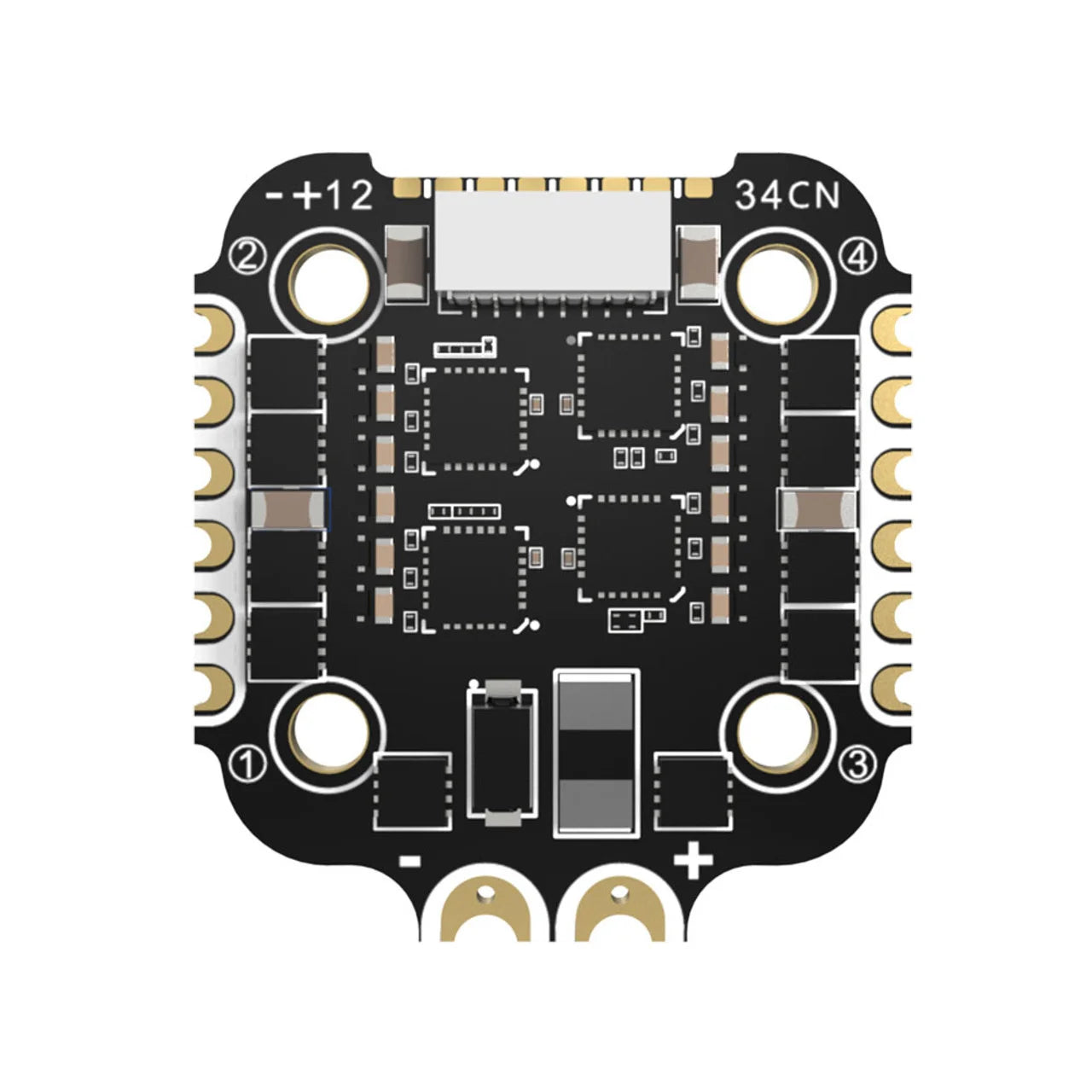

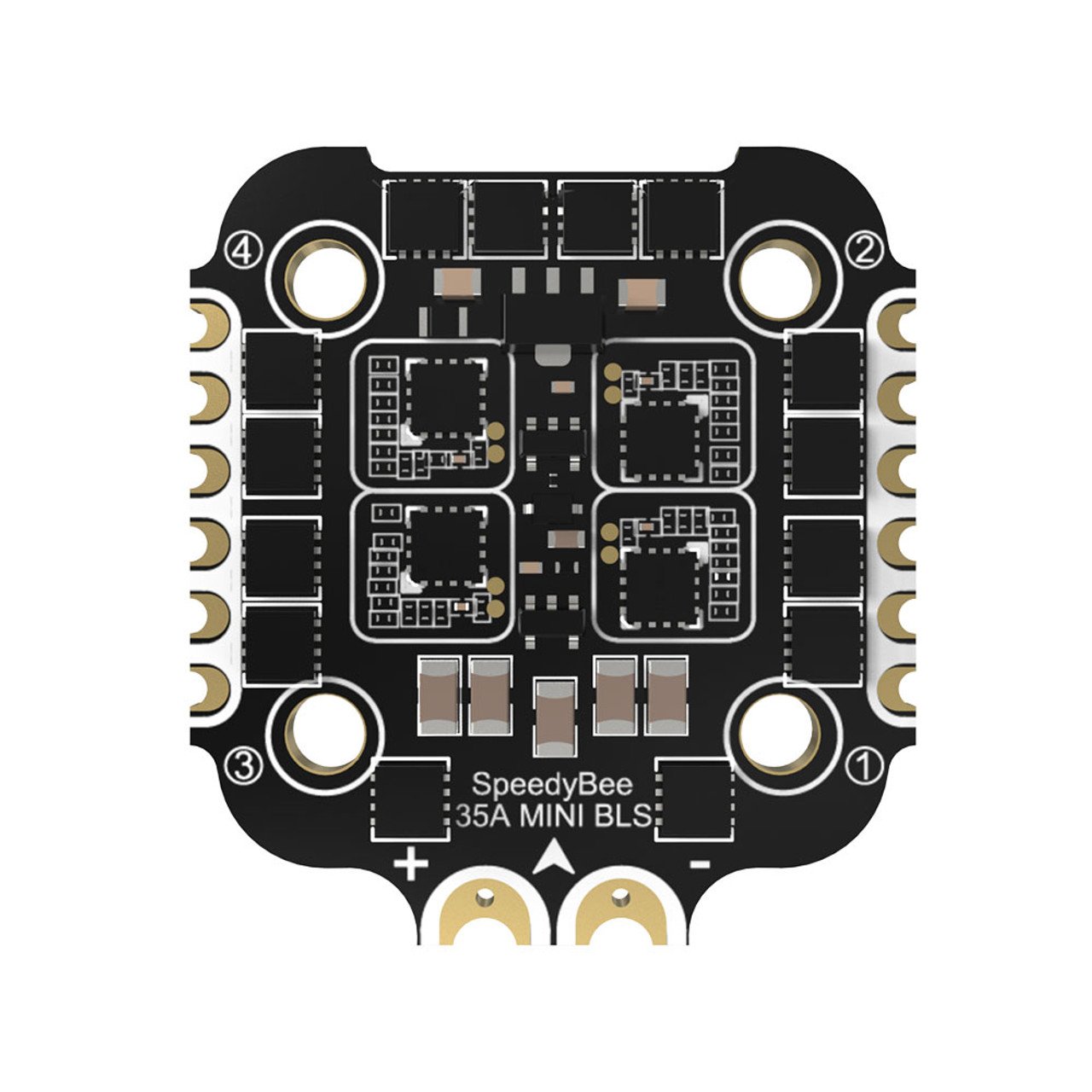

ESC:

• Rooted in BLHeli_S. (Nope, not BLHeli32 – we like to keep things intriguing!)
• A 6-layered 2-ounce board that’s tougher than overcooked steak.
• Japanese TDK filtering capacitors. Oh, the elegance!
• Rated for 35A. Perfect for those 2 to 4.5-inch builds. But hey, if you’re feeling adventurous, go for the 5-inch.

🌐 Wireless Wonders: Say hello to seamless wireless Betaflight tuning via built-in Bluetooth! And if manual configurations have you tied up in knots, just fire up the SpeedyBee app. Forget the USB hustle, get chummy with wireless ease, and bid a joyous adieu to wires!

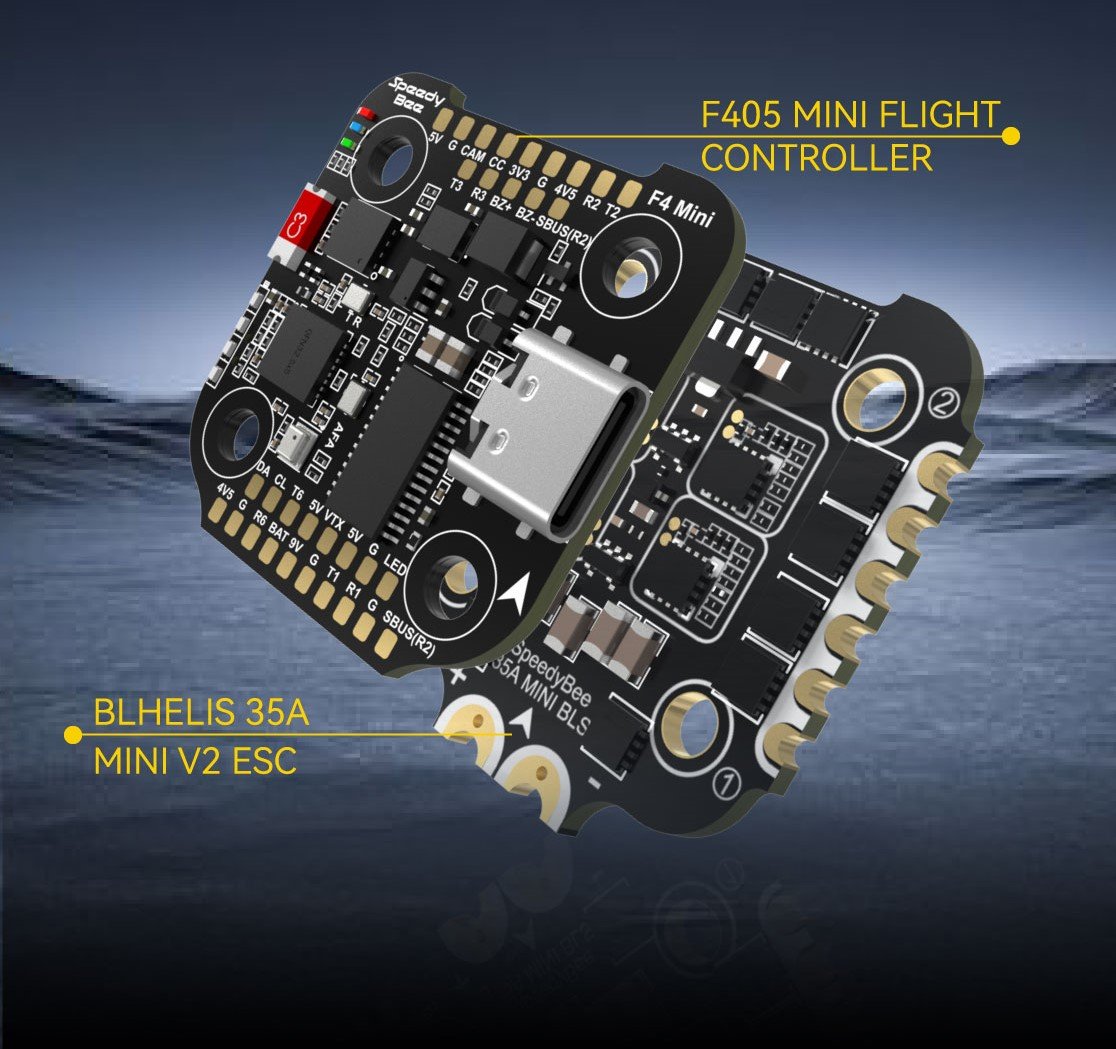

⚡ Pumped-up Power: This isn’t your ordinary stack. With a 35A 4-in-1 BLHeliS Mini ESC, we’re serving up a robust feast of power for 2-4 inch and even svelte 5-inch quadcopters. We’ve optimized the juice with a 6-layer 2oz PCB, ensuring each flight is smoother than a jazz solo.

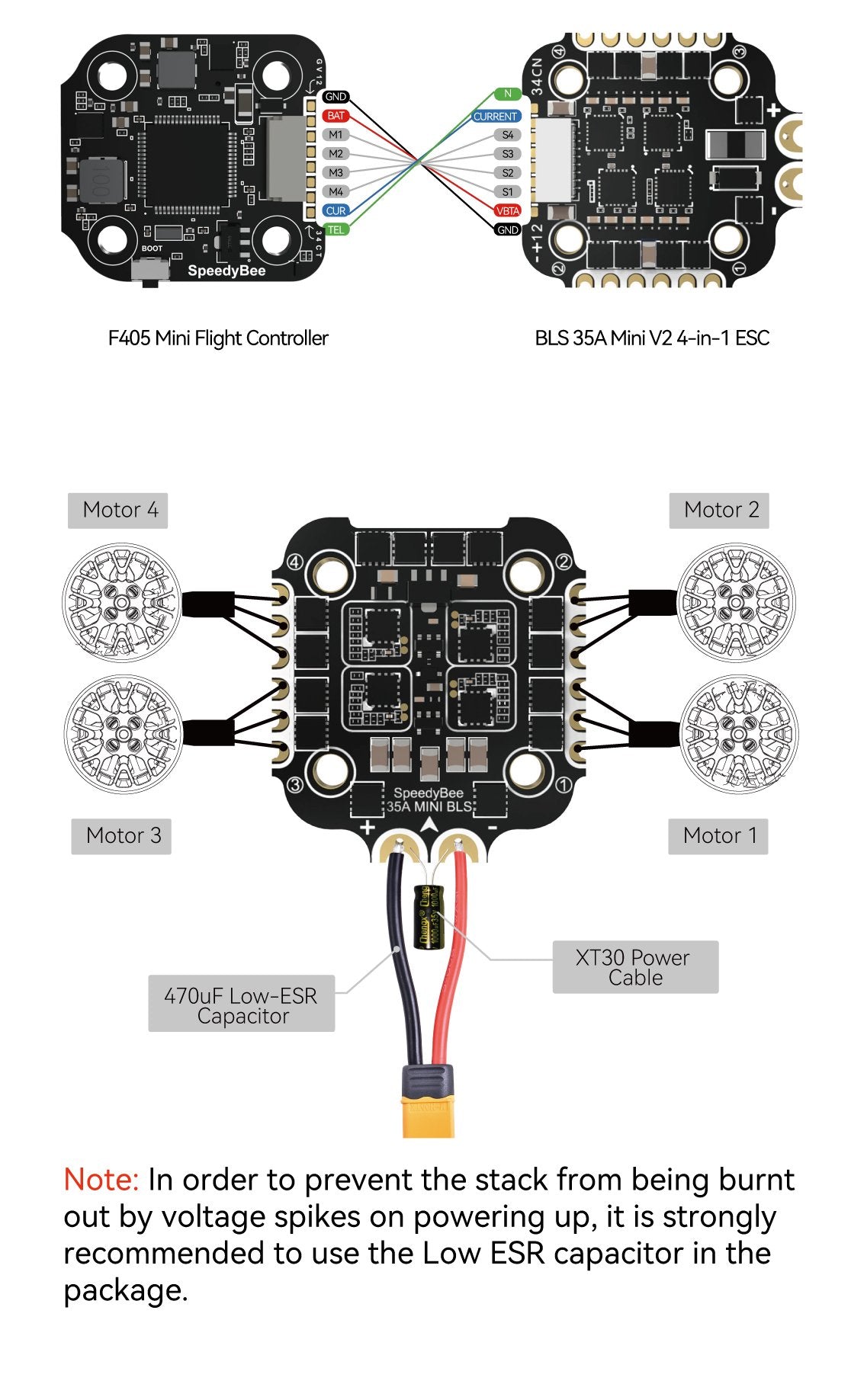

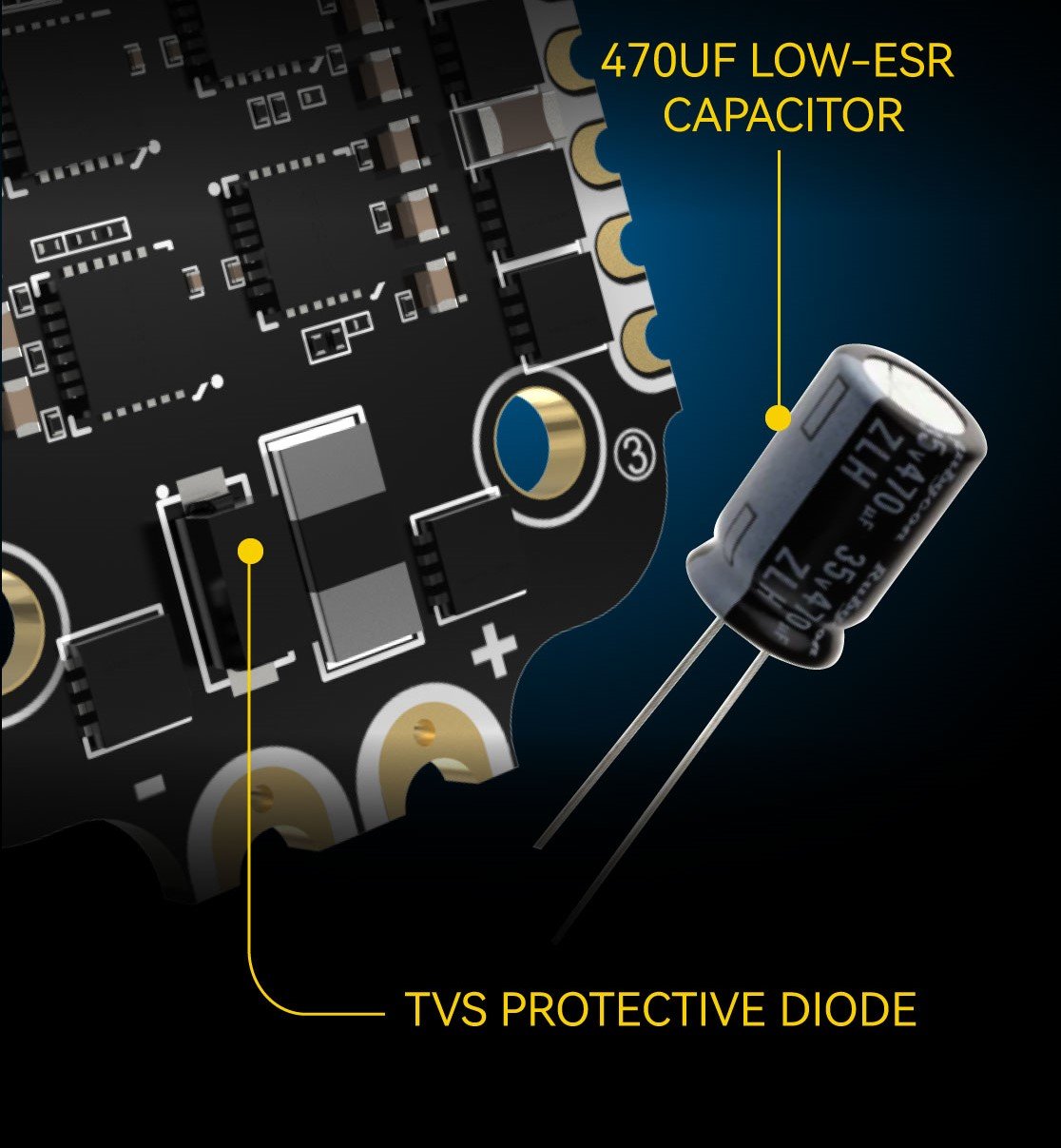

🛡 Upgraded Protection: We’ve pulled out all stops with our onboard TVS transient suppression diode. This bad boy gobbles up surge voltage, offering the ESC some much-needed TLC. Toss in a Rubycon 470uF Low-ESR capacitor, and you have an ESC that’s prepped and ready for anything.

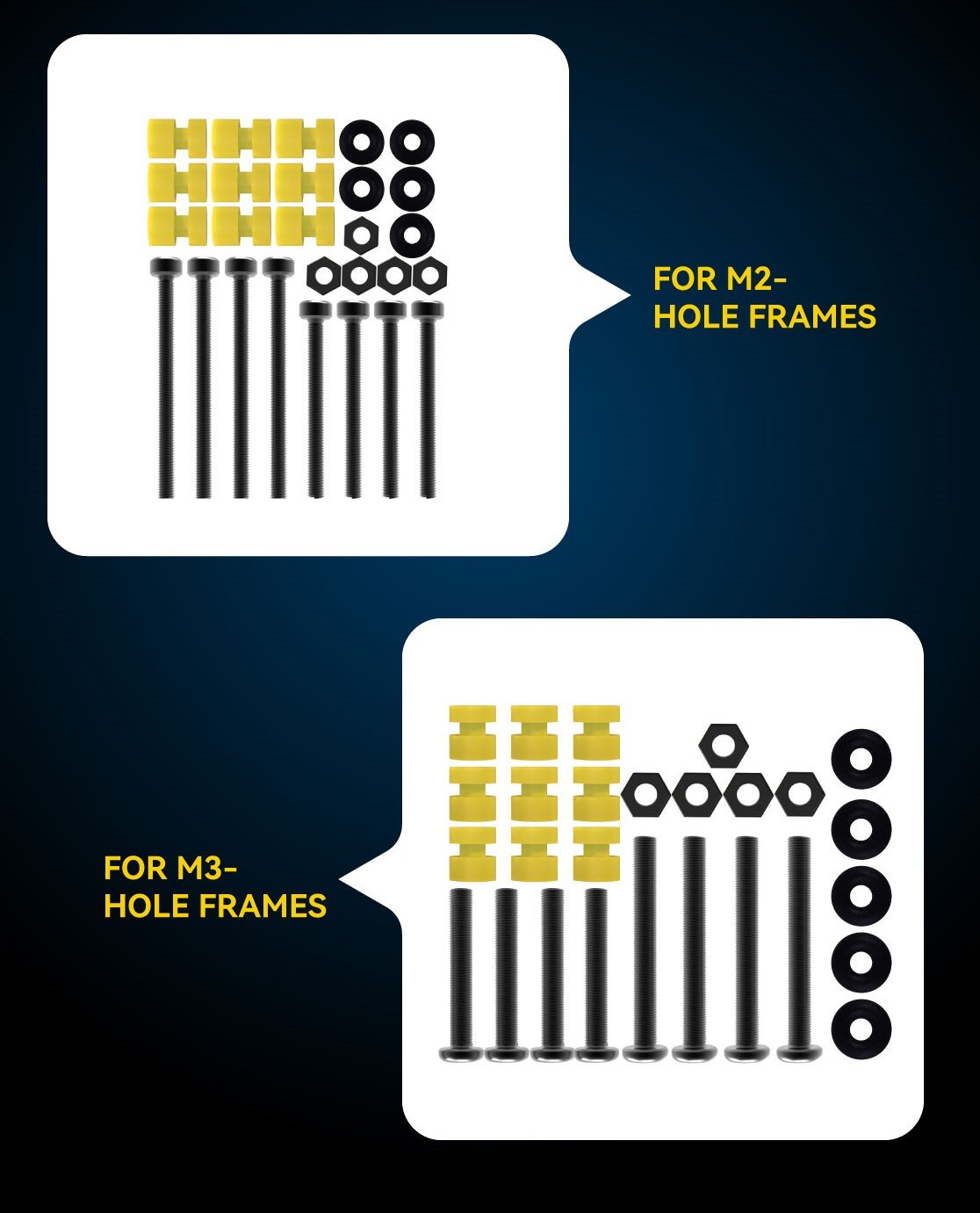

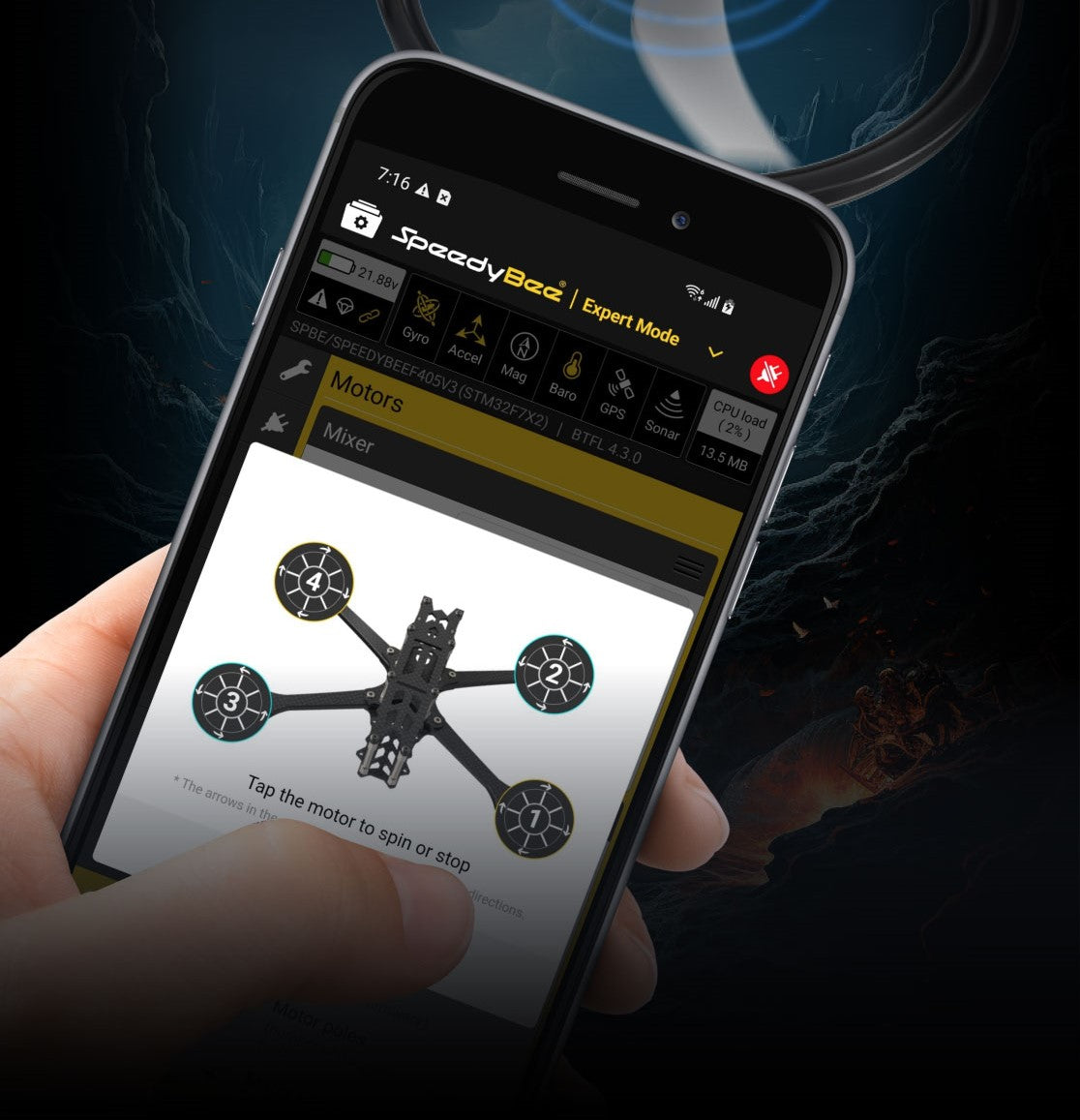

🔄 Spin Control: Still tethered to your computer to swap motor directions? Free yourself! Once your build is up and humming, let the SpeedyBee app take the reins. A few taps and you’re cleared for takeoff. Oh, and before we forget, our stack loves both M2 & M3 screws. And guess what? We’ve thrown them both in the mix for you!

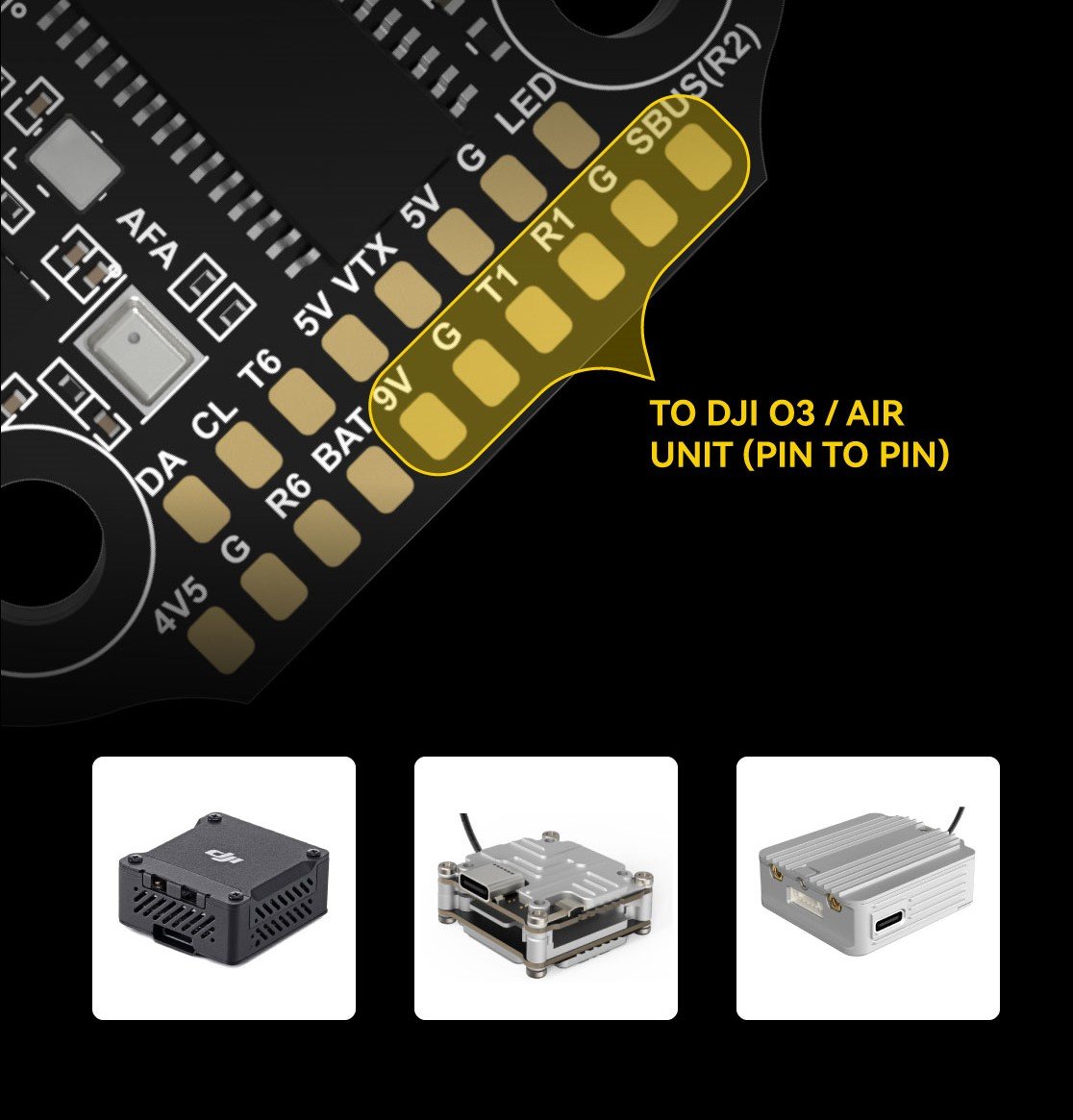

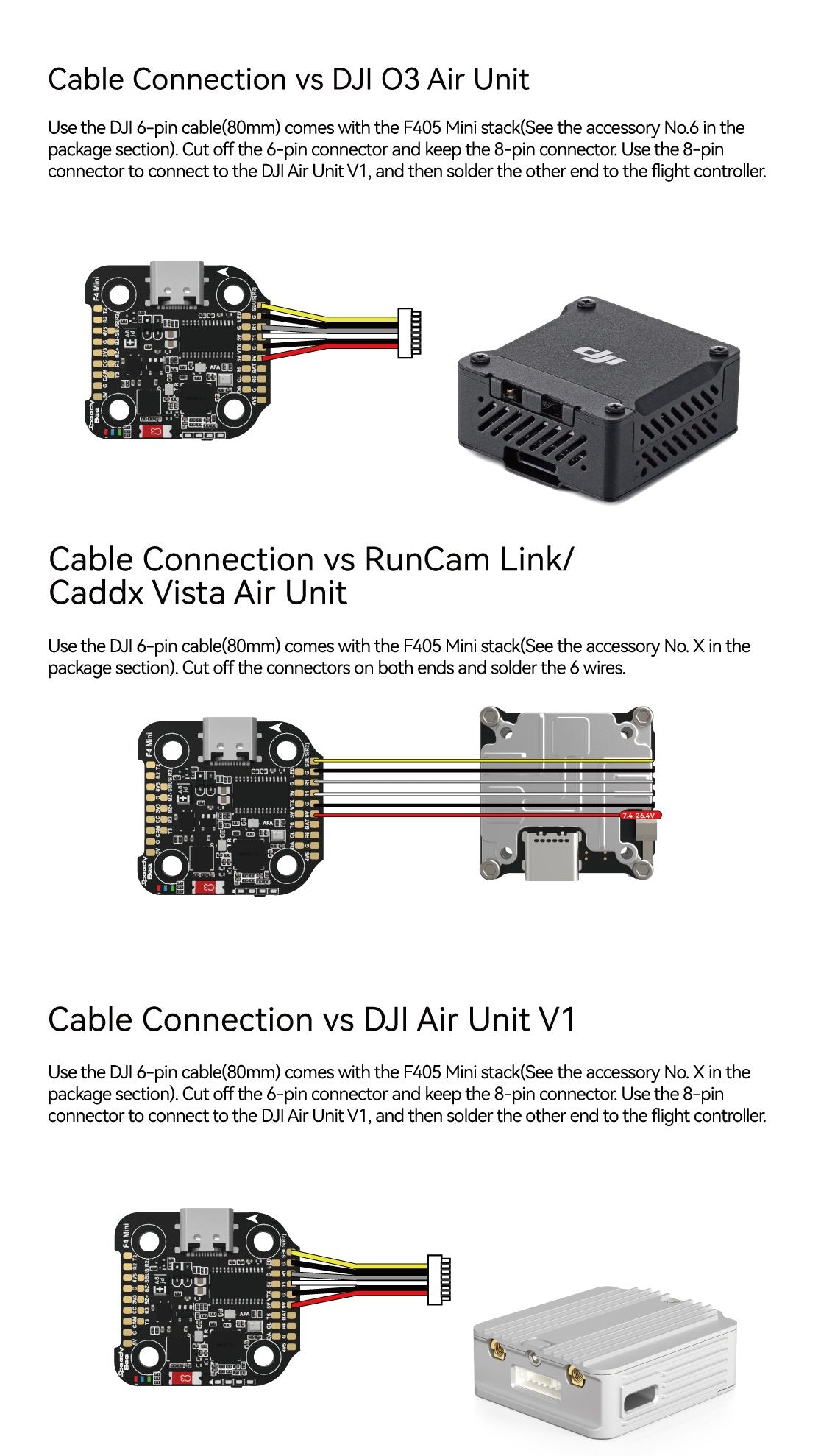

🎥 DJI Compatible: Supporting all DJI Air Units, our twin BECs – 9V 3A and 5V 2A – ensure your video feed is as crisp as a winter morning. Whether it’s the DJI O3 Air Unit, Link, Vista, or Air Unit V1, we’ve got your back.

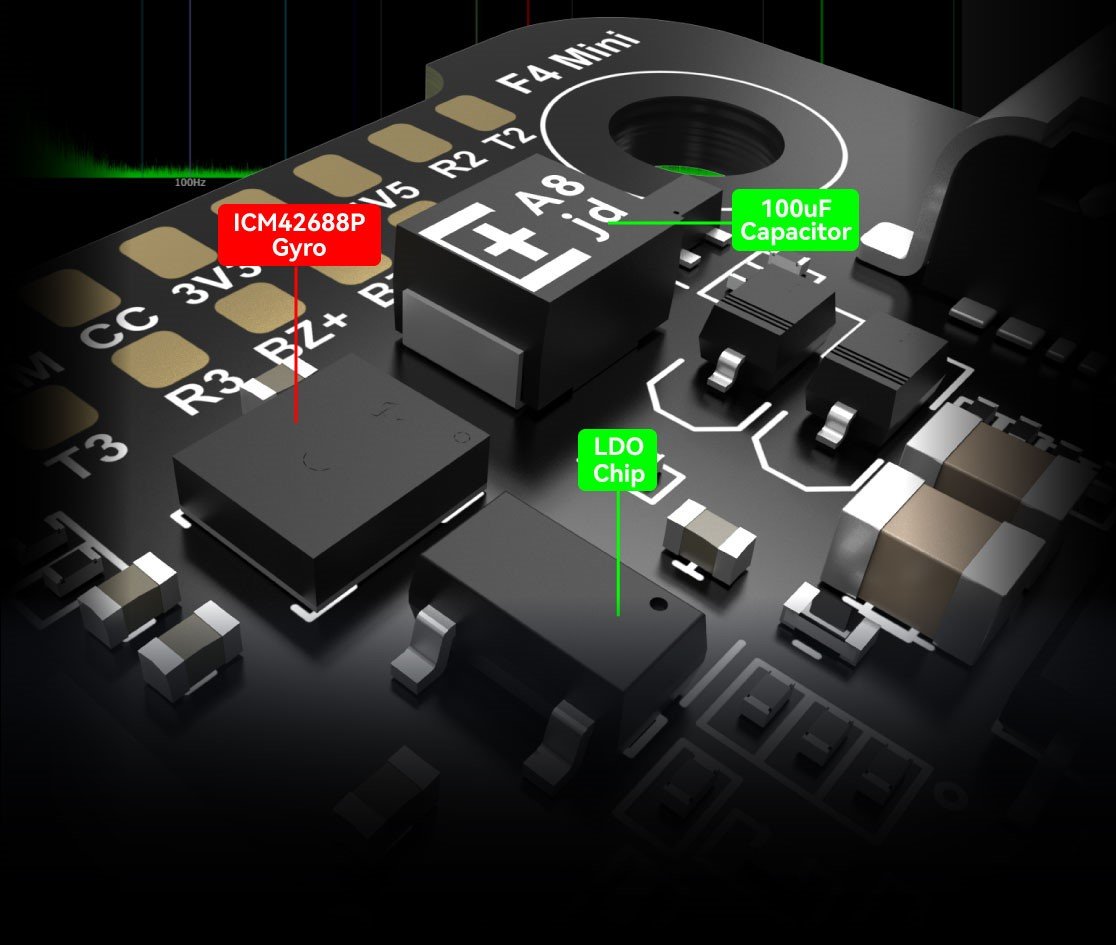

🚀 Gyroscope Mastery: The MaxLinear’s LDO power supply chip ensures your gyroscope receives pristine power. Couple that with a hefty 100uF filtering tantalum capacitor, and what you get is a gyro that grooves to every nuance of your drone’s dance in the skies.

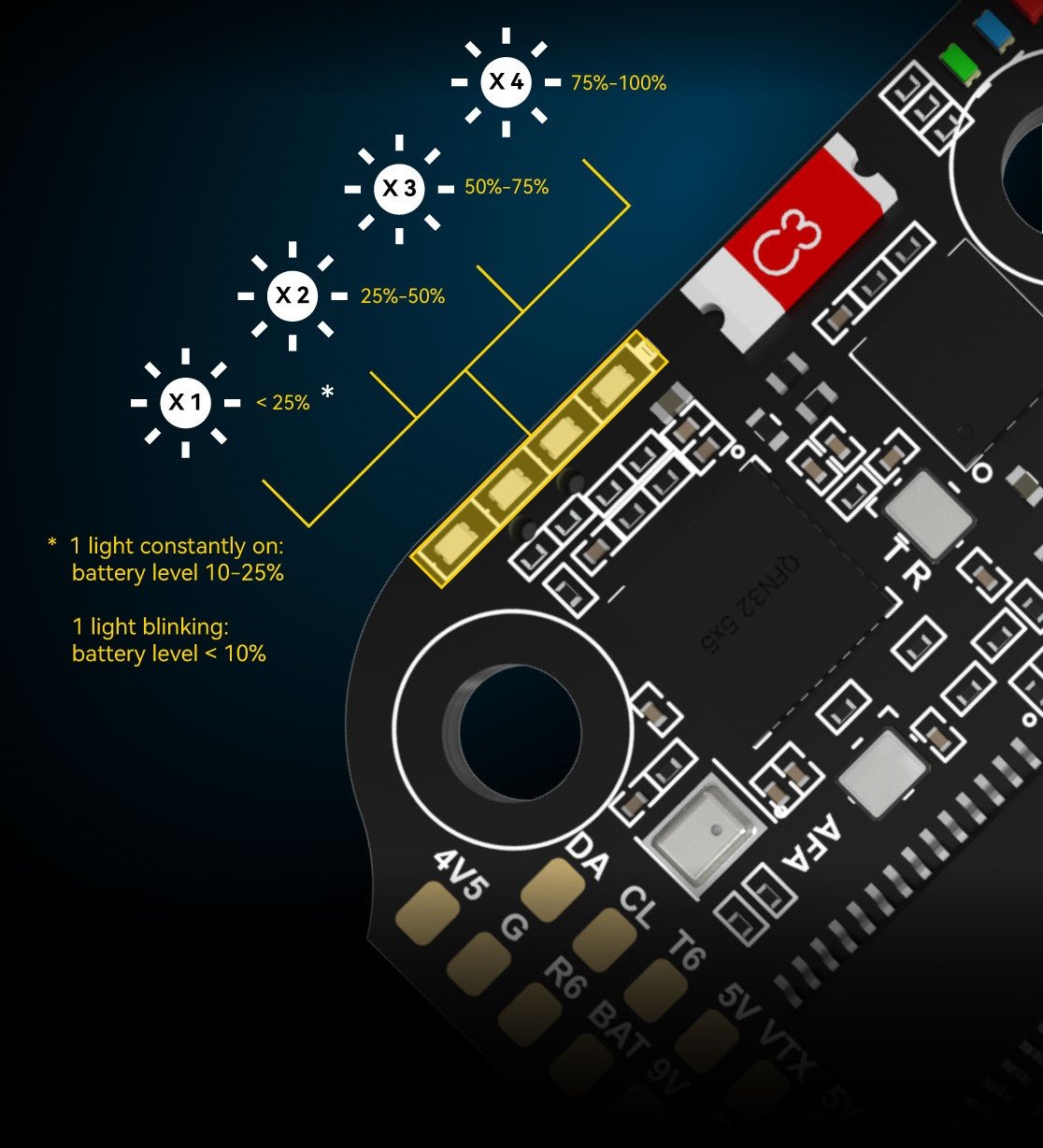

🔋 Battery Check – No Fuss!: You won’t be left guessing with our 4-level battery capacity indicator. A quick glance and you’re in the know. So, keep those goggles for the view, not battery checks.

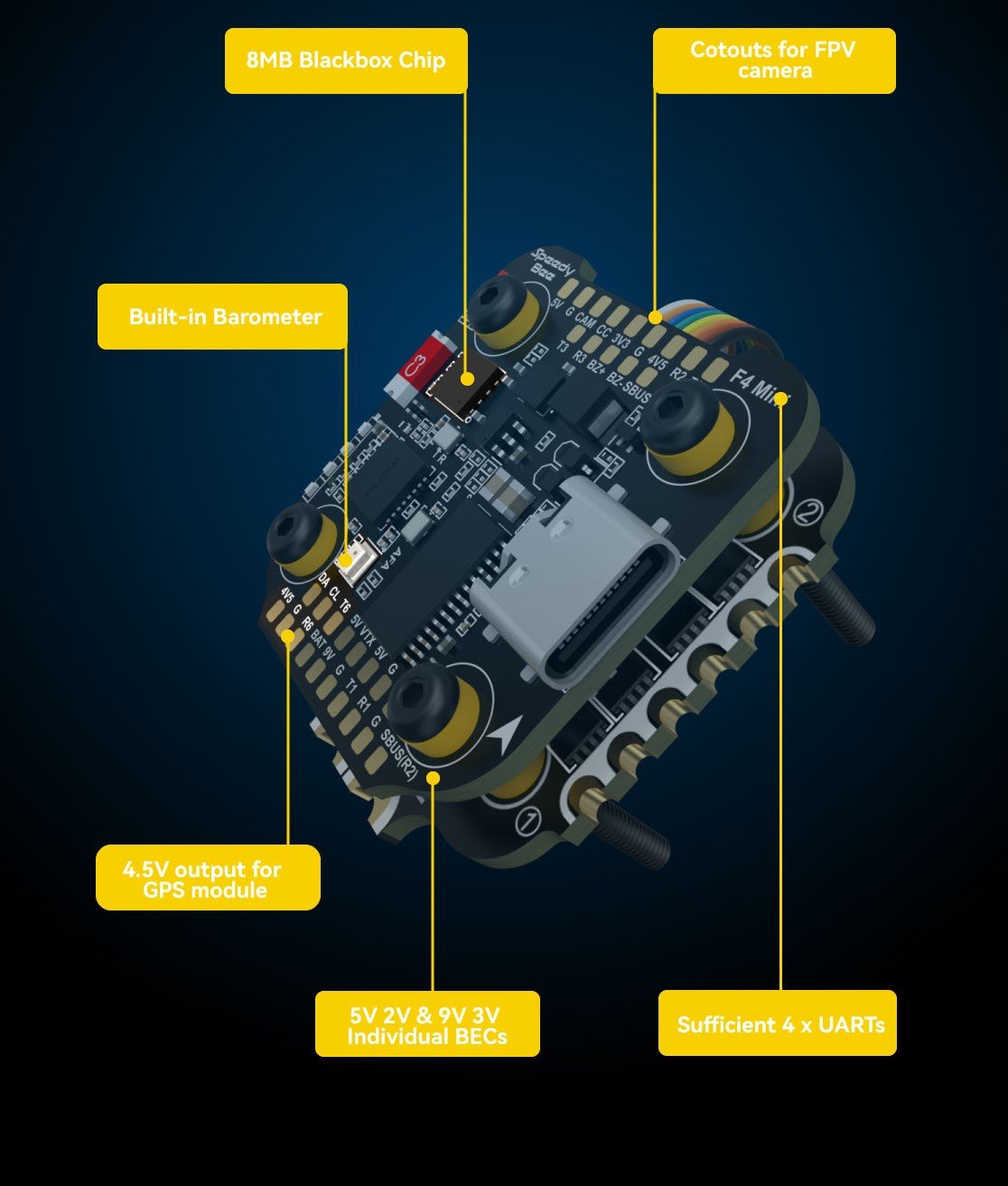

Even More Awesome Add-ons:

• 4 UARTs: One for the receiver, another for your VTX, one for the camera, and even one for GPS.
• GPS powered by a USB? Yup, we’ve got that. No battery? No problem.
• Snug 17mm cutouts for that tight FPV camera build.
• Real-time altitude sensing with an onboard barometer.
• A spacious 8MB Blackbox storage for all your flight data.

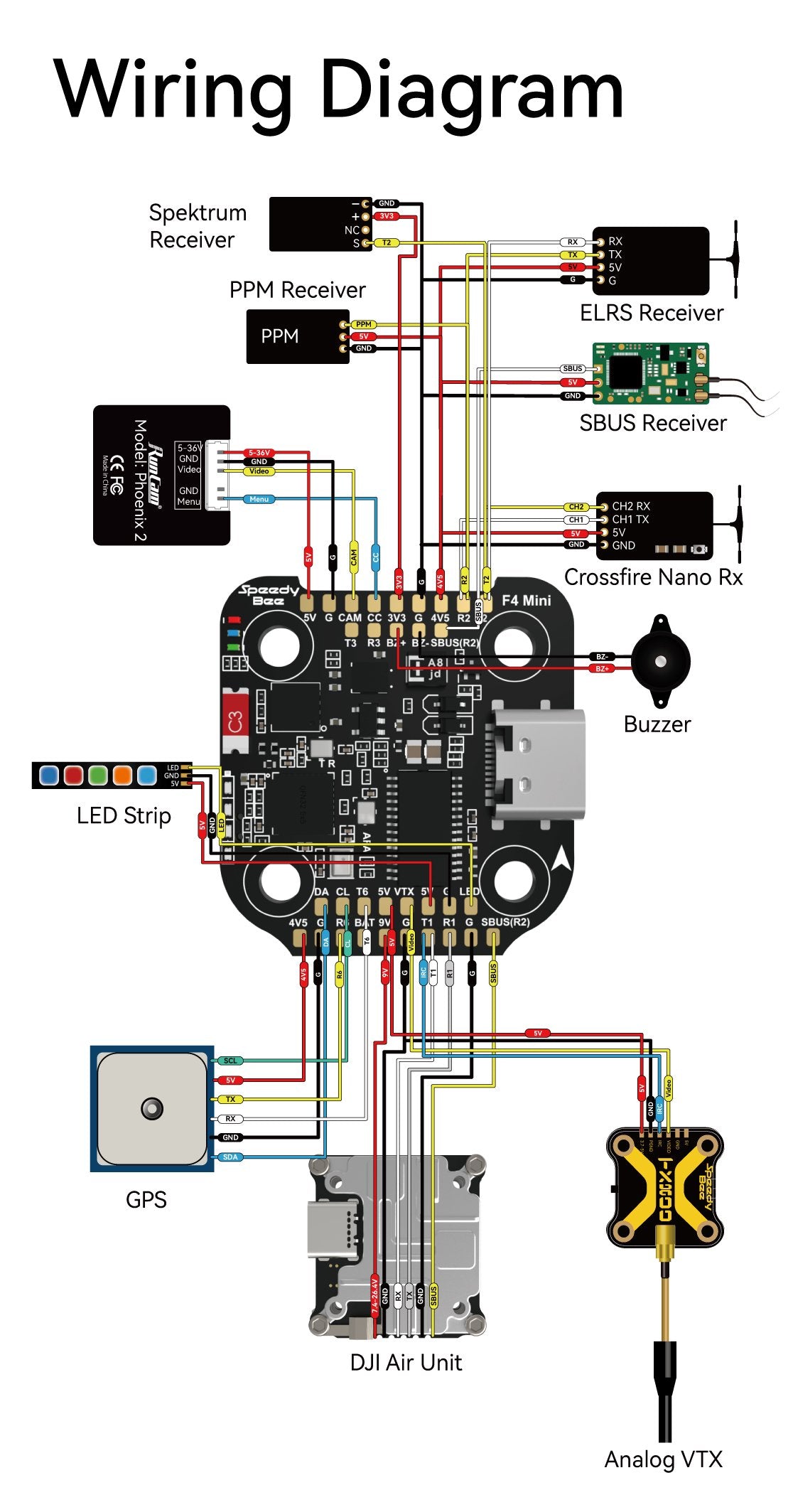

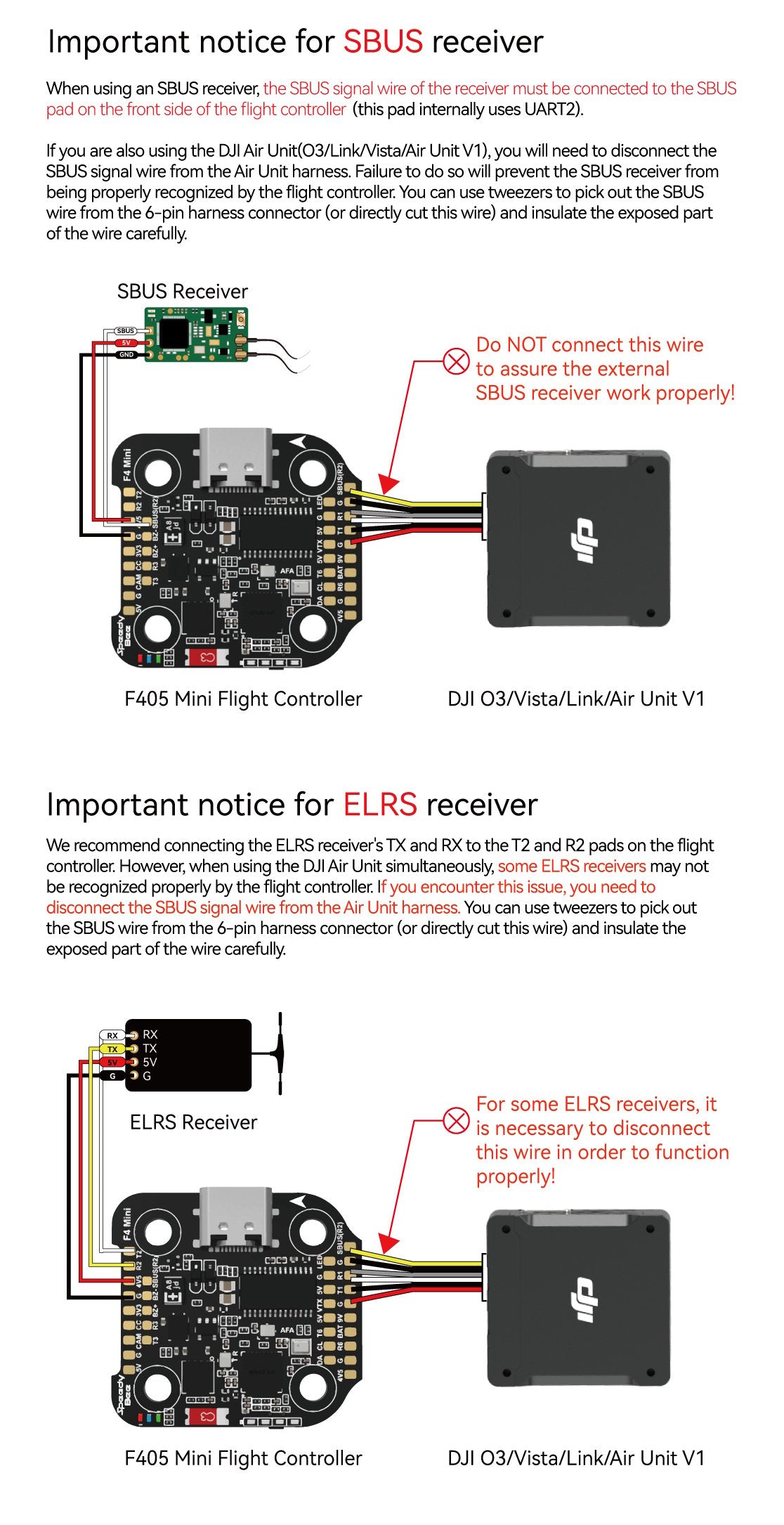

Wiring Diagram

Included

• 1x SpeedyBee F405 Mini BLS 35A 20×20 Flight Stack
• Accesories Kit
