Seeeduino XIAO Arduino Microcontroller

£5.70 (ex VAT £4.75)

In stock

SKU: 1E4-D57-5A2 Category: Tags: , Brand:

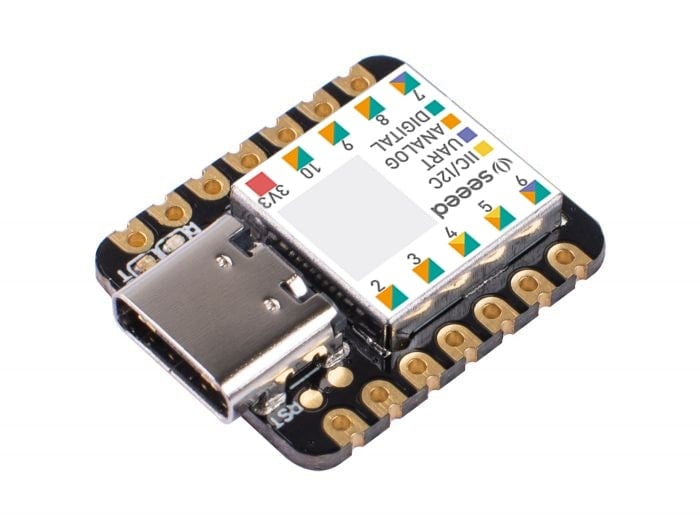

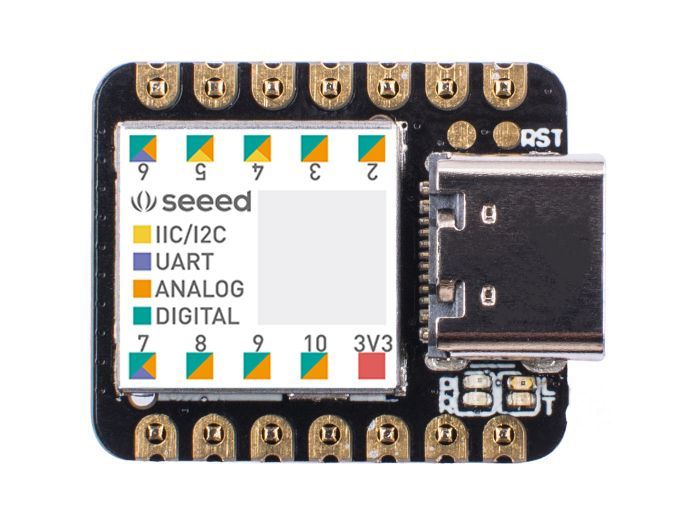

The Seeeduino XIAO is the smallest member of the Seeeduino family. The XIAO contains the CPU-ARM® Cortex®-M0+(SAMD21G18) Arduino microcontroller. It is perfect to be used for Arduino wearable devices and small projects.

Seeeduino XIAO Arduino Microcontroller

£5.70 (ex VAT £4.75)

In stock

The Seeeduino XIAO is the smallest member of the Seeeduino family. The XIAO contains the CPU-ARM® Cortex®-M0+(SAMD21G18) Arduino microcontroller. It is perfect to be used for Arduino wearable devices and small projects.

Not the cheapest?

We will try to beat it!

⚠️Always test your item before soldering, issues caused by soldering aren't covered by warranty.

SKU: 1E4-D57-5A2 Category: Tags: , Brand:

The Seeeduino XIAO is the smallest member of the Seeeduino family.  The XIAO contains the CPU-ARM® Cortex®-M0+(SAMD21G18) Arduino microcontroller. It is perfect to be used for Arduino wearable devices and small projects.  Also plug and play conpatible with teh Grove ecosystem via the Xiao grove shield.

Seeeduino XIAO demo | Smallest Arduino Compatible Board

Specifications

  • CPU: ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz
  • Storage: 256KB Flash,32KB SRAM

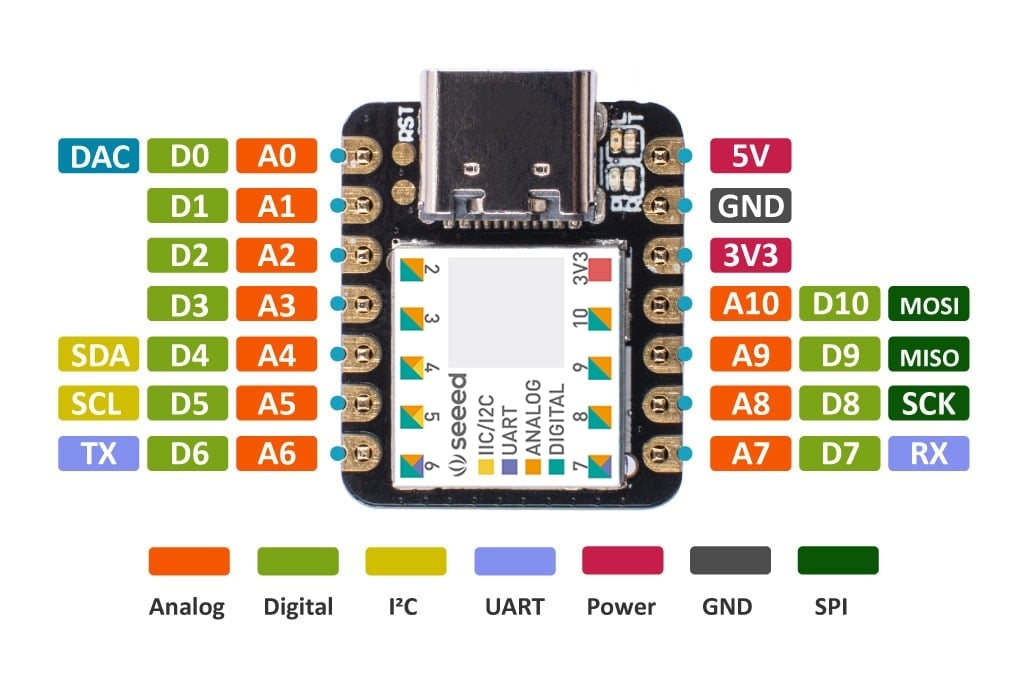

  • I/O PINs: 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin
  • Interface: 1 I2C interface,1 UART interface, 1 SPI interface
  • Power supply and downloading interface: USB Type-C interface
  • LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading
  • Reset button: two reset button short connect to reset
  • Power Pads: For the battery power supply
  • Software compatibility: Compatible with Arduino IDE
  • Projection cover for protecting the circuit

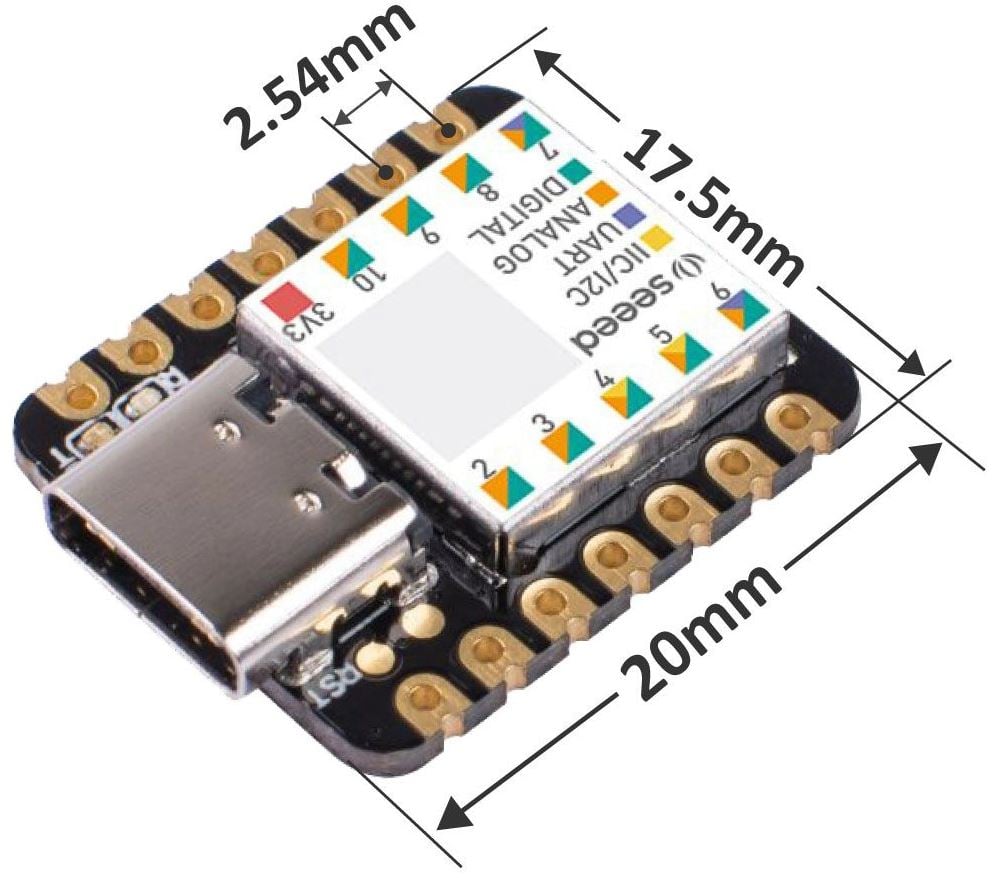

  • Dimensions: 20×17.5×3.5 mm

MPN: 102010328

Weight 15 g
Dimensions 5 × 2 × 1 cm
