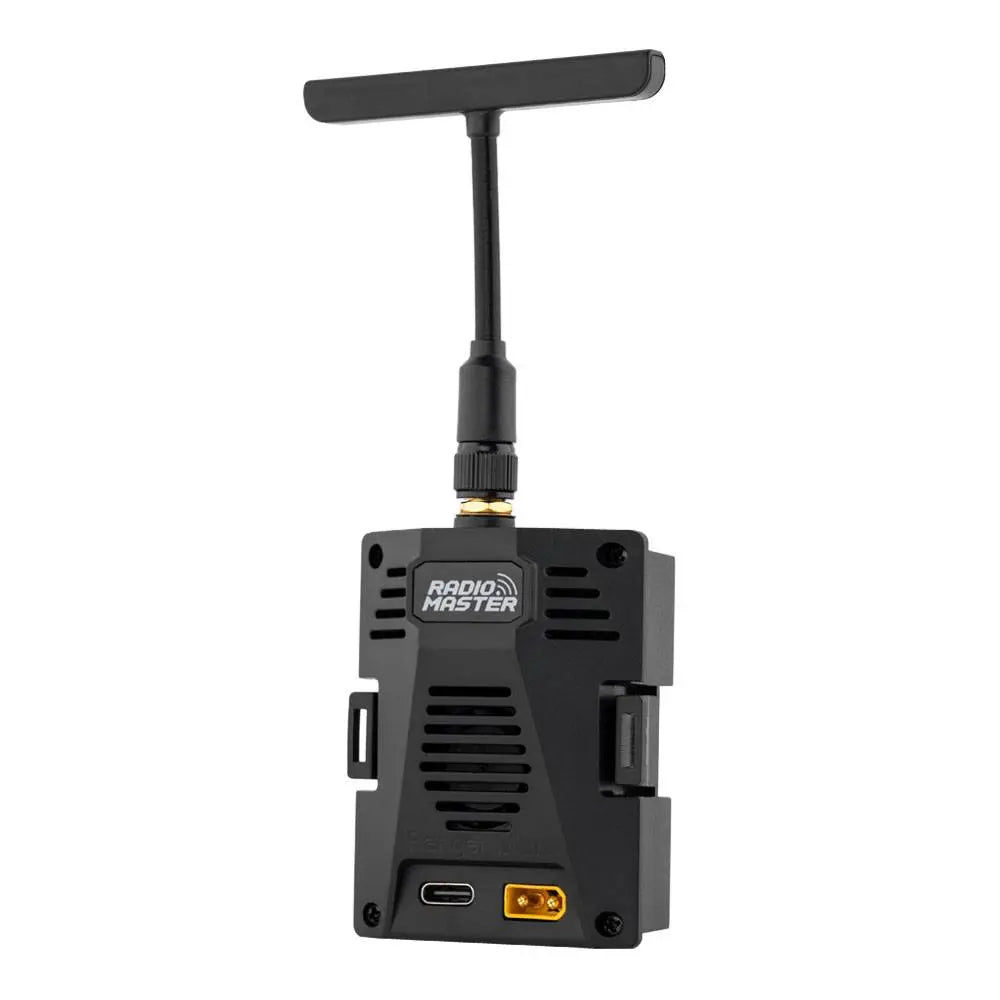

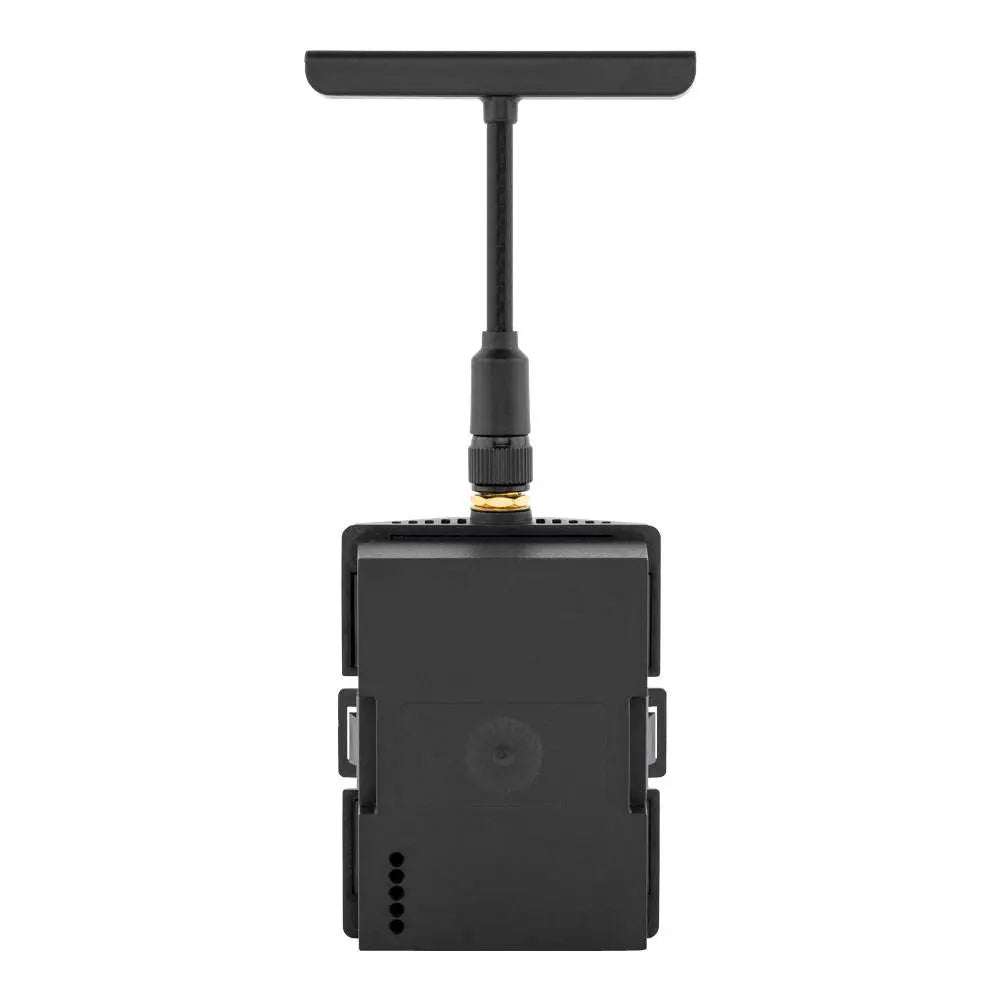

RadioMaster Ranger Micro 2.4Ghz ELRS Module

Unleash the full potential of your RC gear with the RadioMaster Ranger Micro 2.4GHz ELRS Module. This module, a standout in the ExpressLRS series, is designed to enhance the performance and reliability of your remote control system.

Key Features:

• JR Module Bay Adapter Compatibility: Seamlessly integrates with TX16S MKII, TX12 MKII, or any radio supporting the JR standard 5-pin socket, offering versatile connectivity options.
• Micro ExpressLRS 2.4GHz Technology: Enjoy a robust and stable connection, ensuring your controls are responsive and precise every time.
• Advanced Cooling System: The high-efficiency design keeps the module operating at optimal temperatures, enhancing longevity and performance.
• Wireless Connectivity: Equipped with both WiFi and Bluetooth support, this module offers flexibility in updating firmware and configuring settings.
• Impressive Packet Rate: Experience a maximum packet rate of F-1000Hz, ensuring low latency and high-speed data transmission.
• Powerful 1W Output: The module boasts a 1W power output, providing extended range and improved signal strength for demanding applications.

Specifications:

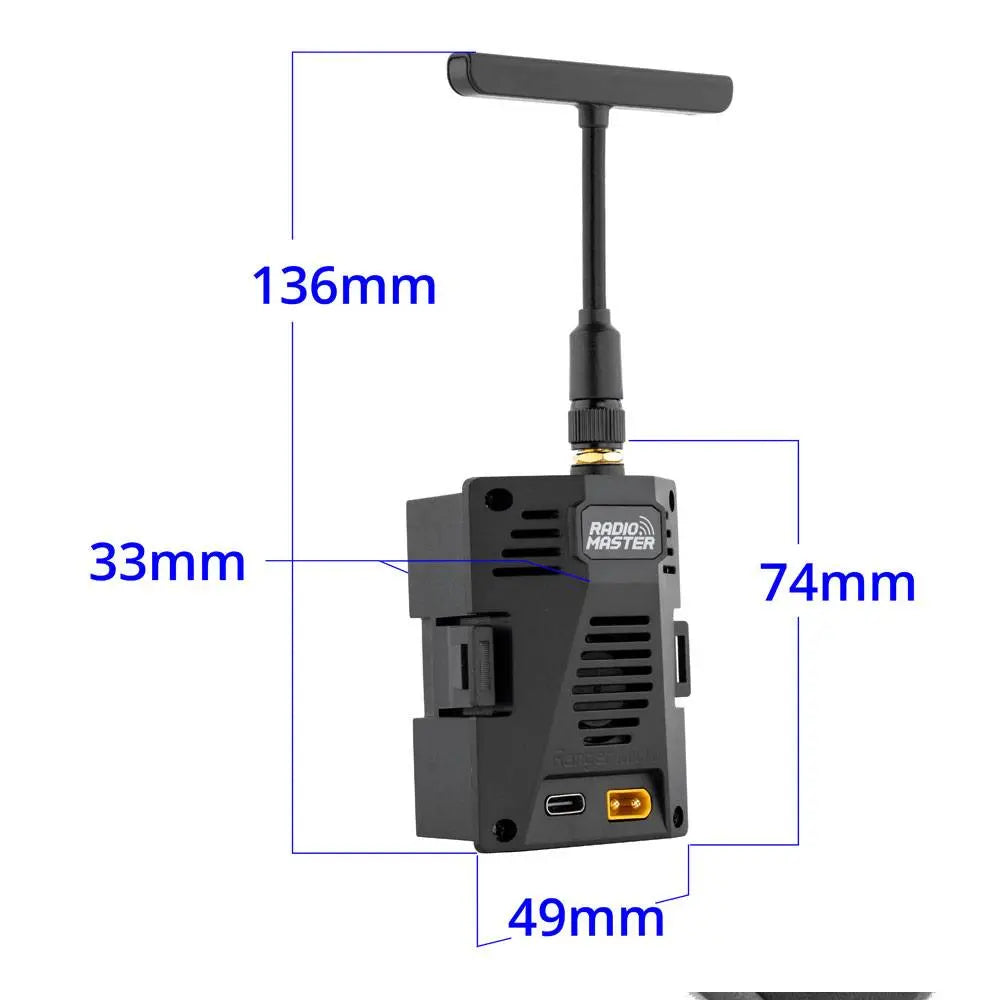

• Dimensions & Weight: Choose from two configurations – with a Moxon antenna (136x49x33mm, 50g) or without (74x49x33mm, 40.5g).
• RF Output Power: Adaptable for different regions (30dBm for FCC, 20dBm for CE) with LUA script adjustments.
• Processing Power: Powered by an ESP32 main MCU and an ESP8285 auxiliary unit.
• Frequency Range: Broad coverage from 2400 MHz to 2480 MHz.

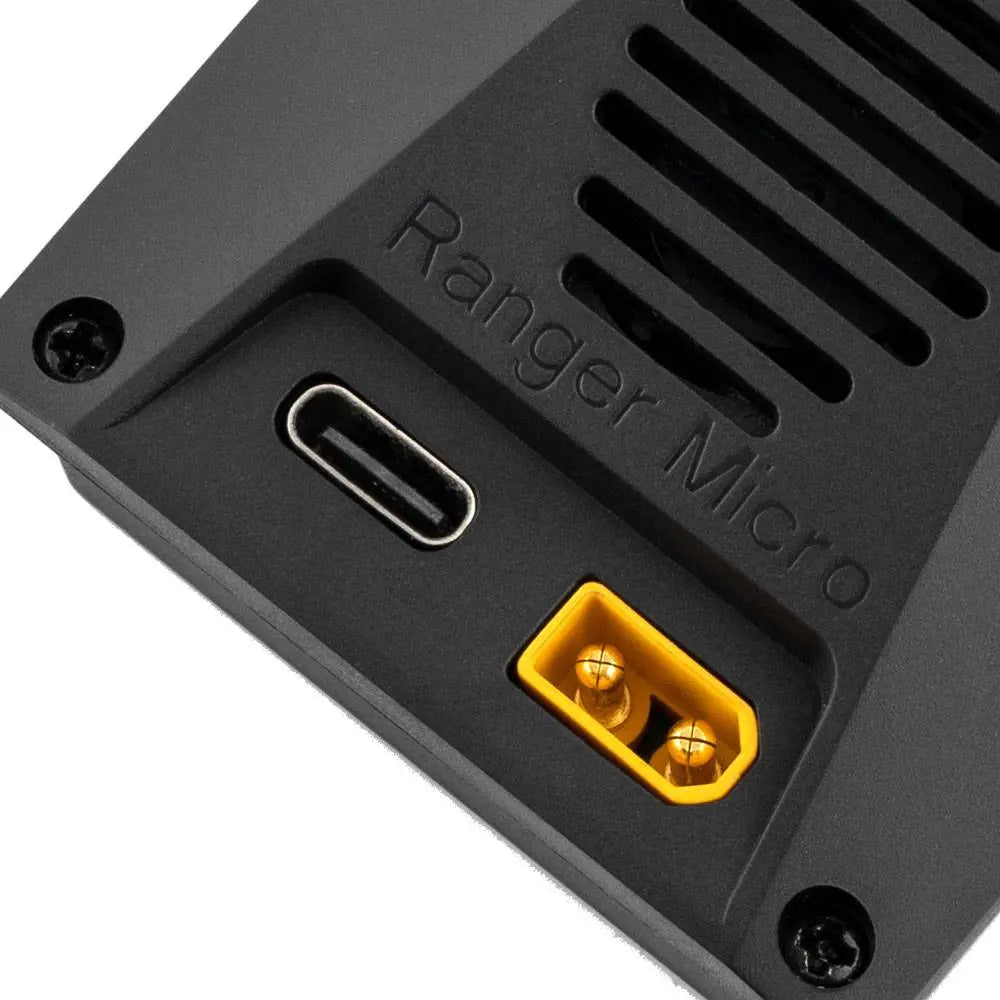

• Power Supply Compatibility: An XT30 connector supports a voltage range of DC 6V to 16V.
• Maximum Packet Rate: A dual option of 500Hz or F1000Hz, catering to various operational needs.
• Minimum Receiver Refresh Rate: Set at 25Hz for consistent performance.
• Regulatory Domain Compliance: Meets ISM2400 standards.
• RF Chip: Incorporates the SX1281IMLTRT for reliable transmission.

Antenna Specifications:

• Design: T-type Omnidirectional Antenna with options for vertical or horizontal polarization.
• Connector Type: RP-SMA Male, ensuring a secure and compatible connection.
• Frequency Range: Specifically designed for 2.4GHz systems.
• Weight: Lightweight at just 9.5g.

In the Box:

• 1x RadioMaster Ranger Micro 2.4Ghz ELRS Module
• Accessories (T Antenna)
