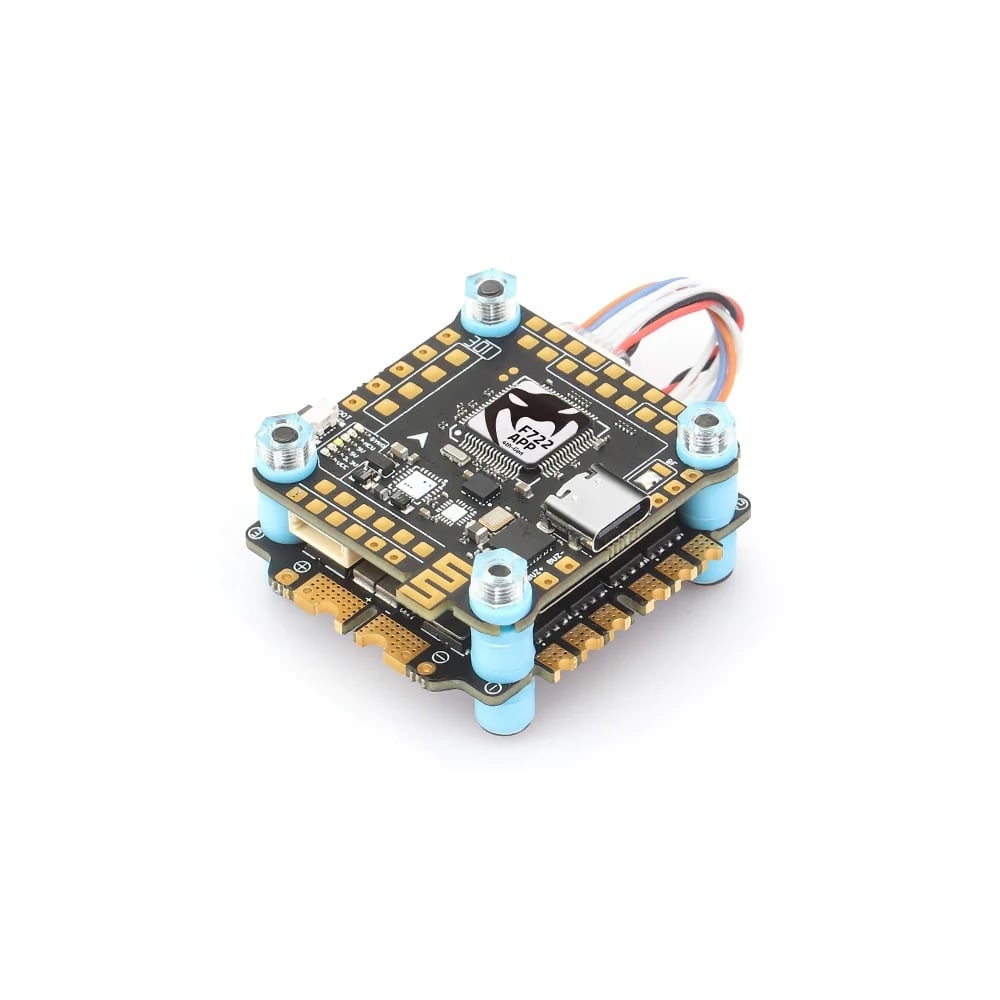

Mamba Stack F722 APP / F55_128k Flight Stack with Wifi and Blheli32 ESC

The Mamba F722 APP features an impressive F7 based betaflight controller with everything you would expect from an F7 flight controller including OSD, ESC Telemry, Dshot1200.  But the key thing that makes the F722 APP Stack special is that it has integrated Wifi to make in field configuration easier.  It also features neatly positioned LED connectors to brighten up your quad.

Whats new in Mamba F722 App (compared to Mamba F722S)

• BT to WiFi connection to speedybee app
• USB power supply can use receiver, OSD
• Add a group of I2C pads (SCL SDA)
• Add inverter Dual-Way TX serial port
• Add 2812 LED switch function, key can turn off led
• Add 4 corner LED interface to support BF led and Mamba led
• Upgrade to stronger type-C, optimize pad position

Specifications

Diatone Mamba F722 APP FC

• MCU: 216MHz STM32F722RET6 32BIT
• IMU: MPU6000
• Barometer: No
• OSD: BF OSD
• Blackbox: 16M Flash Memory
• Uarts: 6Set
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: RX6
• LED indicator: Blue&Orange for FC Status, Green 9V, White 5V, Red 3.3V
• LED Controller: BF LED/MB LED（ 4 Set 2812 LED）
• WIFI: SpeedyBee APP
• Smartaudio: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25V)
• TVS Protection: Yes
• BEC: 5V 2.5A & 9V 2A (Max 3A)
• MOUNTING: 30.5mm/M3 WEIGHT: 9g
• Supply :
• 8pin sh1.0 *1
• Smartaudio: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25V)
• VTS Protection: Yes

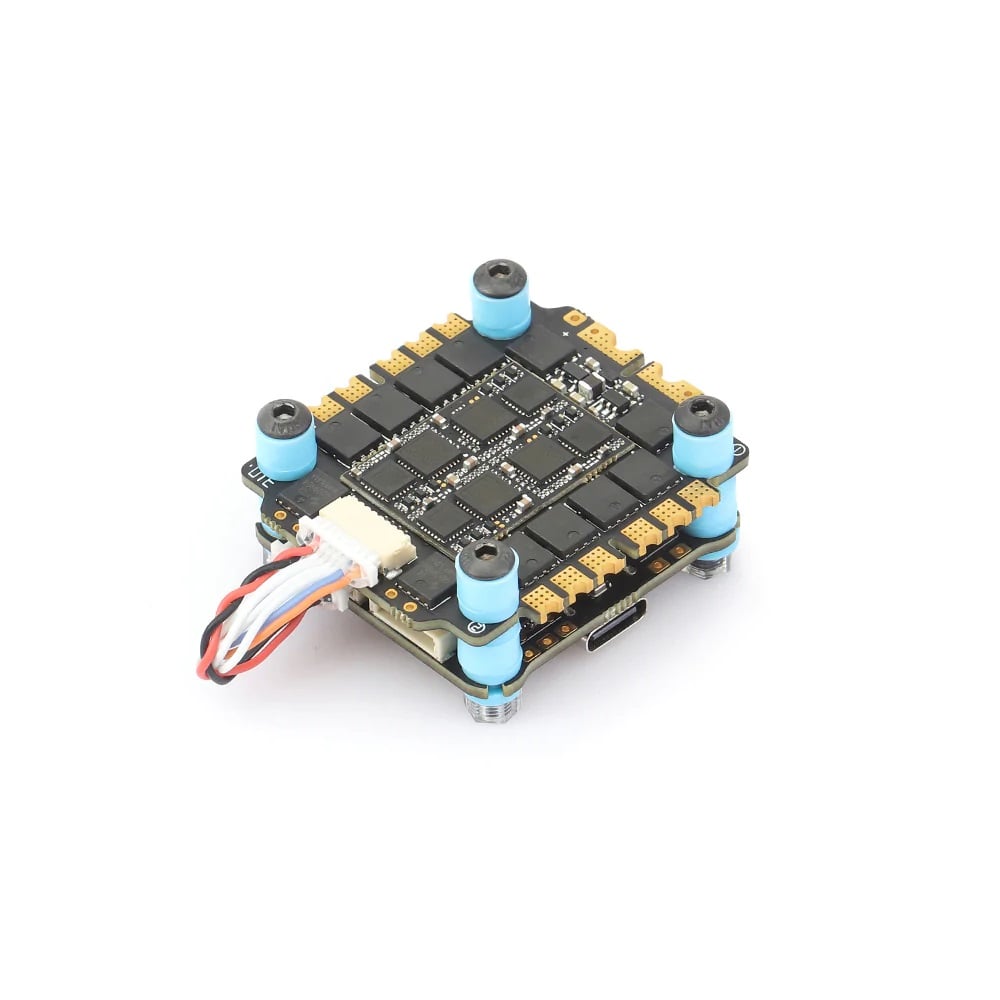

Mamba 55A 128K PWM BLheli32 ESC

• MAMBA 55A F55_128K
• INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
• CONTINUE CURRENT:50A×4
• BURST CURRENT:60A (10S)
• BEC: No
• Target：BLHeli_32 MAMBA F55_128K
• SOFT: Dshot300/600/1200
• TVS Protection: Yes
• MOUNTING: 30.5mm/M3

Package Included

• 1 x  MAMBA F722 APP Flight Controller
• 1 x  MAMBA 55A F55_128K 4IN1 ESC
