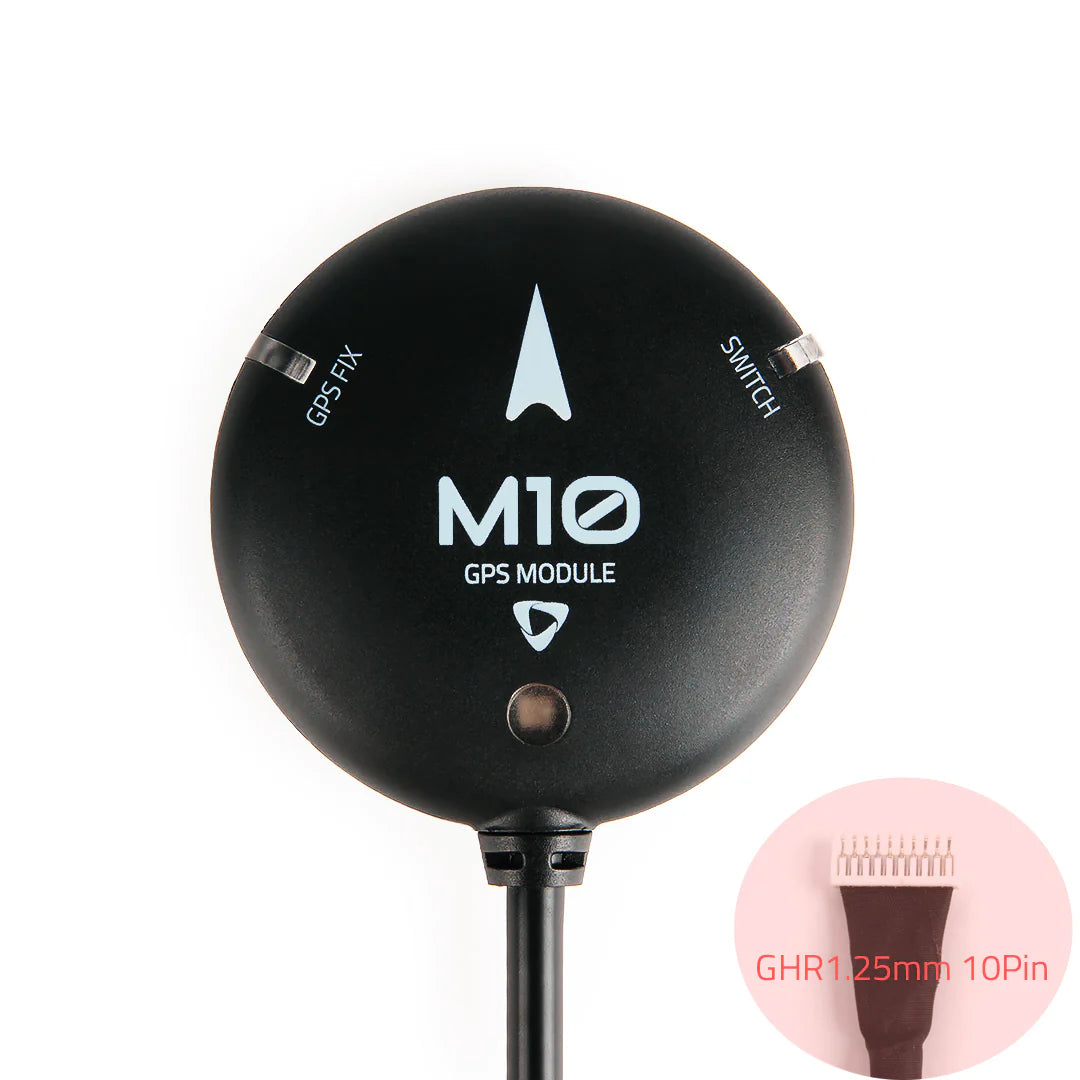

HolyBro M10 GPS Module
£37.99 (ex VAT £31.66)
Navigating with your current GPS is like trying to do the cha-cha with two left feet—awkward and unreliable. Holybro M10 gives you the kind of direction even a life coach would envy. Get yours and cha-cha your way through the skies!
In stock
You, the daredevil FPV pilot, deserve more than just a GPS module that limps through the skies like an injured bird. You want precision, flexibility, and a dash of style—because hey, even if you’re flying a drone, you want to look good doing it.
Enter the pitfall of many a GPS module—laggy response, low accuracy, and compatibility issues. Did we mention that it can be as confusing as a map drawn by a toddler? Ah, the horror!
Don’t fret! With the Holybro M10 Standard GPS Module, you’ll be flying through the skies with the precision of a hawk and the grace of a ballerina—seriously, it’s that good.
🌟 Key Features 🌟
- Four-Way Love Affair: With multi-constellation GNSS, track GPS, Galileo, GLONASS, and BeiDou—all at the same time! It’s like having a buffet of satellites.
- IST8310 Compass: Navigate like Captain Jack Sparrow but without the rum. Always know where you’re going.
- Tricolour LED & Buzzer: No need to ask if it’s working—the LED and buzzer will holler back at you.
- High-Gain Antenna: A 25 x 25 x 4 mm patch antenna for stellar performance. With this, you could find a needle in a haystack.
- Up-to-Date Firmware Support: From PX4 1.14 to Betaflight 4.3.0, we’ve got you covered. Just remember to keep an eye on the latest updates.
🛠 Specifications 🛠
| Holybro M10 GPS | Holybro M9N GPS | |
| GNSS Receiver | Ublox M10 | Ublox M9N |
| Number of Concurrent GNSS | Up to 4 GNSS | Up to 4 GNSS |
| BeiDou | BeiDou | |
| Galileo | Galileo | |
| GLONASS | GLONASS | |
| GPS | GPS | |
| QZSS | QZSS | |
| Frequency Band | GPS L1 | GPS L1 |
| Galileo E1 | Galileo E1 | |
| GLONASS L1 | GLONASS L1 | |
| BeiDou B1 | BeiDou B1 | |
| SBAS L1 | SBAS L1 | |
| QZSS L1 | QZSS L1 | |
| Compass | IST8310 | IST8310 |
| Output Protocol | UBX (U-blox) | UBX (U-blox) |
| NMEA | NMEA | |
| Accuracy | 2.0m CEP | 1.5m CEP |
| Nav. Update Rate | Up to 25 Hz (single GNSS), | Up to 25 Hz (4 concerrent GNSS) |
| Up to 10 Hz (4 concurrent GNSS) | ||
| GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS | EGNOS, GAGAN, MSAS and WAAS |
| QZSS: L1S | QZSS: L1S | |
| Default Baud Rate | 115200 | 115200 |
| Input Voltage | 4.7-5.2V | 4.7-5.2V |

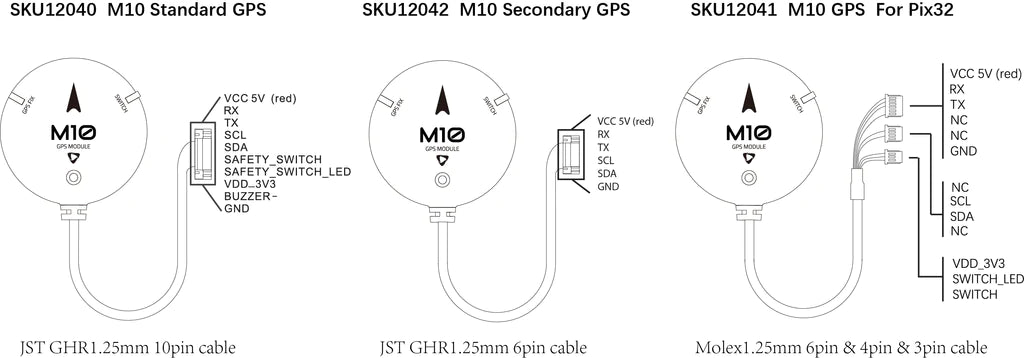

| Port Type | JST-GH-10P | JST-GH-10P |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna | 25 x 25 x 4 mm ceramic patch antenna |
| Power consumption | Less than 200mA @ 5V | Less than 200mA @ 5V |
| Operating Temperature | -40~80C | -40~80C |
| Dimension | φ50 x14.4 mm | φ50 x14.4 mm |
| Weight | 32g | 32g |
| Cable Length | 26cm (42cm cable purchase separately) | 26cm (42cm cable purchase separately) |
| Other | Tri-color LED | Tri-color LED |
| Onboard Buzzer | Onboard Buzzer | |
| Safety Switch | Safety Switch | |
| LNA MAX2659ELT+ RF Amplifier | LNA MAX2659ELT+ RF Amplifier | |
| Rechargeable Farah capacitance | Rechargeable Farah capacitance | |
| Low noise 3.3V regulator | Low noise 3.3V regulator |

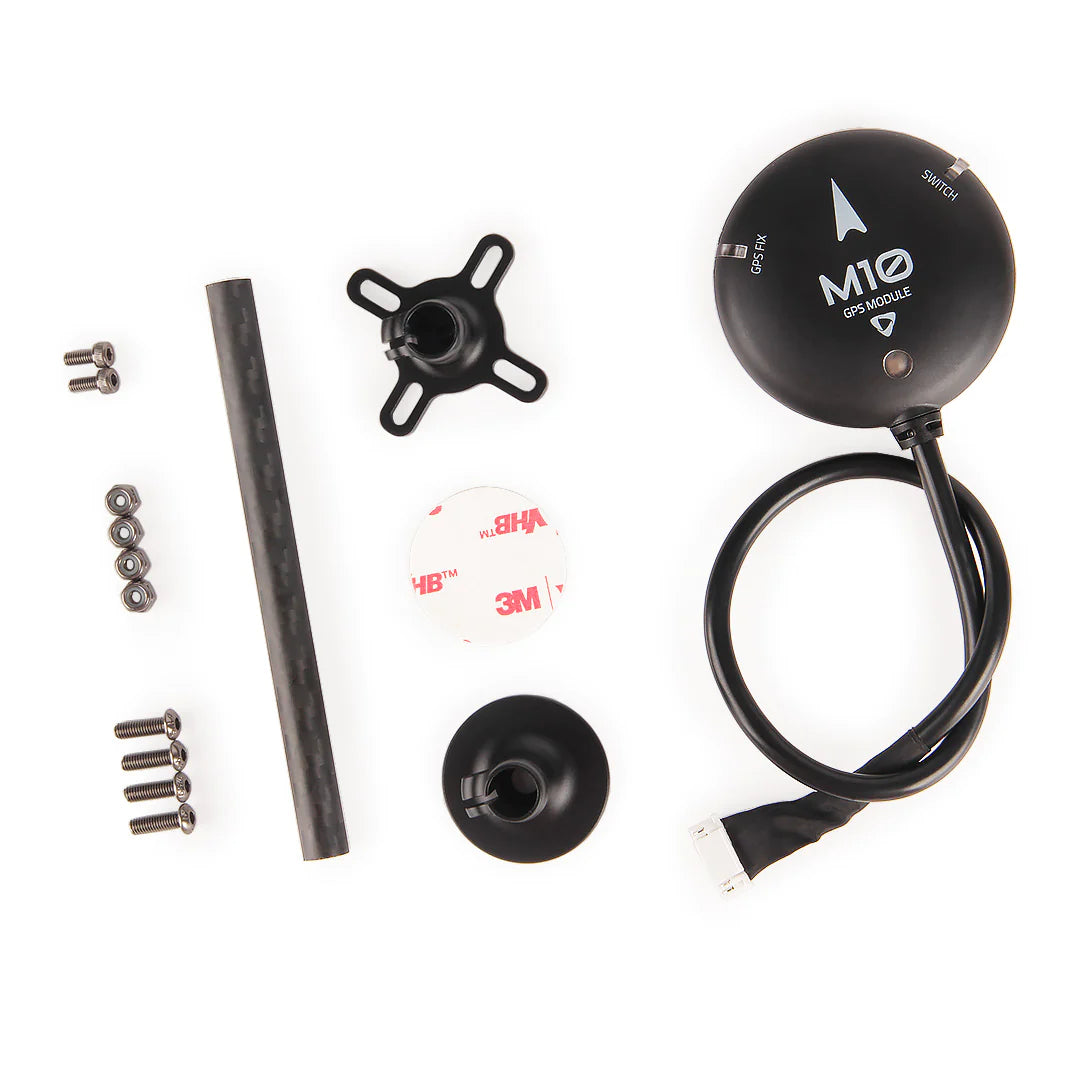

📦 What’s in the Box 📦
- 1x M10 GPS Module

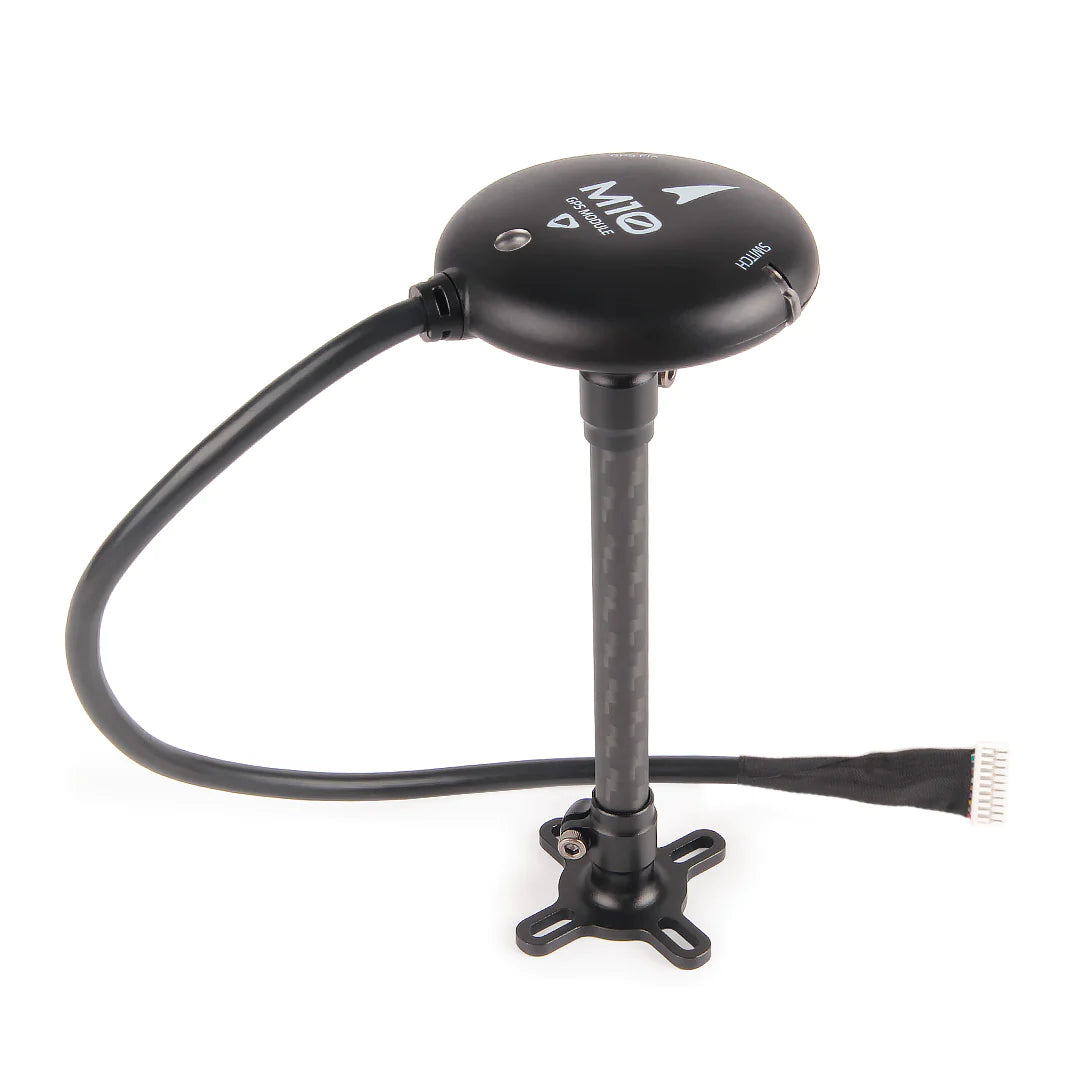

- 1x Fixed Carbon Fiber GPS mount
🎯 Compatibility 🎯
Perfect for the Pixhawk Standard Flight Controller 10pin “GPS Module” or “GPS1” input port.
| Weight | 35 g |
|---|---|
| Dimensions | 10 × 4 × 5 cm |
