Product Details

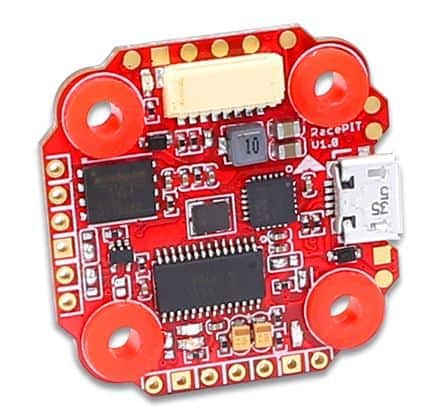

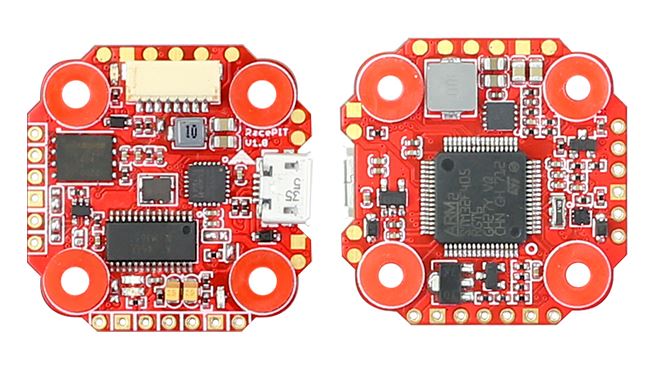

The FuriousFPV RacePIT mini flight controller is a 20x20mm version of the popular racepit FC. Despite being a smaller size this FC still packs most of the features seen in the racepit FC. Some notable features include camera switching, 4-in-1 connector, VTX power switch, and 6 full UART ports.
Capable of running 2-6S input voltage, 6 Uarts, and a built-in inverter for S.BUS and S.PORT means you'll be able to adapt the RacePIT FC to almost any build.
Features
- Built-in connector for 4in1 ESC as well as solder pads
- Built-in power switch for VTX, support 5V & VBAT
- Built-in Camera Switcher
- Inverter for SBUS & S.PORT
- Full 6 Uarts for Simultaneous Connections of Runcam Device, GPS, CRSF RX, Bluetooth, and Others
Specifications
- Item Name: F4 Flight Controller AIO OSD BEC
- Input Voltage: 2-6S Lipo
- CPU: STM32F405
- Gyro: MPU6000
- Built-in 16MB Black Box flash
- Built-in Betaflight OSD

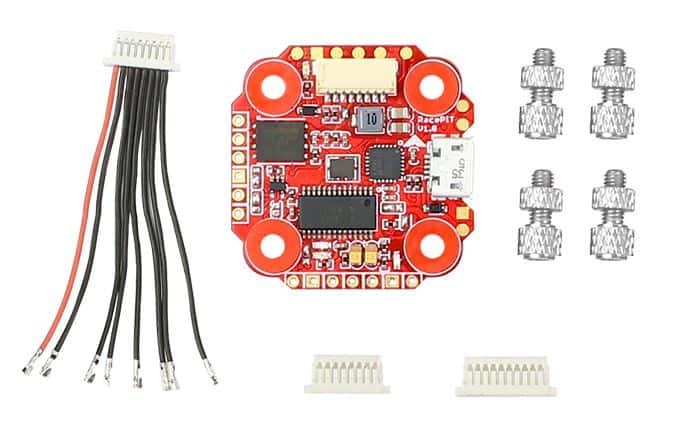

Includes
- 1x RacePIT F4 Mini Flight Controller Board
- 1x 8P Cable
- 2x Cable Connector Plugs
- 1x Bag of Screws
