Fettec FETtec ESC 4in1 45A (3-6S)

£73.95 (ex VAT £61.63)

Out of stock
Restock in 2+ Weeks

Want to be notified when this product is back in stock?

SKU: 280-E51-F07 Category: Tag: Brand:

PLEASE READ THE IMPORTANT NOTE IN DESCRIPTION!
The FETtec ESC is a 4in1 ESC uses full sine wave control to make your motors run super efficient and quieter.

If using this ESC on 6S you should use the FetTec spike absorber

Fettec FETtec ESC 4in1 45A (3-6S)

£73.95 (ex VAT £61.63)

Out of stock
Restock in 2+ Weeks

Want to be notified when this product is back in stock?

PLEASE READ THE IMPORTANT NOTE IN DESCRIPTION!
The FETtec ESC is a 4in1 ESC uses full sine wave control to make your motors run super efficient and quieter.

If using this ESC on 6S you should use the FetTec spike absorber

Not the cheapest?

We will try to beat it!

⚠️Always test your item before soldering, issues caused by soldering aren't covered by warranty.

SKU: 280-E51-F07 Category: Tag: Brand:

IMPORTANT NOTE: Fettec have advised that the active current limiting feature will not protect against burst current. We recommend that motor/propeller combinations used with this ESC draw no more than 35A continuous, as blown MOSFETs will likely not be covered under warranty over this current limit.

This is the second ESC released by FETtec. This ESC supports both KISS and Betaflight and runs at Dshot 2400.  It supports 3-6S input and if running on 6S, it also has direct mounting options to add capacitors to ensure your circuits are running clean.  Bottom line this is one awesome ESC to get the most out of your motors.

Works great with the FeTtec Kiss F7 FC

Specifications

  • Active current limiting @ 45A*** SEE IMPORTANT NOTE
  • Input voltage: 3S-6S
  • High quality 40V MOSFETs
  • STM32G071 @ 64MHz
  • 128 kHz Motor PWM
  • Full sine wave control
  • Soldering holes for up to 5 additional capacitors
  • KISS FC Passthrough
  • Betaflight Passthrough (available in 4.1)
  • Automatic input signal detection:
    • Dshot 300-2400
    • PWM
    • OneShot 42/125
    • OneWire BUS with up to 8kHz looptime (one cable for all Motorsignals and Telemetry)
    • in development: Crossfire, SBUS

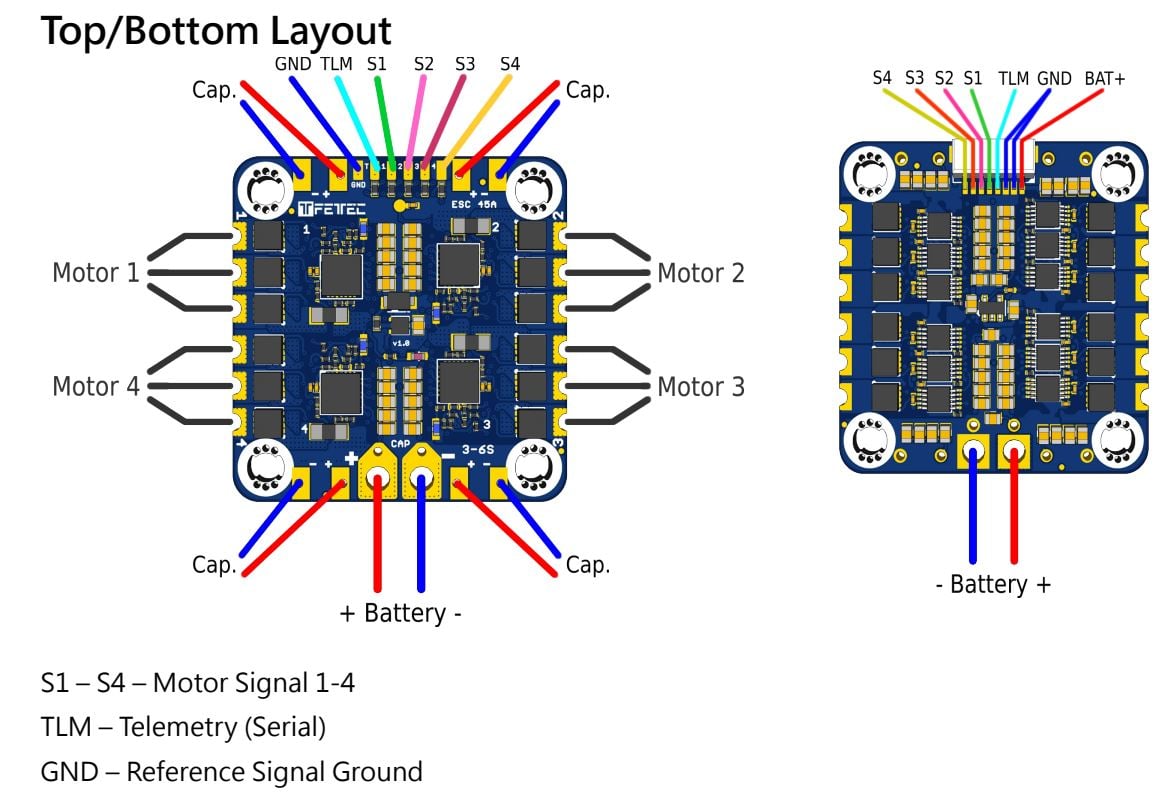

Fettec 45a pinout

FETtec_ESC_45a_Manual

Betaflight_Passthrough_Guide

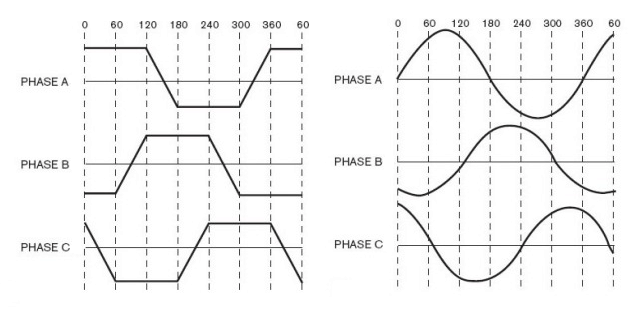

What is Full Sine Wave Control?

Most ESC control the FETs by simply turning them on and off which works, this means the power change as the current moves form one phase of the motor to the next is very abrupt (image below left graph).  This effect is what causes the whining on brushless motors.  A sine wave controller on the other-hand, still uses FETs to control the current to various phases in the motor, but the power change is applied smoothly (image below right graph).

Sinewave3

Dimensions

  • 38 mm x 38 mm
  • Mounting hole: 30,5 mm x 30,5 mm, M3 expandable to M4

Firmware

  • New FETtec Firmware
  • FETtec Configurator for updated, configuration and telemetry. Standalone for MacOS, Windows 32 & 64 bit and Chrome Plugin

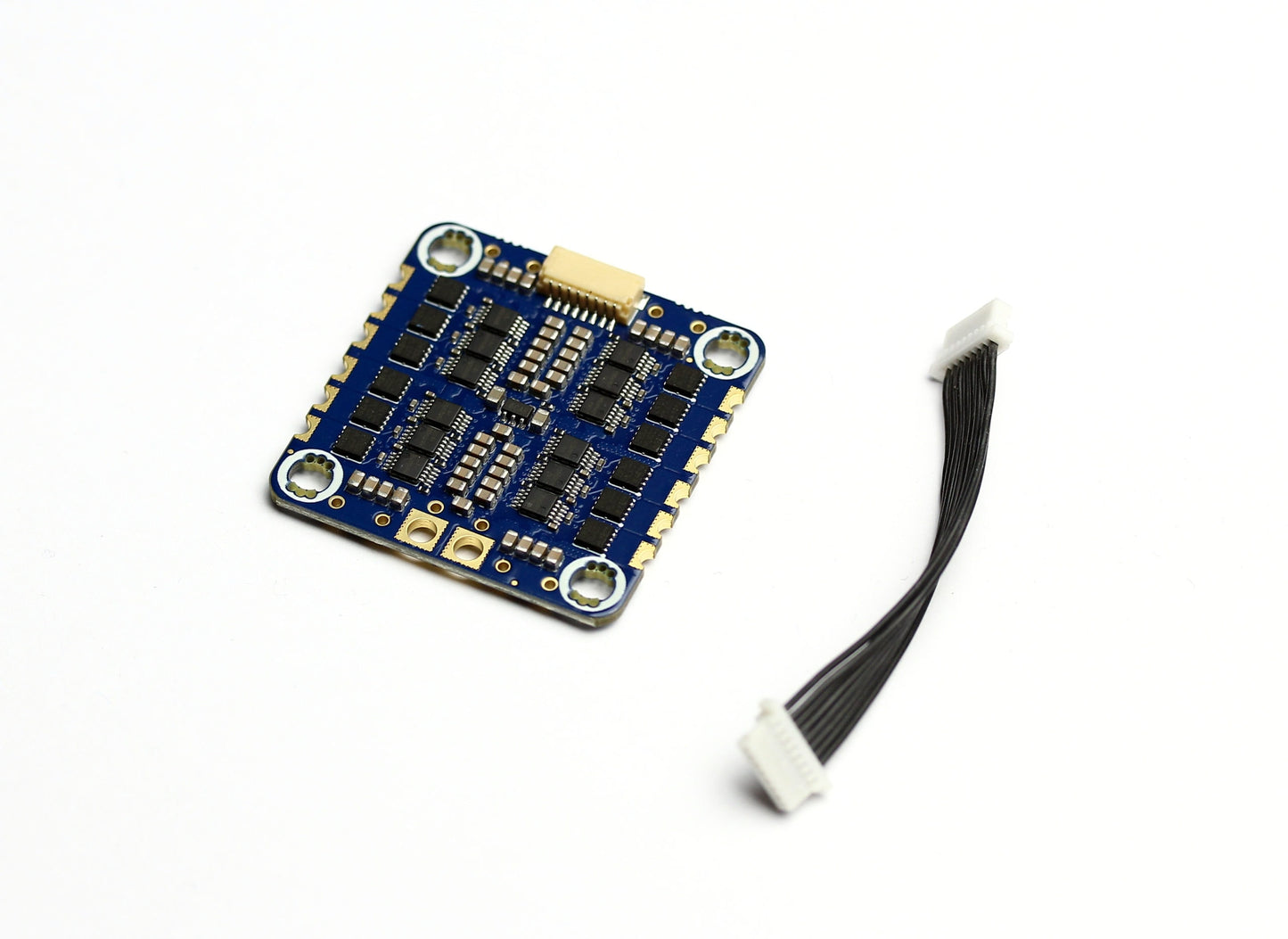

Included

  • FETtec ESC 4in1 45A
  • Capacitor 50V, ESC < 1ohm (477CKE050M)
  • JST-SH 8 Pin Cable



Weight 100 g
