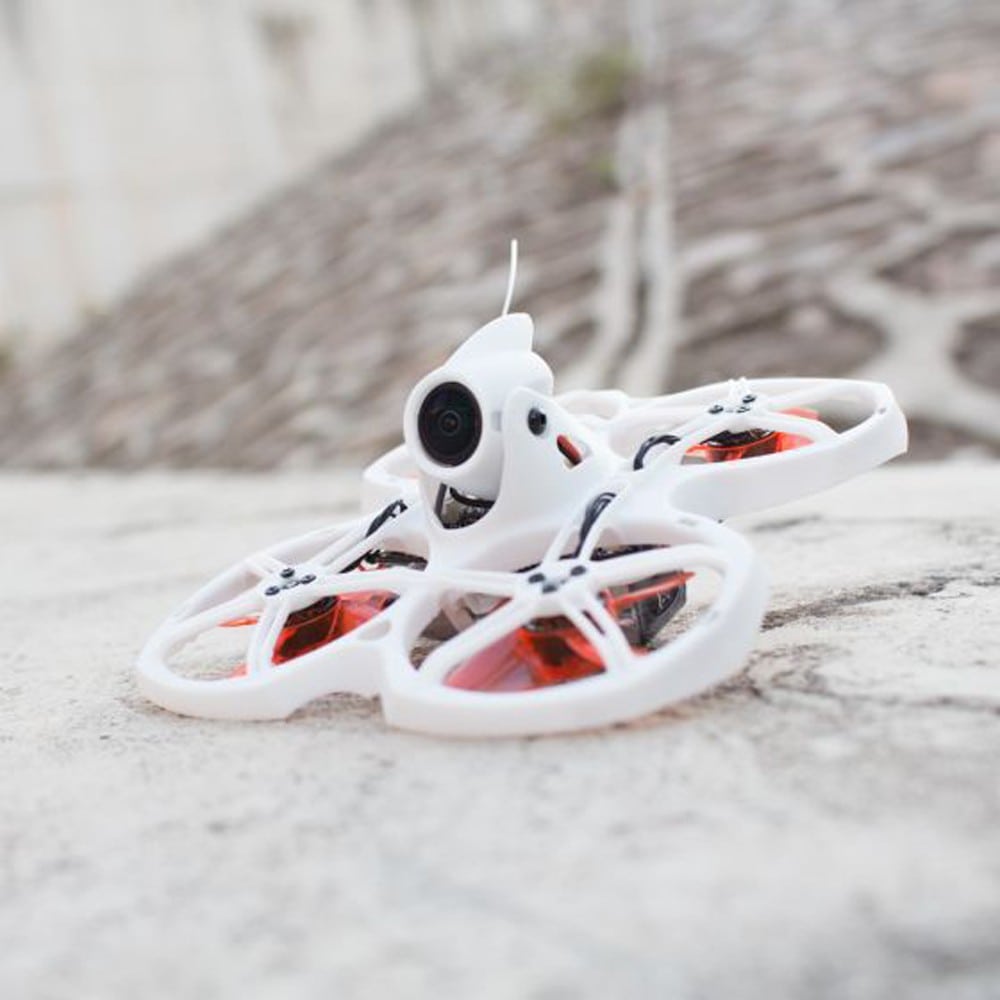

EMAX TinyHawk II Micro Brushless FPV Drone (RTF Bundle)

By partnering with experts over at Runcam, EMAX was able to update its bundle to the Tinyhawk II. The Tinyhawk features the Nano 2 FPV Camera, known for its crisp colors, wide dynamic range, and sharp optics. Modifying the video transmitter with more filters and power has allowed the Tinyhawk II to have a cleaner video than ever on 25mw, the indoor standard, as well as 100mw and 200mw options for increased range and object penetration while experiencing crystal clear video.

The RTF Bundle gives you everything you need to start flying in just minutes. Everything is included, goggles, radio, and of course the TinyHawk II quadcopter! This bundle is the perfect solution for anyone to learn the basic of FPV flying, beginners and pros alike.

The included receiver is compatible with the FrSky D8 and D16 mode.

Note: Though it is compatible with FrSky_X (D16), for best performance it is recommended to use FrSky_D (D8) and set “Telemetry OFF” on your radio.

Features

• 75mm Indoor racing drone
• 08025 brushless motor with durable ball bearing for increase flight and low maintenance
• Durable polypropylene plastic frame with propeller guards
• Motor beeper function. Find your TinyHawk after a crash
• Speeds up to 56kph
• Up to 4 minutes of flight time on a single battery
• Fast F4 Processor for smooth stable flight characteristics
• MPU6000 gyro for vibration-free operations
• Unique inverted motor design to keep CG as low as possible to fit in the smallest of spaces
• 25mw VTX and 600tvl Camera included for fun FPV flight via FPV style goggles
• Smart Audio function to change VTX channel via your transmitter
• OSD settings control to customize flight feel
• Pre-tuned from the factory with expert pilots and new pilots in mind. 3 rate profile settings for all types of flying feel
• Plug-in type motors for easy maintenance
• 1s High Voltage (HV) 450mah lipo included
• FrSky compatible D8 receiver built in to FC
• Custom carbon fiber themed carrying case

Specifications

TinyHawk Specifications

Frame

• Wheelbase: 75mm
• Dry Weight: 31.2g
• All Up Weight: 43.5g with 1x 450mAh 1S battery
• Frame Material: Polypropylene

Motors

• Stator Size: 0802
• Kv: 16000kv
• Propeller Mount: Push-On Avan TH-style
• Propeller: Avan Turtlemode 4-Blade

All-In-One (AIO) Flight Controller

• Flight Controller: F4 (MATEKF411RX Firmware)
• ESC: 4-in-1 5A BlHeli_S
• Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode)
• Battery Connector: JST-PH2.0

5.8ghz FPV System

• VTX Power: 25/100/200mw Switchable
• Channels: 37CH incl. Raceband
• Camera: RunCam Nano 2 1/3″ 700TVL CMOS
• Smart Audio Connected

Includes

• 1x Tinyhawk II BNF
• 1x EMAX 450mAh 1S HV Battery
• 1x EMAX 300mAh 2S HV Battery
• 2x CCW + 2x CW Spare Props
• 1x 1S-2S USB LiPo Charger
• 1x Screwdriver + Hardware Kit

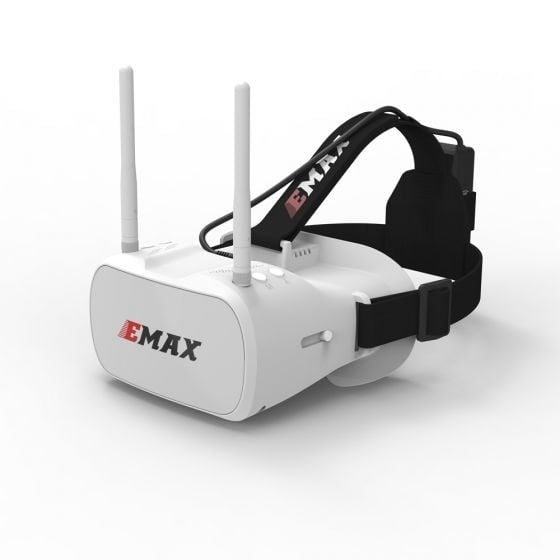

EMAX Transporter Goggles Specifications

• Maximum appearance size 140×153×90(mm)
• Weight (without battery) 398g
• Resolution 480×272
• Battery 1 cell 18650 lipo battery

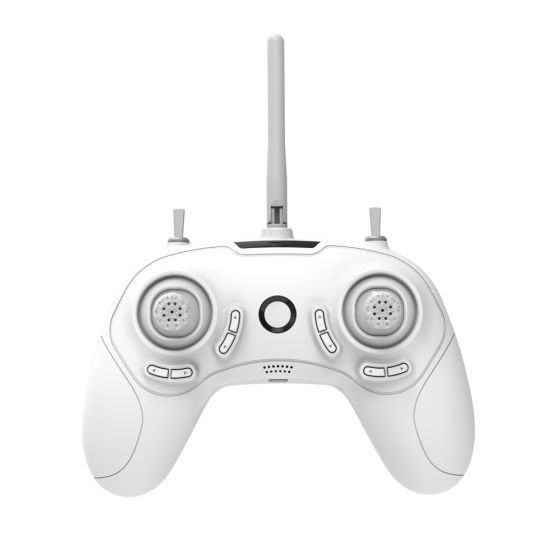

EMAX E6 Transmitter Specifications

• Maximum appearance size 181×213×80(mm)
• Weight (without battery) 211g
• Number of channels 6 Channels
• Transmission frequency 2.4GHz ISM Band（2400MHz~2483.5MHz）
• Output Power 22dbm
• Modulation GFSK
• Battery 1 cell 18650 lipo battery

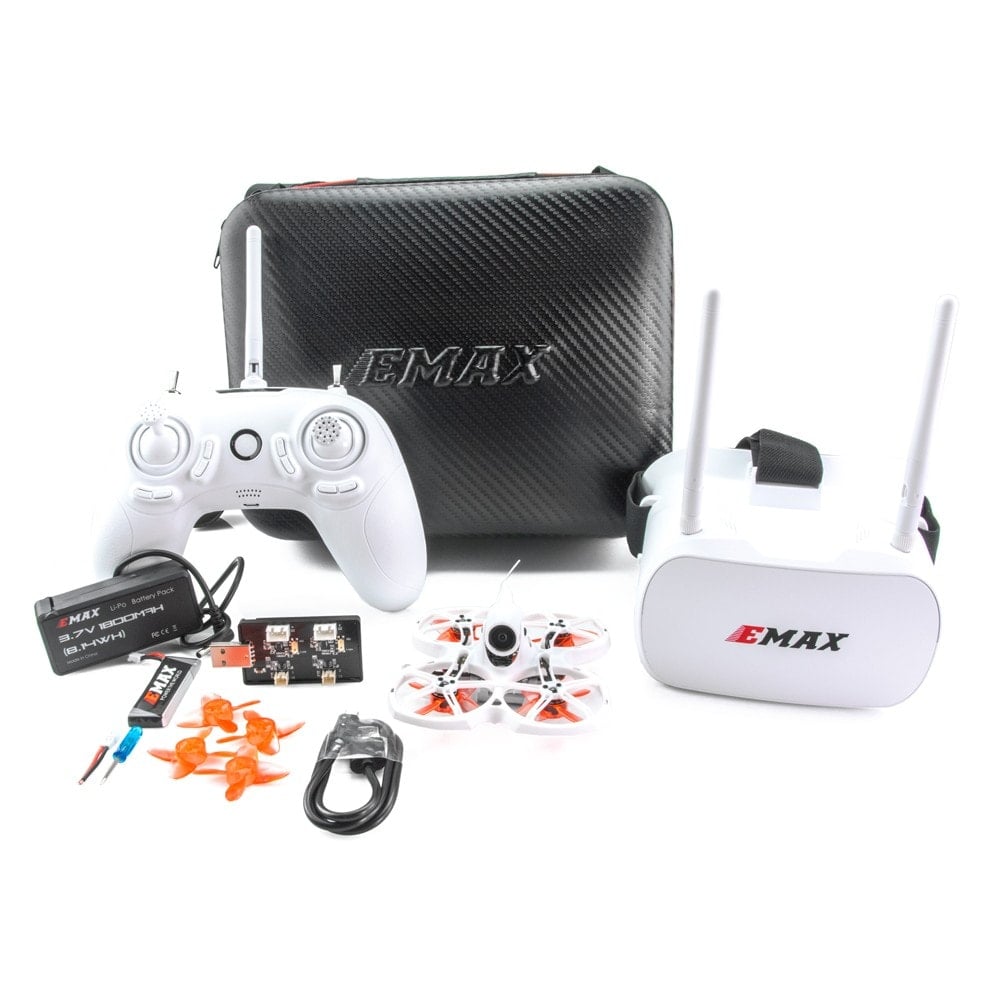

Included

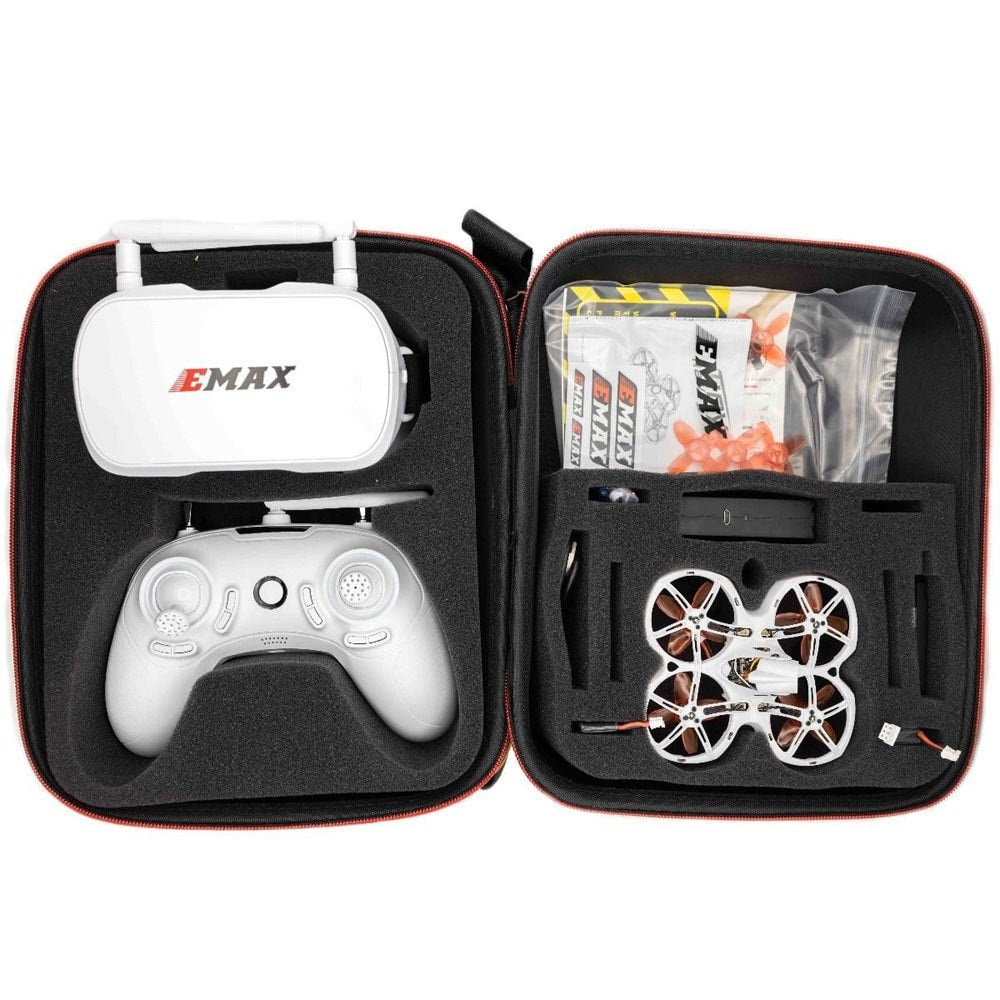

• Lightweight soft carry case, with carbon fiber design
• Tiny Hawk II indoor flying drone
• USB High Voltage capable 4 port USB Charger
• 1s High Voltage (HV) 450mah lipo battery.
• FPV Goggle: EMAX Transporter 40 channel
• EMAX E6 Transmitter: 6 Channel
• USB Cable for charging goggle, radio
• Parts Bag
• Phillips screwdriver
• 2x 18650 Battery already pre-installed
• 1 Set spare AVAN Tinyhawk 3 blade propellers.
