Looking for a reliable and feature-rich autopilot system for your drone or other autonomous vehicle? Look no further than the Cube Orange Plus Autopilot Module! With a faster H7 SOC, upgraded triple redundant IMUs, and a compact cube form factor, the Orange+ is designed to provide the performance you need.
But the Orange+ doesn’t just stop at basic flight control – its IMUs are mechanically isolated to reduce the impact of frame vibrations, and are temperature-controlled to ensure optimal performance in any conditions. And with full compatibility with the Cubepilot carrierboard, you can easily integrate the Orange+ into your commercial system. All inputs and outputs go through a convenient 80-pin DF17 connector, allowing for a plug-in solution that’s perfect for manufacturers. You can even design your own carrier board to suit your specific needs now and in the future.
Plus, with support for both Ardupilot and PX4 software, you can trust that the Orange+ will provide reliable and feature-rich performance. Don’t miss out on this game-changing autopilot module – add the Cube Orange Plus to your cart today and take your flight capabilities to new heights!
Cube Orange Features
1. Faster H7 SOC with 1MB ram.
2. Upgraded triple redundant IMU sensors for extra redundancy.
3. Two sets of IMU are vibration-isolated mechanically, reducing the effect of frame vibration to state estimation.
4. IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs.
5. The entire flight management unit(FMU) and inertial management unit(IMU) are housed in a reatively small form factor (a cube).
6. Fully Cubepilot carrierboard compatible, all inputs and outputs go through a 80-pin DF17 connector, allowing a plug-in solution for manufacturers of commercial systems.
7. Manufacturers can design their own carrier boards to suit their specific needs now and in the future.
Vibration Damped IMU board version 3 (Fitted to Cube Orange+)
- MS5611 barometer
- All sensors connected via SPI.
- 14 PWM servo outputs (8 from IO, 6 from FMU).
- R/C inputs for CPPM, Spektrum / DSM and S.Bus.
- Analogue / PWM RSSI input.
- S.Bus servo output.
- 5 general purpose serial ports, 2 with full flow control
- Two I2C ports
- One SPI port (un-buffered, for short cables only not recommended for use).
- Two CAN Bus interface. (CAN FD for BlueH7 and Orange with CubePilot Logo)
- 3 Analogue inputs
- High-powered piezo buzzer driver. (On expansion board)
- High-power RGB LED. (I2C driver compatible Connected externally only)
- Safety switch / LED.

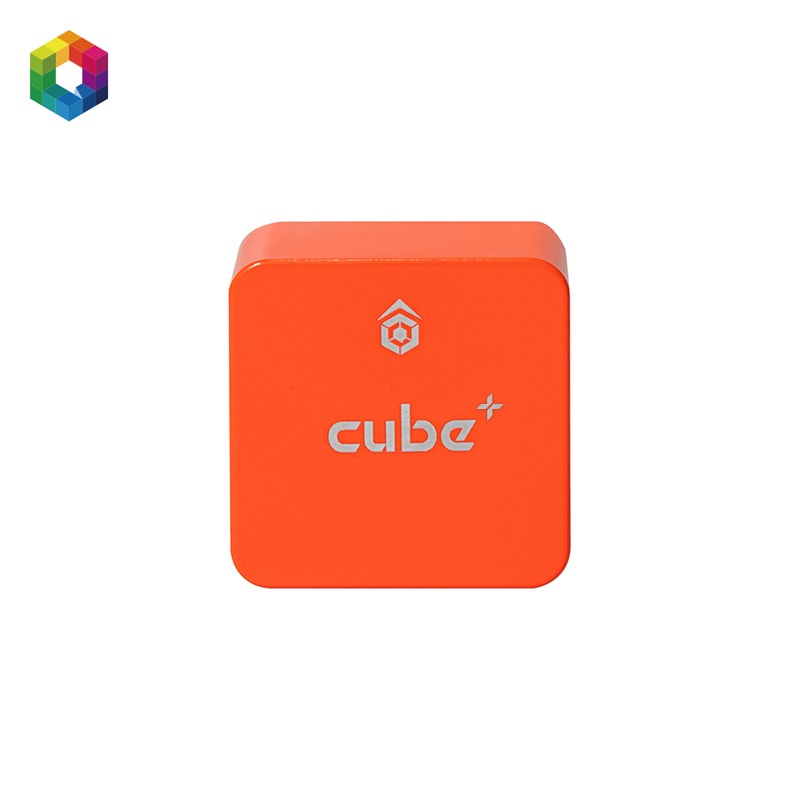

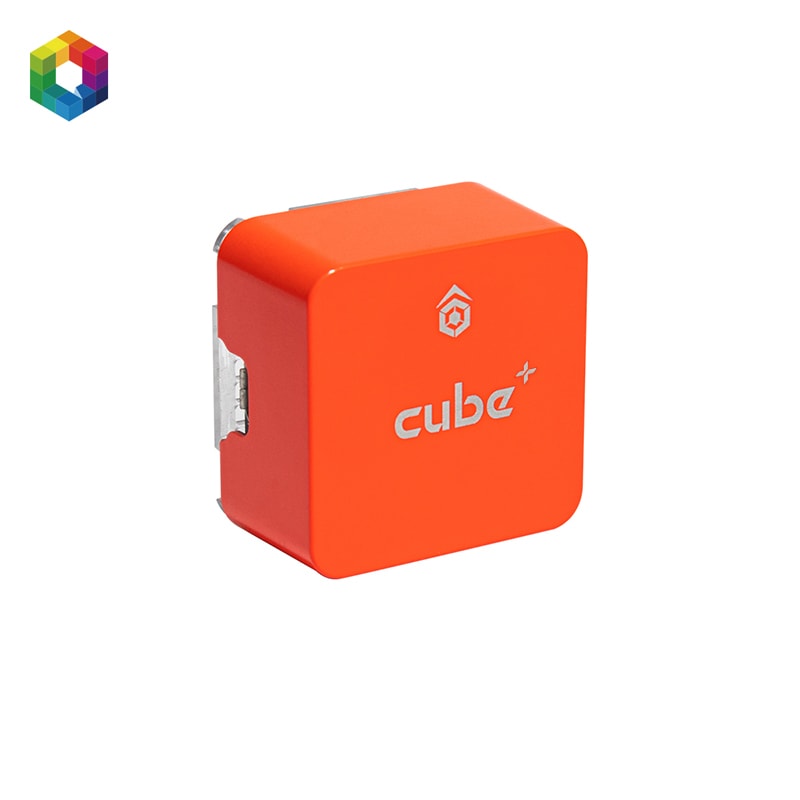

- 1pc Pixhawk Cube Orange+ FMU Module (IMU V8)
