TheFPV BS2 OSD Micro AIO FPV Camera and 25mW VTX

(1 customer review)

£13.95 (ex VAT £11.63)

Out of stock
Stock due in a few days

Want to be notified when this product is back in stock?

SKU: 0C0-350-435 Categories: , Tags: , Brand:

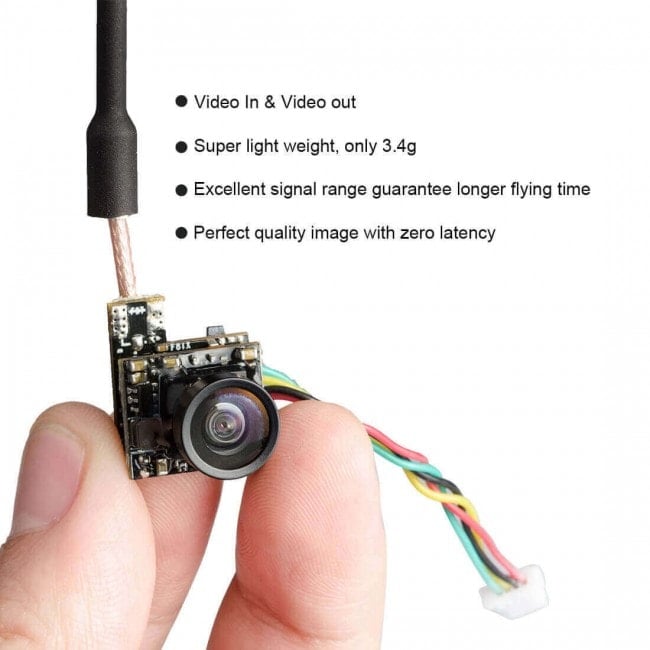

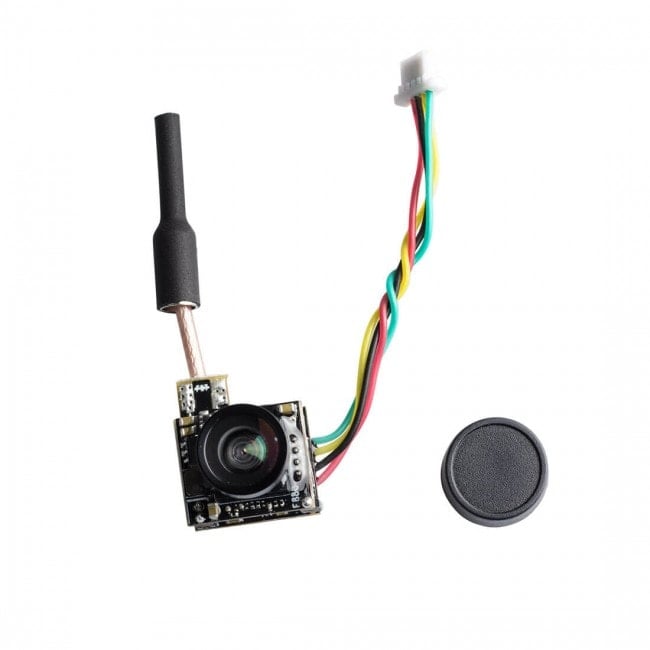

This is a tiny all in one FPV and VTX combo ideal for tiny whoop quadcopters. This camera has a video in and out option that lets you use your flight controller OSD with this camera, but you can also disable this and use it entirely as a stand alone AIO unit if you prefer.

TheFPV BS2 OSD Micro AIO FPV Camera and 25mW VTX

£13.95 (ex VAT £11.63)

Out of stock
Stock due in a few days

Want to be notified when this product is back in stock?

This is a tiny all in one FPV and VTX combo ideal for tiny whoop quadcopters. This camera has a video in and out option that lets you use your flight controller OSD with this camera, but you can also disable this and use it entirely as a stand alone AIO unit if you prefer.

Not the cheapest?

We will try to beat it!

⚠️Always test your item before soldering, issues caused by soldering aren't covered by warranty.

SKU: 0C0-350-435 Categories: , Tags: , Brand:

This is a tiny all in one FPV and VTX combo ideal for tiny whoop quadcopters. This camera has a video in and out option that lets you use your OSD with this camera. If you do not want to use an OSD you just need to connect the Video in and out on the AIO unit together giving you the best of both options. Otherwise it uses a decent quality lens to give you a great picture from your tiny whoop for this price.

Specifications

  • Output power:25mW
  • Frequency:48CH
  • Input voltage: 3.3V-5.5V
  • Current consumption:300mA(type)
  • Camera resolution: 600TVL
  • Field of view: 120°
  • Video Format:NTSC
  • Antenna : Dipole Antenna
  • Frequency: 5.8GHz 6 bands 48 channels
  • with Raceband: 5474-5945 MHZ

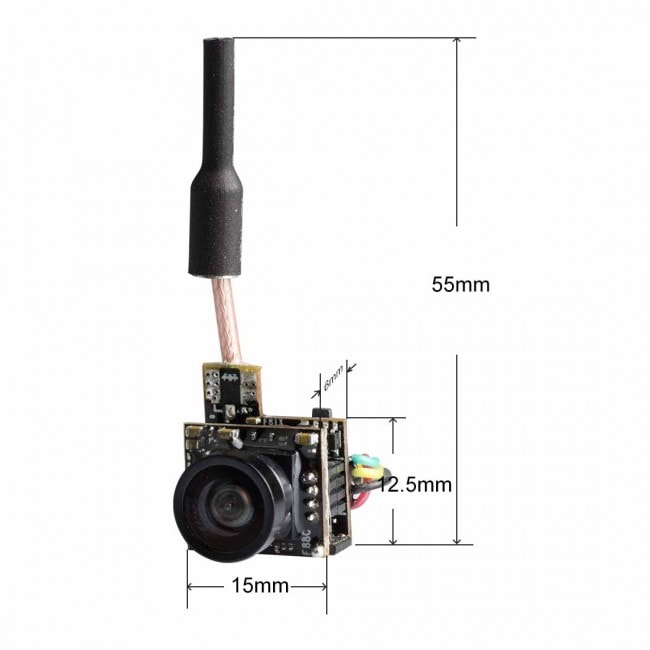

  • Size:13.9*12.0mm(L*W)
  • Weight:2.6g (without antenna and cable)

If you do not want to use your FC OSD please connect the Video Out and Video in wires together

Weight 100 g

1 review for TheFPV BS2 OSD Micro AIO FPV Camera and 25mW VTX

  1. MartianMcFlyFpv (verified owner)

    Works like a charm!

Only logged in customers who have purchased this product may leave a review.

Share this item on:

Product Meta Information:

SKU: 0C0-350-435 Categories: , Tags: , Brand:

This is a tiny all in one FPV and VTX combo ideal for tiny whoop quadcopters. This camera has a video in and out option that lets you use your OSD with this camera. If you do not want to use an OSD you just need to connect the Video in and out on the AIO unit together giving you the best of both options. Otherwise it uses a decent quality lens to give you a great picture from your tiny whoop for this price.

Specifications

  • Output power:25mW
  • Frequency:48CH
  • Input voltage: 3.3V-5.5V
  • Current consumption:300mA(type)
  • Camera resolution: 600TVL
  • Field of view: 120°
  • Video Format:NTSC
  • Antenna : Dipole Antenna
  • Frequency: 5.8GHz 6 bands 48 channels
  • with Raceband: 5474-5945 MHZ
  • Size:13.9*12.0mm(L*W)
  • Weight:2.6g (without antenna and cable)

If you do not want to use your FC OSD please connect the Video Out and Video in wires together

Weight 100 g
