AOS HS5 High Speed Quadcopter (3D Prints Only for DJI O3/ DJI O4 Pro)

Need spares for your AOS HS5 FPV frame? This kit includes only the 3D printed components of the AOS HS5 frame—ideal for repairs or replacements when your high-speed adventures take a toll. The AOS HS5 is designed for those who want top performance at breakneck speeds, but please note: this kit does NOT include any carbon fiber or frame hardware, only the 3D printed parts (PETG+TPU).

It’s one thing to crash a drone; it’s another to be caught off guard by your own failsafe settings. Joshua Bardwell recently learned this the hard way while testing his AOS HS5. Turns out that in Stage 1 Failsafe, if you leave an AUX mode active longer than the timeout value, it’ll kindly roll over to Stage 2… which just happens to be disarm. In Joshua’s case, one second of blissful Stage 1 was all it took—then came the inevitable plummet, caught in all its painful detail here on YouTube

Key Features of the AOS HS5 3D Printed Parts Kit

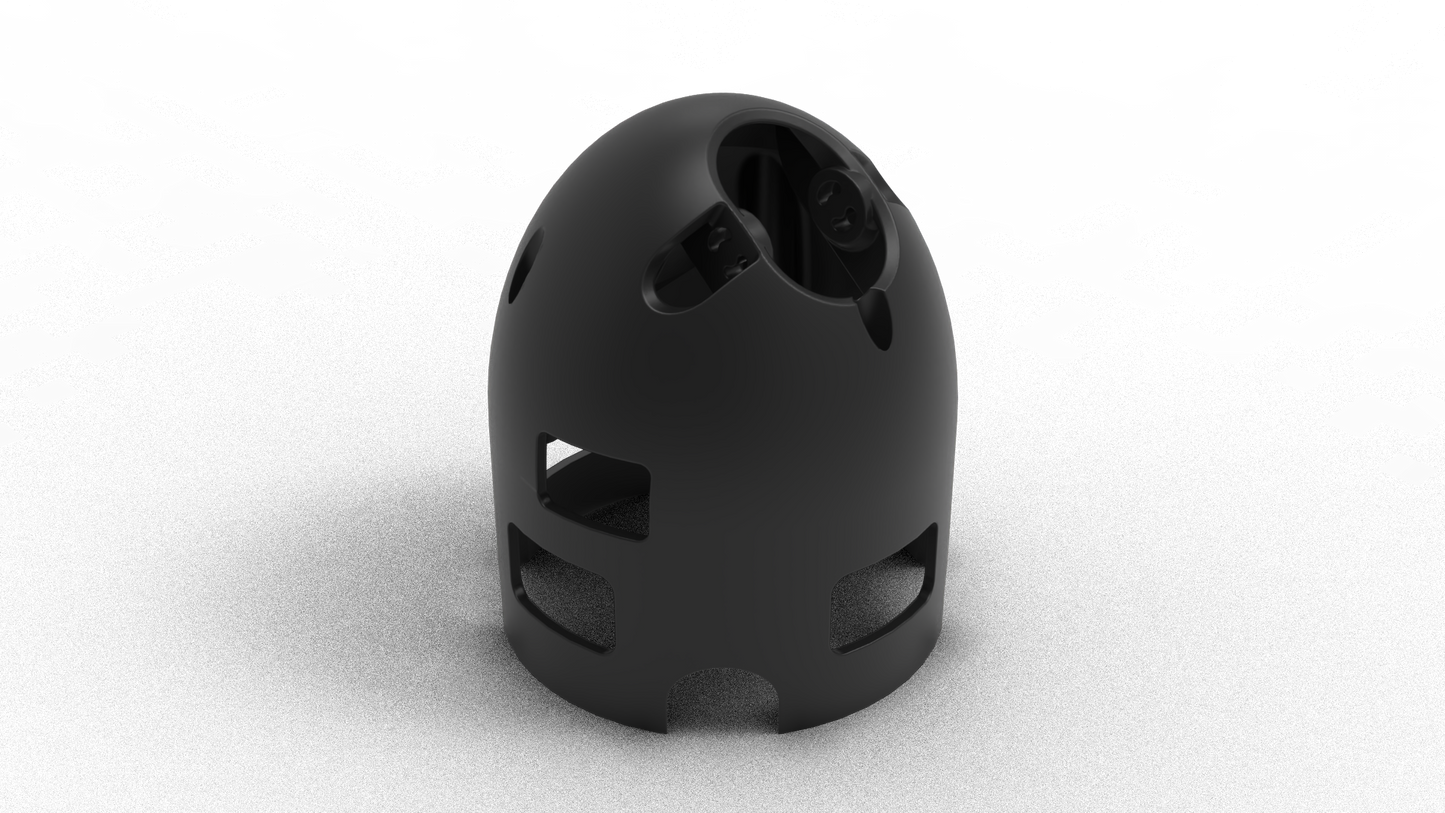

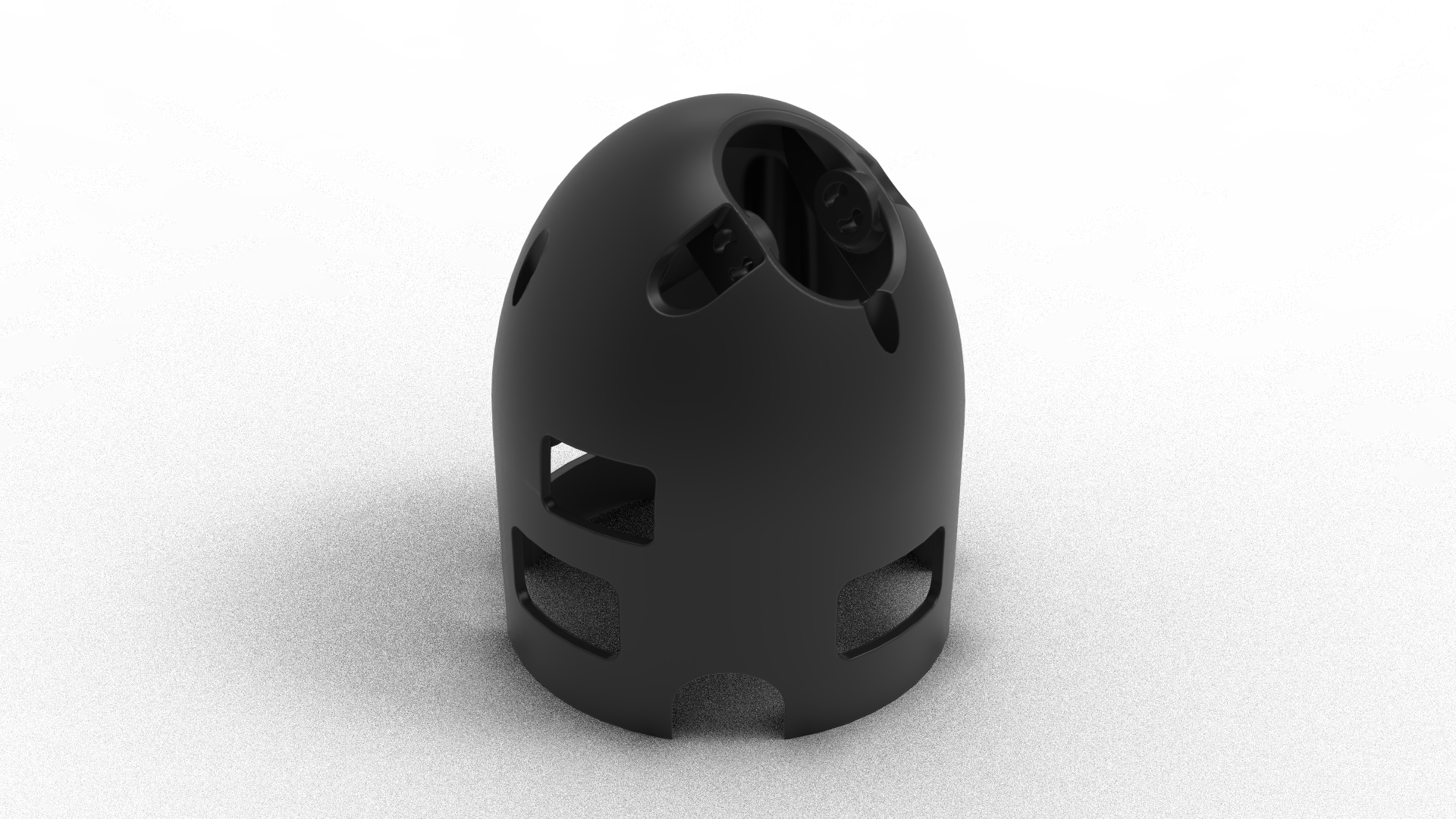

• Supports DJI O3 or DJI O4/ O4 Pro Air units: Includes the new canopy with TPU parts that can fit either the DJI O3 or DJI O4 Pro cameras
• Precision-Optimized FPV Design: Compatible with a 155° field of view (FOV) camera to give you a wide-angle, prop-free view
• Aerodynamic Enhancements: These parts include CFD-optimized spinners and tail fins designed to boost stability and reduce drag—perfect for high-speed flights.
• Straightforward Component Layout: With dedicated spaces for VTX, camera, receiver, and antennas, the 3D printed shell parts make building and component organization a breeze.

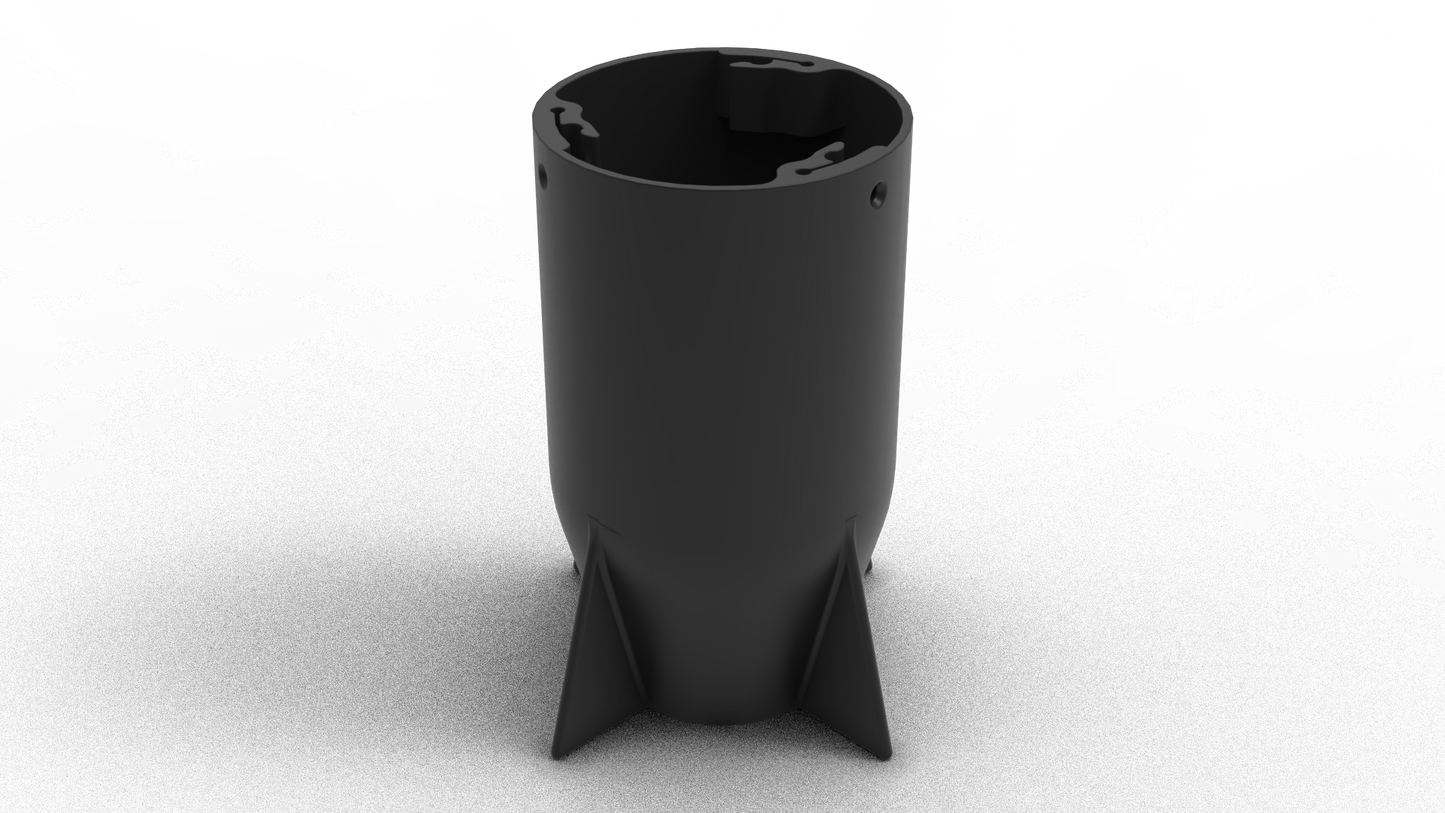

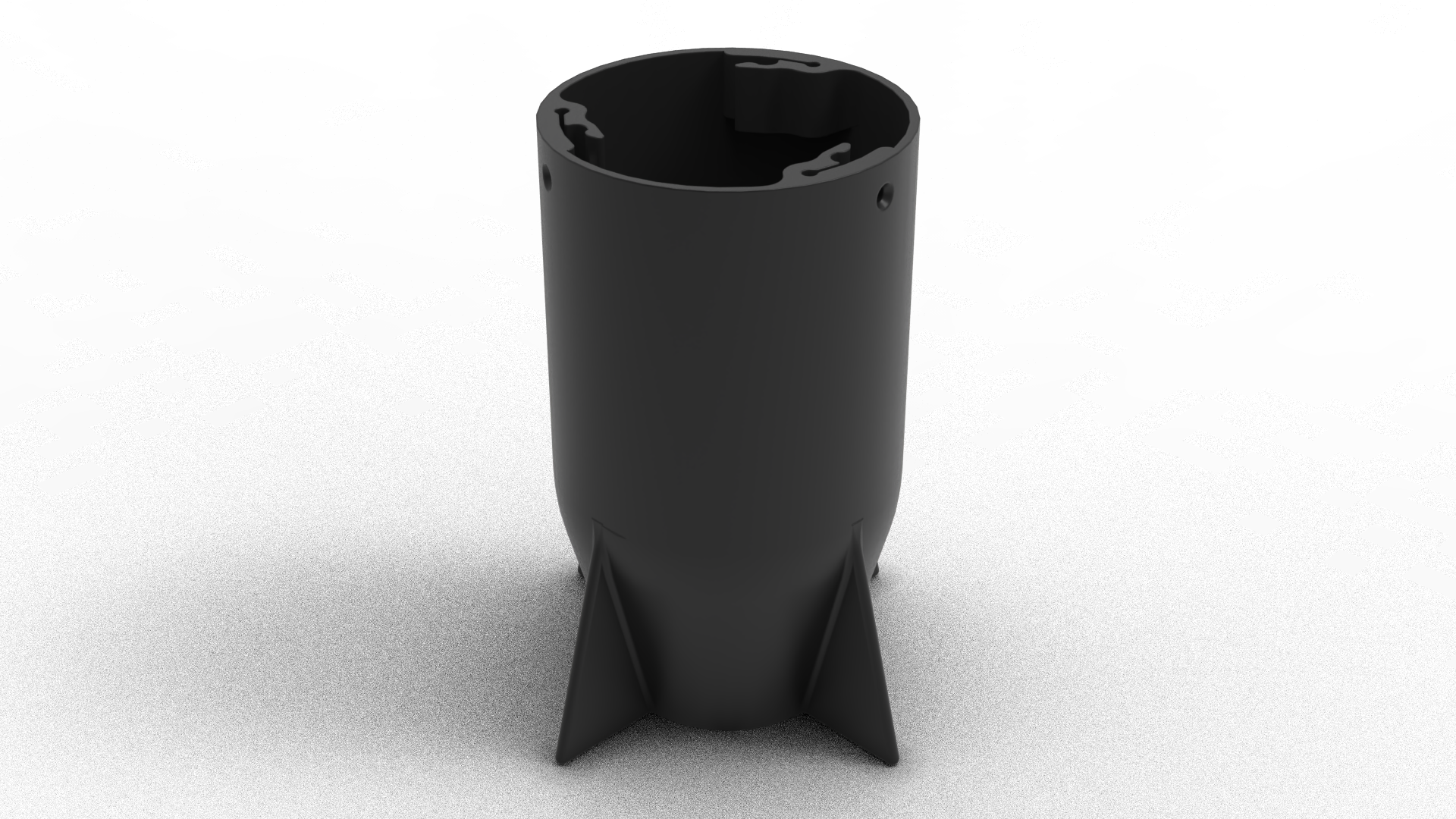

• Battery Compartment Access: Quickly swap batteries via the rear shell, which includes cutouts for easy access to USB ports on your flight controller and VTX.

Specifications:

• Prop Size: Supports up to 6″ (Recommend APC 5.25″)
• Electronics: Compatible with 30.5 mm stacks
• Camera: 155° FOV, no props visible, supports 19-20 mm cameras
• Battery Compatibility: 6S 1800mAh (90 x 40 x 55 mm)
• Motor Mounting: ⌀16-⌀19mm, 2808 1950KV recommended
• VTX: Works with both Digital and Analog VTX systems

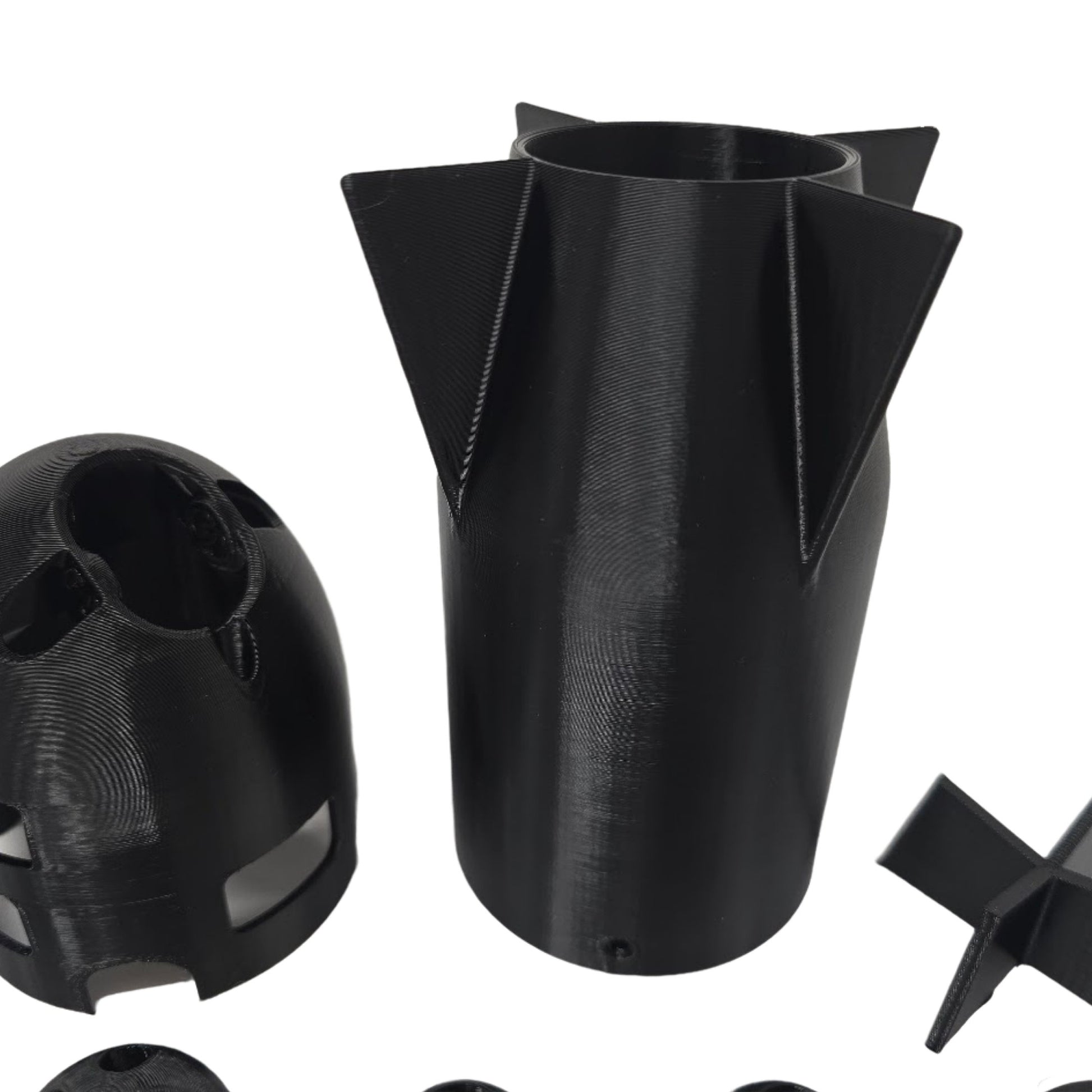

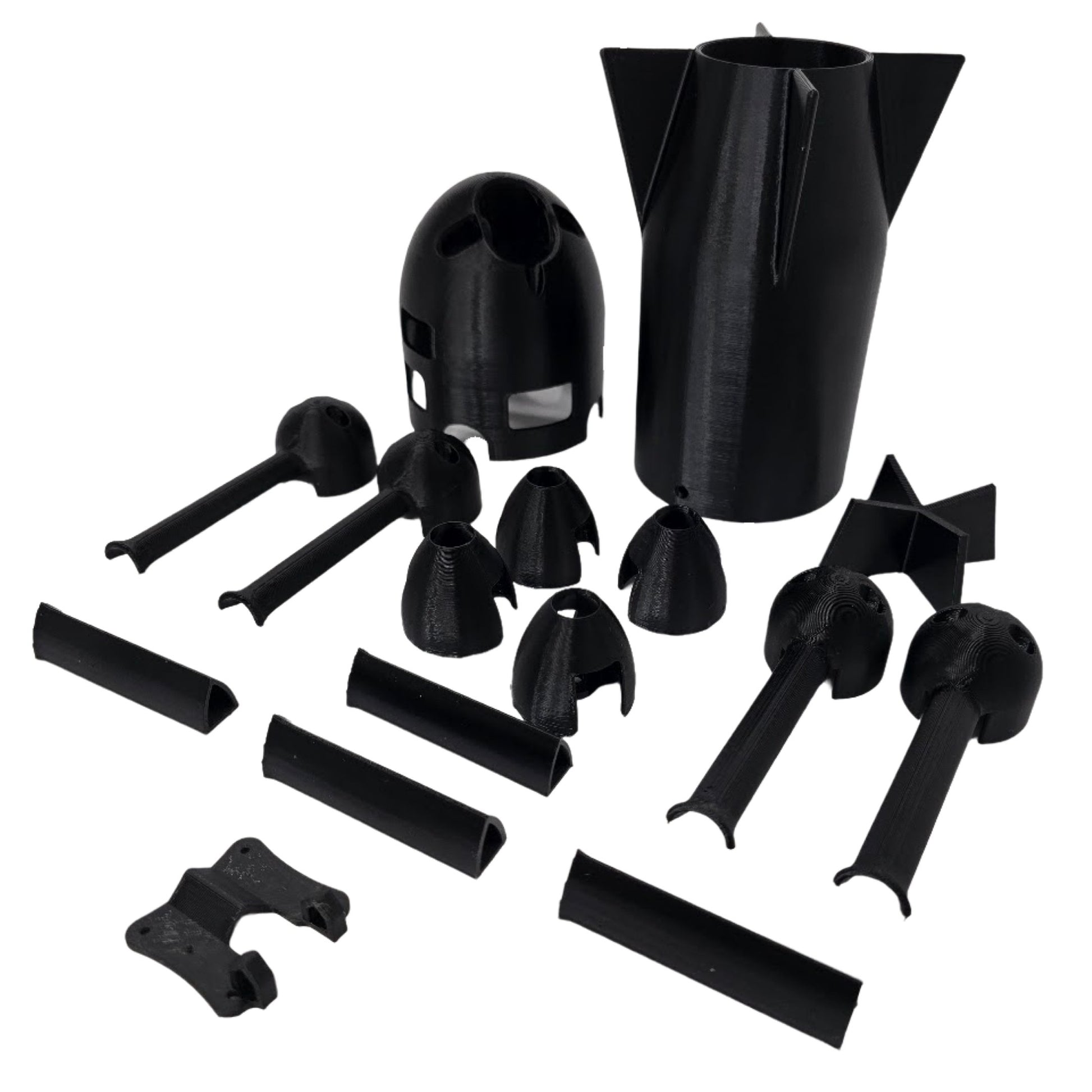

In the Box:

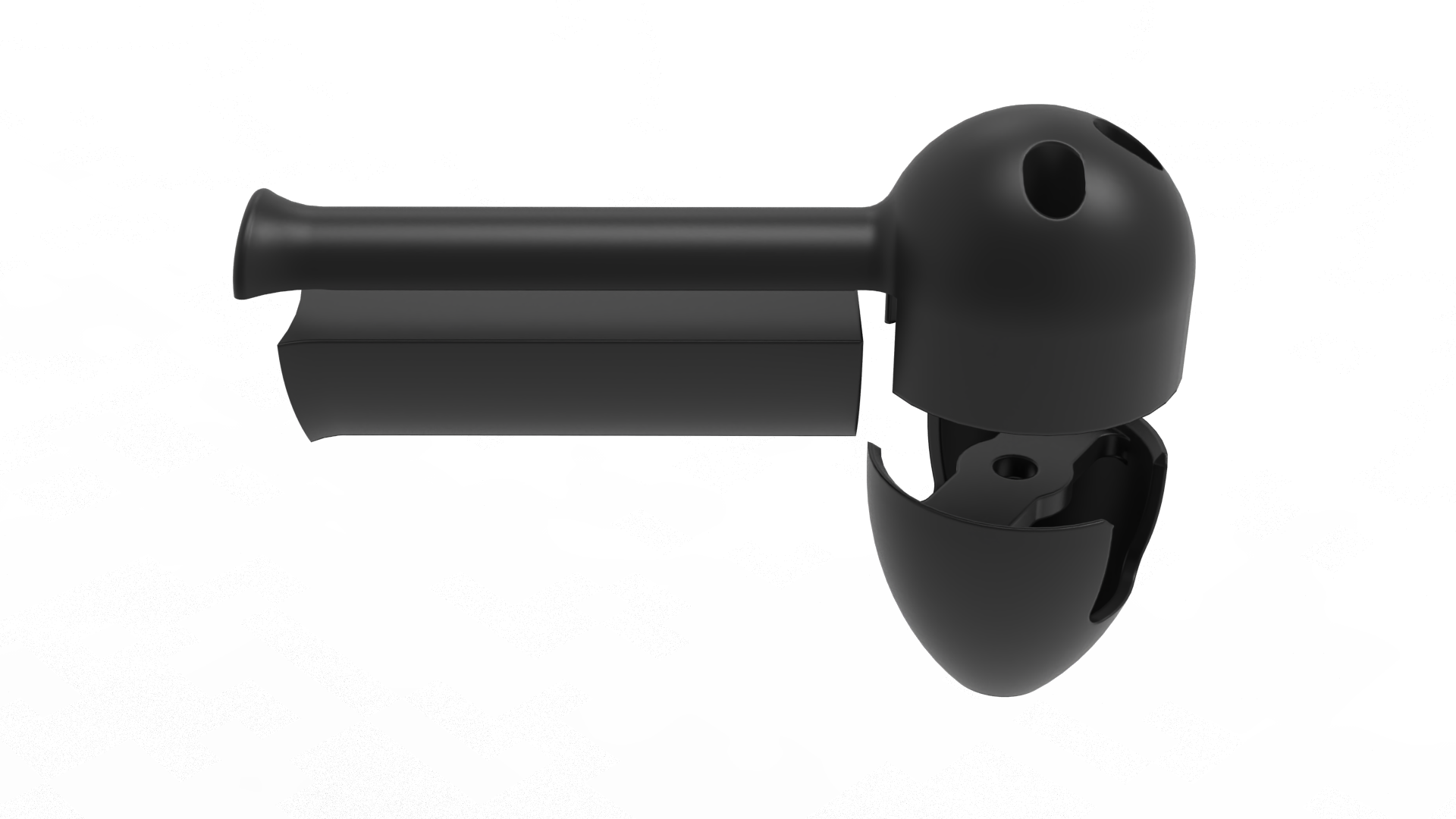

• 1x Set of Aerodynamic Spinners and Fairings (PETG)
• 1x Top Shell for Electronics (PETG)
• 1x Bottom Shell with Battery Mount (PETG)
• 1x Bottom Grid (PETG)
• 1x Antenna Mount (TPU)

Disclaimer:

Accessories and included components may vary based on stock availability.

Please note that none of the carbon or frame hardware necessary to complete this frame are included in this kit!

Please note, the 3D print files for this drone are not available for download!
