Quick Answer
Mounting FPV drone motors involves screwing brushless motors to your frame arms, connecting the three motor wires to the ESC pads, and setting the correct rotation direction in Betaflight. Most FPV builds use M3 screws with 16x16mm or 19x19mm mounting patterns depending on frame size.
What You Need Before Mounting Motors
Before you start, make sure you have the right motors for your frame. Check the mounting hole spacing on your frame arms: most 5-inch frames use a 16x16mm pattern with M3 screws, while smaller whoop and toothpick frames often use 9x9mm or 12x12mm patterns with M2 screws. Your motor stator size (like 2306 or 2207) should match your frame class.
The Axisflying Blackbird V4 2307 is a solid choice for 5-inch freestyle builds, while the AxisFlying C155 suits smaller 2.5 to 3.5-inch cinewhoop frames.
Step-by-Step Motor Mounting
1. Attach Motors to the Frame
Place each motor on a frame arm with the motor wires facing towards the centre of the frame. Insert the mounting screws from underneath and tighten them evenly in a cross pattern (top-left, bottom-right, top-right, bottom-left) to distribute pressure evenly. Do not overtighten, as this can warp the motor base or strip the frame threads.
Use thread-locking compound on the screws if your frame has metal inserts. For carbon fibre frames with plain holes, this is less of a concern but still good practice. Keep screws short enough that they do not touch the motor bell when tightened.
2. Route and Cut Motor Wires
Route the three motor wires along the underside of the frame arm towards the ESC. Keep wires neat and away from moving propellers. Cut wires to length with a small amount of slack, then strip about 2mm of insulation from each end. Tin the exposed wire with solder before attaching it to the ESC pad.
3. Solder Motor Wires to the ESC
Each brushless motor has three wires that connect to the three ESC pads (usually labelled A, B, C or motor 1, 2, 3). The order matters for rotation direction. If you get it wrong, the motor will spin the opposite way, which you can fix later in software.
See our FPV drone wiring guide for detailed soldering technique.
4. Set Motor Direction in Betaflight
After wiring, connect your flight controller to Betaflight and go to the Motors tab. Use the motor tester to spin each motor briefly and confirm the rotation direction matches the propeller direction for that arm position (clockwise or counter-clockwise).
If a motor spins the wrong way, you have two options: swap any two of the three motor wires at the ESC, or reverse the motor direction in Betaflight using the "Motor Direction" toggle. The software method is faster and works on most ESCs running BLHeli_S, Bluejay, or AM32 firmware.
Common Motor Mounting Mistakes

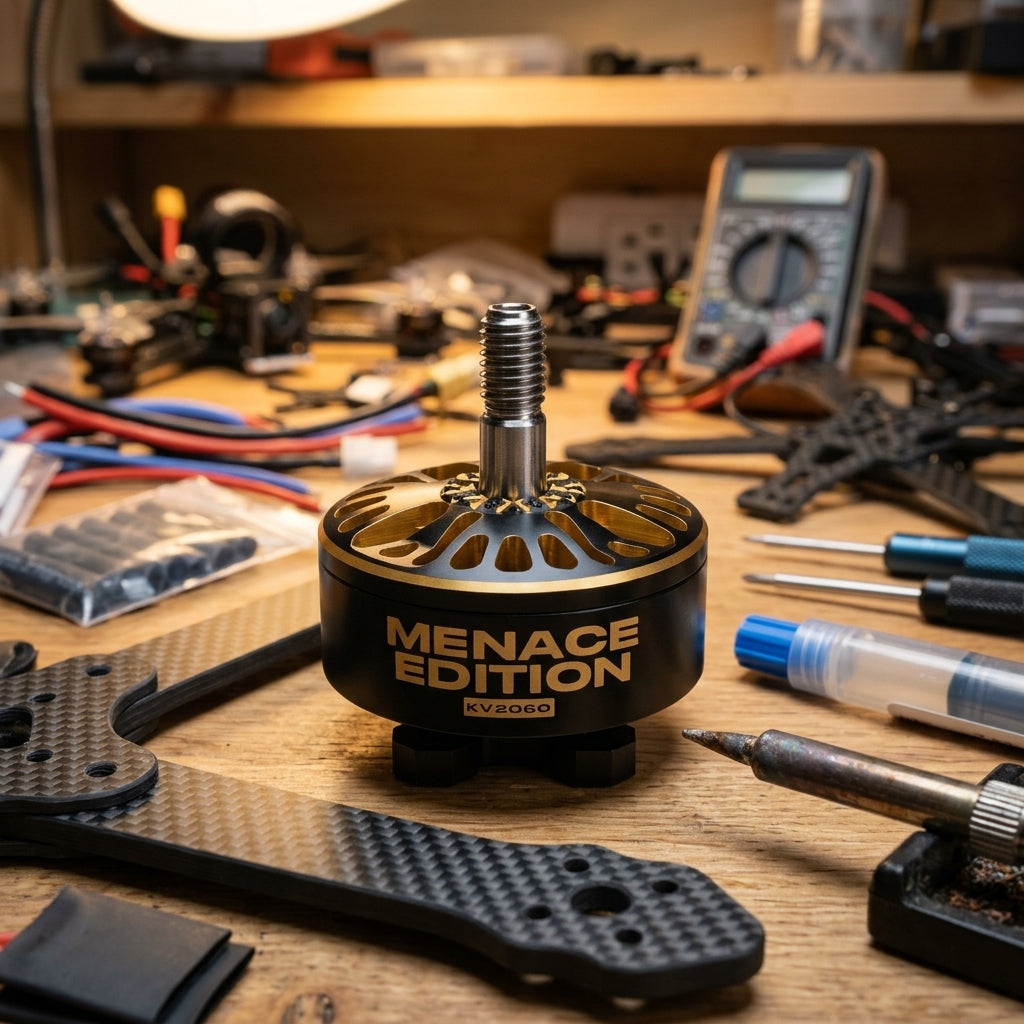

The most frequent mistake is using screws that are too long, which contact the motor stator and cause vibrations or damage. Measure your frame arm thickness and use screws that extend no more than 2-3mm past the frame into the motor base. Another common issue is wire routing that puts stress on solder joints. A small dab of hot glue at each ESC pad acts as strain relief and prevents wires snapping off during crashes.
For motors like the EMAX Eco III 2207, the wire leads are pre-tinned from the factory, making soldering straightforward.
Verifying Your Motor Setup
Before your first flight, run through this checklist:
- All four motors spin freely with no rubbing or grinding sounds
- Motor screws are tight and none touch the motor bell
- Wires are secured and not pinched between frame parts
- Motor directions are correct in Betaflight motors tab
- Props are off when testing motor direction
Once verified, you can move on to mounting propellers and completing your build. For help choosing the right motors for your frame size, see our motor, ESC and prop matching guide, or browse our full range of brushless motors.
FAQ
Q: What screws do I need for FPV drone motors?
A: Most 5-inch class motors use M3x5mm or M3x6mm screws. Smaller whoop motors use M2x4mm or M2x5mm. Always check your motor specification sheet for the recommended screw length.
Q: Can I reverse motor direction without resoldering?
A: Yes. In Betaflight, go to the Motors tab and toggle the motor direction for each motor. This works with BLHeli_S, Bluejay, and AM32 ESC firmware. You may need to enable bidirectional DShot for some features like RPM filtering.
Q: Why does my motor vibrate after mounting?
A: Check for bent motor shafts, loose screws, screws touching the motor bell, or an unbalanced propeller. A small amount of vibration is normal, but excessive shaking usually indicates a bent shaft or damaged bearing from a crash.
