Quick Answer
Balance your FPV drone by finding the centre of gravity (COG) point, then adjust battery and component placement until the quad hovers level with minimal trim. Position your flight controller on the COG mark, and move heavier components closer to this point for stable flight characteristics.
Finding Your Drone's Centre of Gravity
The centre of gravity is the single point where your drone's weight is evenly distributed in all directions. When properly balanced, your quad requires minimal stick input to maintain level flight. When incorrectly balanced, you will fight constant drift, one corner drops faster than others, and tuning becomes nearly impossible.
Locating the COG point requires a simple test. Suspend your drone using two fingers or a balance stand, placing one support under each arm. Gently push one support backwards until the drone balances level. Mark this point on your frame with a small sticker or tape. This is your ideal COG location for component placement.
Most frames have recommended COG marks printed on the main plate, but these are only guidelines. Actual balance depends on your specific build choices, so physical testing always beats following printed marks alone. The goal is to achieve neutral balance when your drone is fully assembled with all batteries and equipment installed.
Component Placement for Balance

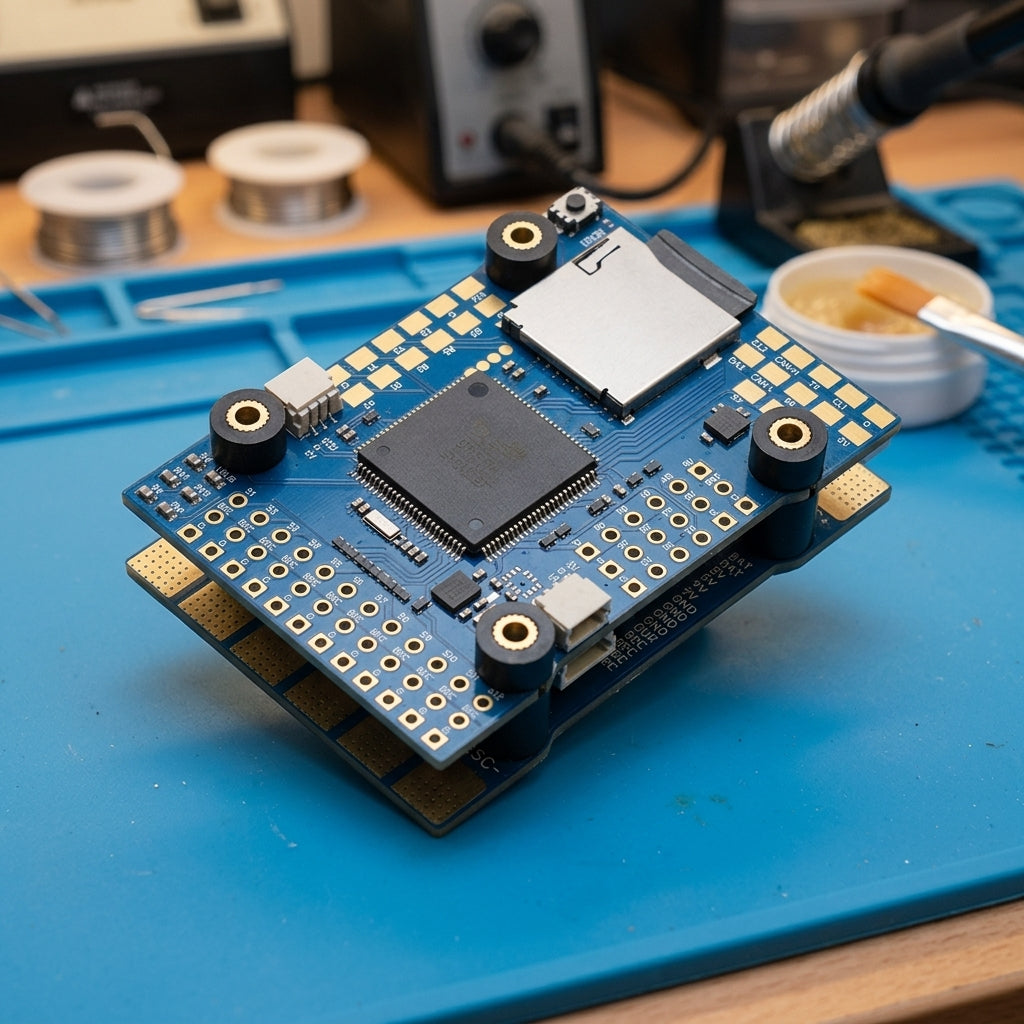

Flight controller placement is critical for balance. Mount your FC directly on the COG point whenever possible. The iFlight BLITZ H743 Wing Flight Controller and similar boards are designed to sit on the frame centre line. When positioned correctly, gyro data becomes more accurate and PID tuning responds predictably.
Batteries represent the heaviest single component in most builds. Your main flight battery should sit as close to the COG as possible. Slide the battery forward or backward in its strap until balance improves slightly. Some pilots even drill additional battery mounting holes at the perfect COG location rather than using stock positions.
Other components follow a simple rule: heavy items near the centre, light items towards the edges. This includes receivers, video transmitters, and GPS modules. If you find yourself constantly adding trim in one direction, that corner is carrying more weight than its opposite.
Testing and Fine-Tuning Balance
After initial placement, perform an in-flight balance check. Arm your drone and lift off to a hover height of about one metre. Release the sticks to centre. A perfectly balanced drone will hold position with minimal drifting. If one side drops, that arm is carrying more weight than its opposite.
Don't rush this process. Small adjustments of a few millimetres can make significant differences in flight feel. Recheck your balance after any major component change, especially upgrading motors or switching to a different frame size. What works for one build rarely transfers directly to another.
Beginners often skip balancing entirely, then wonder why their drone flies poorly. Taking fifteen minutes to balance before your first flight saves hours of frustration later. Balance affects every aspect of flight feel, from throttle response to cornering capability.
FAQ
Q: Does COG affect acro vs angle mode flying?
A: Angle modes are more forgiving of poor balance because the flight controller constantly corrects orientation. Acro mode reveals balance issues immediately since the quad continues in the direction of last input. Perfect balance matters most for freestyle and acro flying.
Q: Should I balance my drone without props installed?
A: Yes, balance without props to find the true COG point. Props introduce uneven weight distribution that masks balance problems. Add props only after your frame and electronics are balanced, then perform one final hover test.
Q: Can I use tape to add weight for balancing?
A: Adding weight is a last resort. First try repositioning existing components. Small adhesive lead squares can work for final fine-tuning, but moving parts is always preferable to adding unnecessary mass. Every gram you add reduces flight time and performance.
